Center Mounted Brake Lamp: Service and Repair

REPLACEMENT

HINT: Install is in the reverse order of removal.




1. REMOVE CENTER STOP LAMP ASSEMBLY

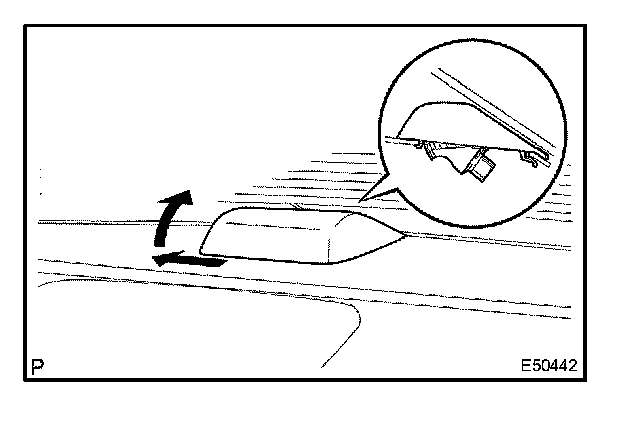

a. Slide the center stop lamp assembly as shown in the illustration to remove it.
b. Disconnect the connector.
