Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

HINT: Inspect the related "Fuse" and "Relay" before confirming the suspected area as shown in the charts.

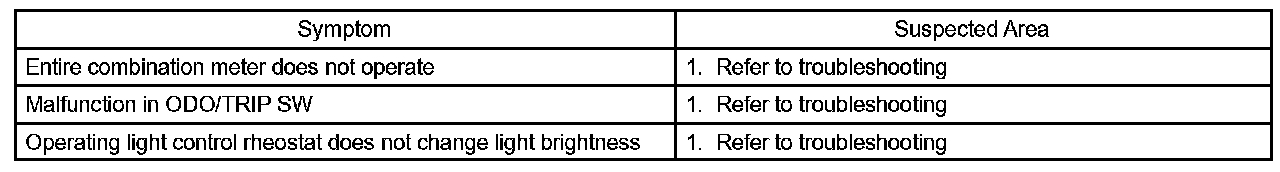

Problem Symptoms Table-Malfunction System:

Problem Symptoms Table-Meter Gauges:

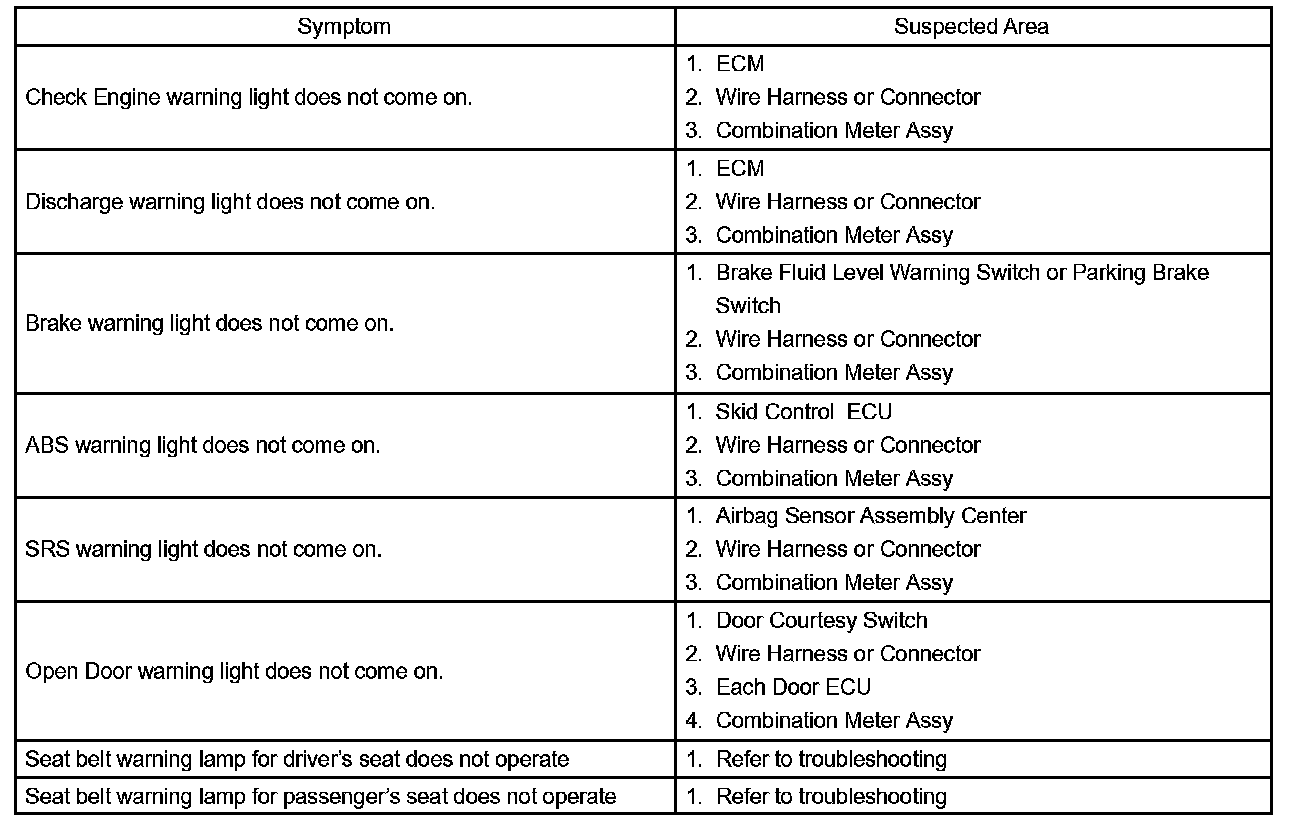

Problem Symptoms Table-Warning Lights:

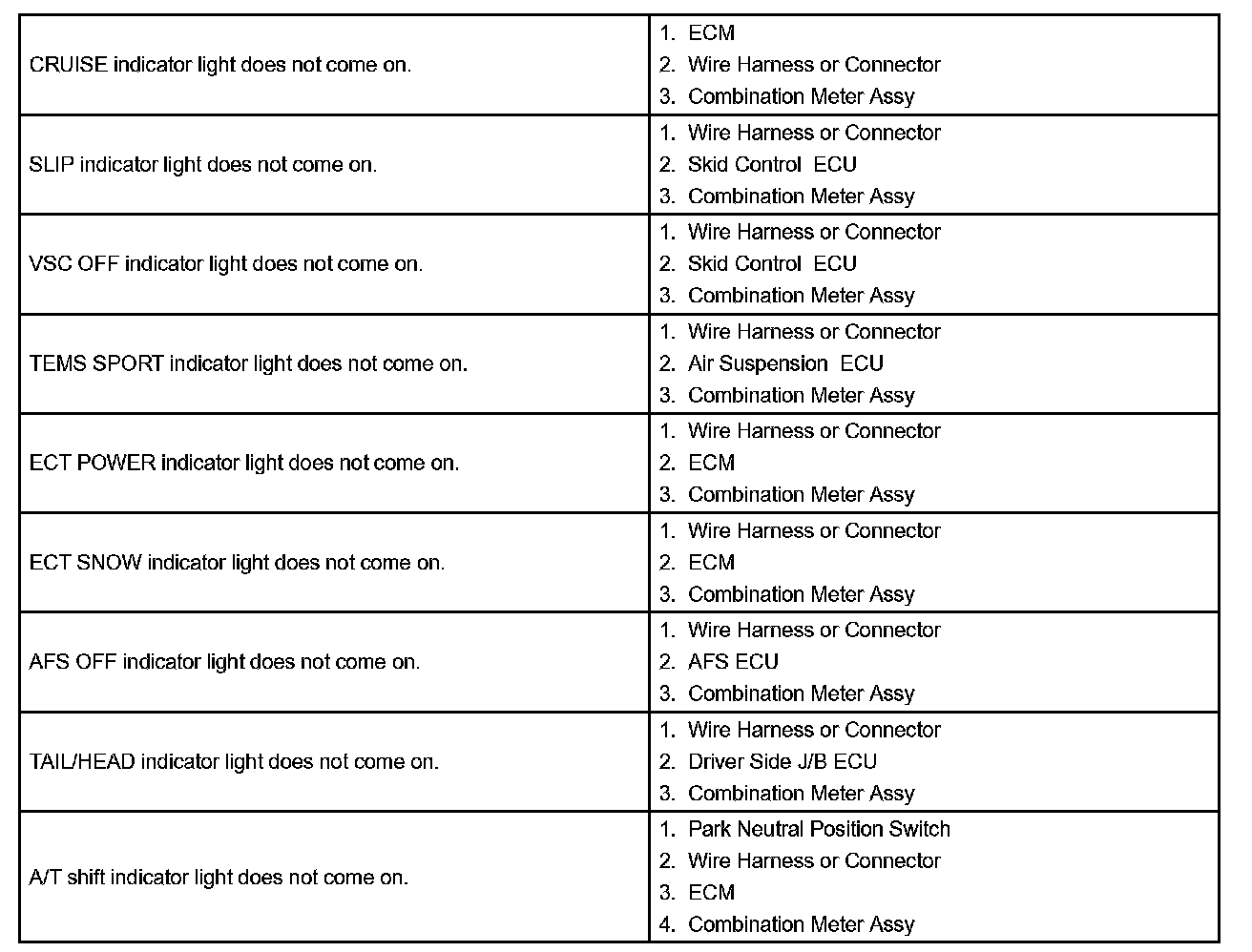

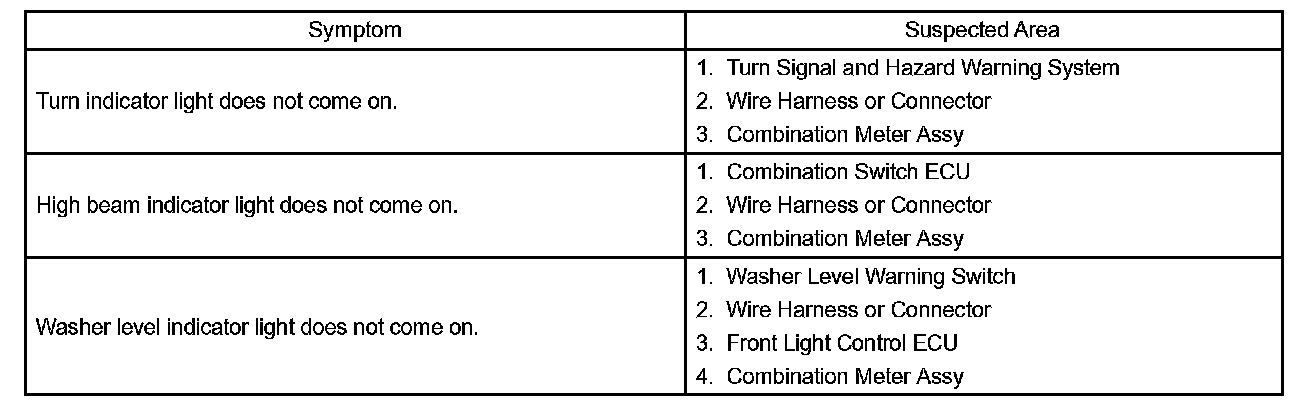

Problem Symptoms Table-Indicator Lights (Part 1):

Problem Symptoms Table-Indicator Lights (Part 2):

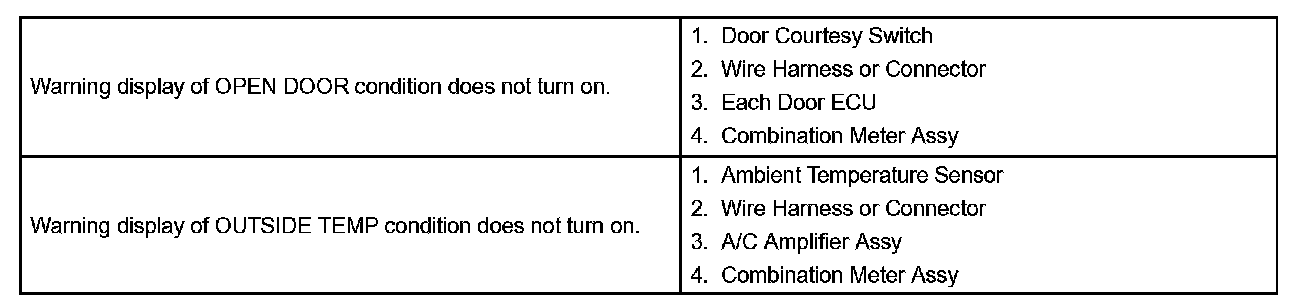

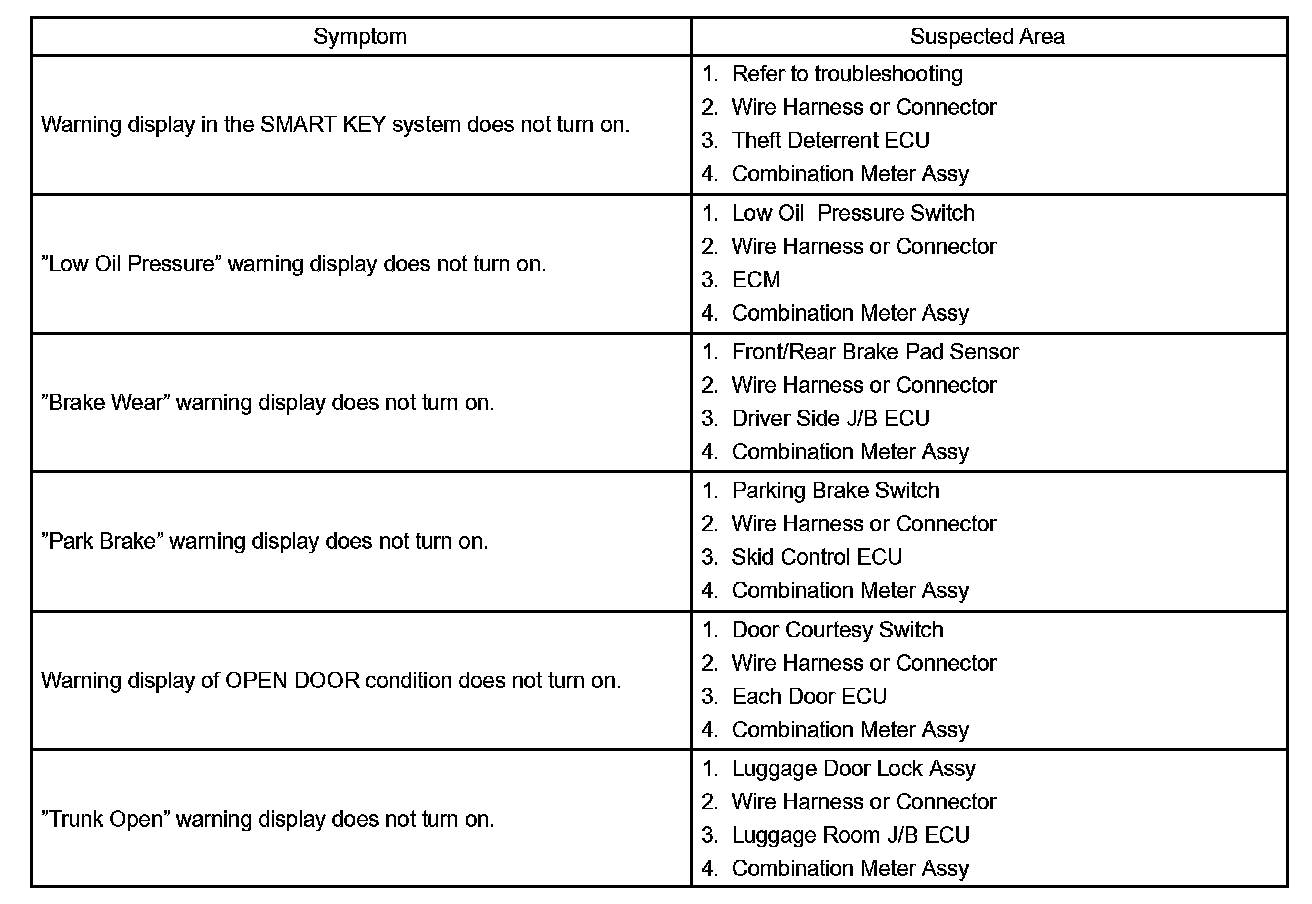

Problem Symptoms Table-Warning Area (Part 1):

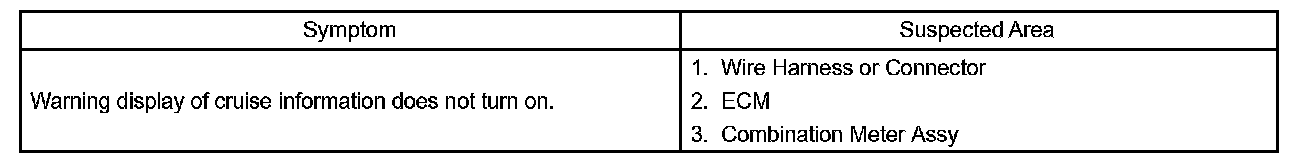

Problem Symptoms Table-Warning Area (Part 2):

Problem Symptoms Table-Computer Area:

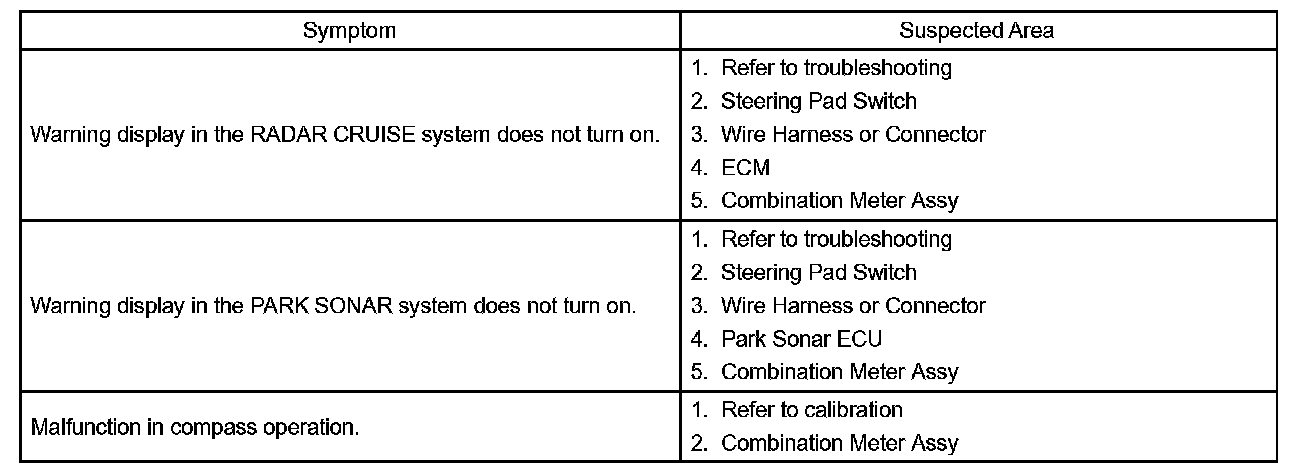

Problem Symptoms Table-Graphic Area (Part 1):

Problem Symptoms Table-Graphic Area (Part 2):

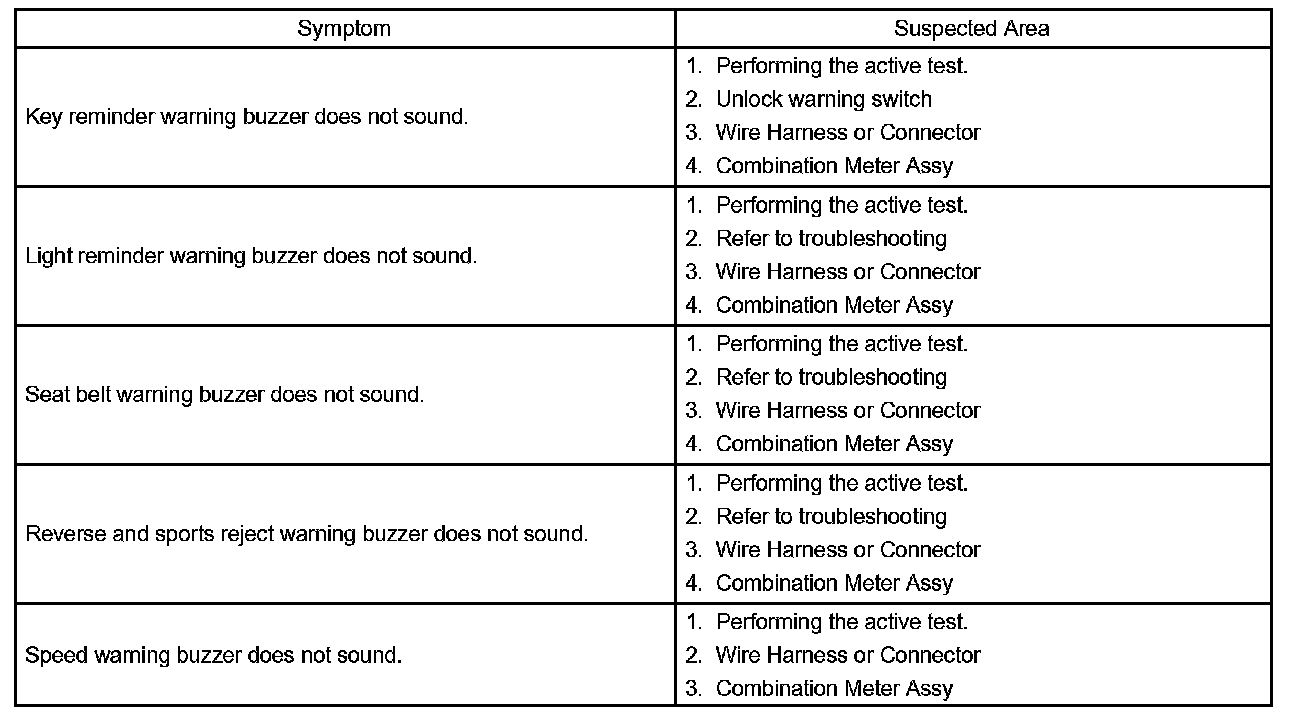

Problem Symptoms Table-Buzzer:

HINT: Refer to on vehicle inspection in the combination meter.
