Cigarette Lighter Assy Rear
CIGARETTE LIGHTER ASSEMBLY REARREPLACEMENT
HINT:
- Installation is in the reverse order of removal.
1. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
2. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
3. REMOVE INSTRUMENT PANEL CUP HOLDER ASSEMBLY
4. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
5. REMOVE CONSOLE BOX CARPET
6. REMOVE REAR CONSOLE ARMREST ASSEMBLY
7. REMOVE CONSOLE BOX PLATE
a. Disconnect the connector.

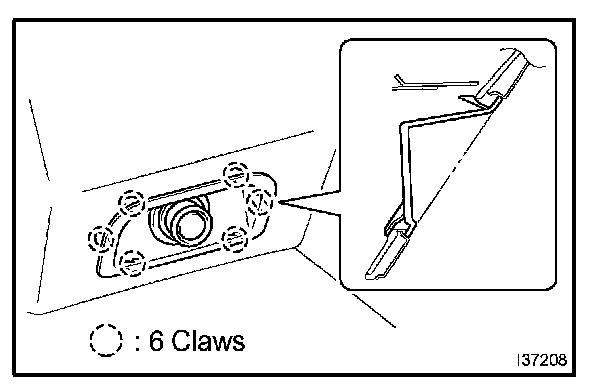

b. Disengage the 6 claws and remove the console box plate.

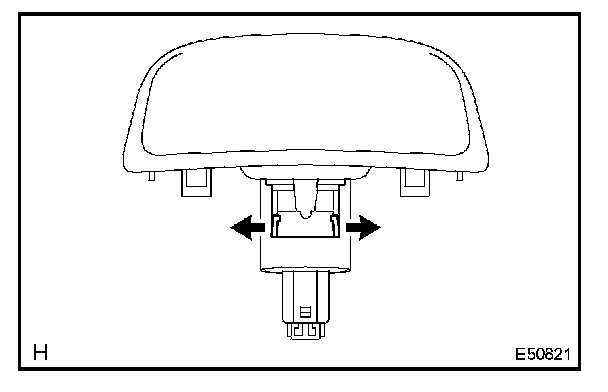

8. REMOVE CIGARETTE LIGHTER COVER REAR
a. Disengage the 2 claws and remove the cigarette lighter cover rear.
9. REMOVE CIGARETTE LIGHTER ASSEMBLY REAR

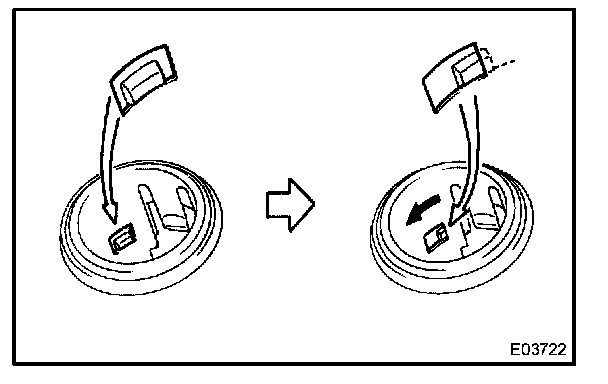

a. Turn the socket counterclockwise as shown in the illustration.
b. Disengage the claw between the socket and the cigarette lighter bezel stay, and push out the socket.
c. Align the socket with the notch on the cigarette lighter bezel stay, and remove the cigarette lighter assembly.
10. REMOVE CIGARETTE LIGHTER BEZEL STAY REAR
11. REMOVE CIGAR LIGHTER HOLE BEZEL
12. INSTALL CIGARETTE LIGHTER ASSEMBLY
a. Align the socket with the notch on the cigarette lighter bezel stay, push in the cigarette lighter assembly as hard as possible to install it.
