Cigarette Lighter Assy
CIGARETTE LIGHTER ASSEMBLYREPLACEMENT
HINT:
- Installation is in the reverse order of removal.
1. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
2. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
3. REMOVE CIGARETTE LIGHTER ASSEMBLY

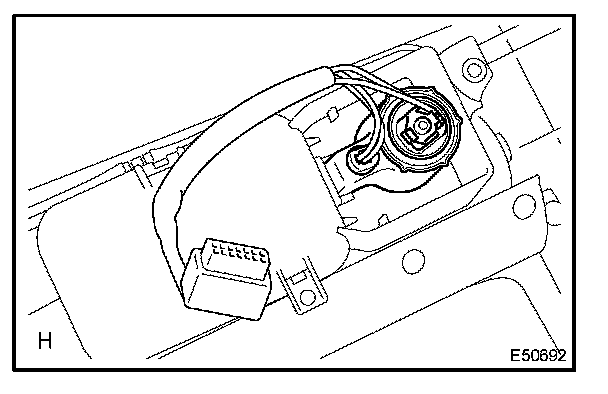

a. Rotate the socket cap counterclockwise to remove it.
b. Remove the cigarette lighter assembly from the cigar-lighter hole bezel.
4. INSTALL CIGARETTE LIGHTER ASSEMBLY
a. Properly position the socket and ring at the cutout of the cigar-lighter hole bezel and insert them.
b. Rotate the socket cap clockwise from the backside.
