Driver Door ECU Power Source Circuit

DRIVER DOOR ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit supplies power to operate the driver door ECU.

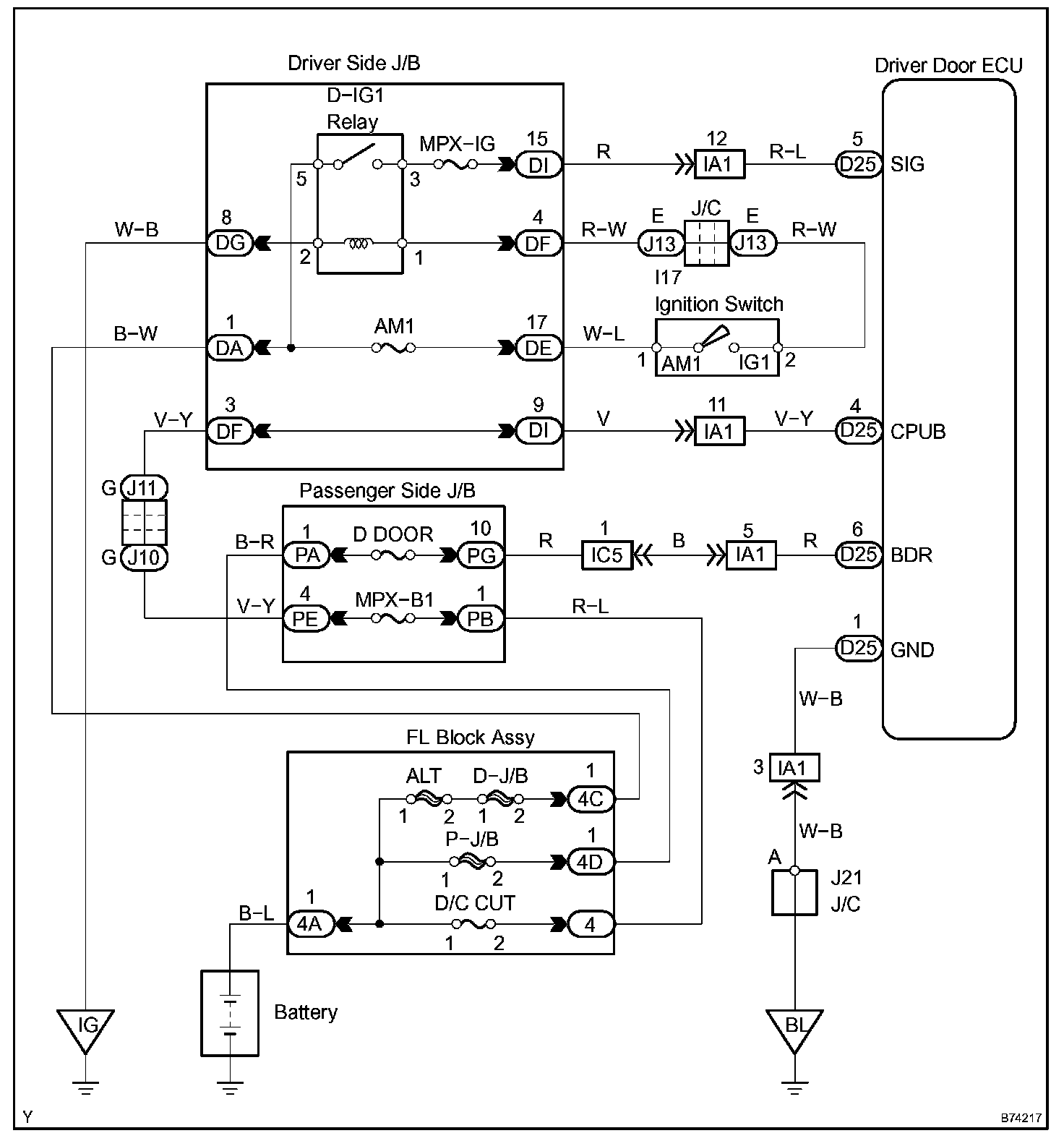

Wiring Diagram:

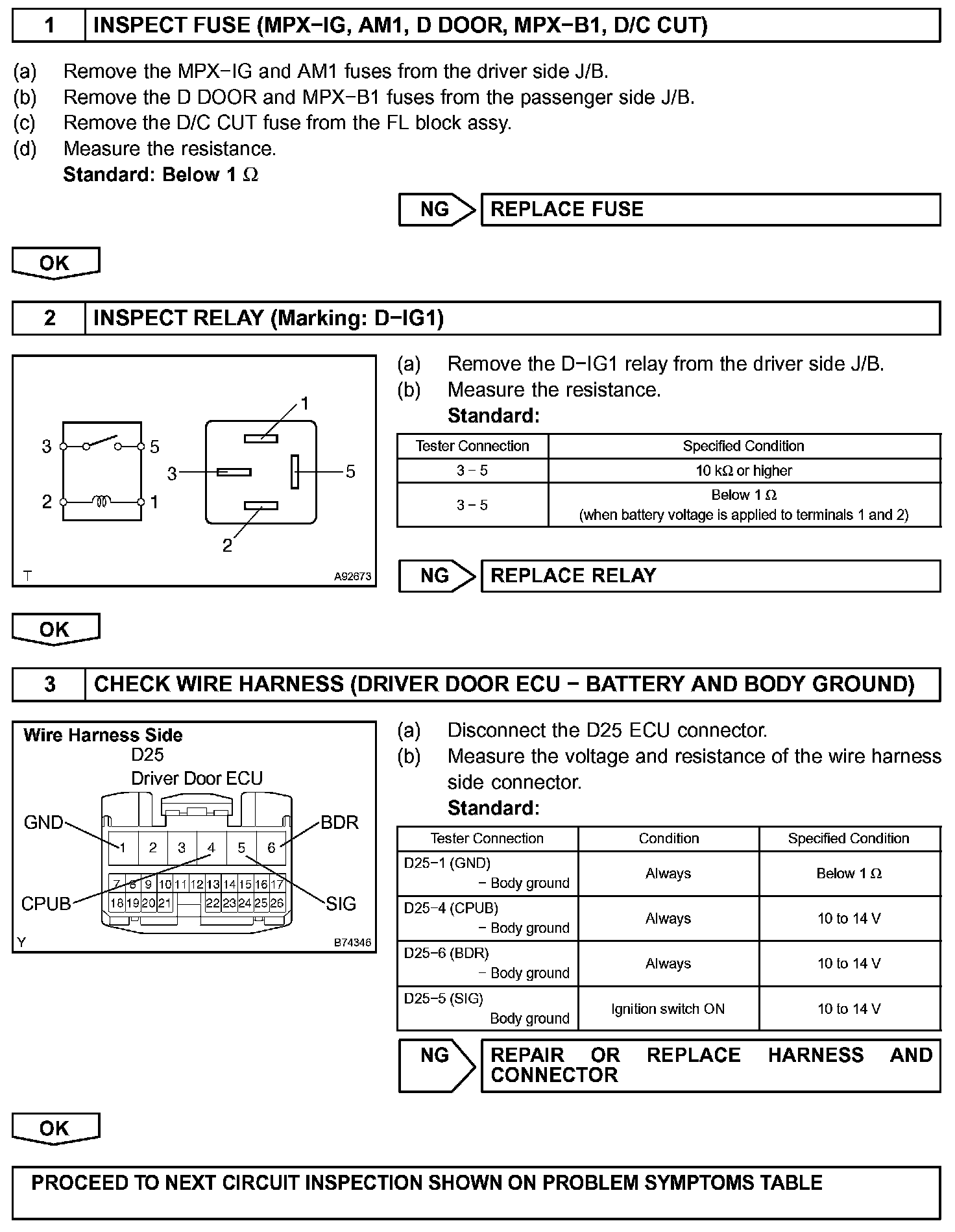

Step 1-3:




INSPECTION PROCEDURE
