Door Courtesy Switch Circuit

DOOR COURTESY SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The driver door ECU detects the condition of the front door courtesy lamp switch and sends a switch signal to the related ECUs via the multiplex communication circuit.

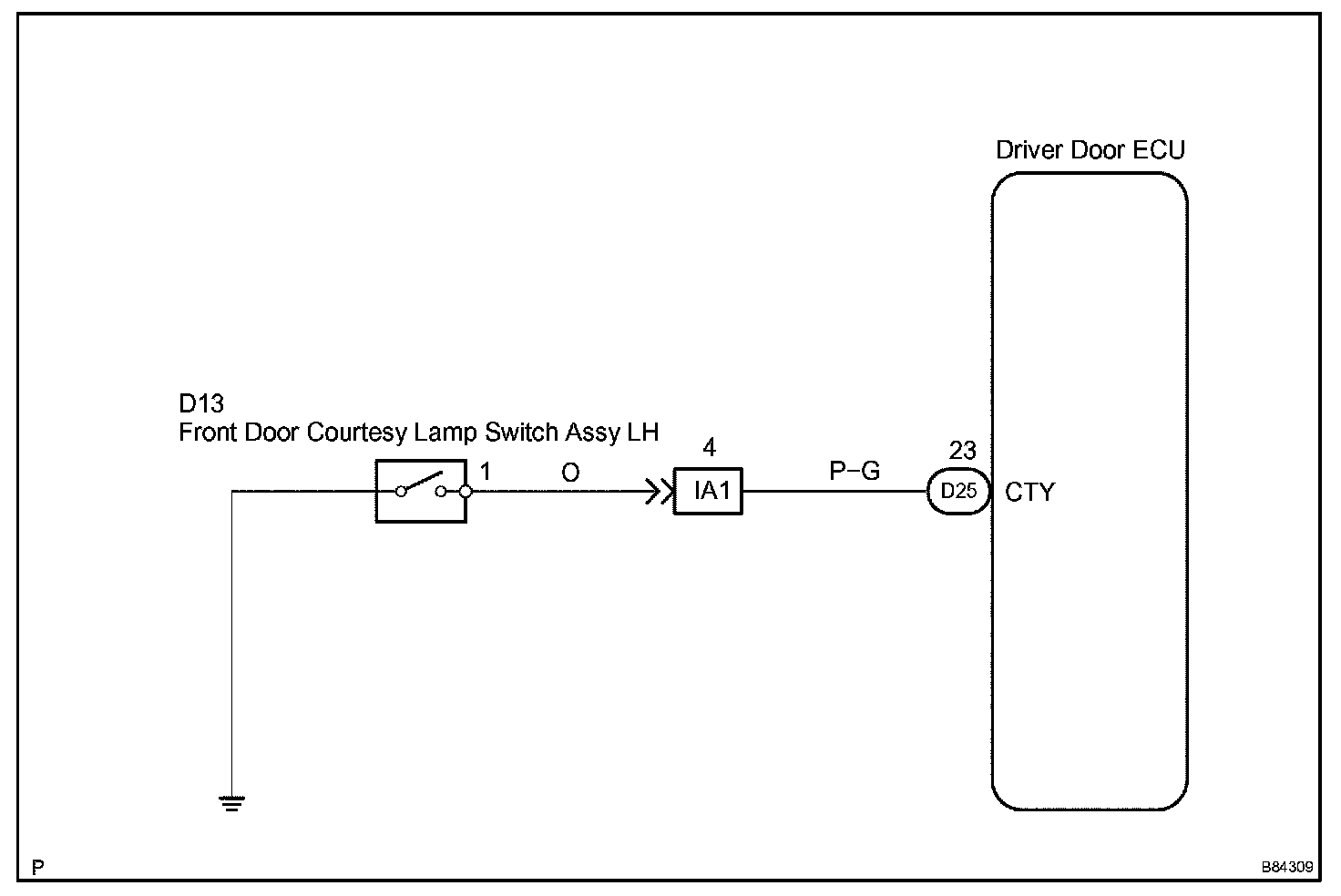

Wiring Diagram:

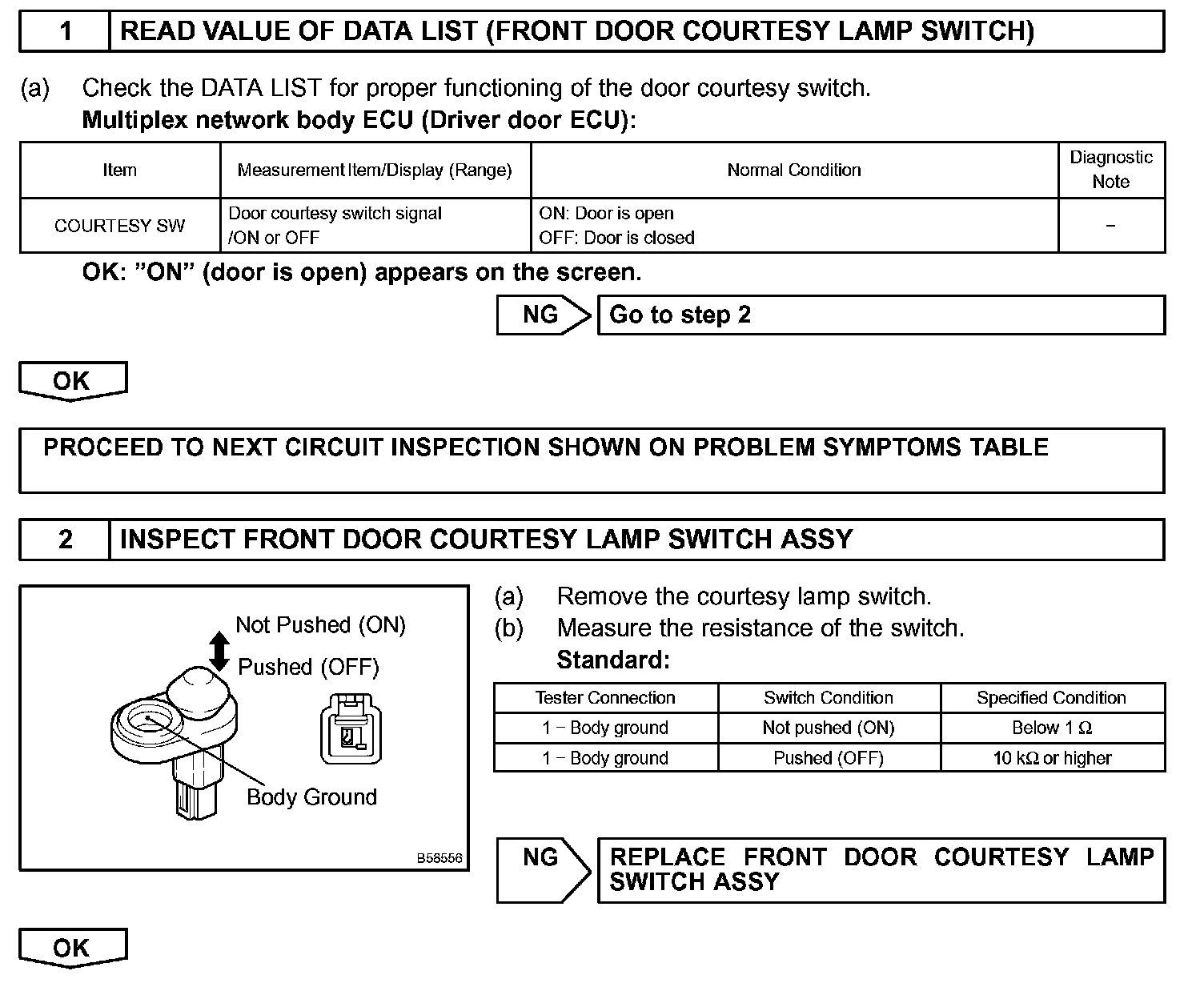

Step 1-2:

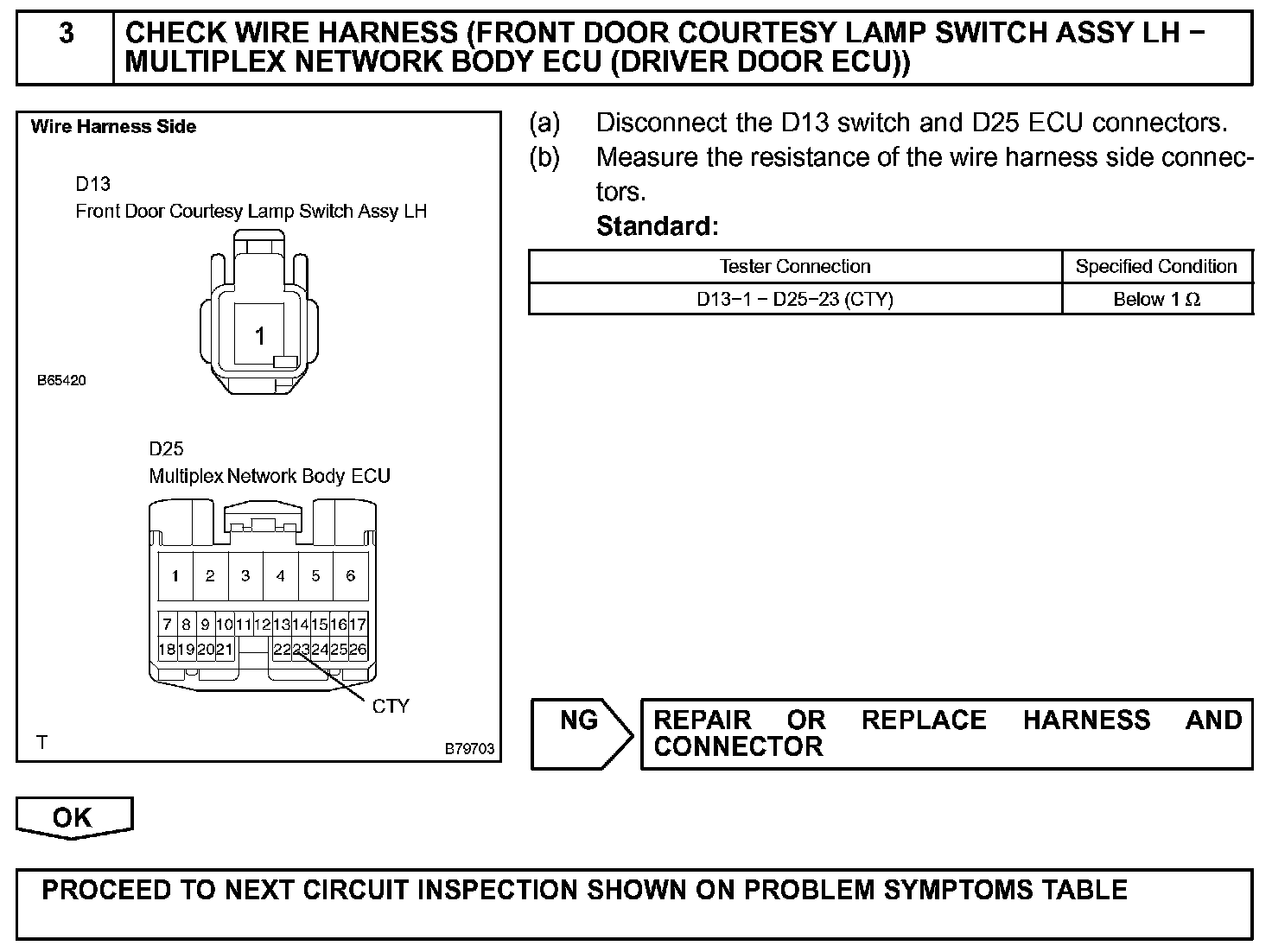

Step 3:

INSPECTION PROCEDURE
