Indicator Check

INDICATOR CHECK

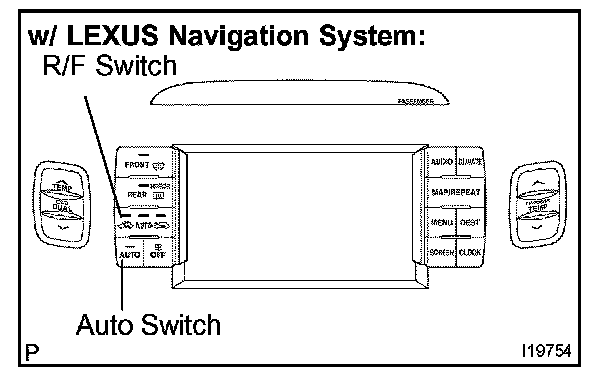

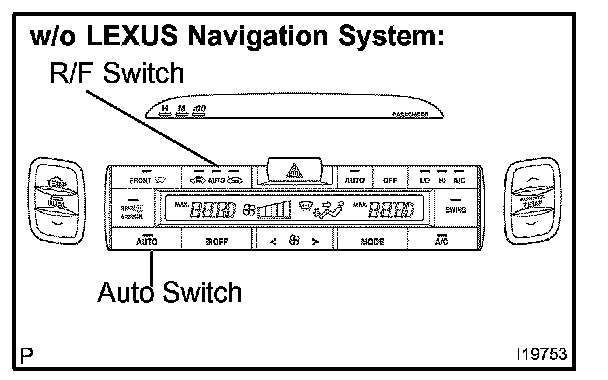

a. Turn the ignition switch to the ON position while pressing the A/C control AUTO switch and R/F (Recirculation/ Fresh) switch simultaneously.

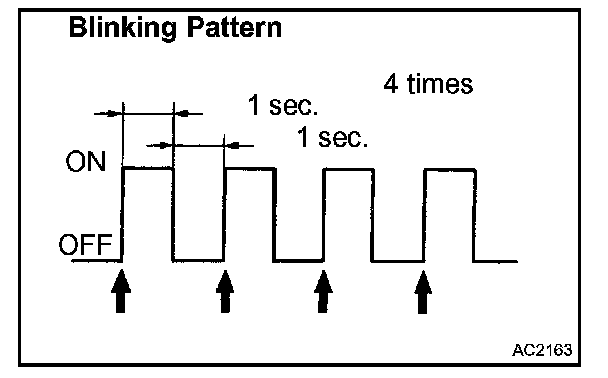

b. Check that the all indicators come on and go off 4 times in succession at 1 second intervals.

HINT:
- After the indicator check is completed, the system enters the DTC mode automatically.
- Press the "OFF" switch to cancel the indicator mode.
