WATER VALVE CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

This circuit controls the amount of the coolant flowing to the heater core by a signal from the A/C amplifier, and adjusts the temperature at the air outlets.

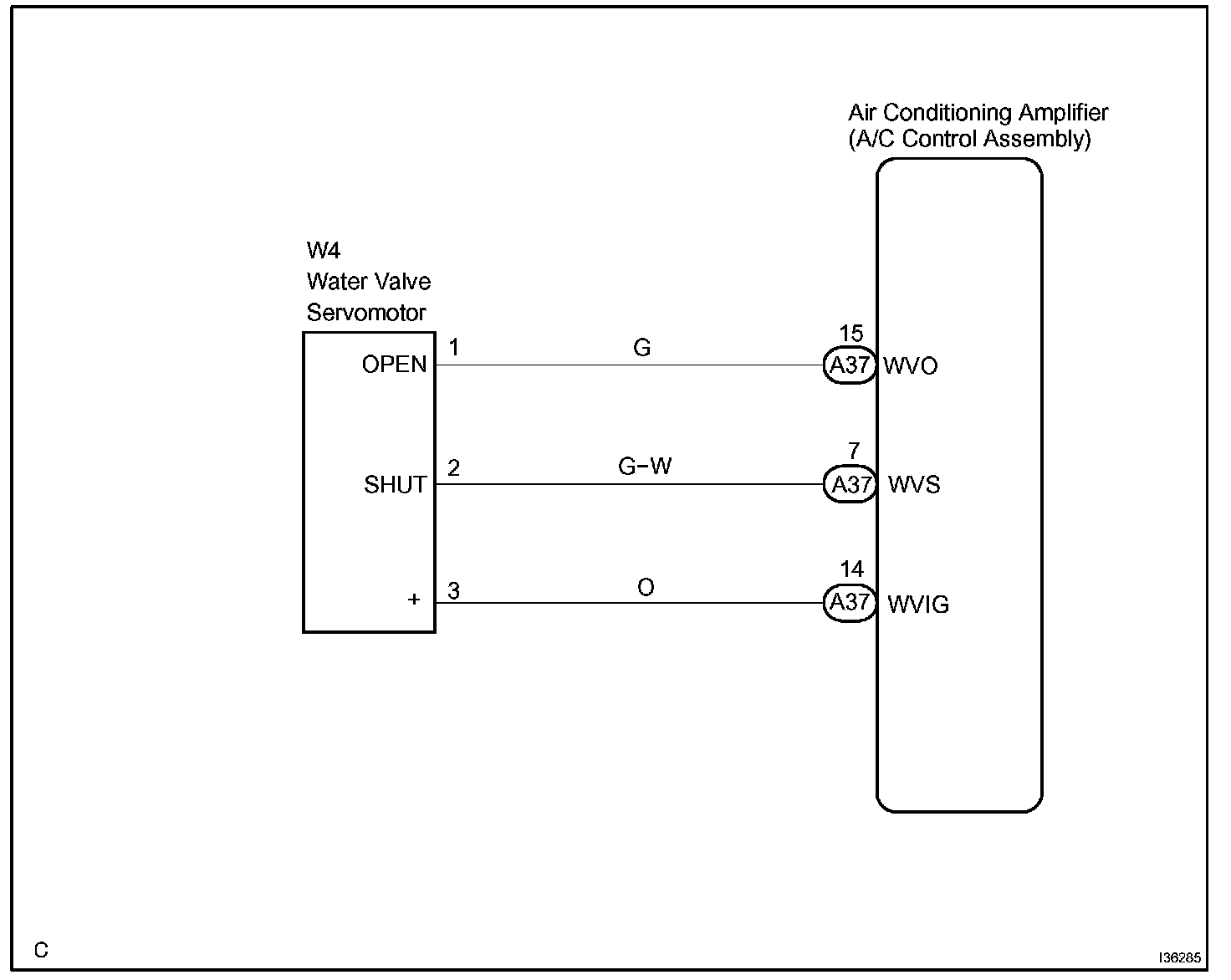

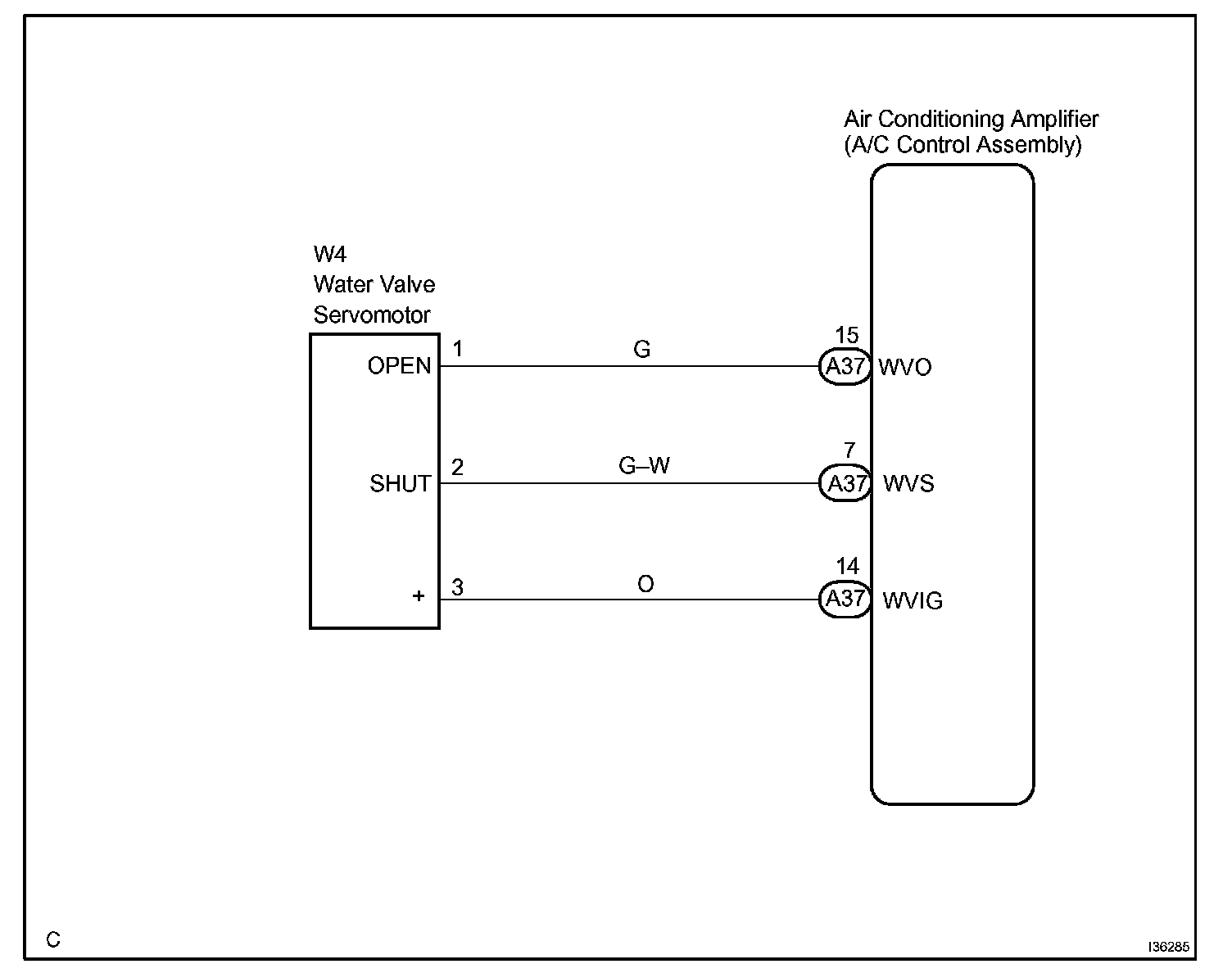

Wiring Diagram:

Step 1-2:

Step 3:

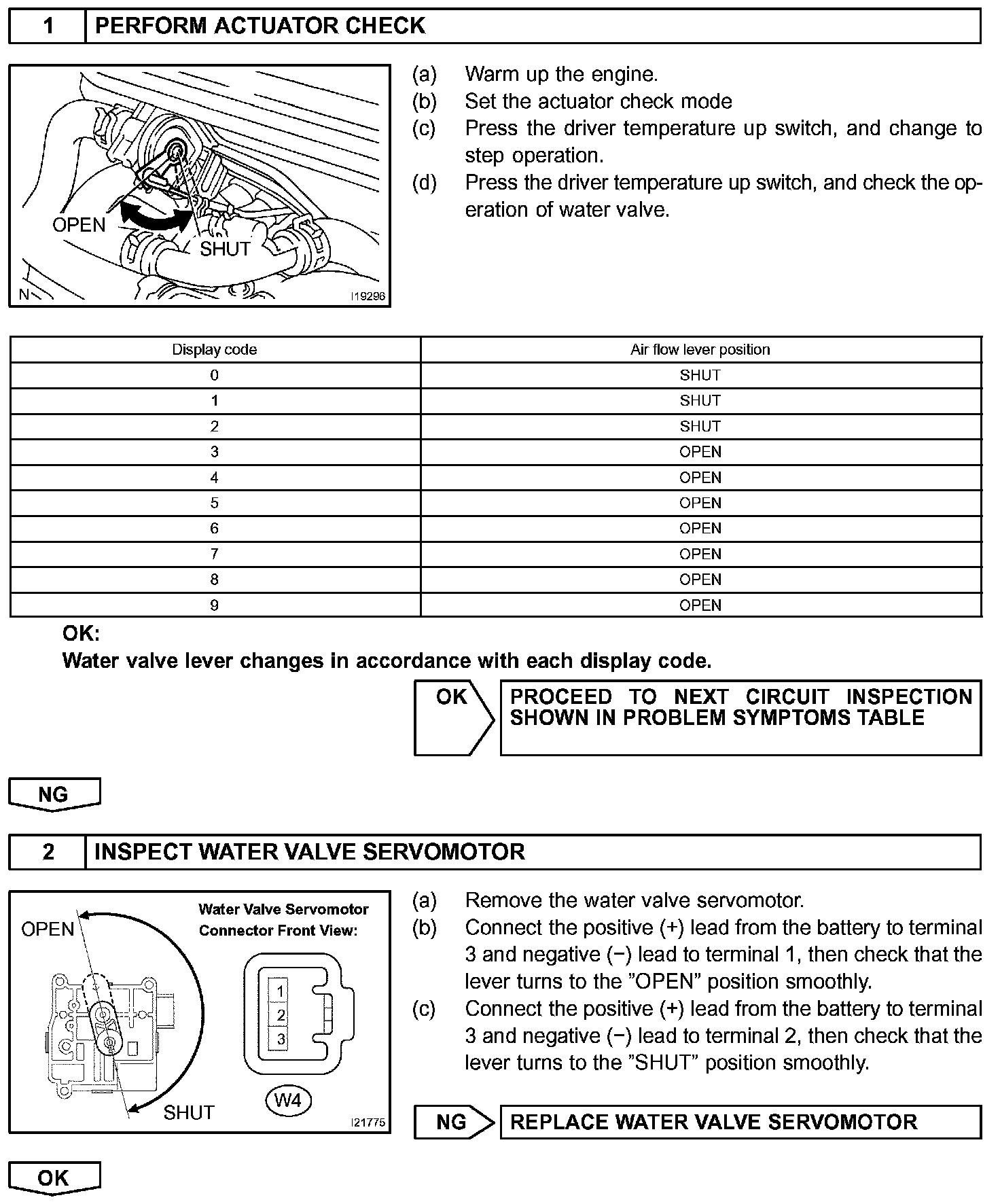

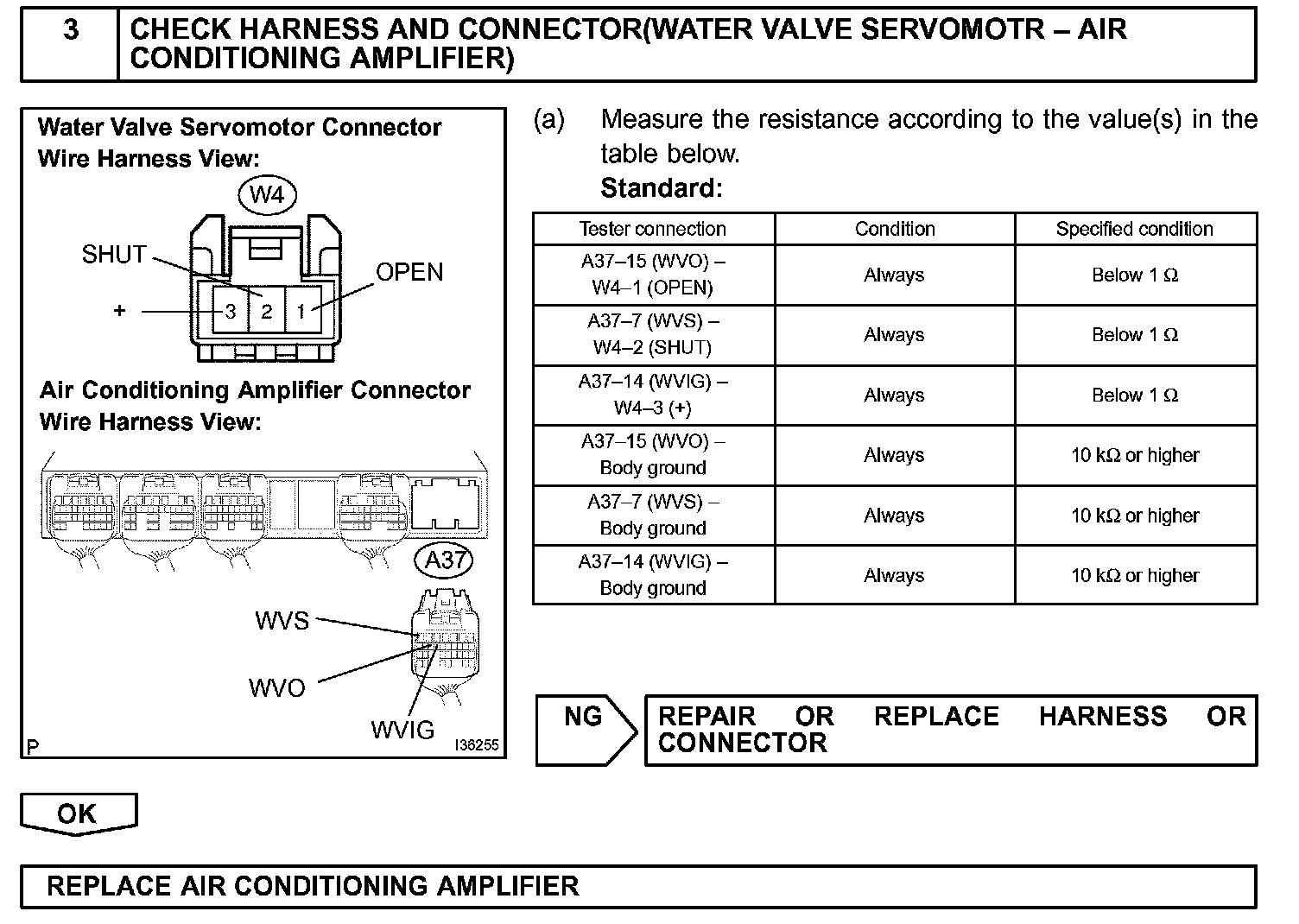

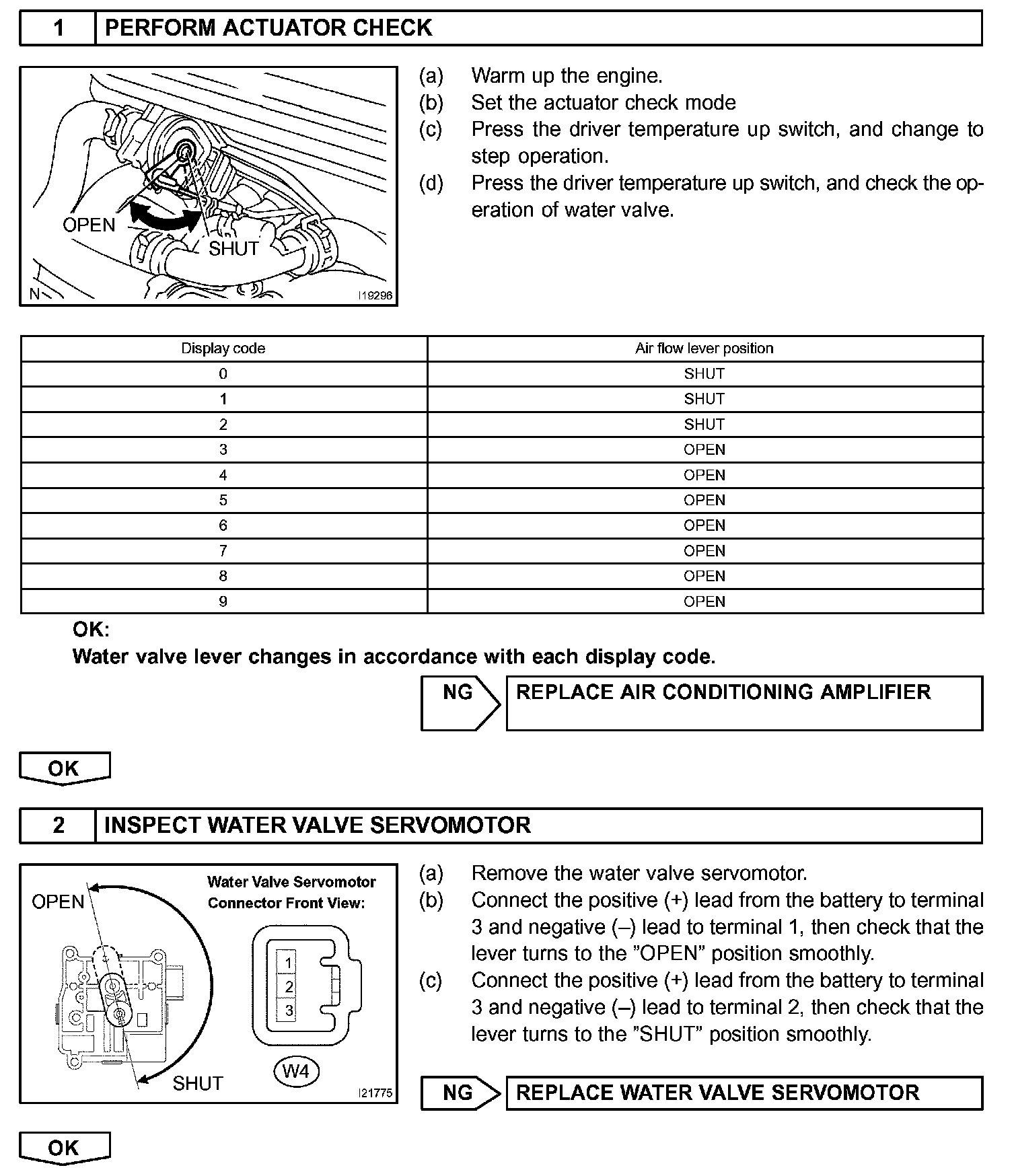

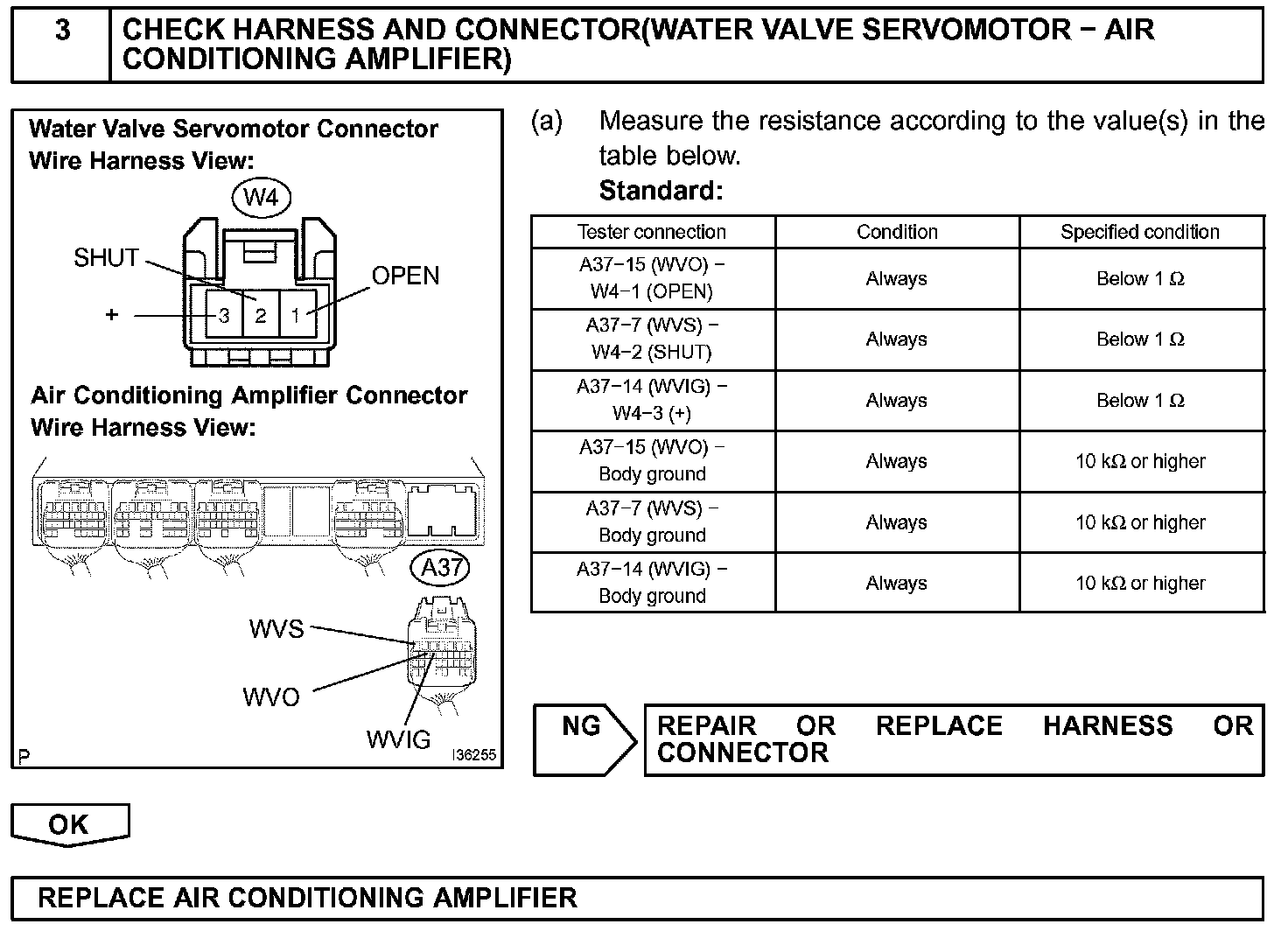

INSPECTION PROCEDURE
