Rear Magnetic Valve Circuit
REAR MAGNETIC VALVE CIRCUITCIRCUIT DESCRIPTION
The rear magnetic valve is controlled by luggage room J/B ECU and A/C amplifier operation.

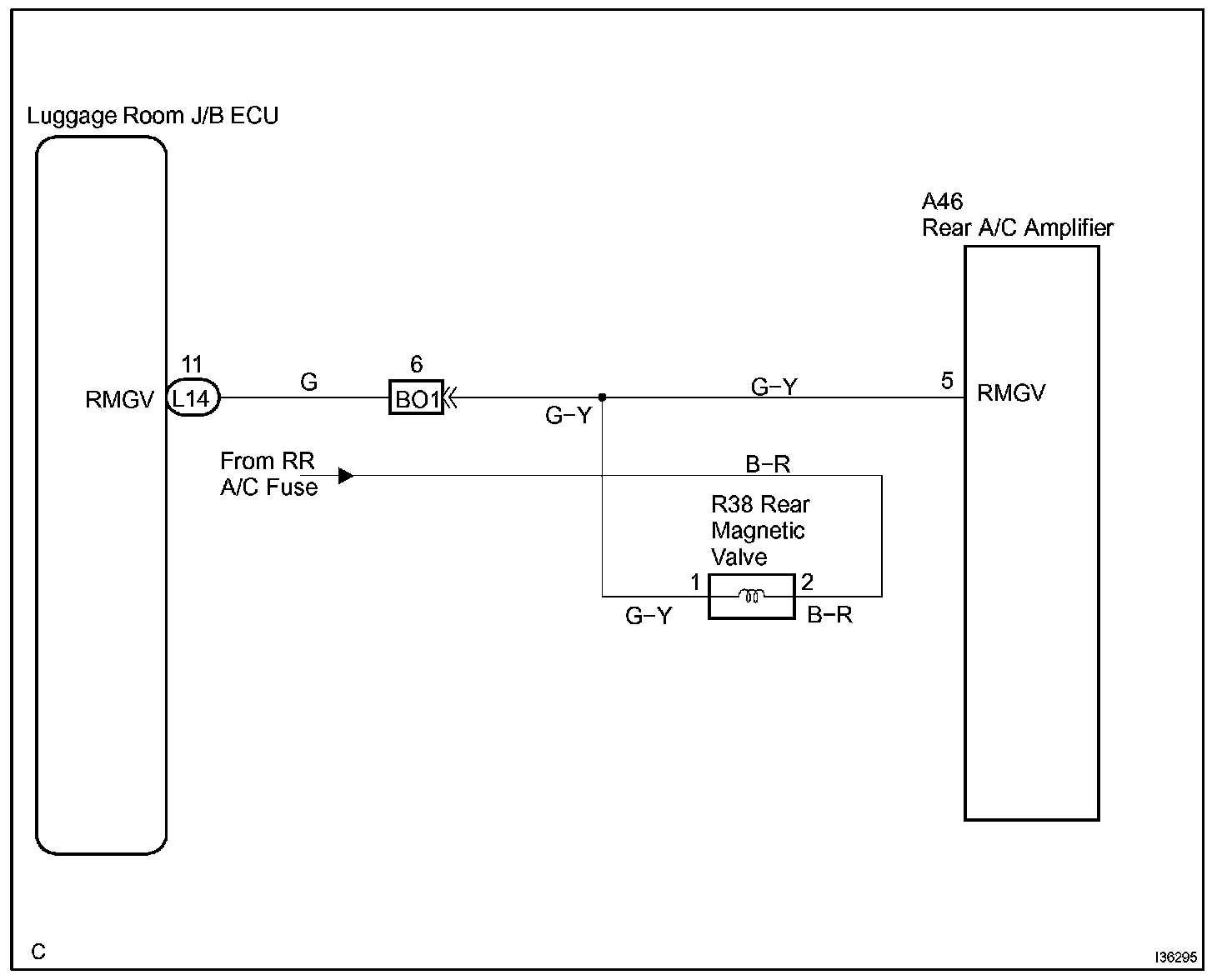

Wiring Diagram:

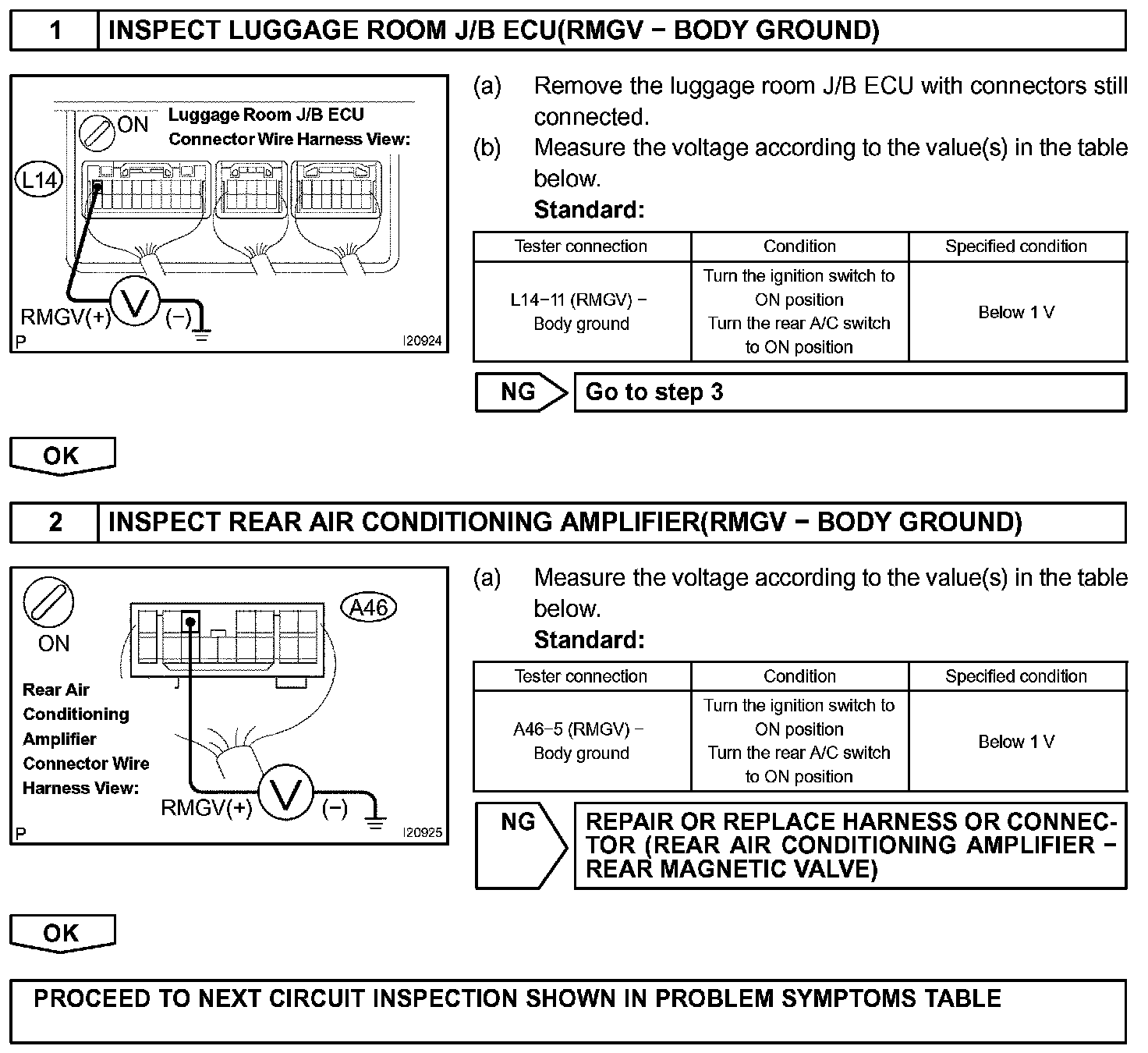

Step 1-2:
Step 3-4:
INSPECTION PROCEDURE
CIRCUIT DESCRIPTION
The rear magnetic valve is controlled by luggage room J/B ECU and A/C amplifier operation.

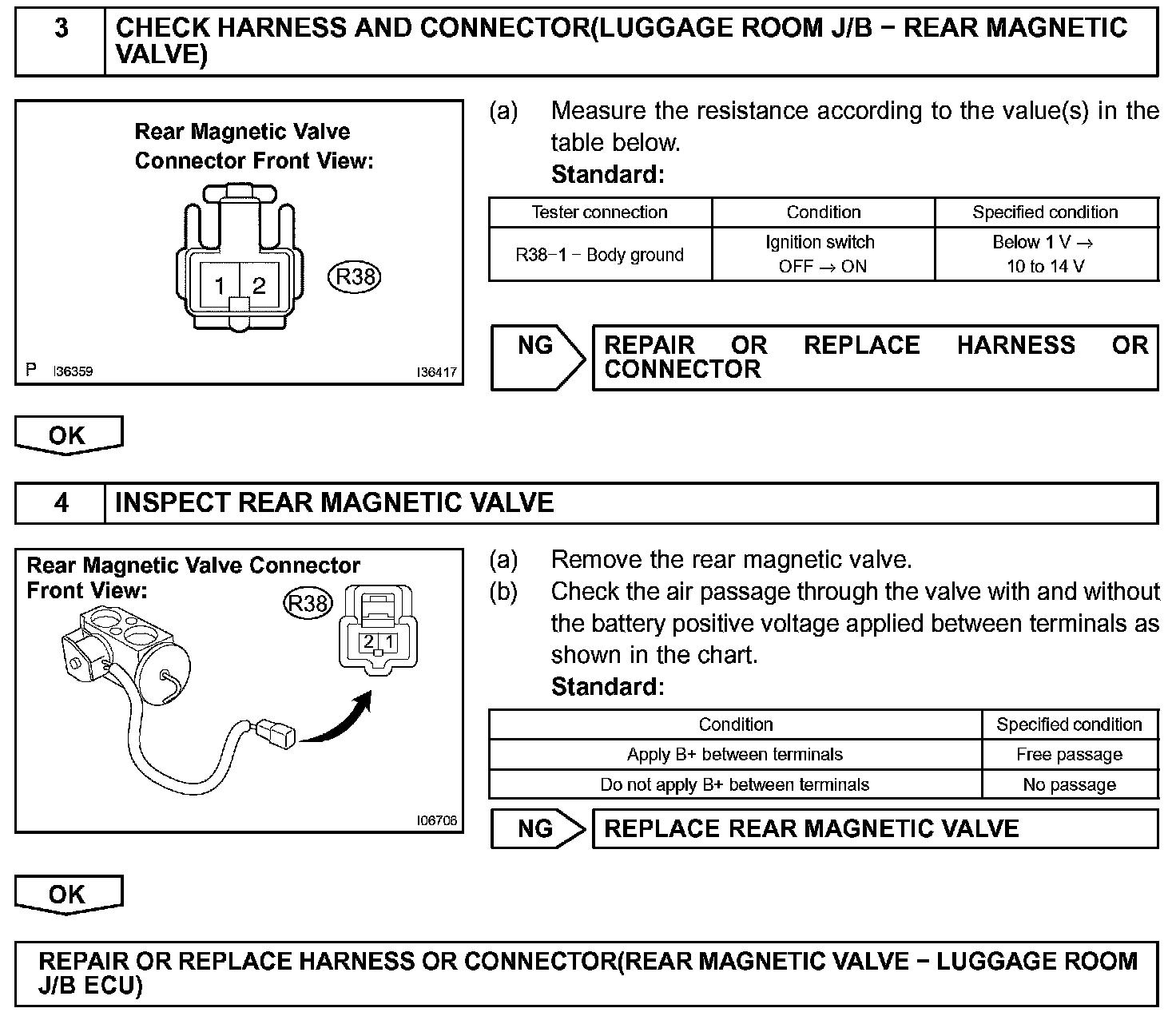

INSPECTION PROCEDURE
