Rear Back-Up Power Source Circuit

REAR BACK-UP POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This is the backup power source for the rear A/C amplifier. Power is supplied even when the ignition switch is off and is used for memory, etc.

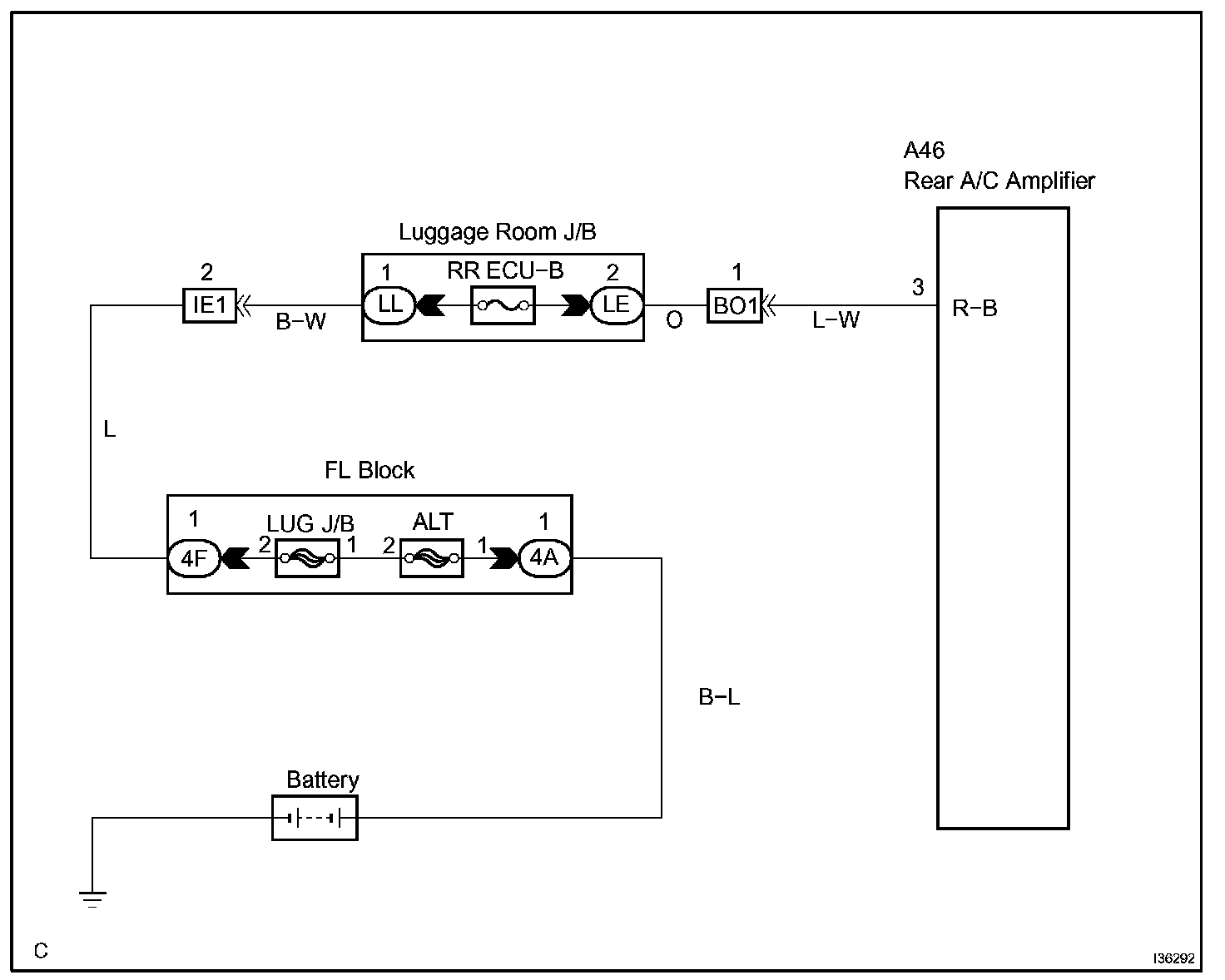

Wiring Diagram:

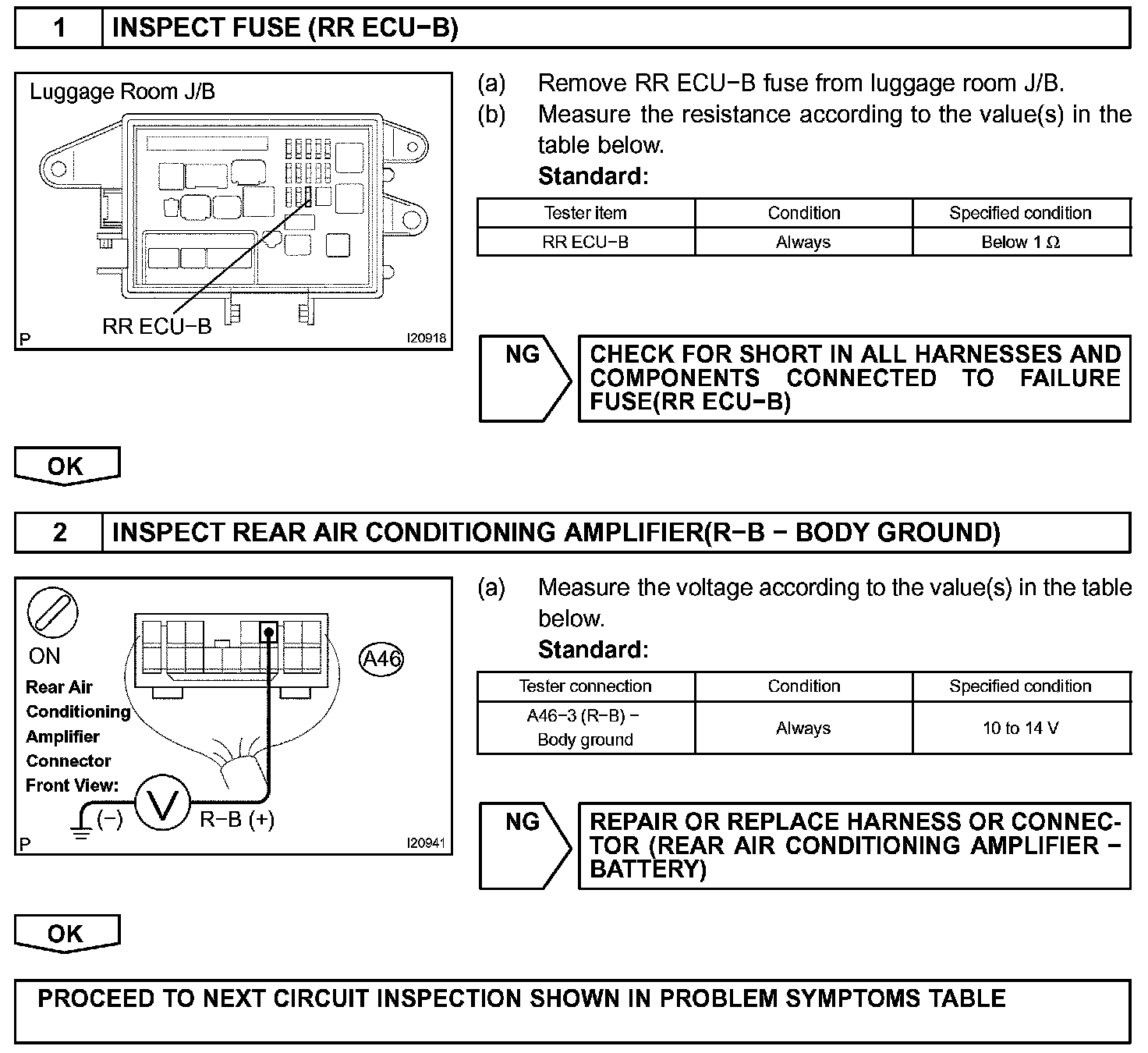

Step 1-2:

INSPECTION PROCEDURE
