Heating and Air Conditioning: Locations

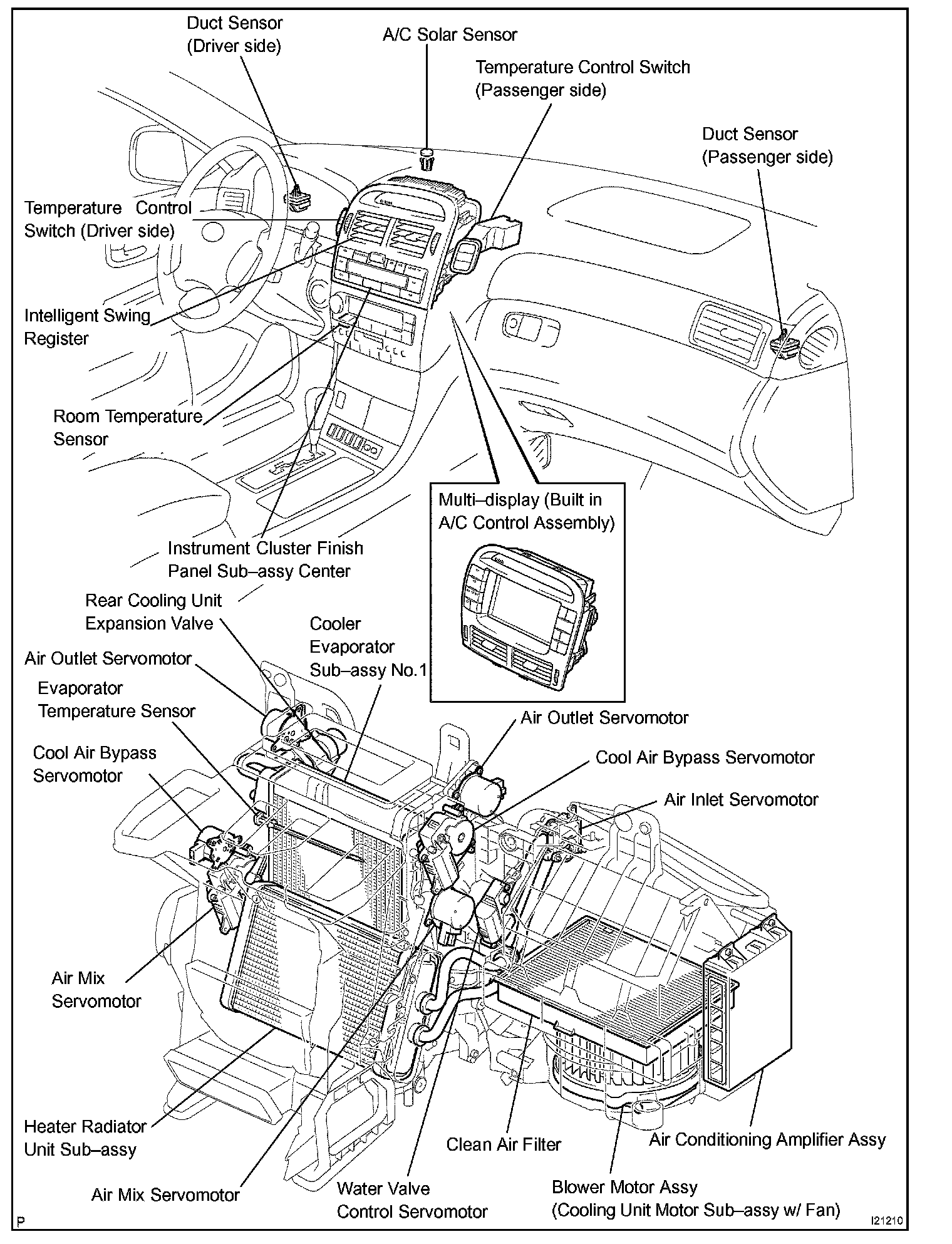

Air Conditioning System Part 1:

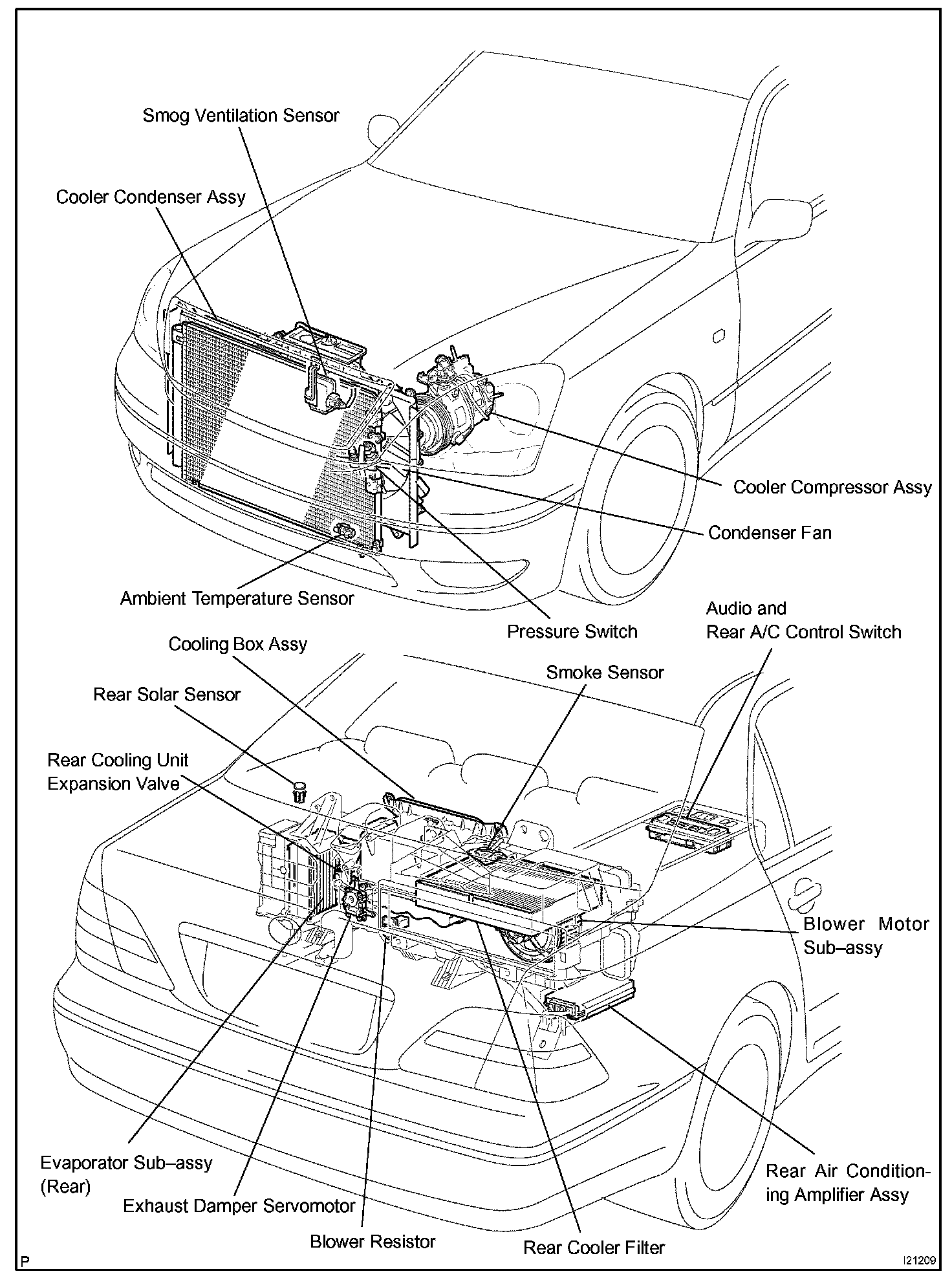

Air Conditioning System Part 2:
Air Conditioning System:
Air Conditioning System:
