Control Assembly: Service and Repair

Air Conditioning Panel Sub-Assy:

AIR CONDITIONING PANEL SUB ASSEMBLY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. RESTORE SHIP MODE SETTING (W/ CD CHANGER)
2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
3. REMOVE PANEL INSTRUMENT CLUSTER FINISH LOWER
4. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET
5. CONFIRM SHIP MODE (W/ CD CHANGER)

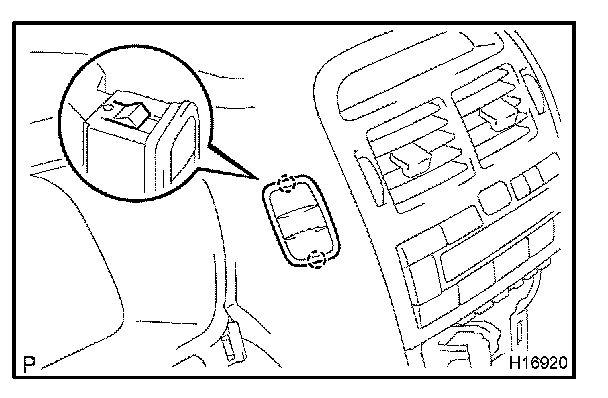

6. REMOVE TEMPERATURE CONTROL SWITCH ASSEMBLY
a. Using a screwdriver, release the 2 claws and remove the temperature control switch.

HINT: Tape the screwdriver tip before use.

b. Employ the same manner described above to the other side.
c. Disconnect the connectors.

7. REMOVE INTEGRATION CONTROL & PANEL ASSEMBLY




a. Remove the 2 bolts.




b. Release the 4 claws and remove the integration control & panel assembly.




8. REMOVE HEATER CONTROL BASE BRACKET NO.1
a. Remove the 4 screws and 2 heater control base brackets No.1.




9. REMOVE AIR CONDITIONER CONTROL ASSEMBLY
a. Disconnect the connector.
b. Remove the 4 screws, release the 4 claws and remove the air conditioner control assembly.




10. REMOVE HEATER CONTROL HOUSING
a. Remove the 2 screws, release the 4 claws and remove the heater control housing.




11. REMOVE HEATER CONTROL BULB
a. Using a screwdriver, turn the bulbs to the left and pull out the bulbs.




12. REMOVE HEATER CONTROL BASE SUB-ASSEMBLY
a. Release the 4 claws and remove the heater control base.

13. REMOVE AIR CONDITIONER PANEL SUB-ASSEMBLY
