Blower Motor: Service and Repair

Blower Assy:

OVERHAUL

HINT:
- Installation is in the reverse order of removal.

1. DISCONNECT NEGATIVE TERMINAL CABLE FROM BATTERY
2. REMOVE FRONT DOOR SCUFF PLATE LH
3. REMOVE FRONT PILLAR GARNISH LH
4. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.2
5. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY RH
6. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY W/ INSTRUMENT PANEL AIRBAG ASSEMBLY LOWER NO.2
7. REMOVE AIR SUSPENSION AND HEADLIGHT BEAM LEVEL CONTROL ECU
a. Disconnect the connectors.
b. Remove the 2 nuts and air suspension and headlight beam level control ECU.

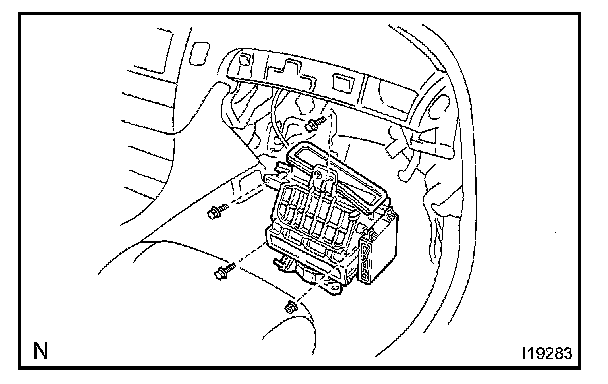

8. REMOVE BLOWER ASSEMBLY
a. Disconnect the connectors.
b. Remove the nut and 3 bolts.
c. Remove the blower assembly.

9. REMOVE CLEAN AIR FILTER SUB-ASSEMBLY
10. REMOVE CLEAN AIR FILTER




11. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY
a. Remove the 3 screws and air conditioning amplifier assembly.




12. REMOVE AIR INLET SERVOMOTOR
a. Remove the 3 screws and the air inlet servomotor.

13. REMOVE BLOWER MOTOR ASSEMBLY (COOLING UNIT MOTOR SUB-ASSEMBLY W/FAN)
a. Remove the 3 screws and blower motor assembly (cooling unit motor sub-assembly w/fan).
