Inspection

COOLING FAN SYSTEM
INSPECTION

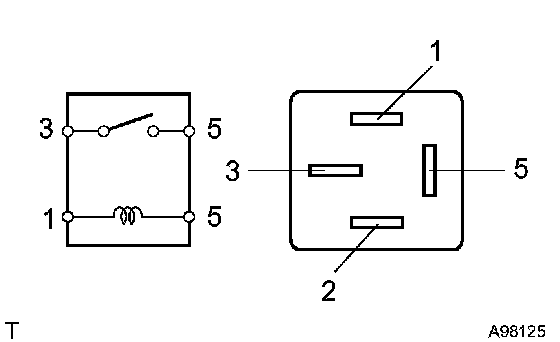

1. INSPECT RELAY (Marking: FAN)
a. Remove the FAN relay from the FL block
b. Measure the resistance of the relay.





Standard

If the result is not as specified, replace the relay.

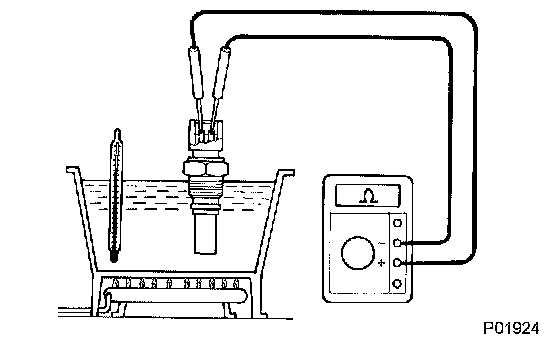

2. INSPECT ECT SWITCH
a. Measure the resistance of the switch.

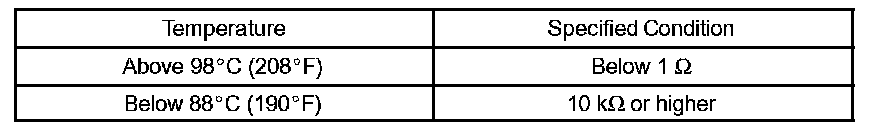

Standard

If the result is not as specified, replace the switch.
