Radiator Cooling Fan Motor: Service and Repair

FAN ASSEMBLY
OVERHAUL

HINT: The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.

1. DRAIN ENGINE COOLANT FROM RADIATOR
2. REMOVE AIR CLEANER INLET NO.1
3. REMOVE AIR CLEANER ASSEMBLY
4. DISCONNECT RADIATOR HOSE NO.1
5. REMOVE FAN ASSEMBLY
a. Disconnect the connector.
b. Remove the 6 bolts and fan.
6. REMOVE COOLING FAN ECU
a. Disconnect the 2 connectors.
b. Remove the 2 screws and ECU.
7. REMOVE FAN
a. Remove the 2 nuts and 2 fans.





8. REMOVE COOLING FAN MOTOR

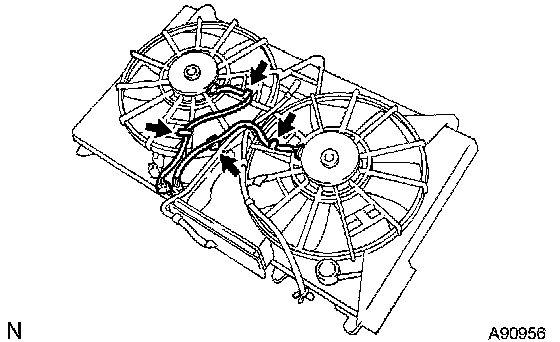

a. Disconnect the 2 wires from the fan shroud.
b. Remove the 6 screws and 2 cooling fan motors.
9. INSTALL FAN ASSEMBLY
a. Install the fan with the 6 bolts.
Torque: 5.0 Nm (51 kgf-cm, 44 inch lbs.)
