Fuel Injector

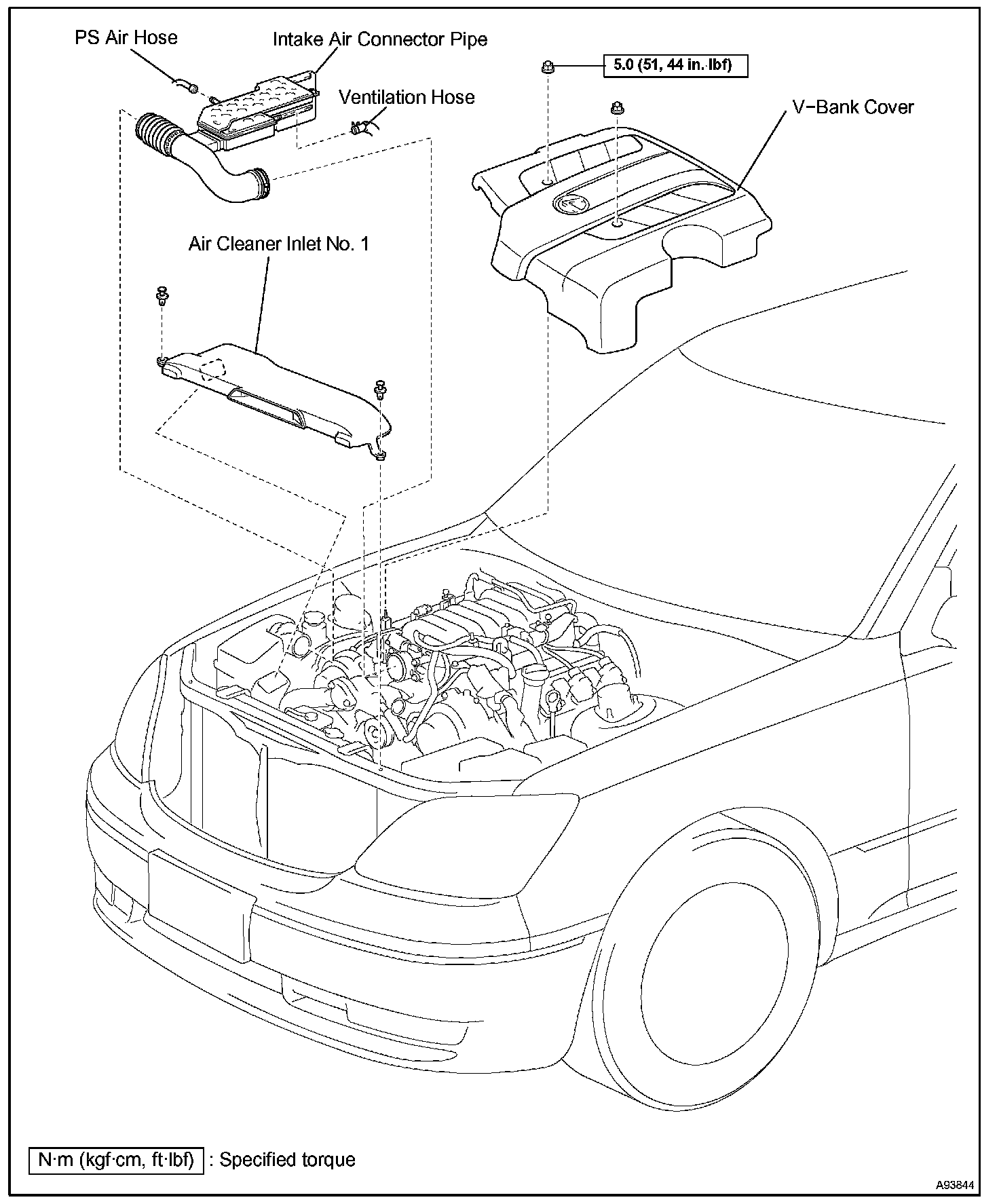

Fuel Injector Assy (Part 1):

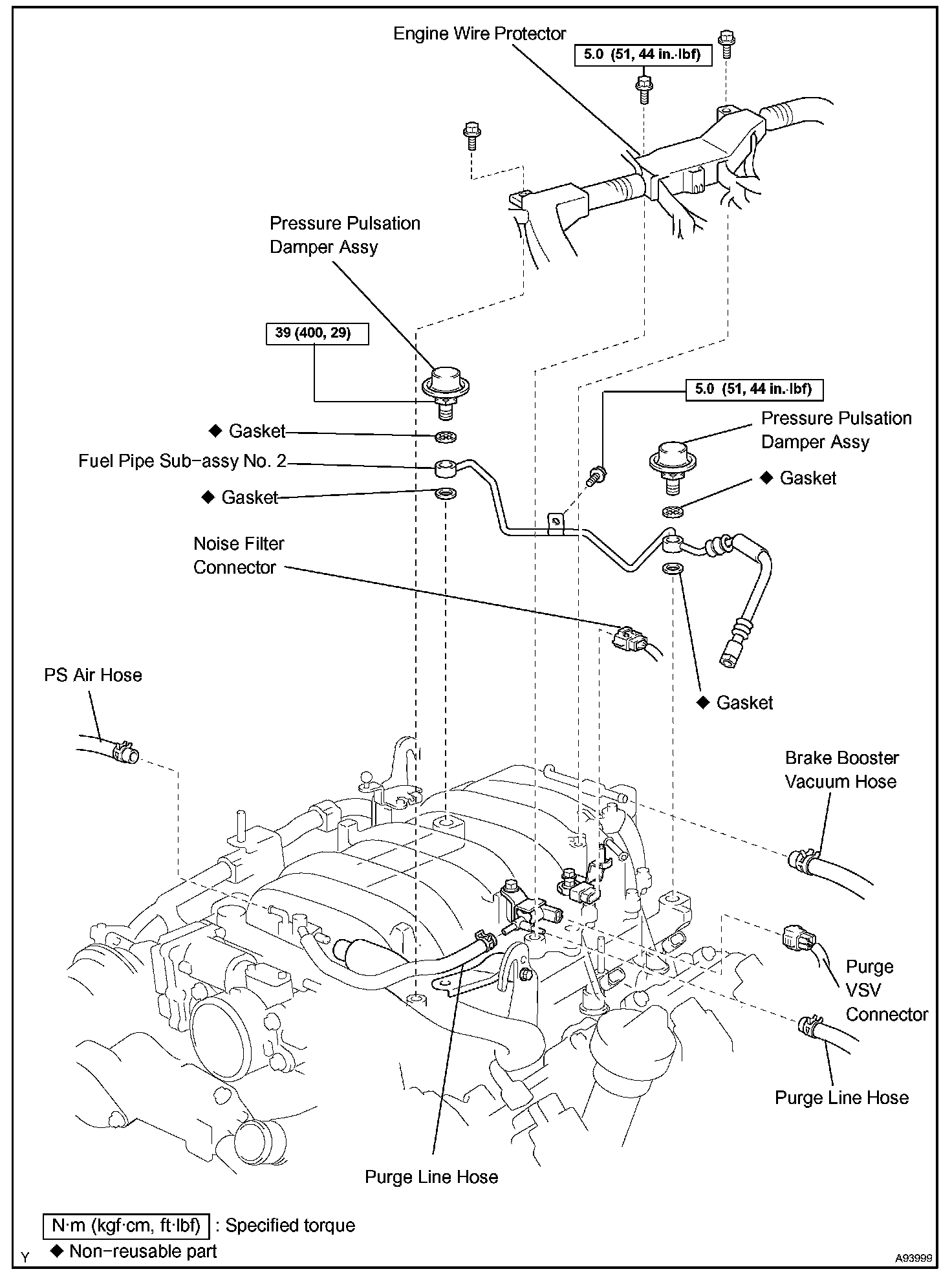

Fuel Injector Assy (Part 2):

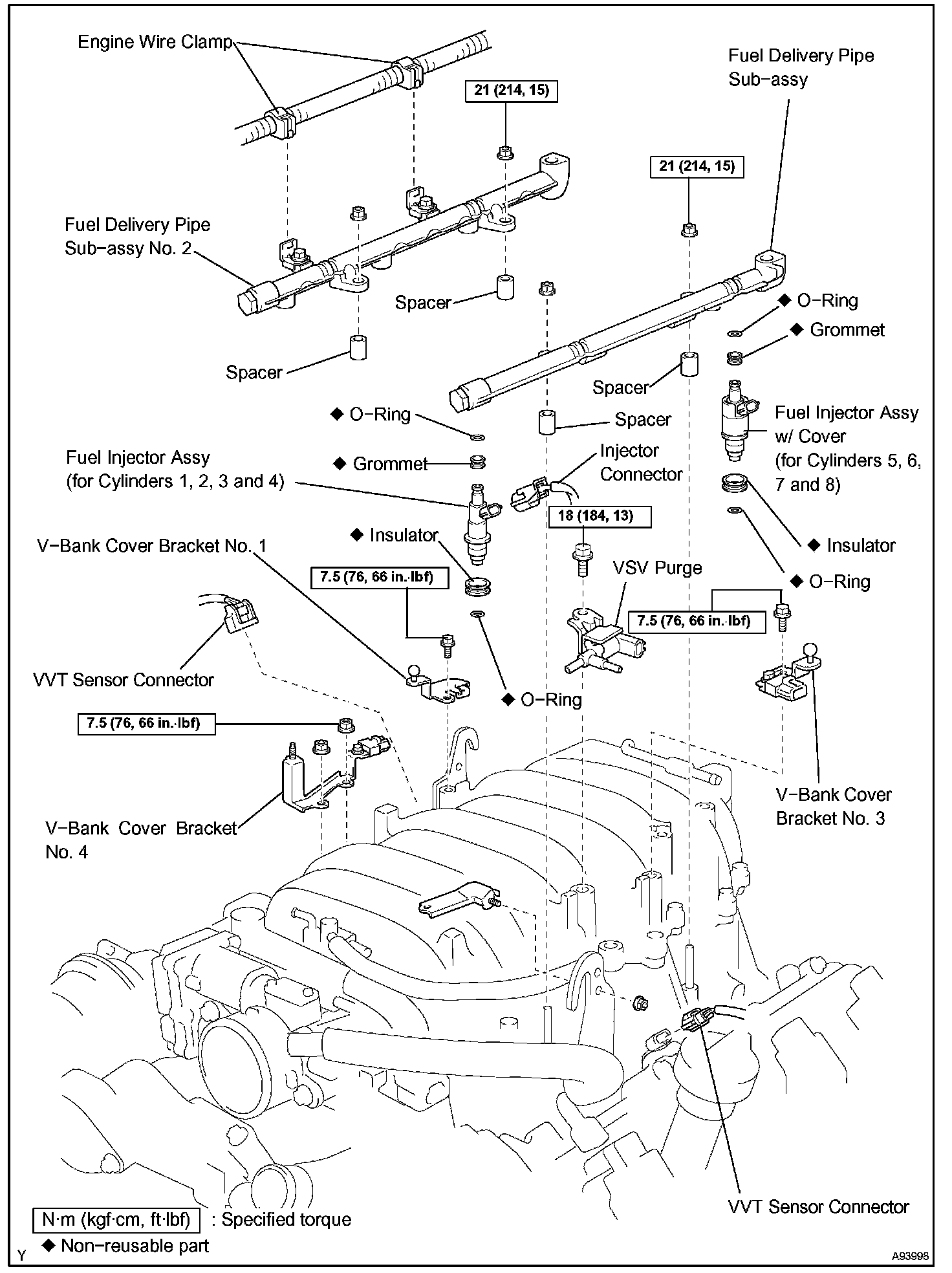

Fuel Injector Assy (Part 3):
