Tire Monitoring System

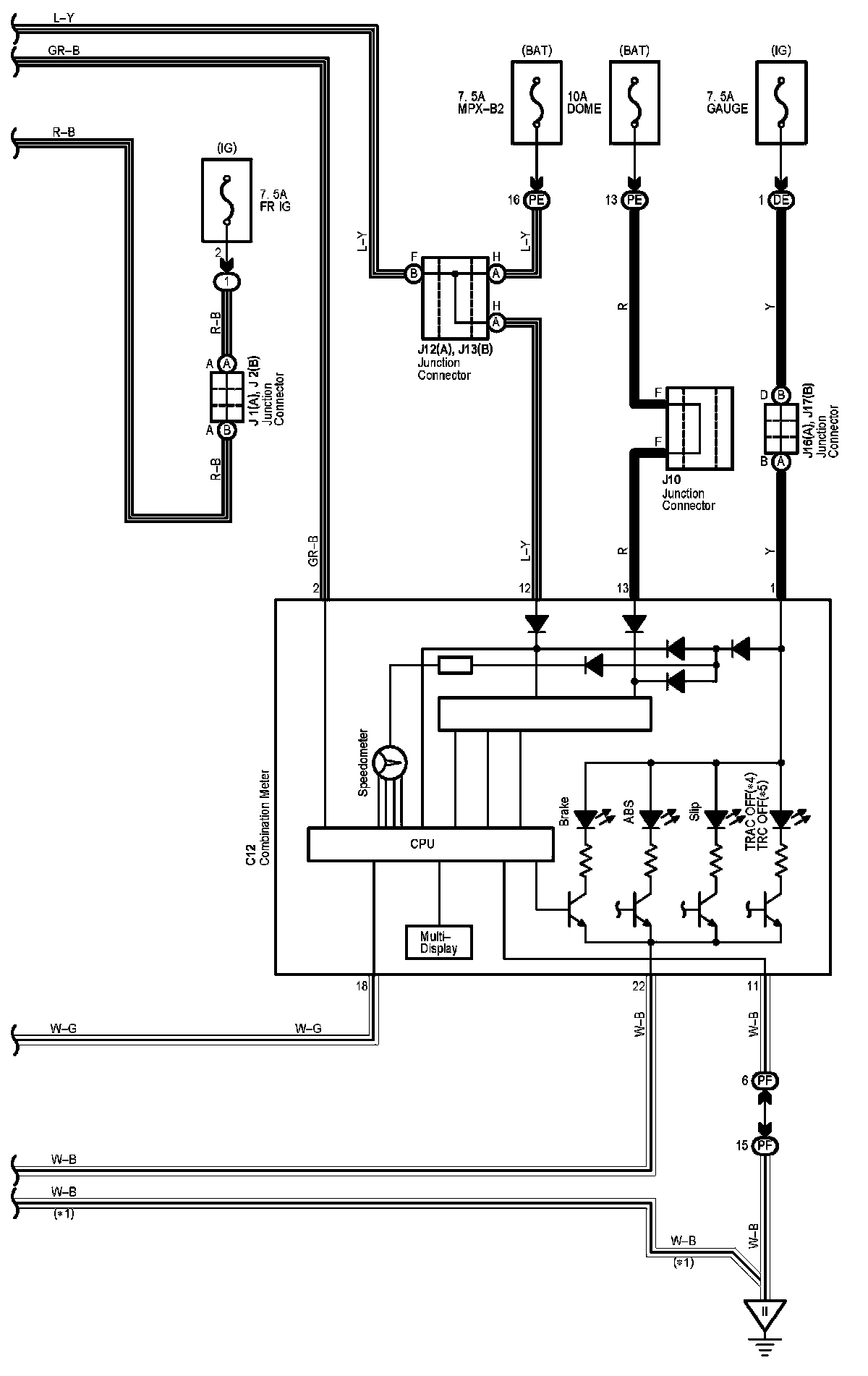

ABS, TRAC, VSC And Tire Pressure Warning System (Part 1):

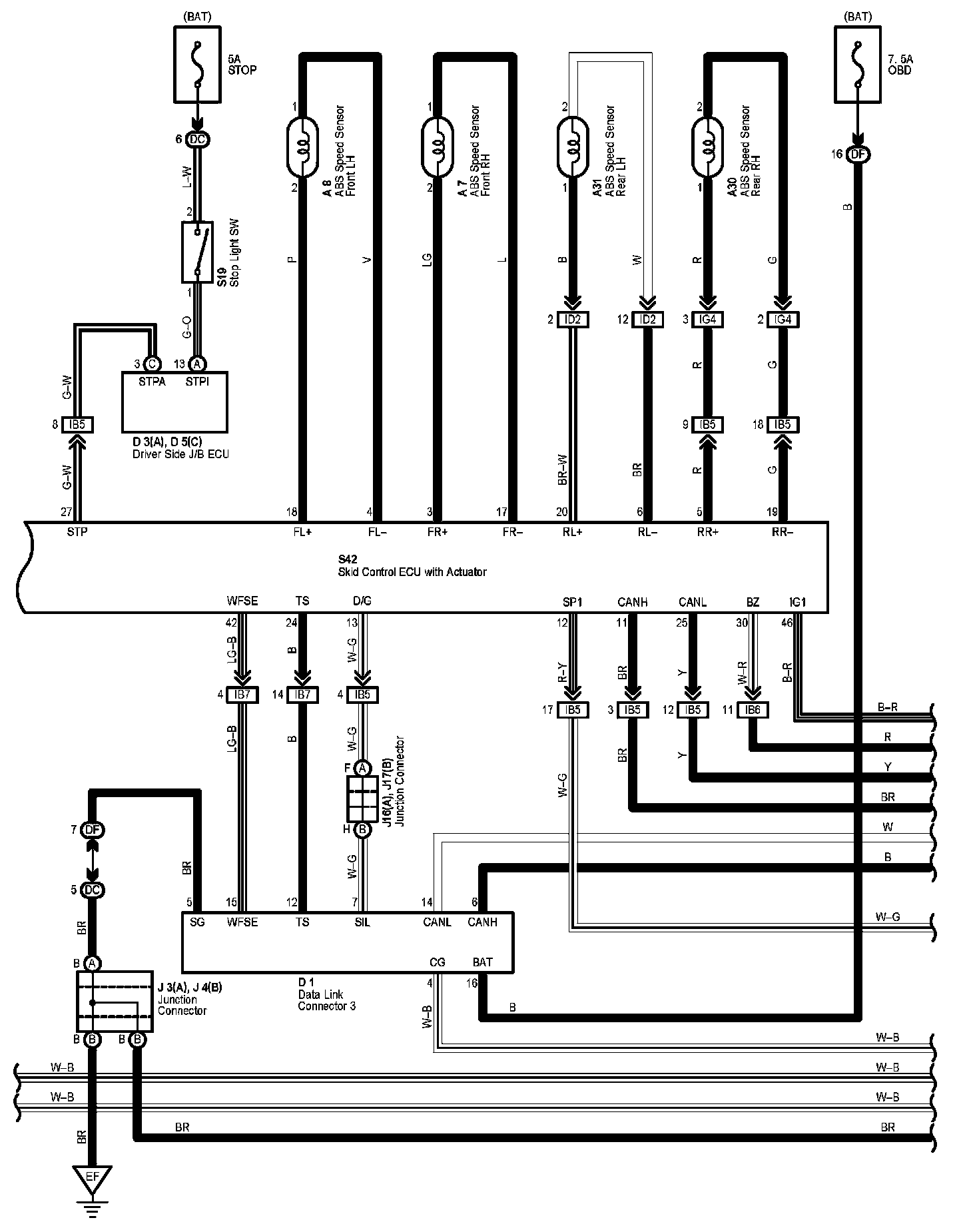

ABS, TRAC, VSC And Tire Pressure Warning System (Part 2):

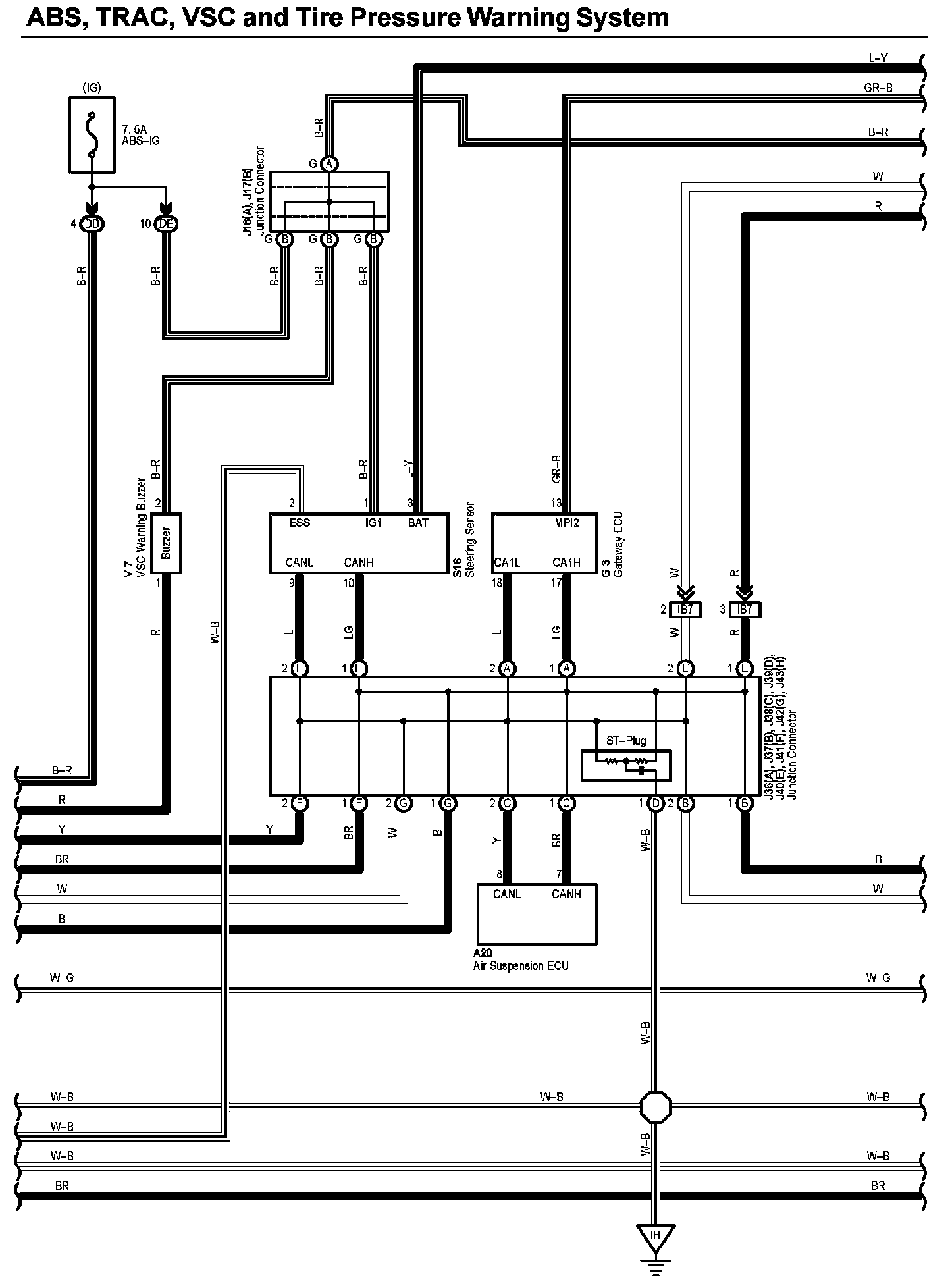

ABS, TRAC, VSC And Tire Pressure Warning System (Part 3):

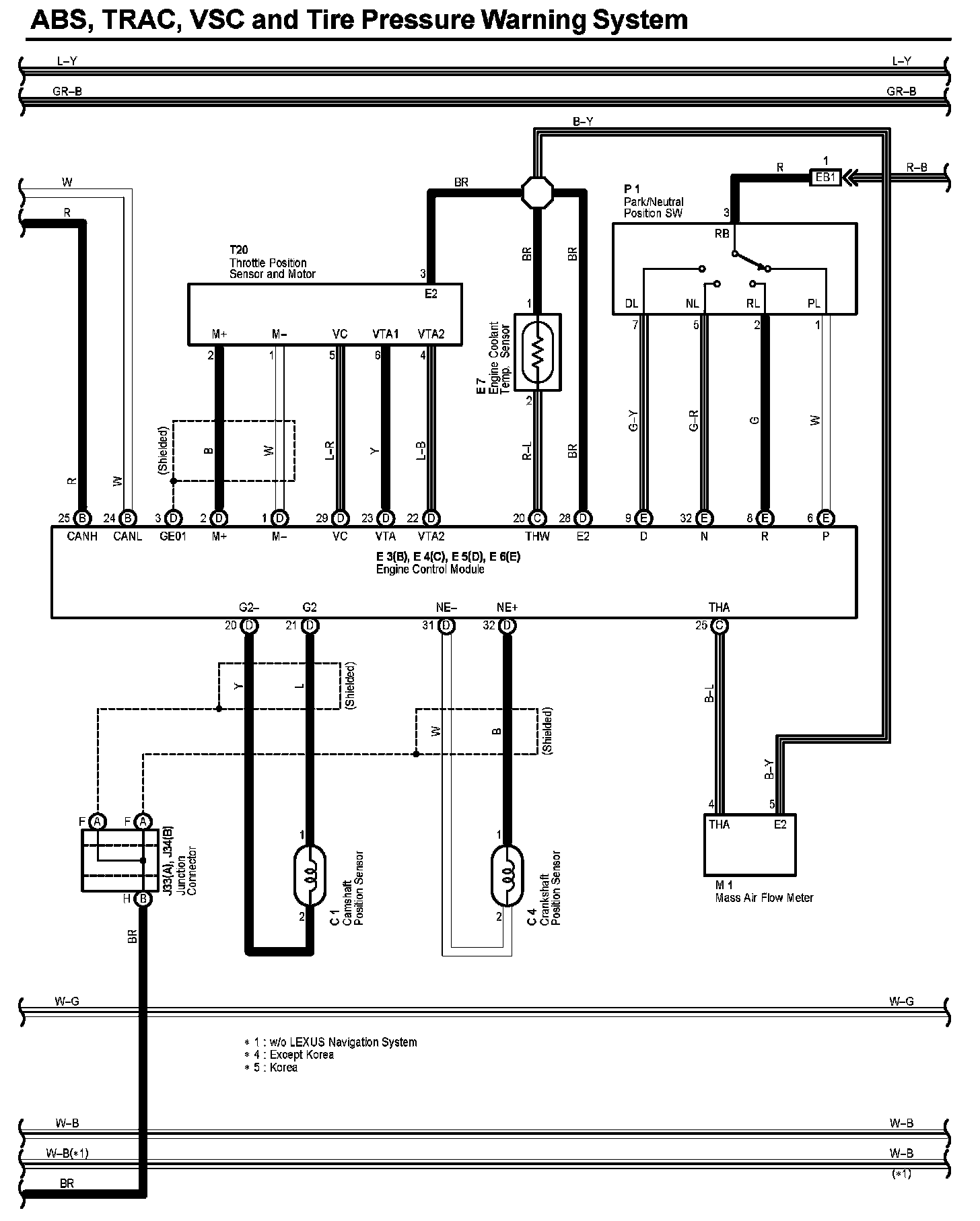

ABS, TRAC, VSC And Tire Pressure Warning System (Part 4):

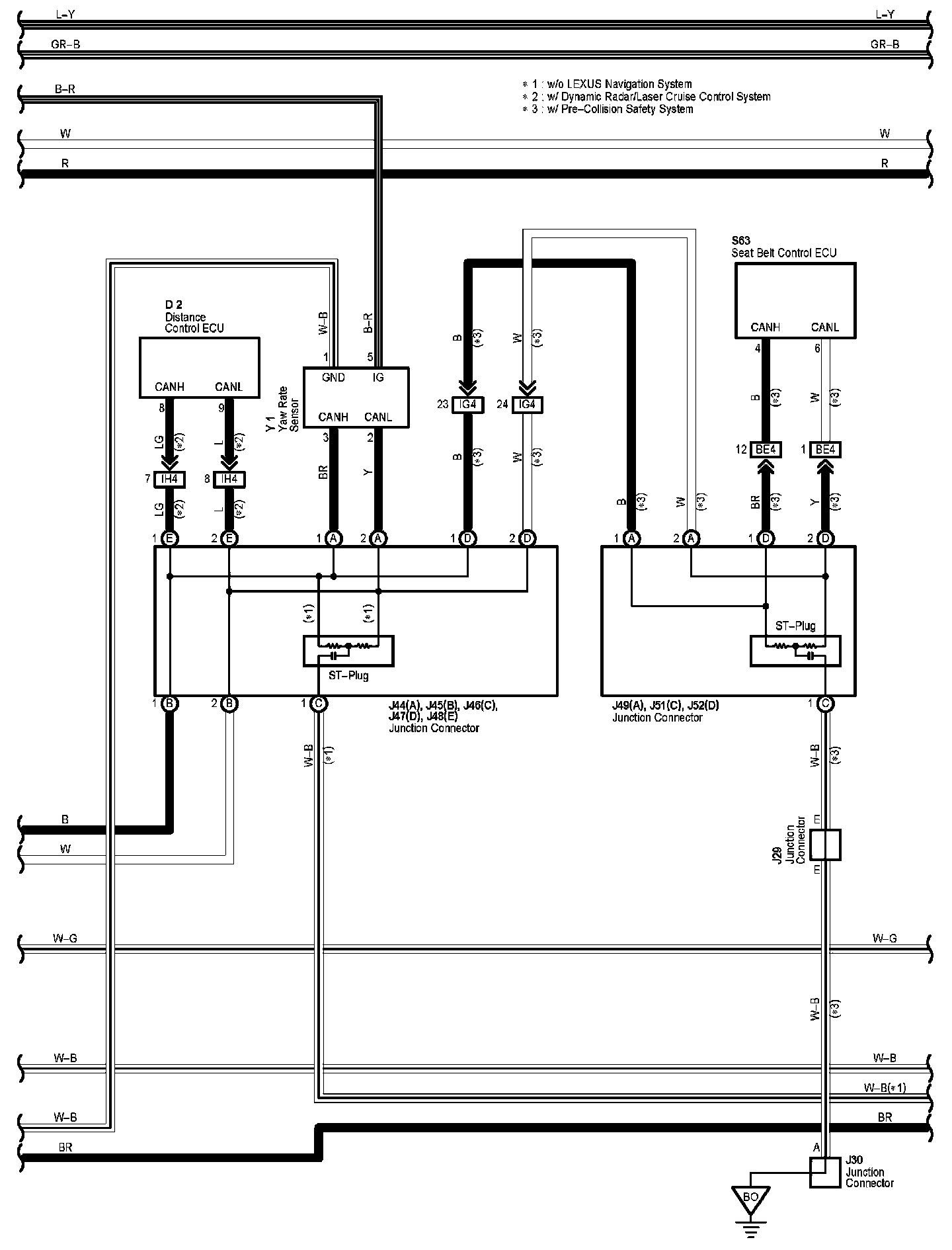

ABS, TRAC, VSC And Tire Pressure Warning System (Part 5):

ABS, TRAC, VSC And Tire Pressure Warning System (Part 6):

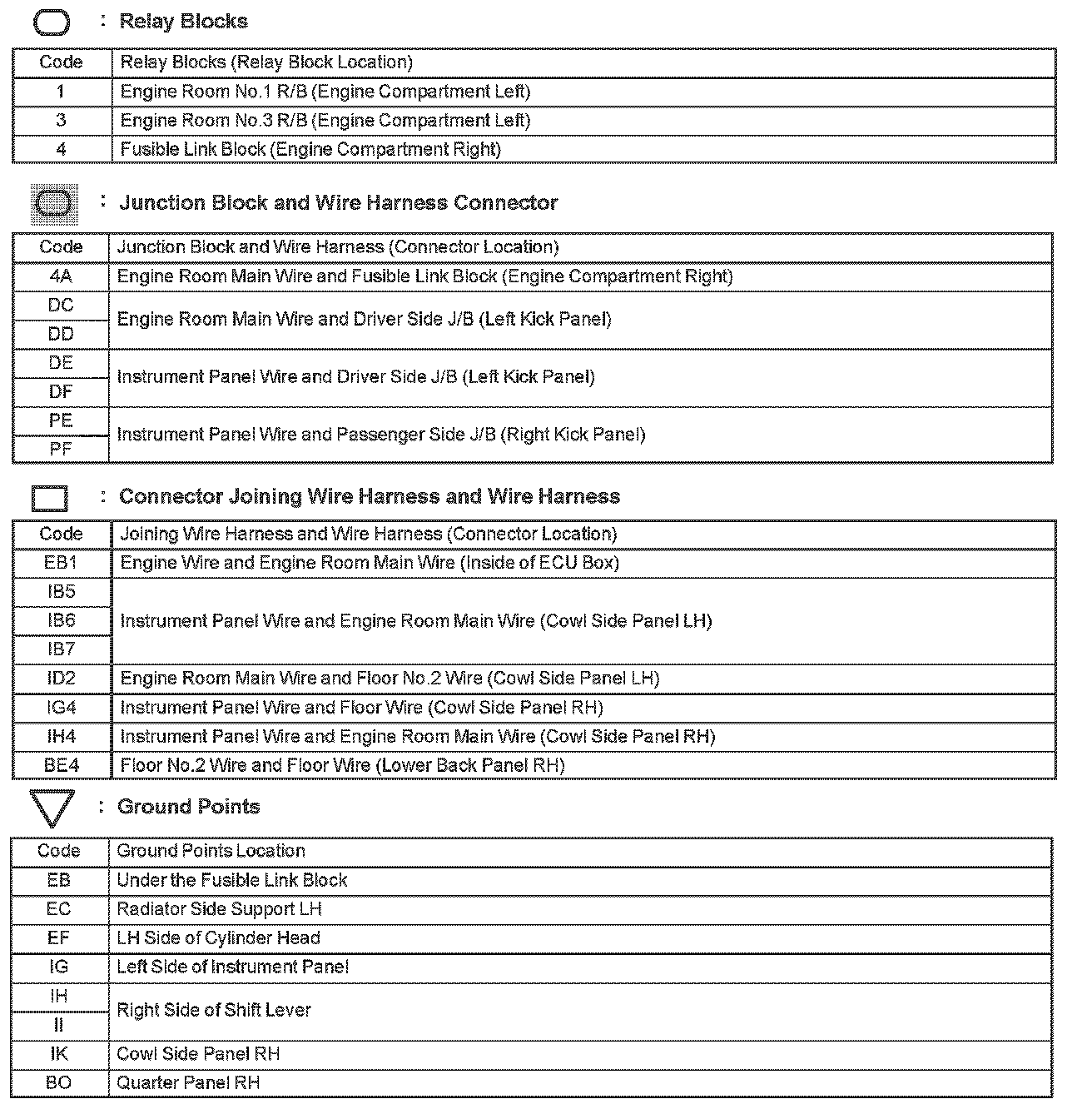

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
