Multiplex Communication System - BEAN (Door Bus) Part 7

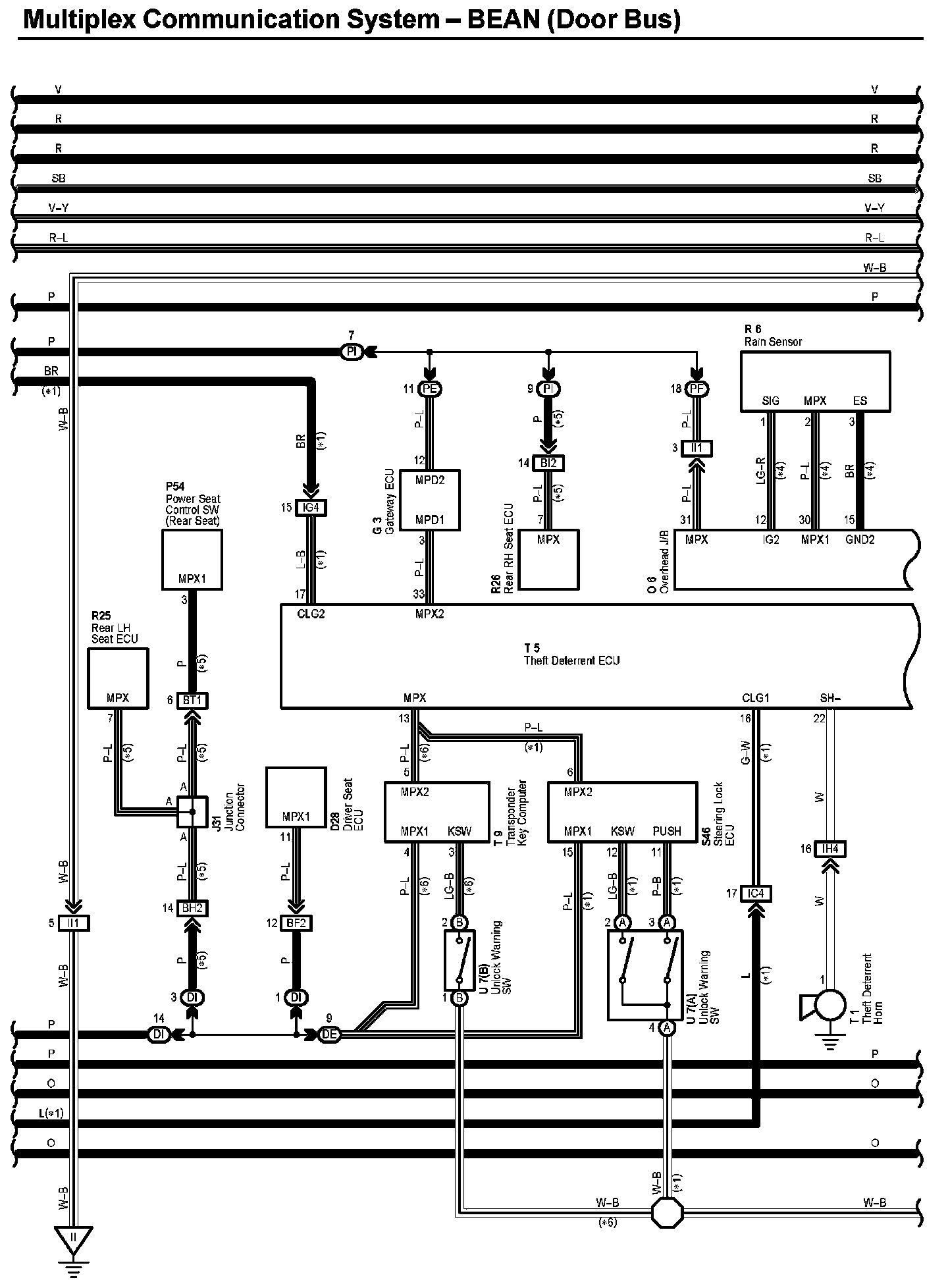

Multiplex Communication System - BEAN (Door Bus) (Part 7):

Diagram Legend:

Next Diagram Multiplex Communication System - BEAN (Door Bus) Part 8

Previous Diagram Multiplex Communication System - BEAN (Door Bus) Part 6

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
