Multiplex Communication System - BEAN (Door Bus) Part 11

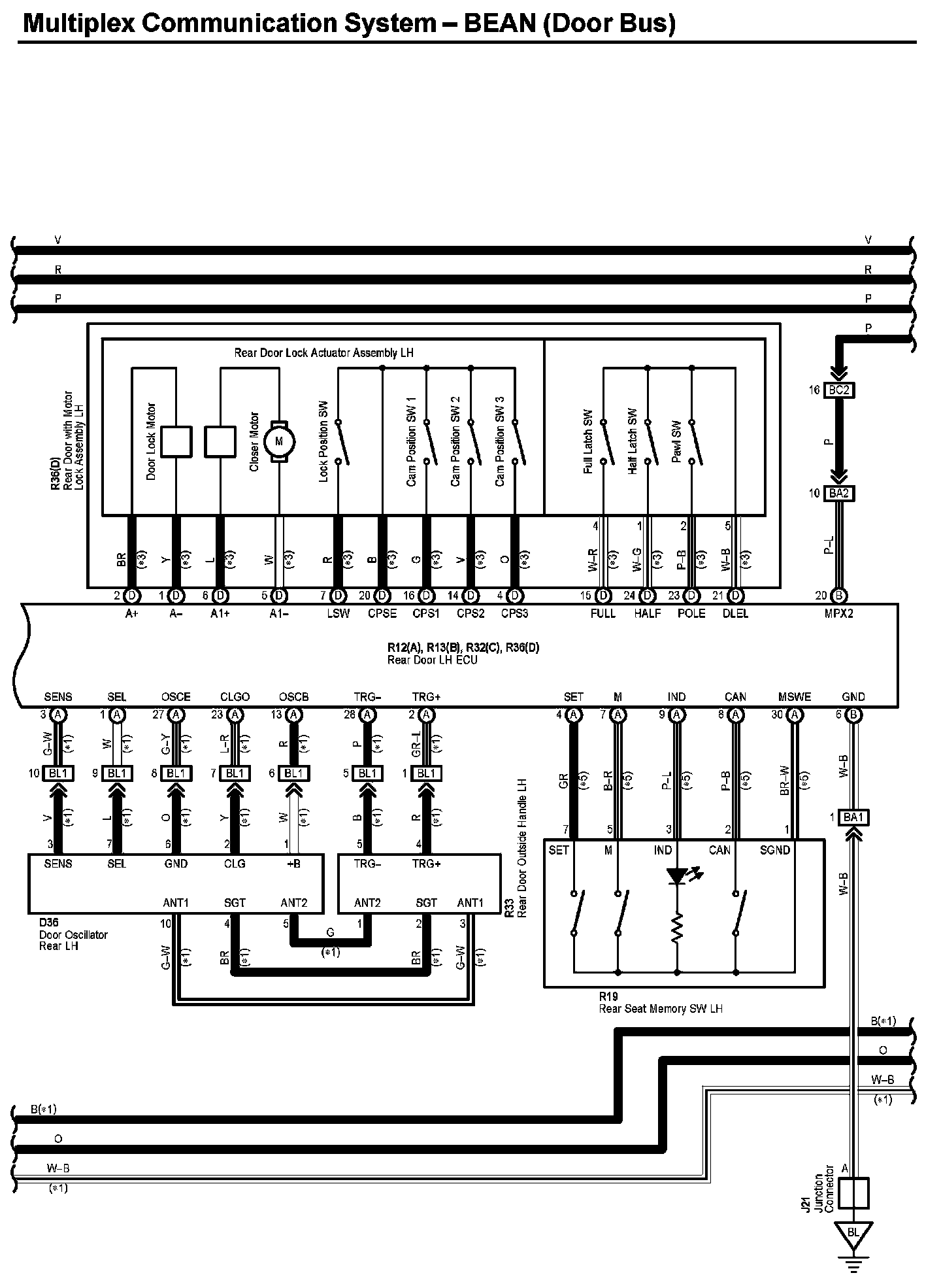

Multiplex Communication System - BEAN (Door Bus) (Part 11):

Diagram Legend:

Next Diagram Multiplex Communication System - BEAN (Door Bus) Part 12

Previous Diagram Multiplex Communication System - BEAN (Door Bus) Part 10

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
