Smart Key System, Theft Deterrent and Key Reminder

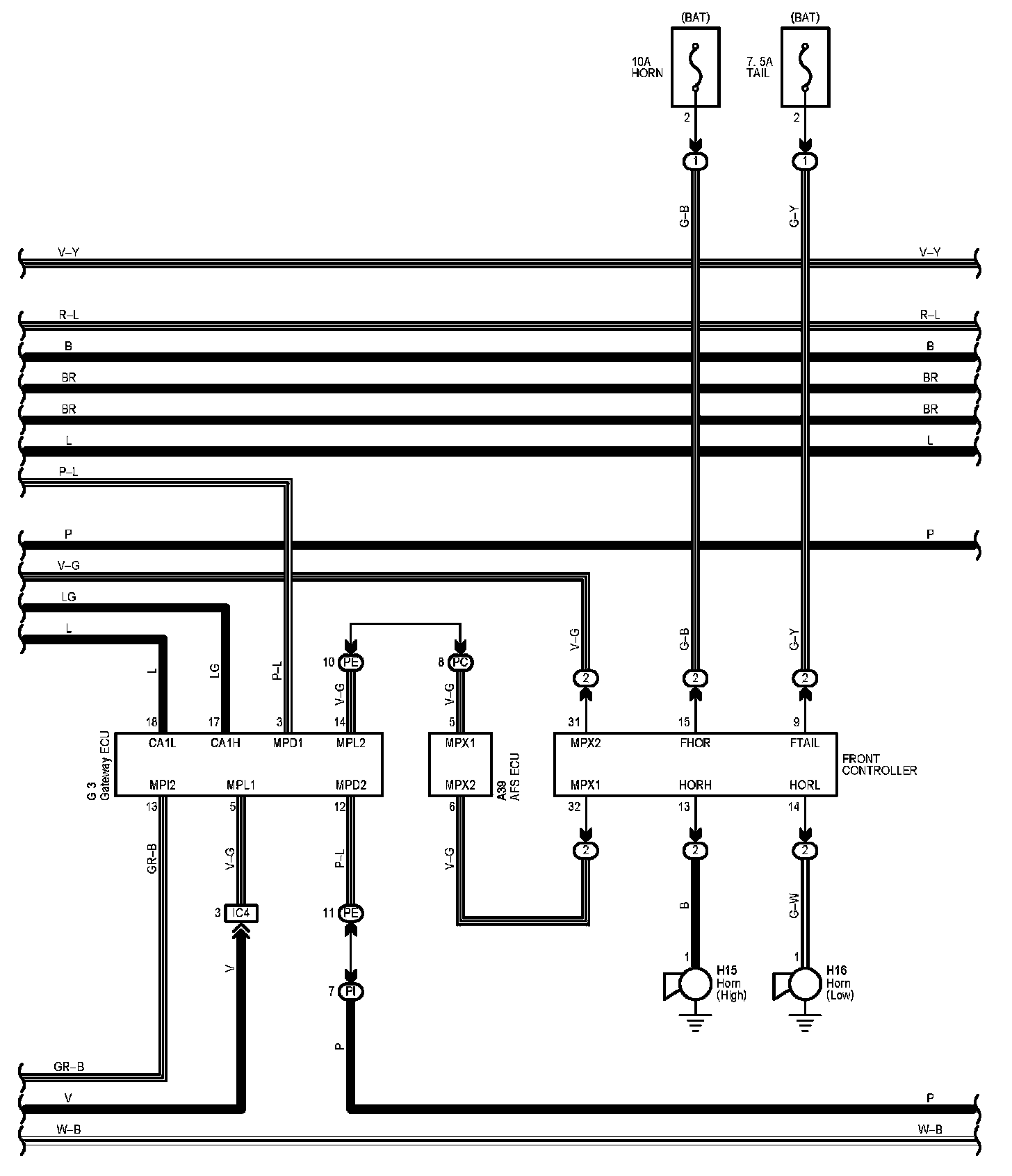

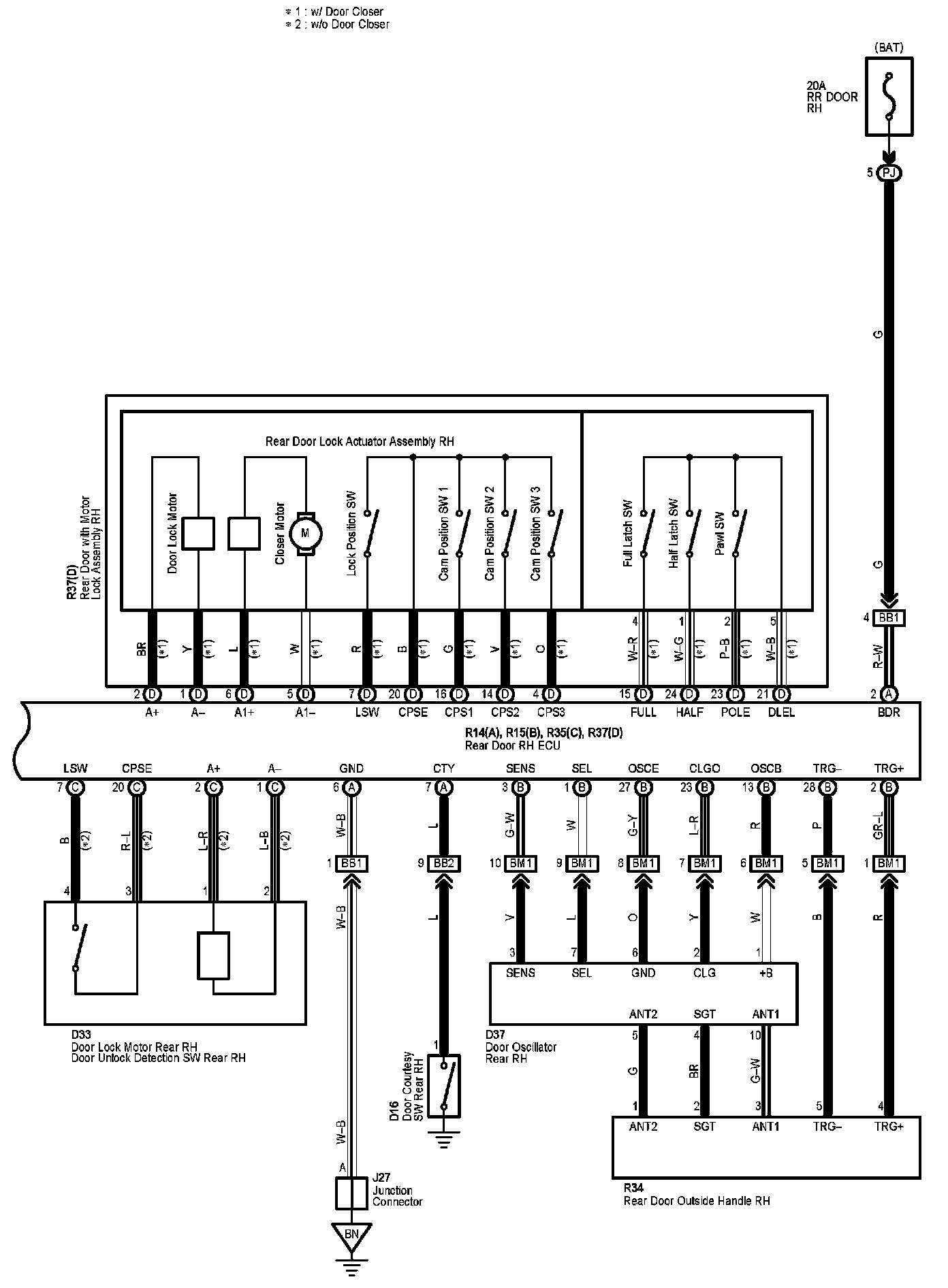

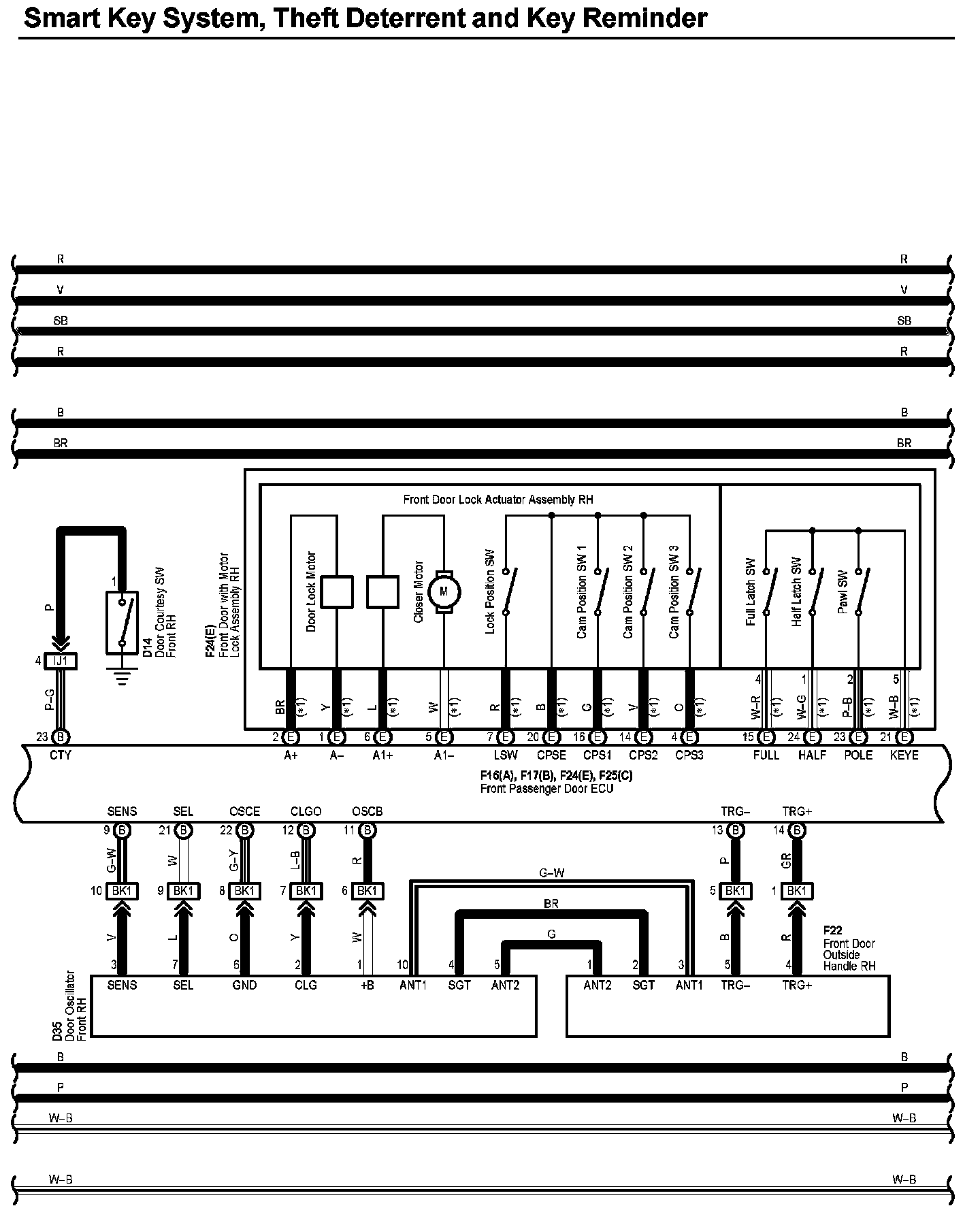

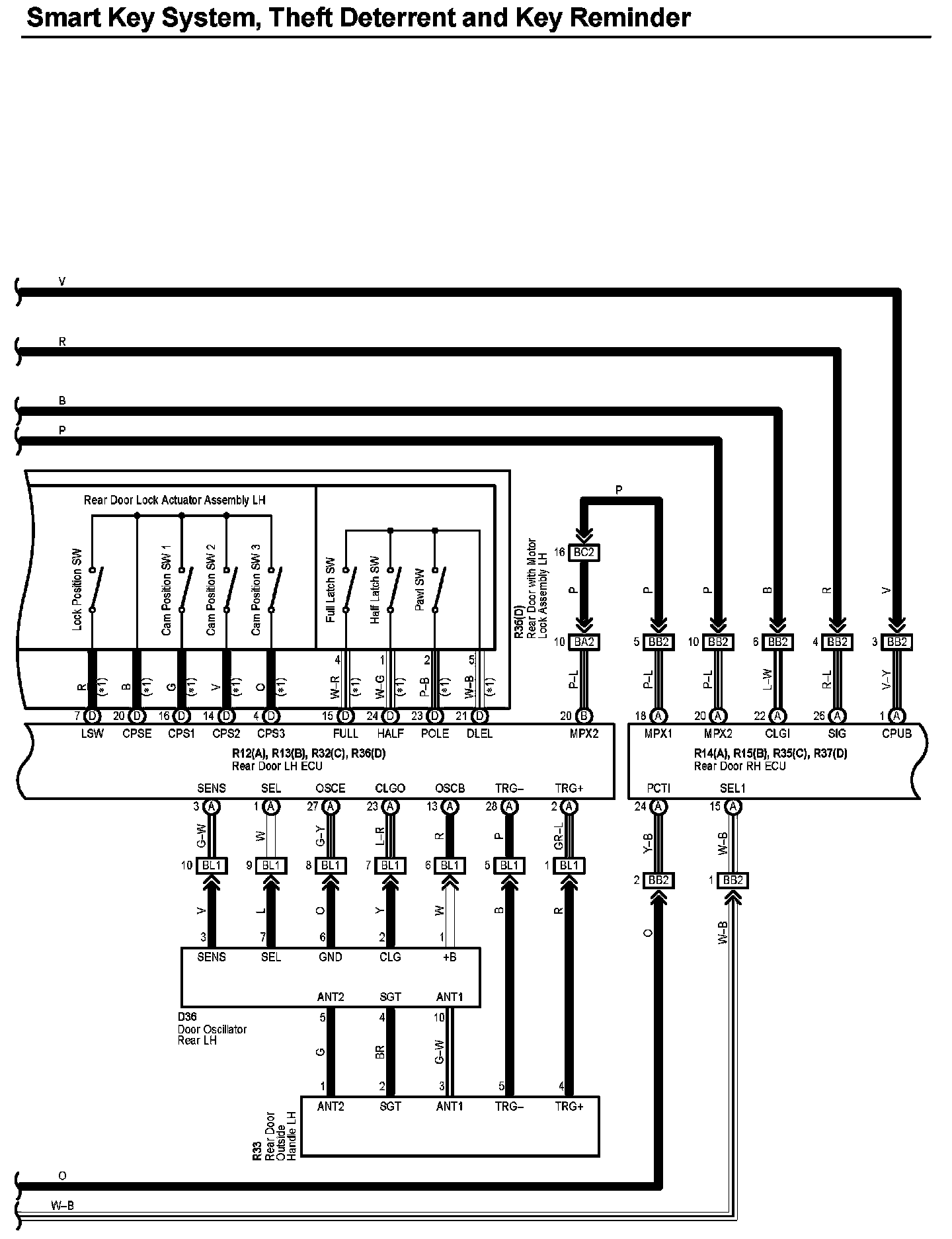

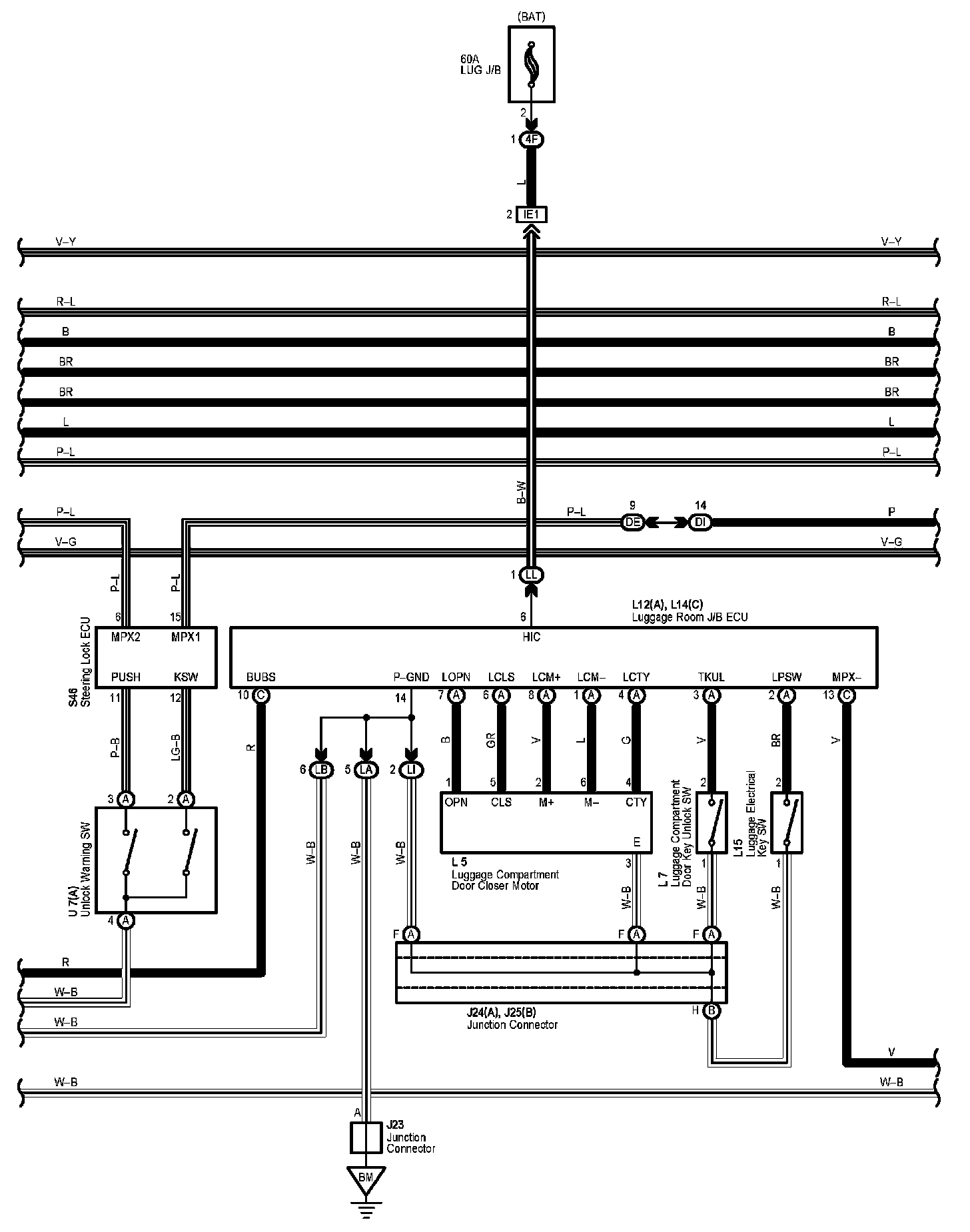

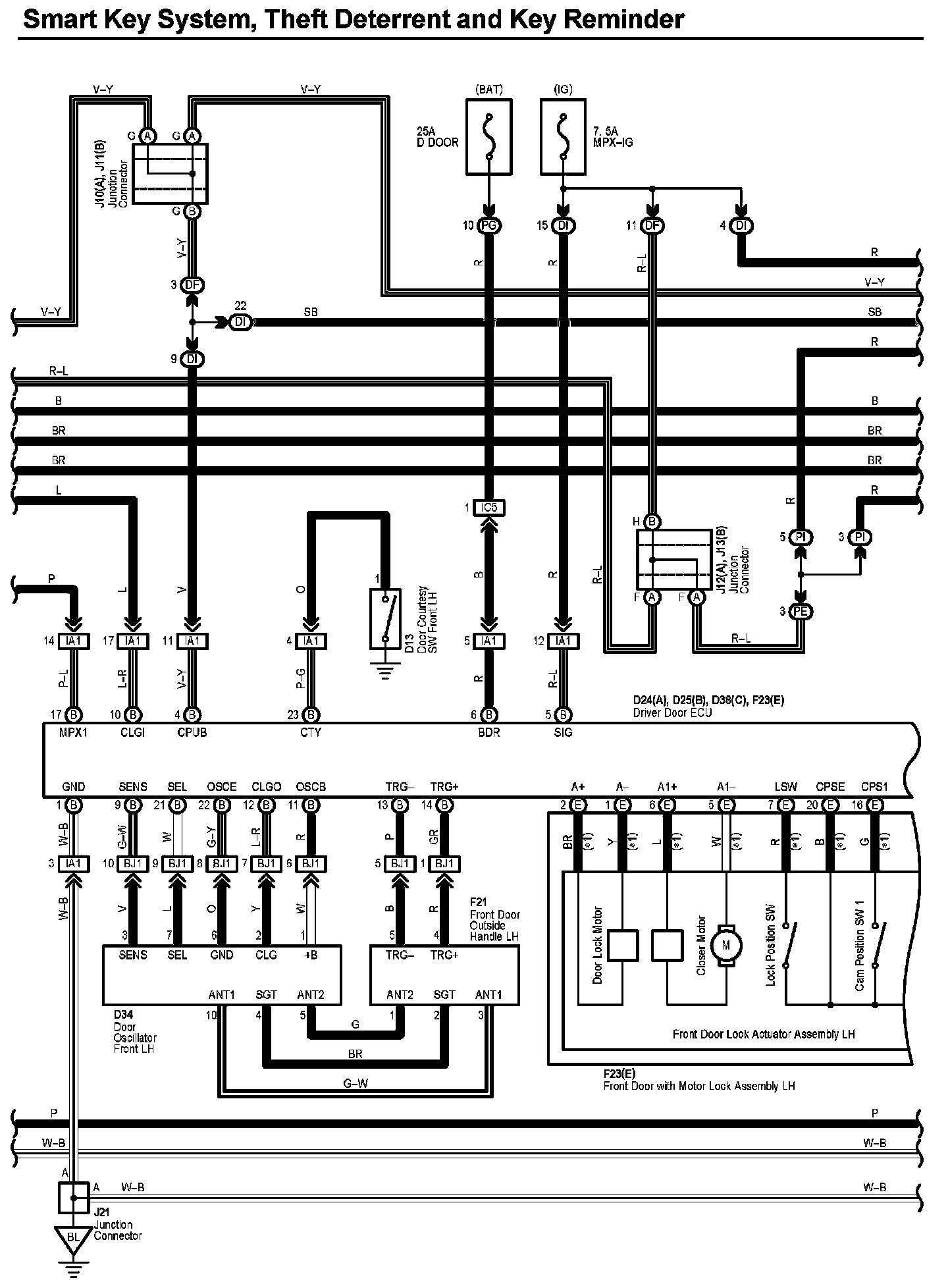

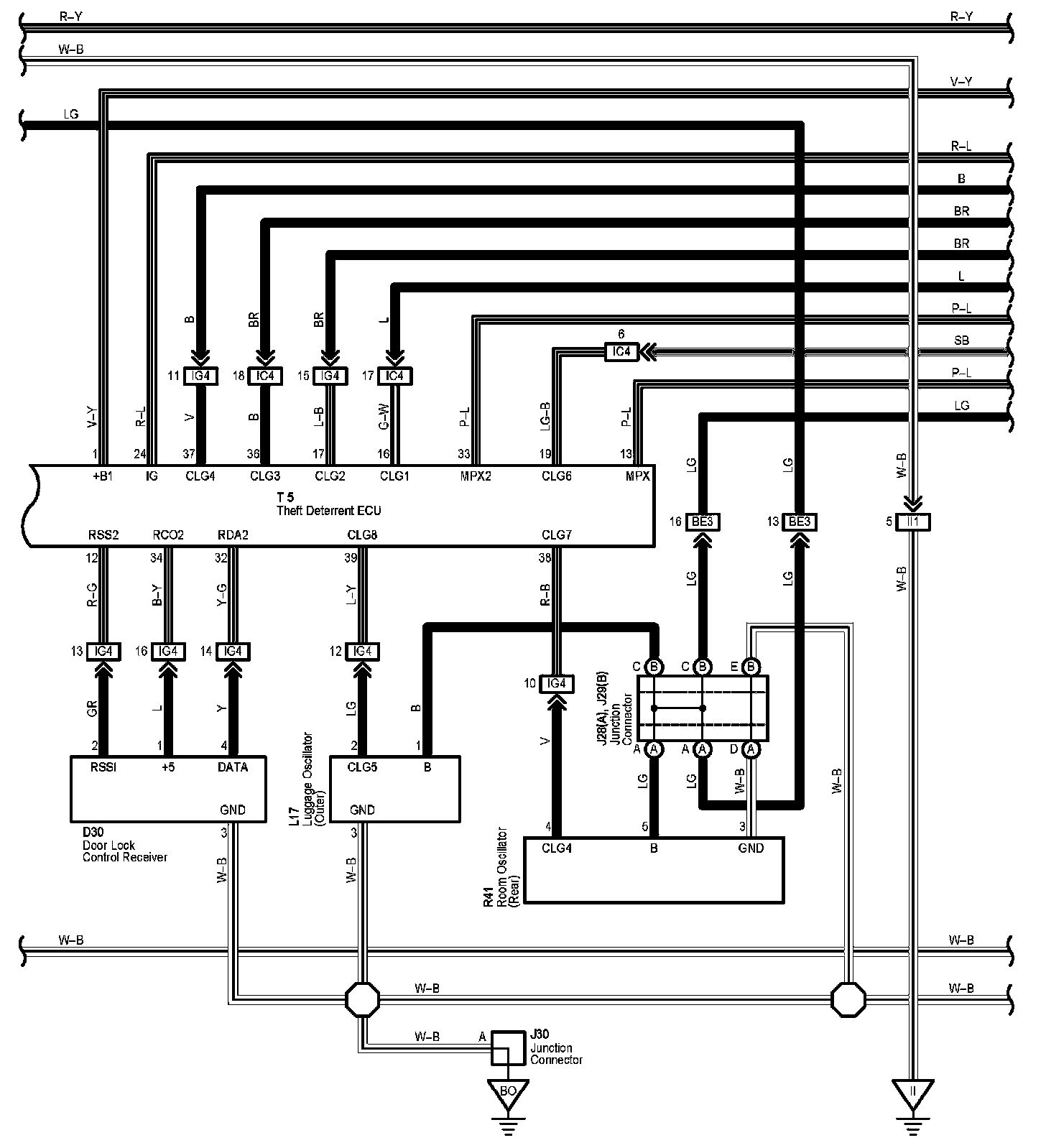

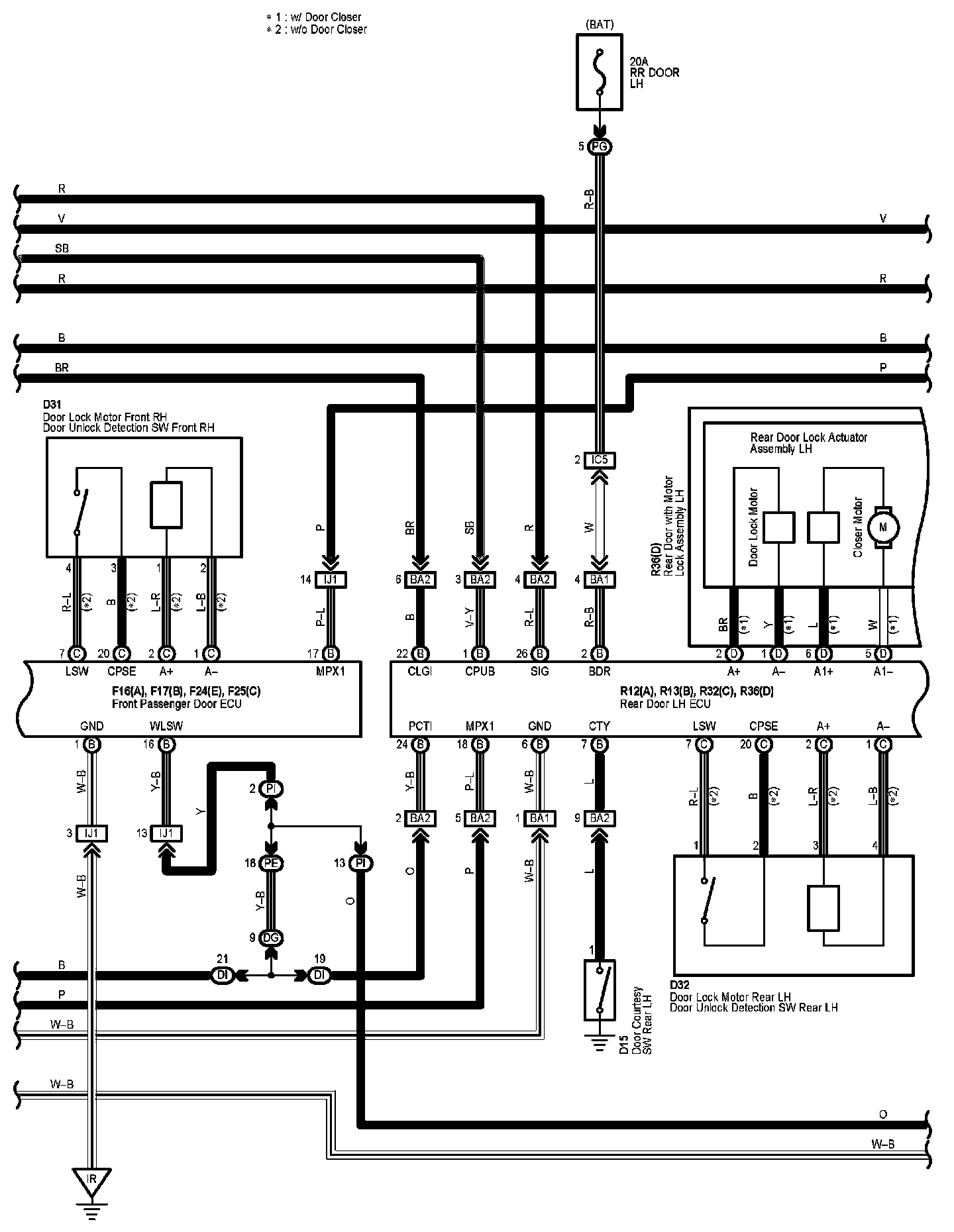

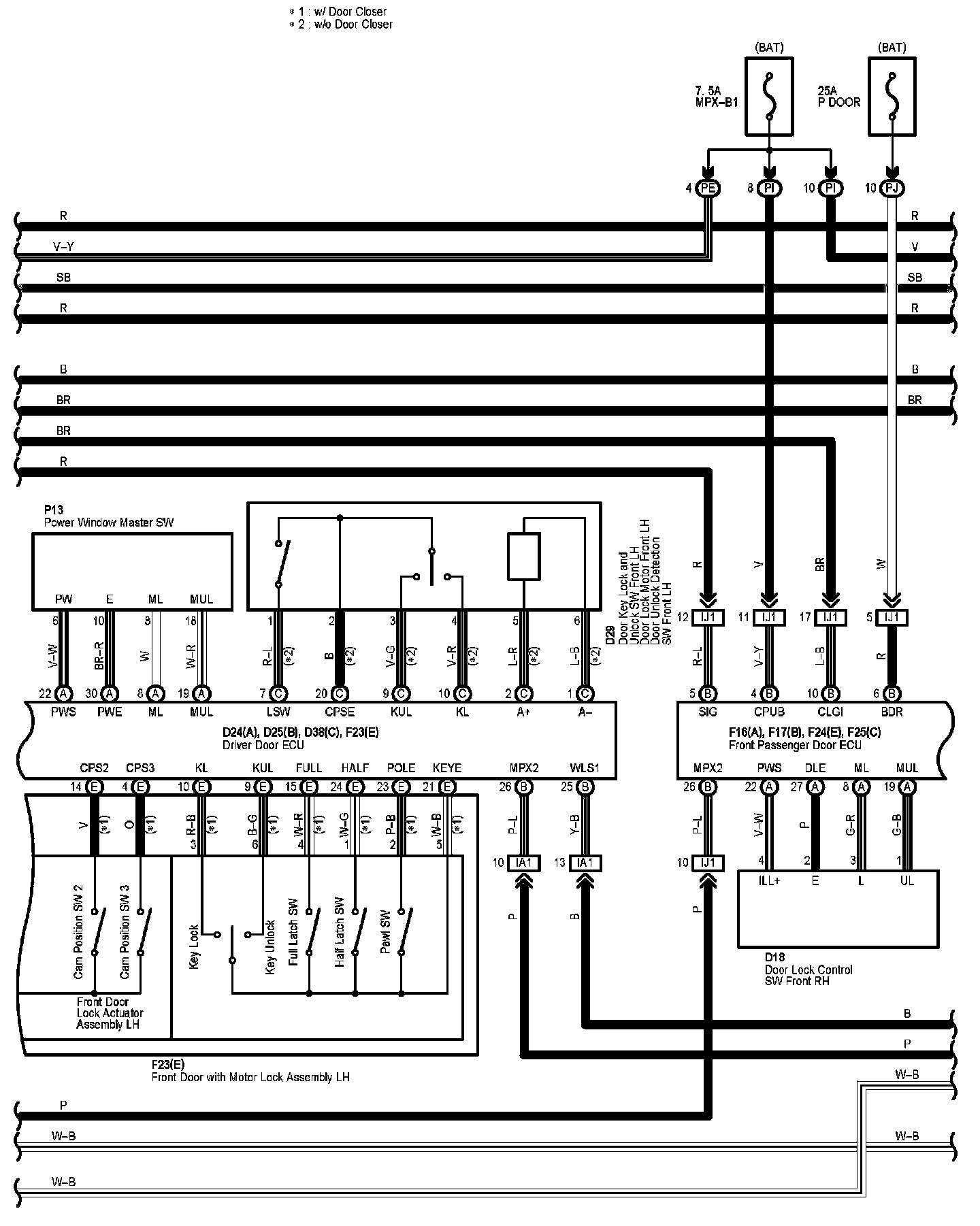

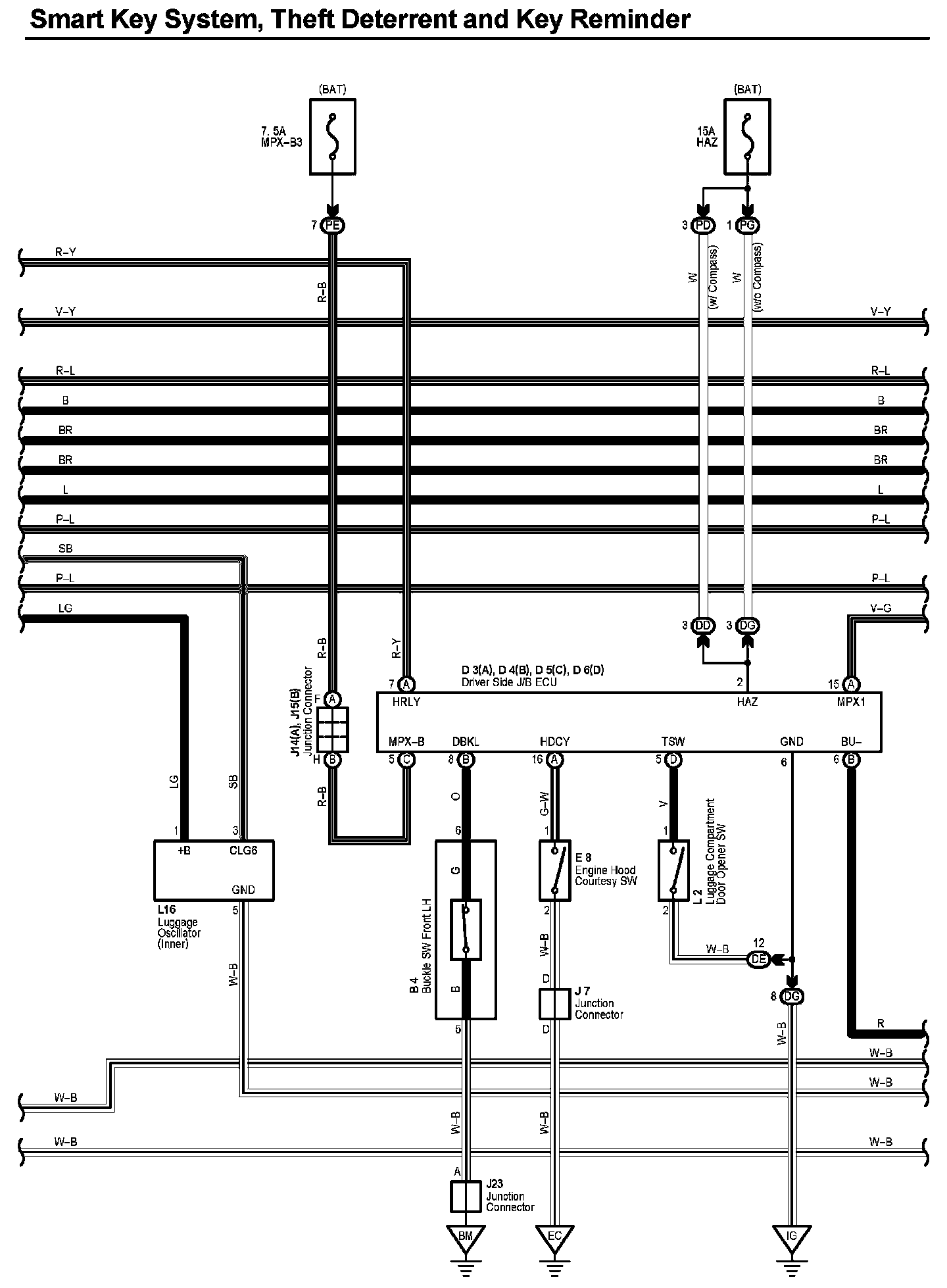

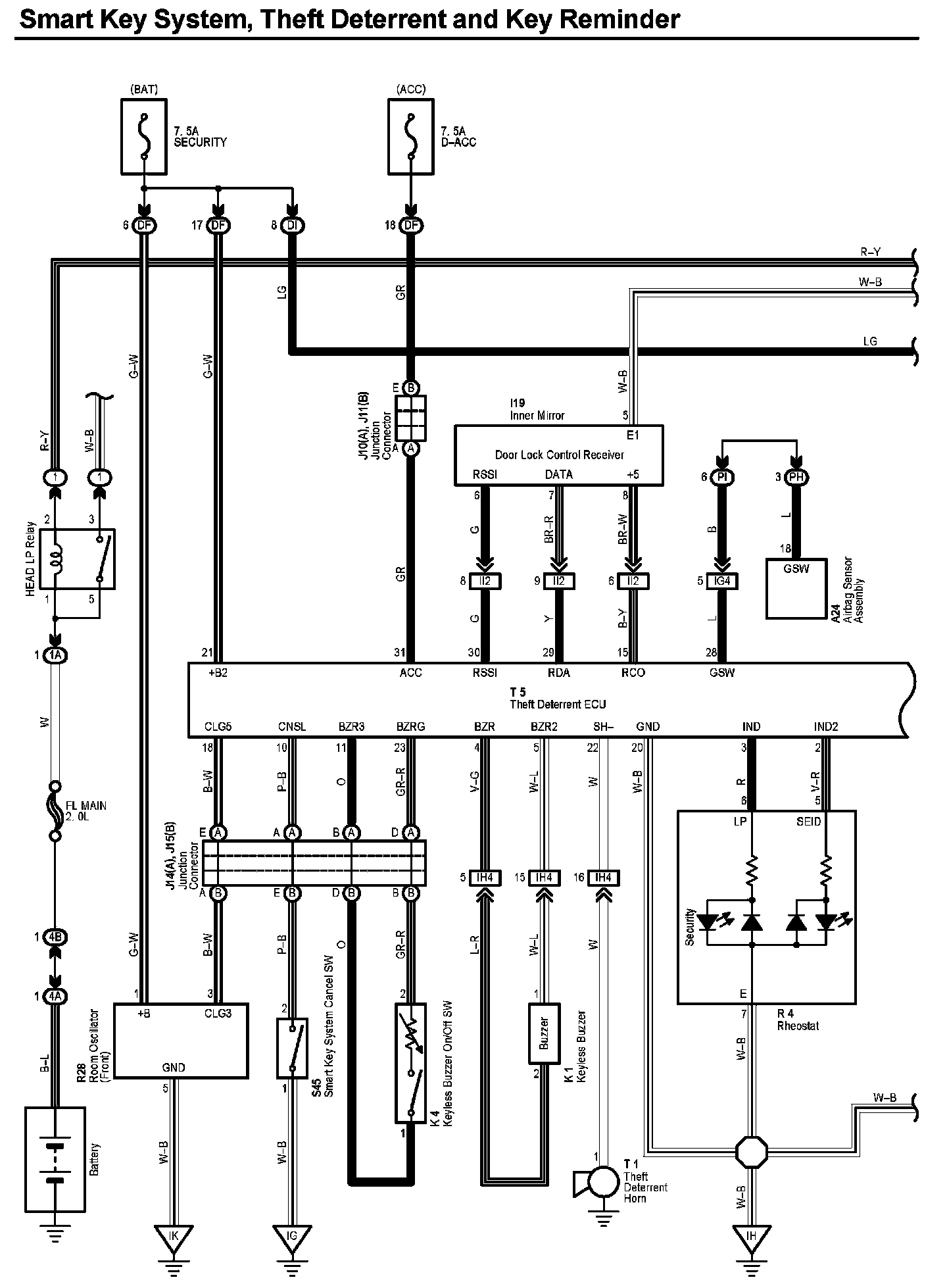

Smart Key System, Theft Deterrent And Key Reminder (Part 1):

Smart Key System, Theft Deterrent And Key Reminder (Part 2):

Smart Key System, Theft Deterrent And Key Reminder (Part 3):

Smart Key System, Theft Deterrent And Key Reminder (Part 4):

Smart Key System, Theft Deterrent And Key Reminder (Part 5):

Smart Key System, Theft Deterrent And Key Reminder (Part 6):

Smart Key System, Theft Deterrent And Key Reminder (Part 7):

Smart Key System, Theft Deterrent And Key Reminder (Part 8):

Smart Key System, Theft Deterrent And Key Reminder (Part 9):

Smart Key System, Theft Deterrent And Key Reminder (Part 10):

Smart Key System, Theft Deterrent And Key Reminder (Part 11):

Smart Key System, Theft Deterrent And Key Reminder (Part 12):

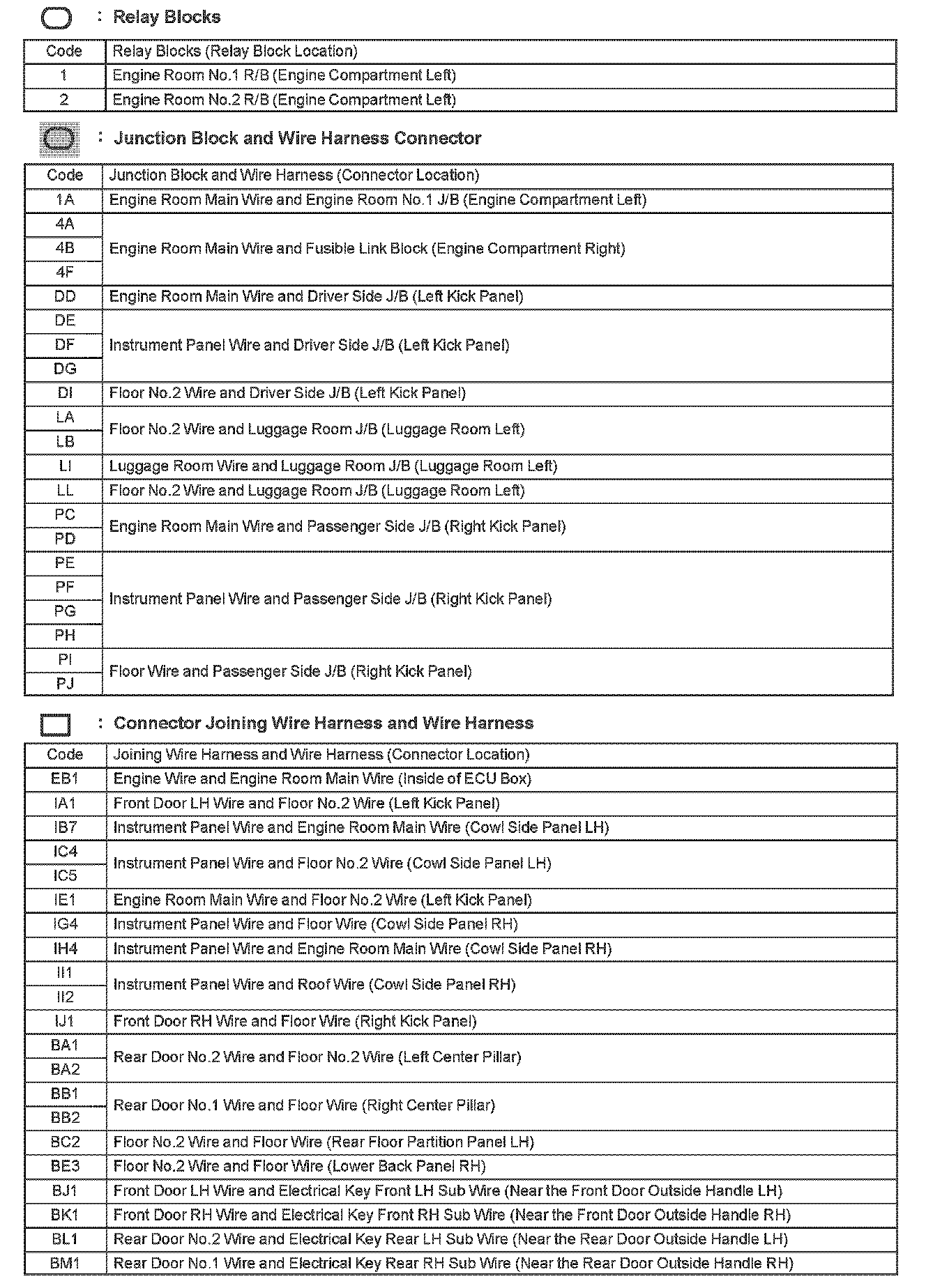

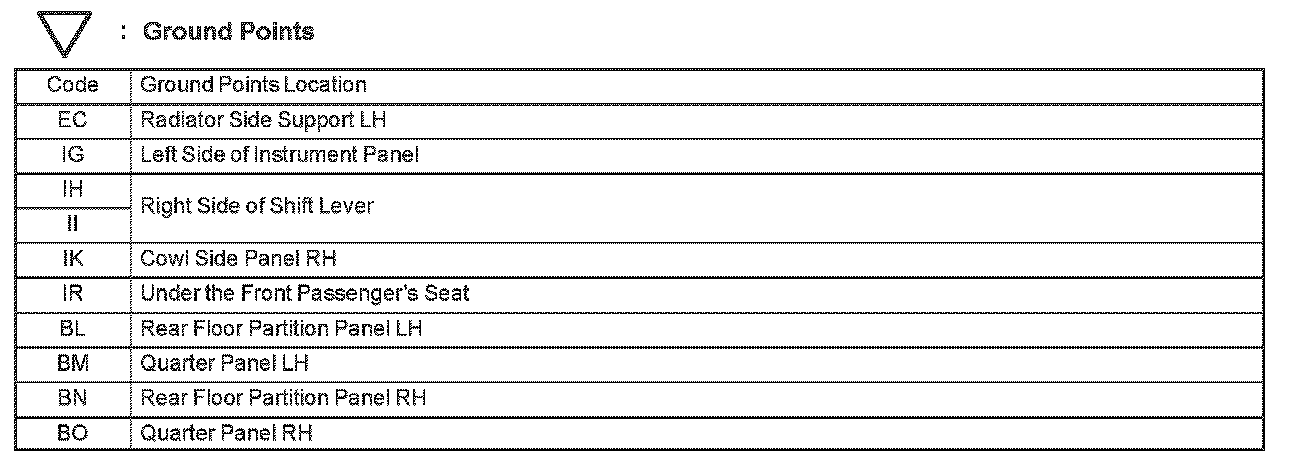

Diagram Legend (Part 1):

Diagram Legend (Part 2):

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
