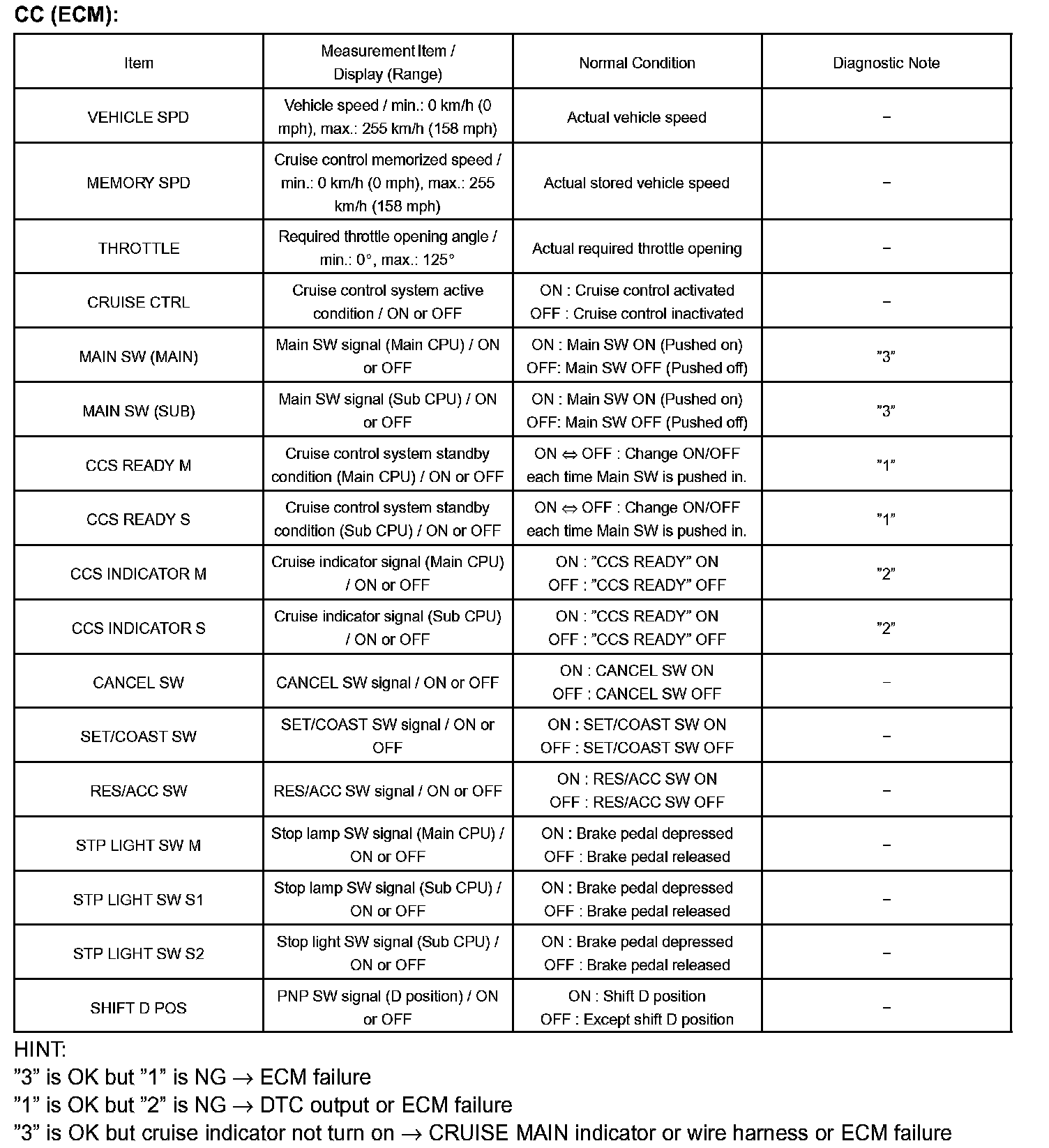

DATA LIST
While the hand-held tester is connected to the DLC3 and with the ignition switch turned to the ON position, the
CRUISE CONTROL
data list can be displayed. Follow the prompts on the tester screen to access the data list.
