Dynamic Radar Cruise Control System
Dynamic Radar Cruise Control System

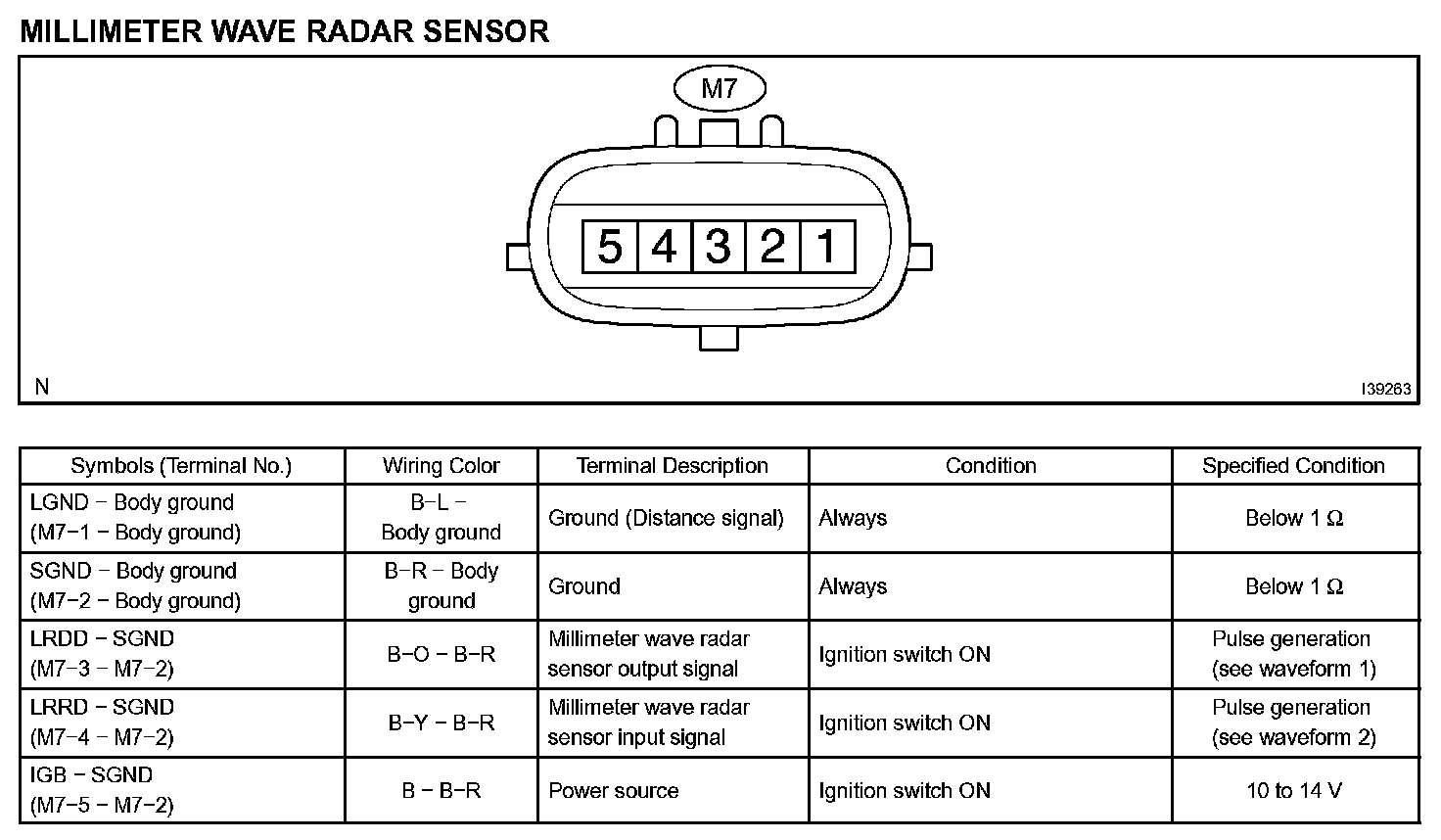

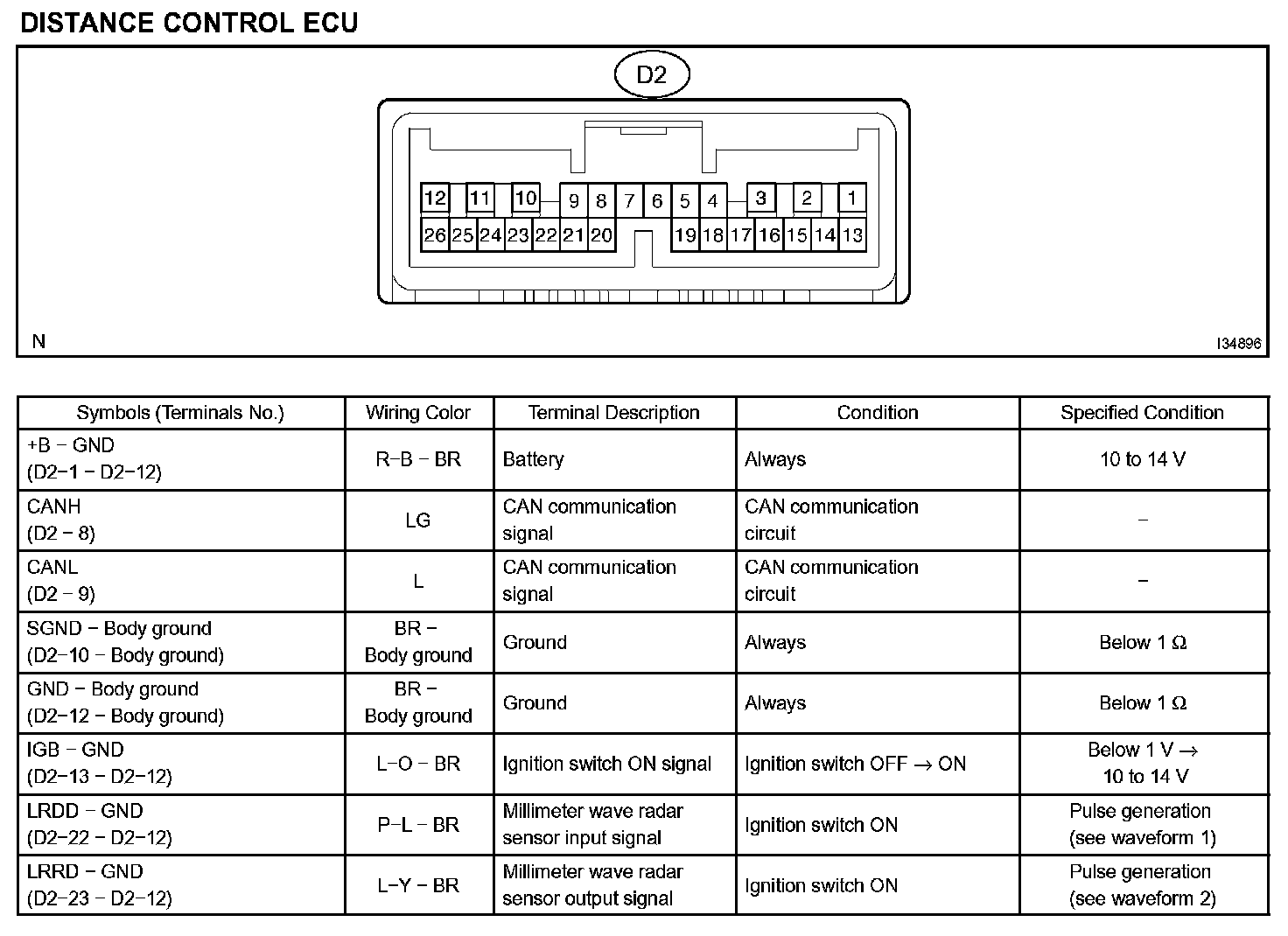

Terminals Of Control Module/Pinouts:

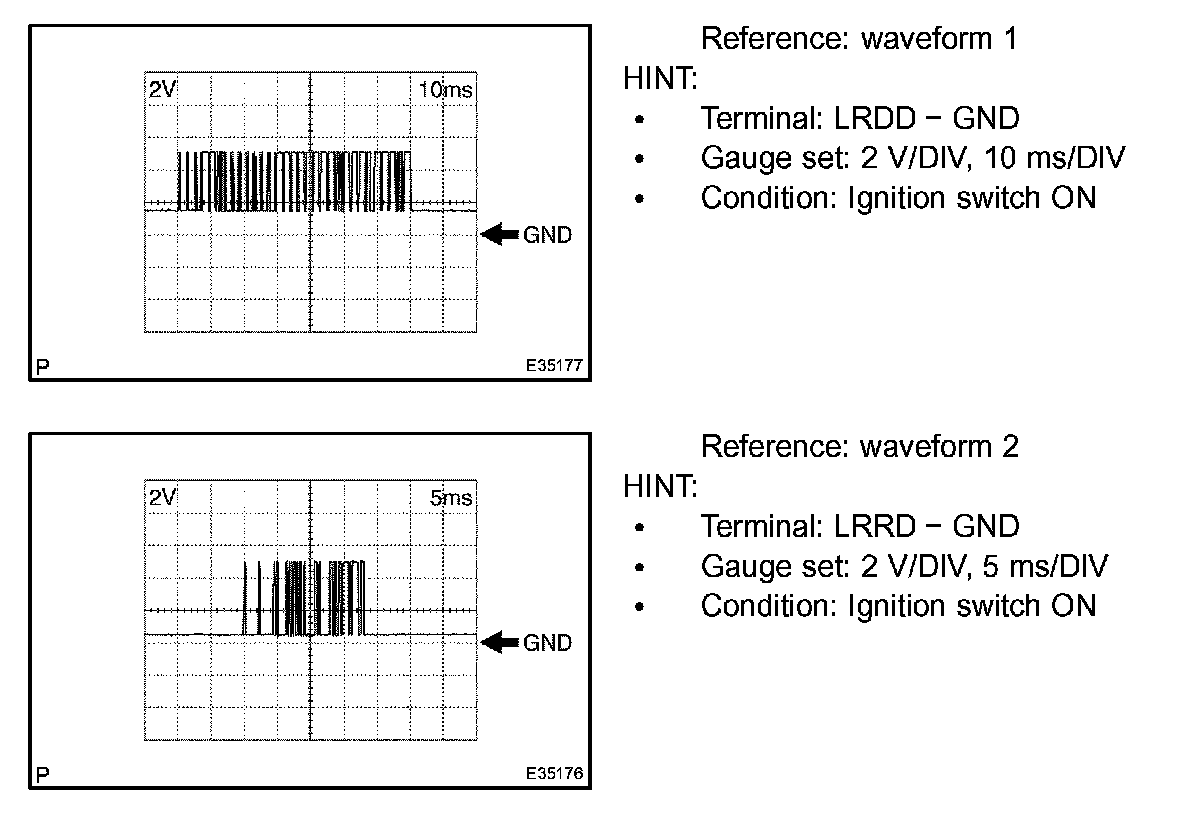

Oscilloscope Waveform:

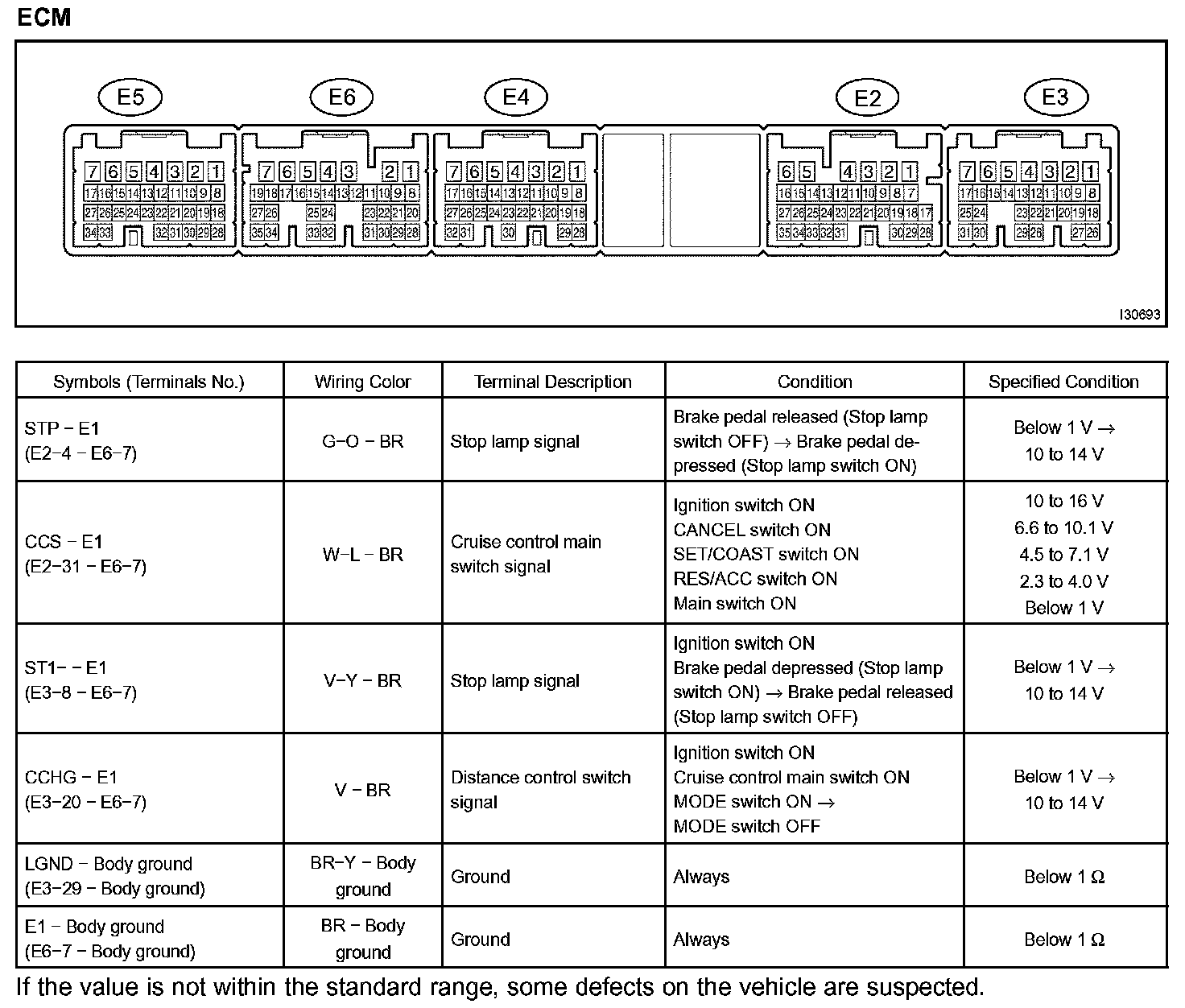

Terminals Of ECM/Pinouts:
Terminals Of ECM/Pinouts:

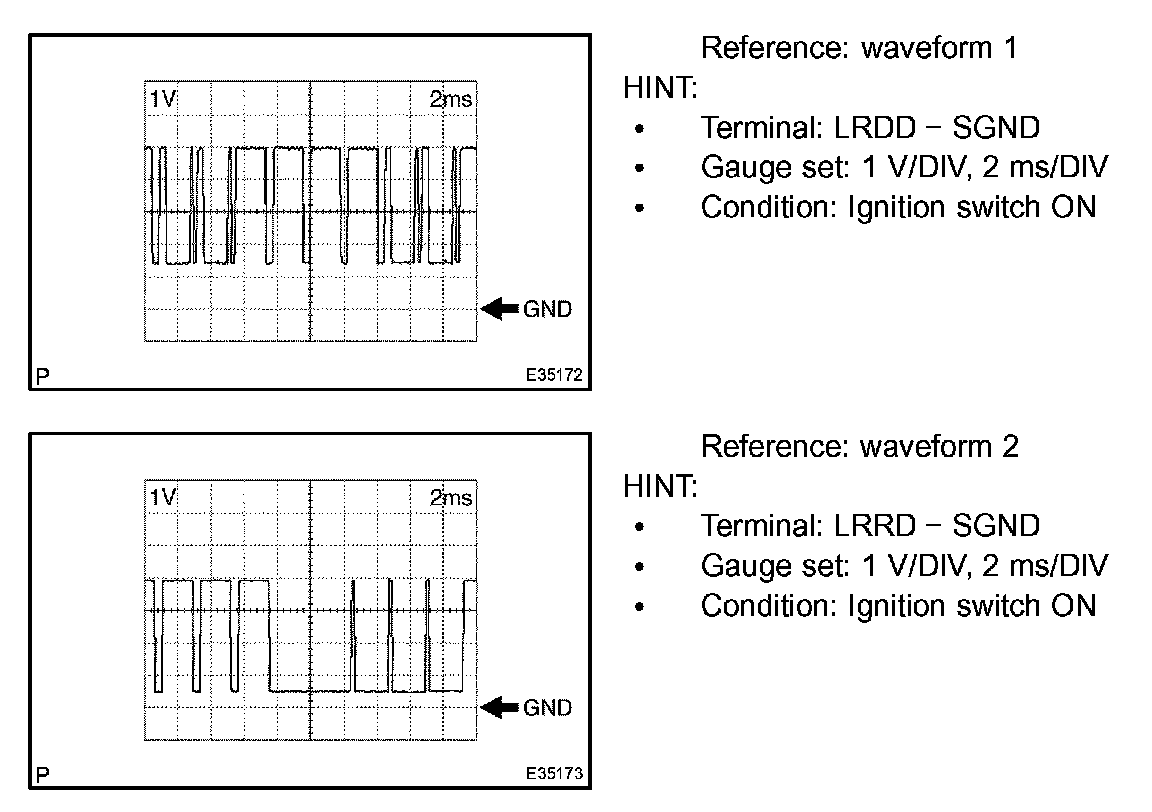

Oscilloscope Waveform:
