Dynamic Laser Cruise Control System

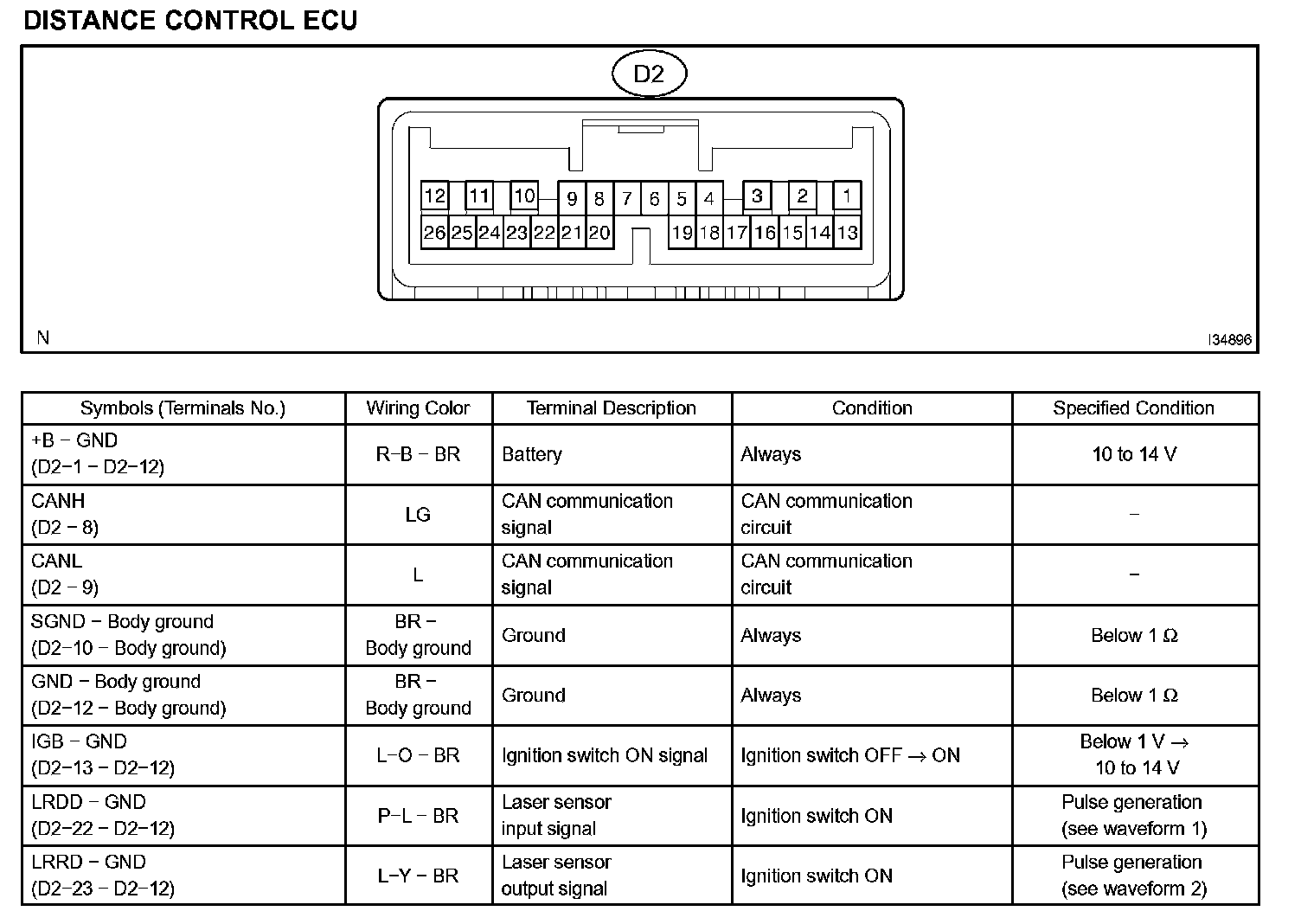

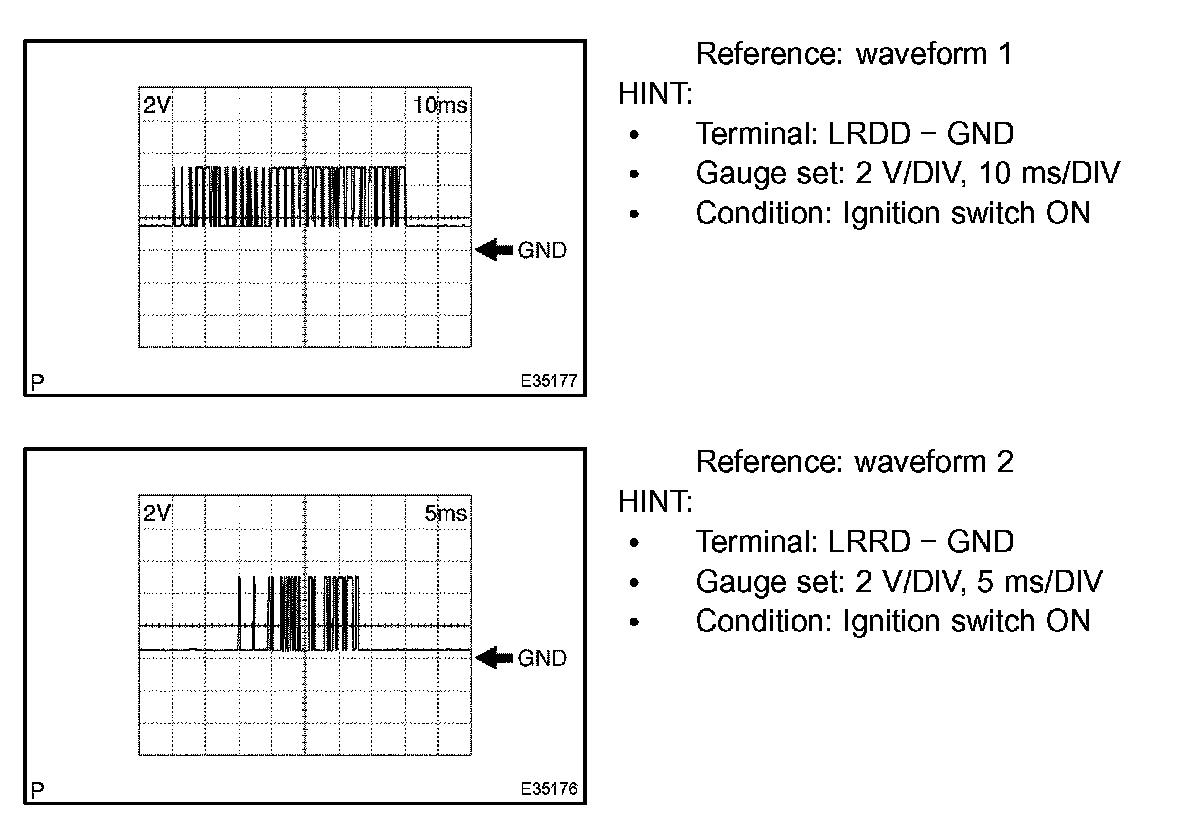

Terminals Of Control Module/Pinouts:

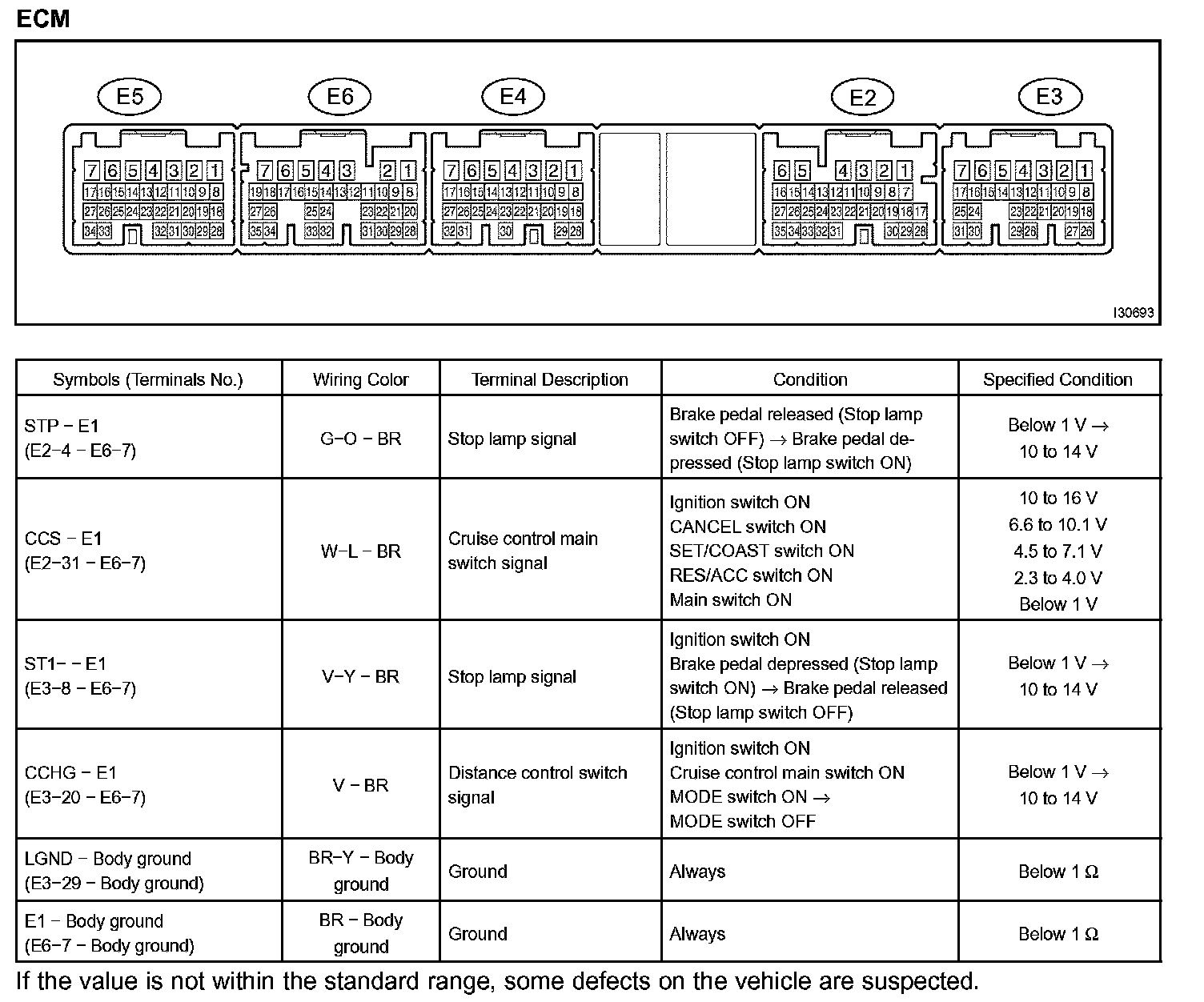

Terminals Of ECM/Pinouts:

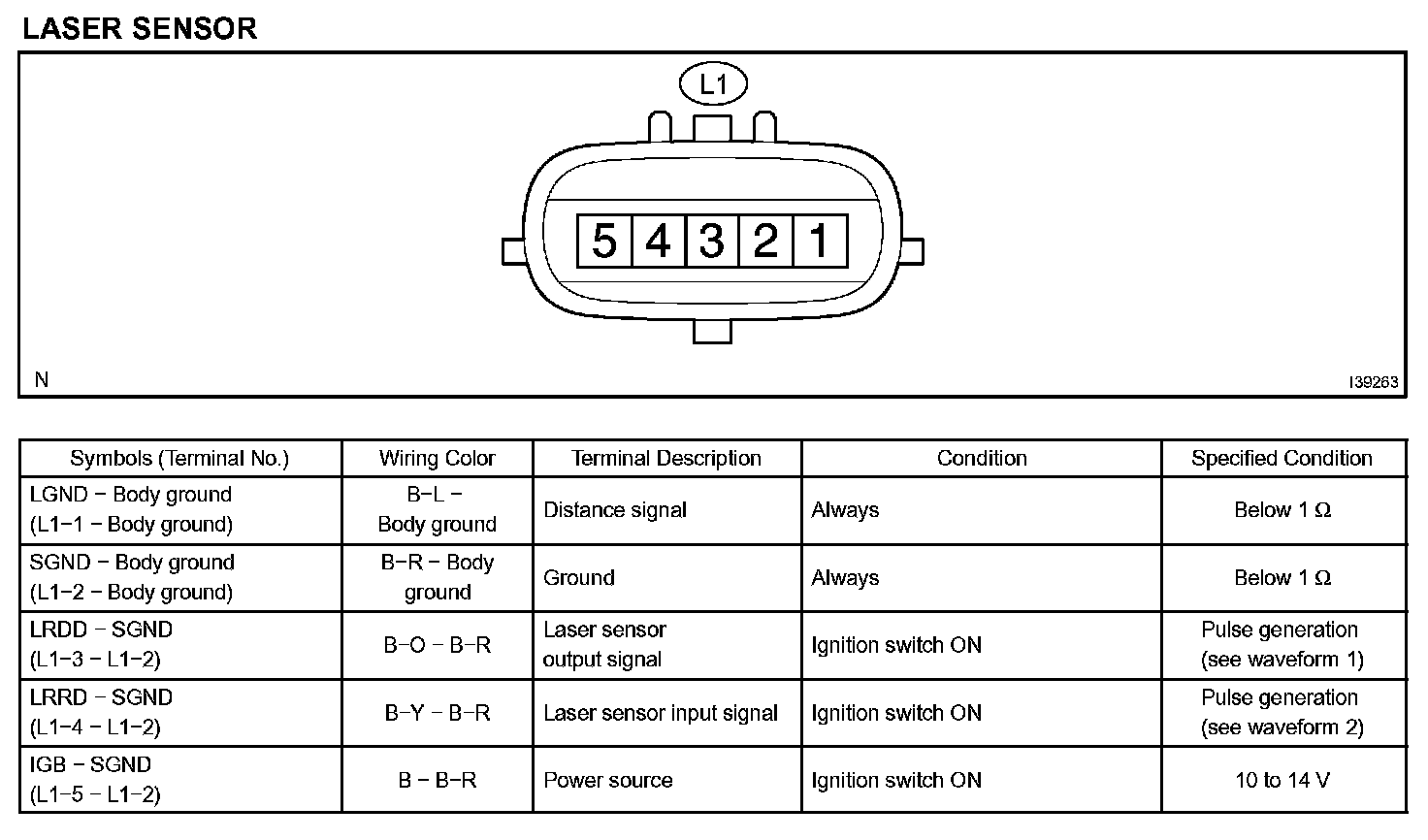

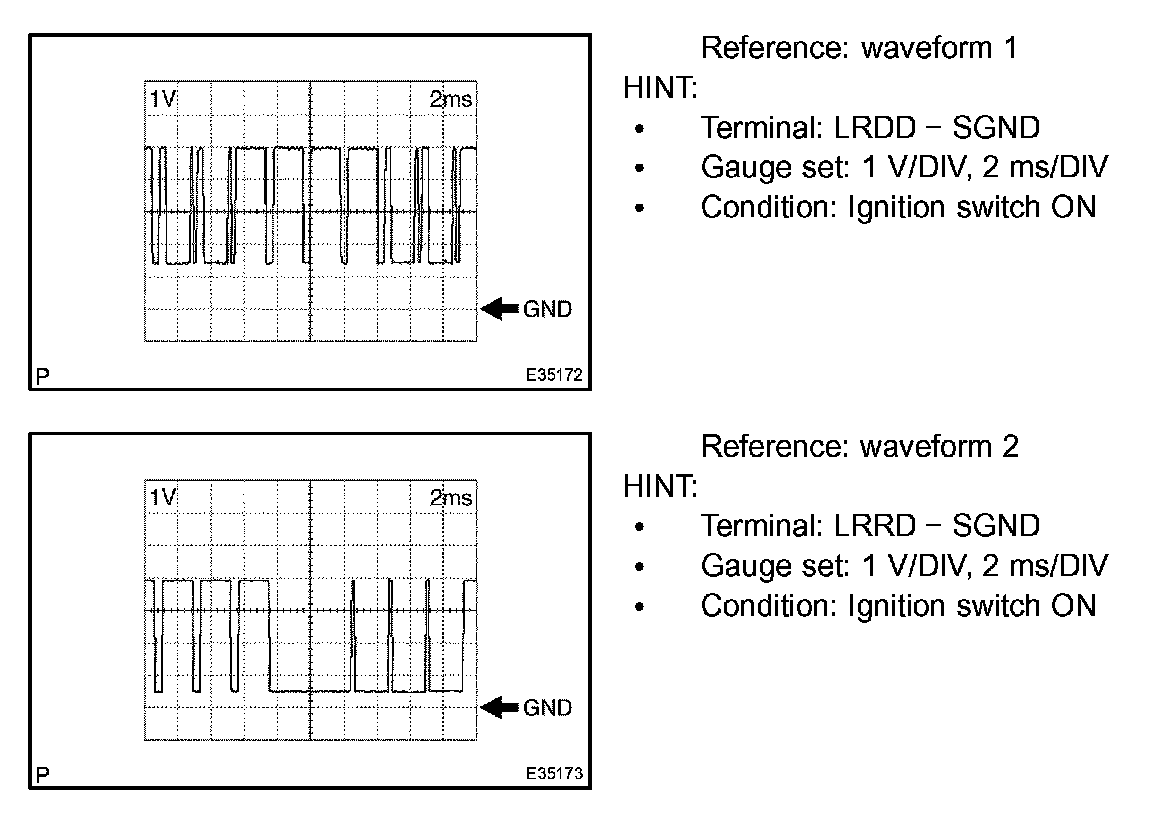

Terminals Of Control Module/Pinouts:
