Dynamic Radar/Laser Cruise Control System

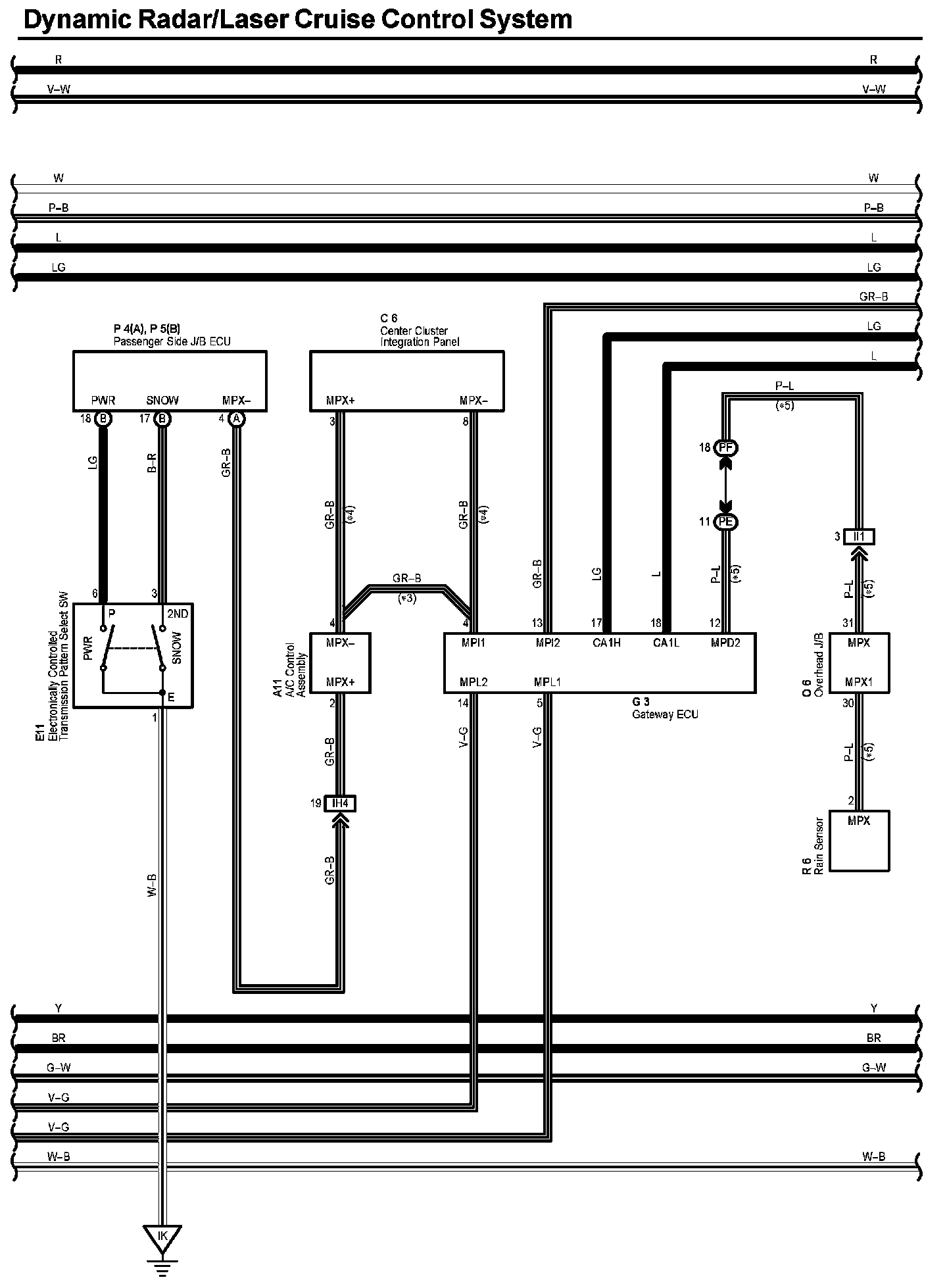

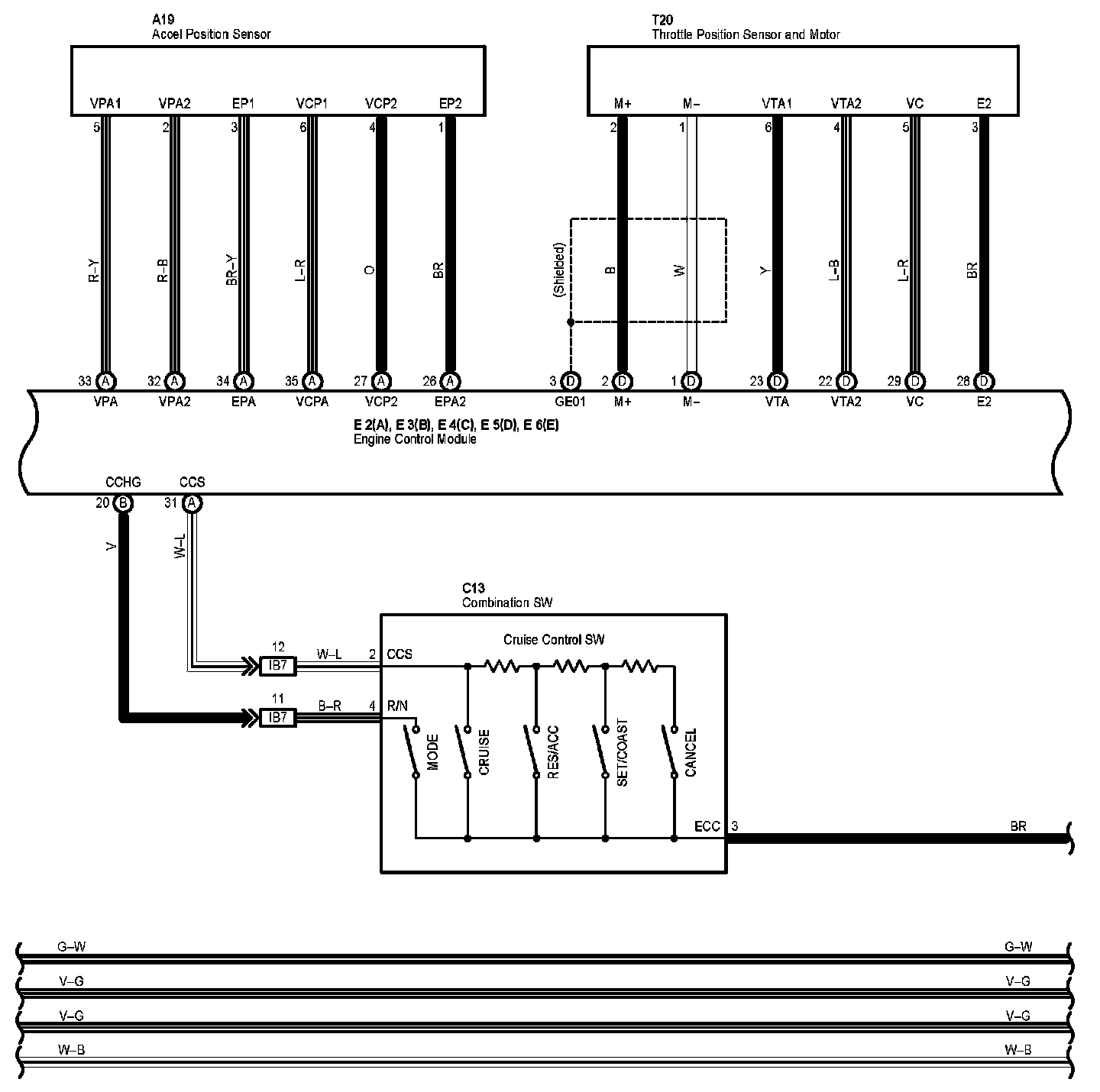

Dynamic Radar/Laser Cruise Control System (Part 1):

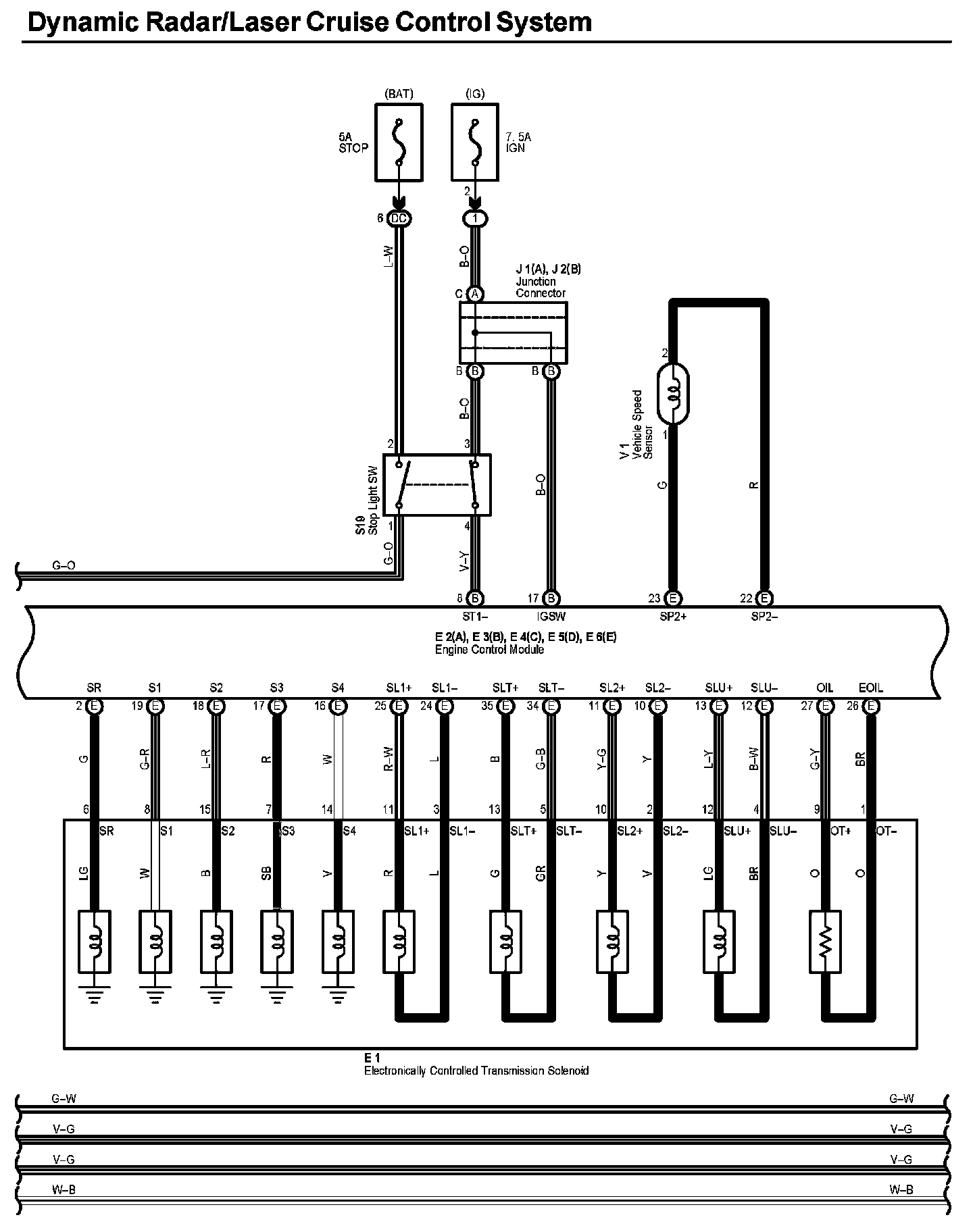

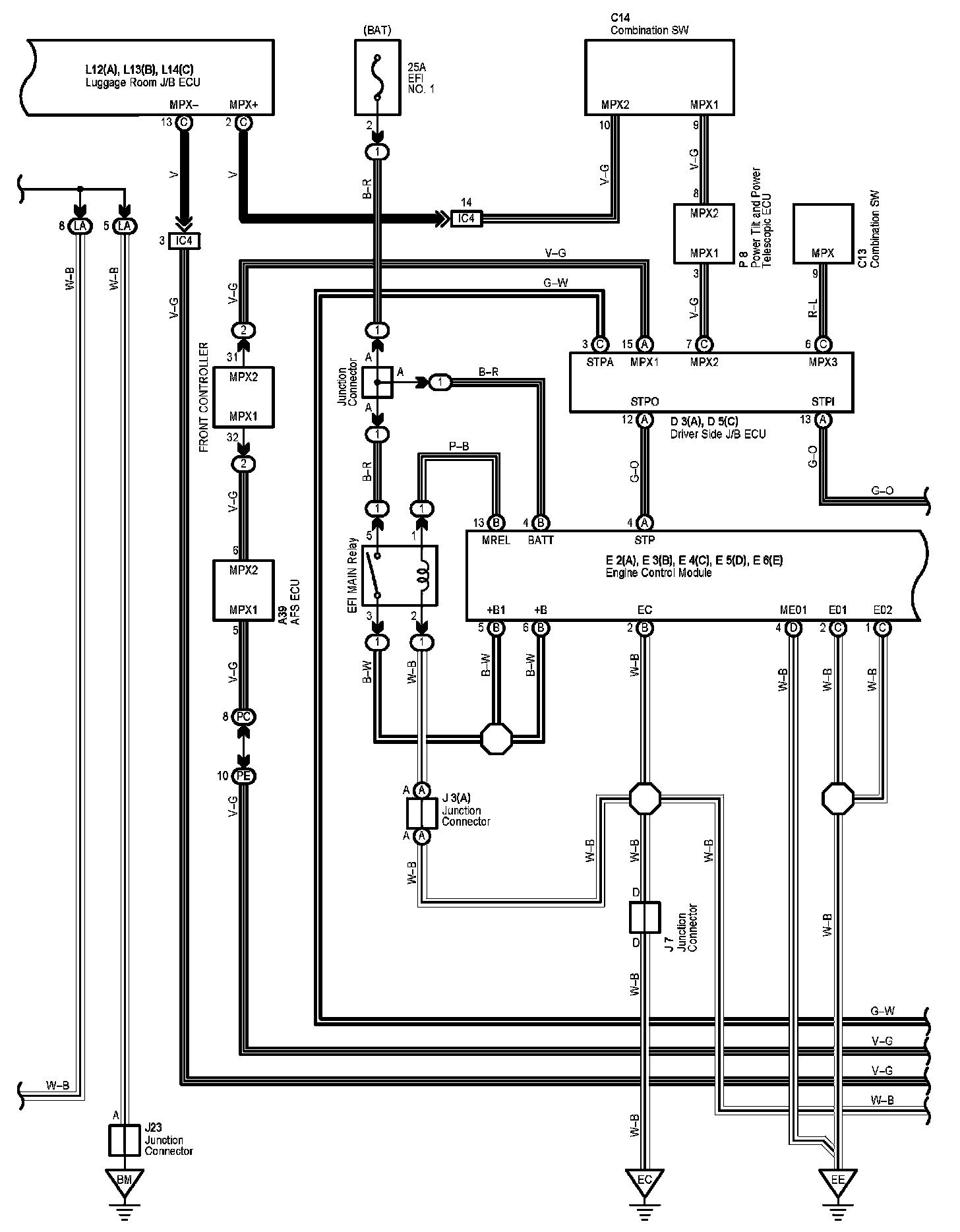

Dynamic Radar/Laser Cruise Control System (Part 2):

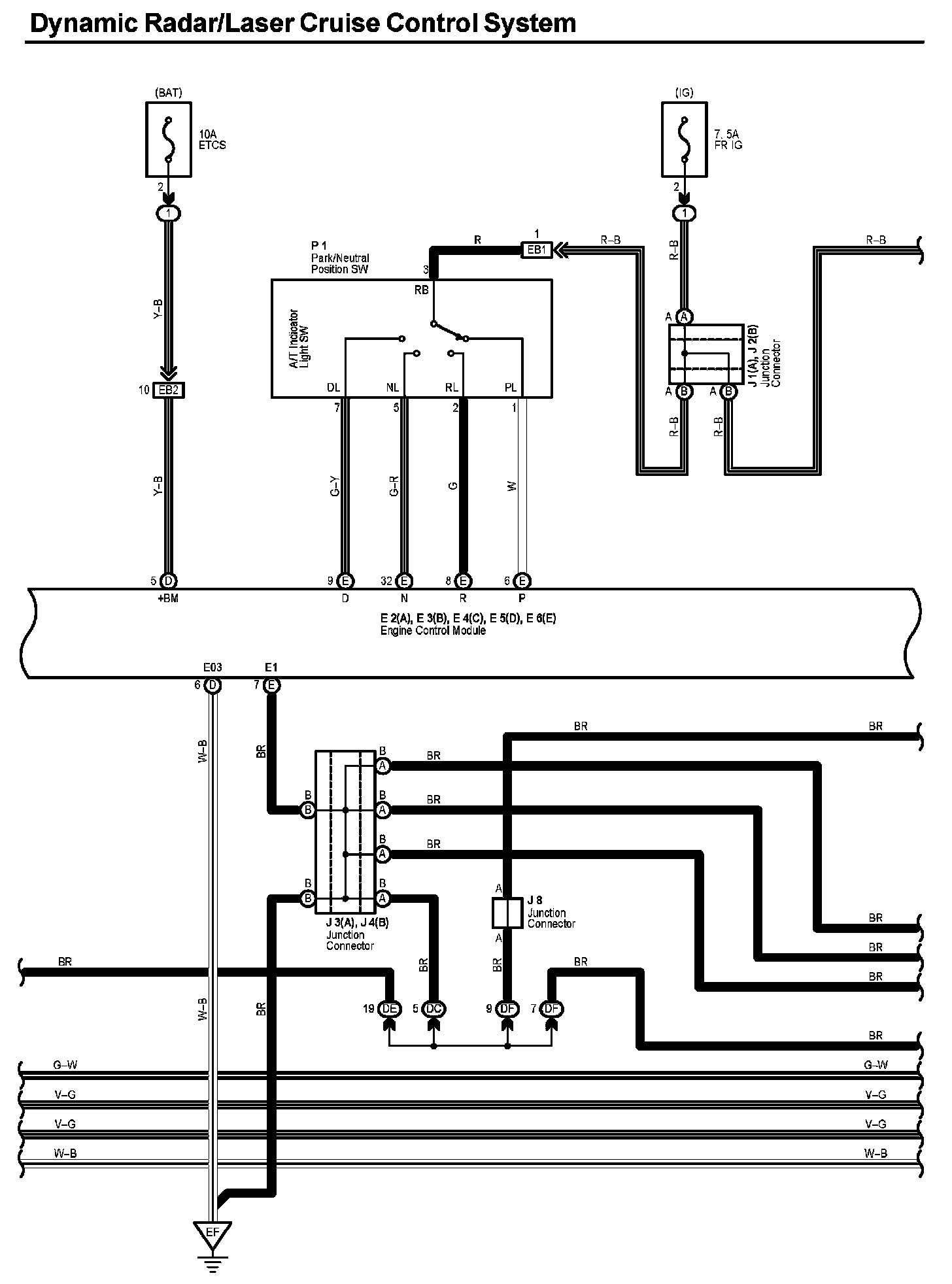

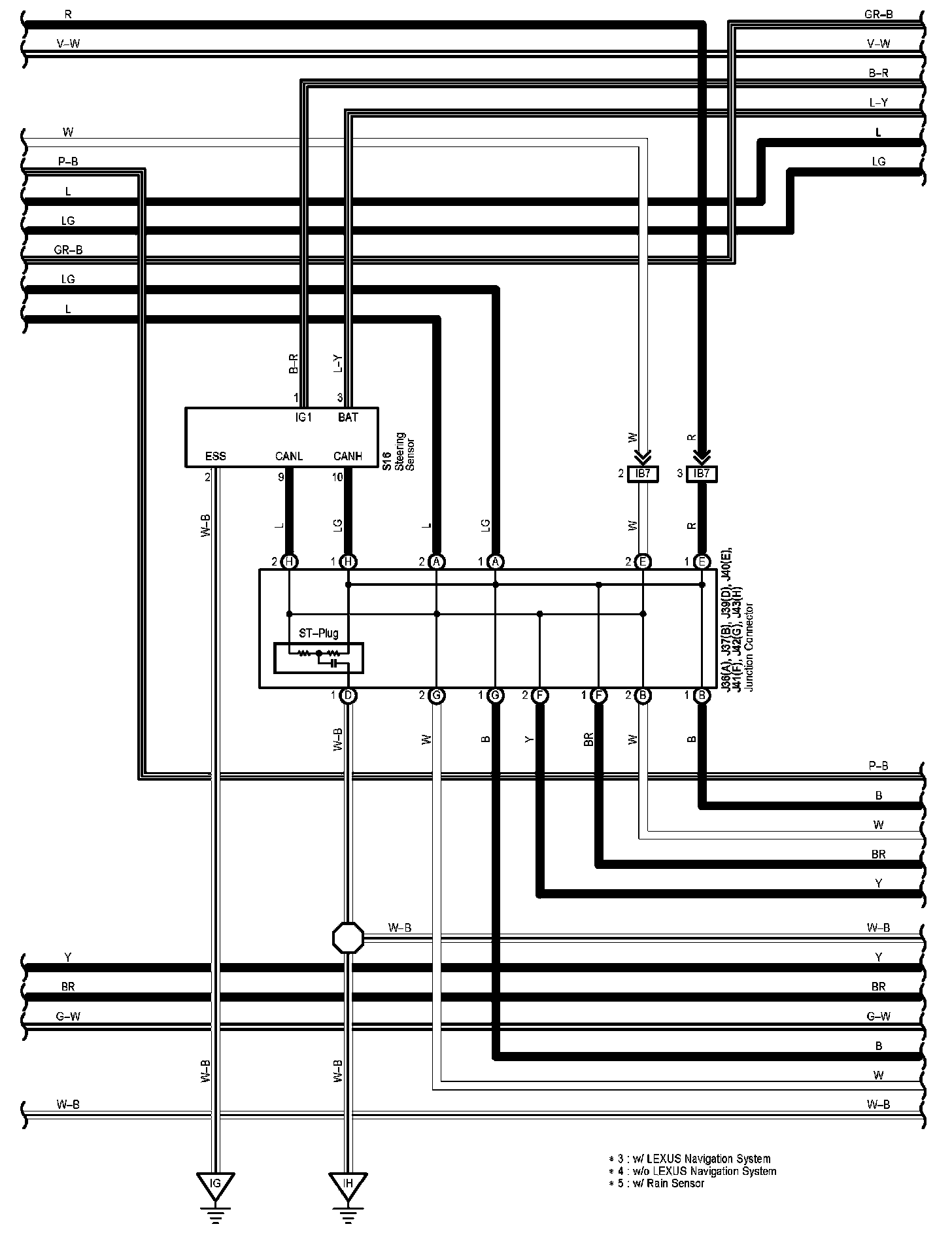

Dynamic Radar/Laser Cruise Control System (Part 3):

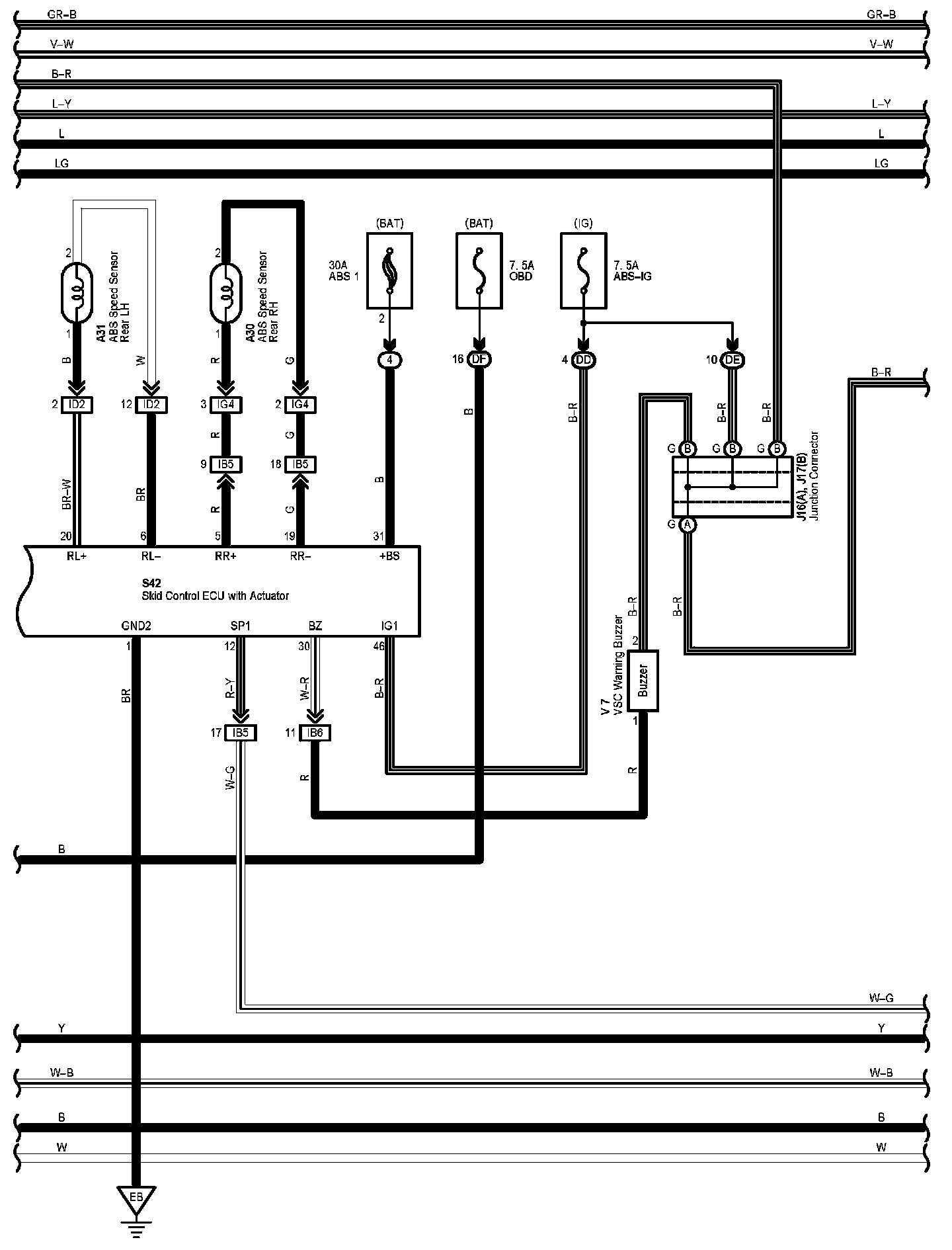

Dynamic Radar/Laser Cruise Control System (Part 4):

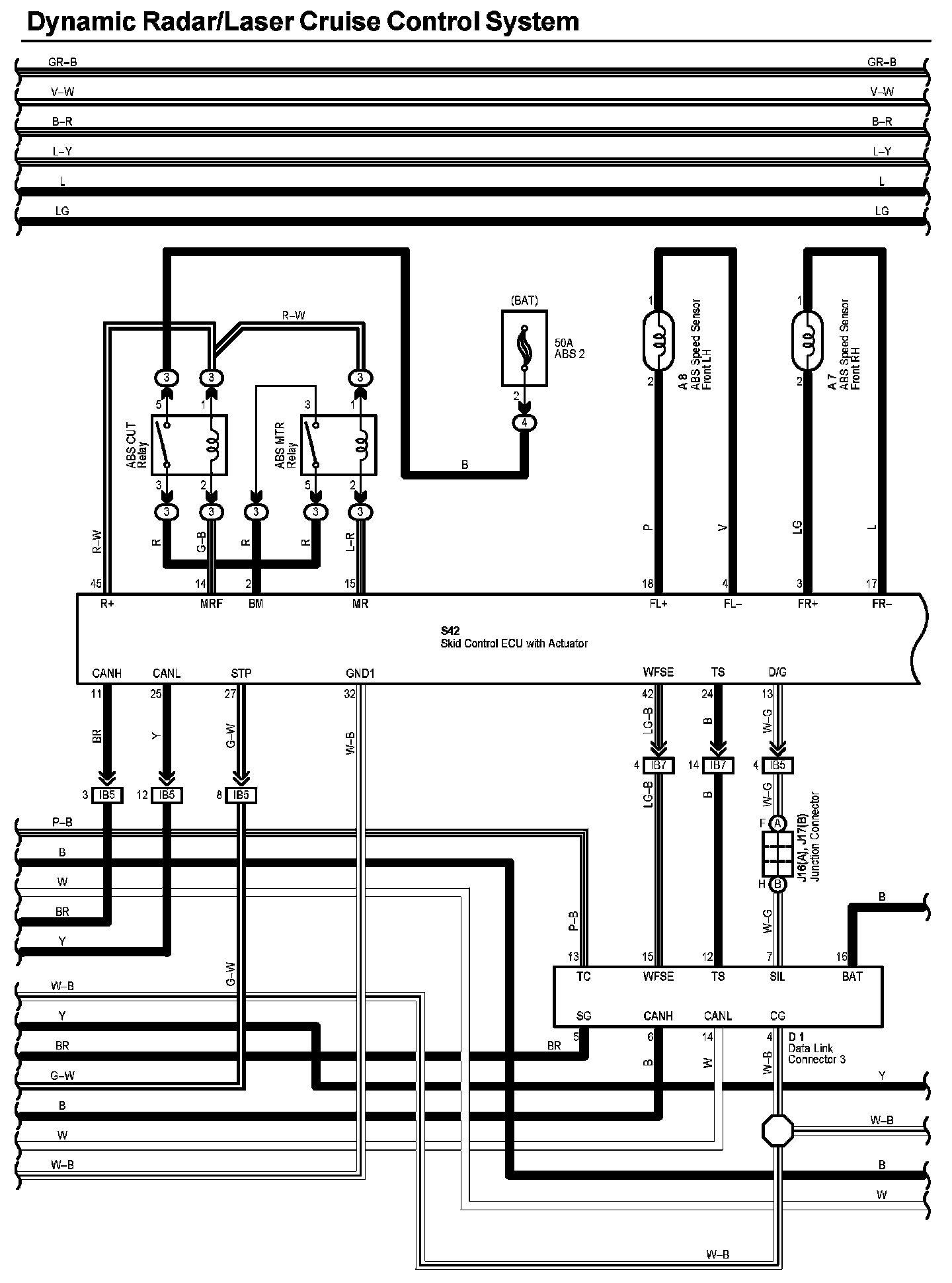

Dynamic Radar/Laser Cruise Control System (Part 5):

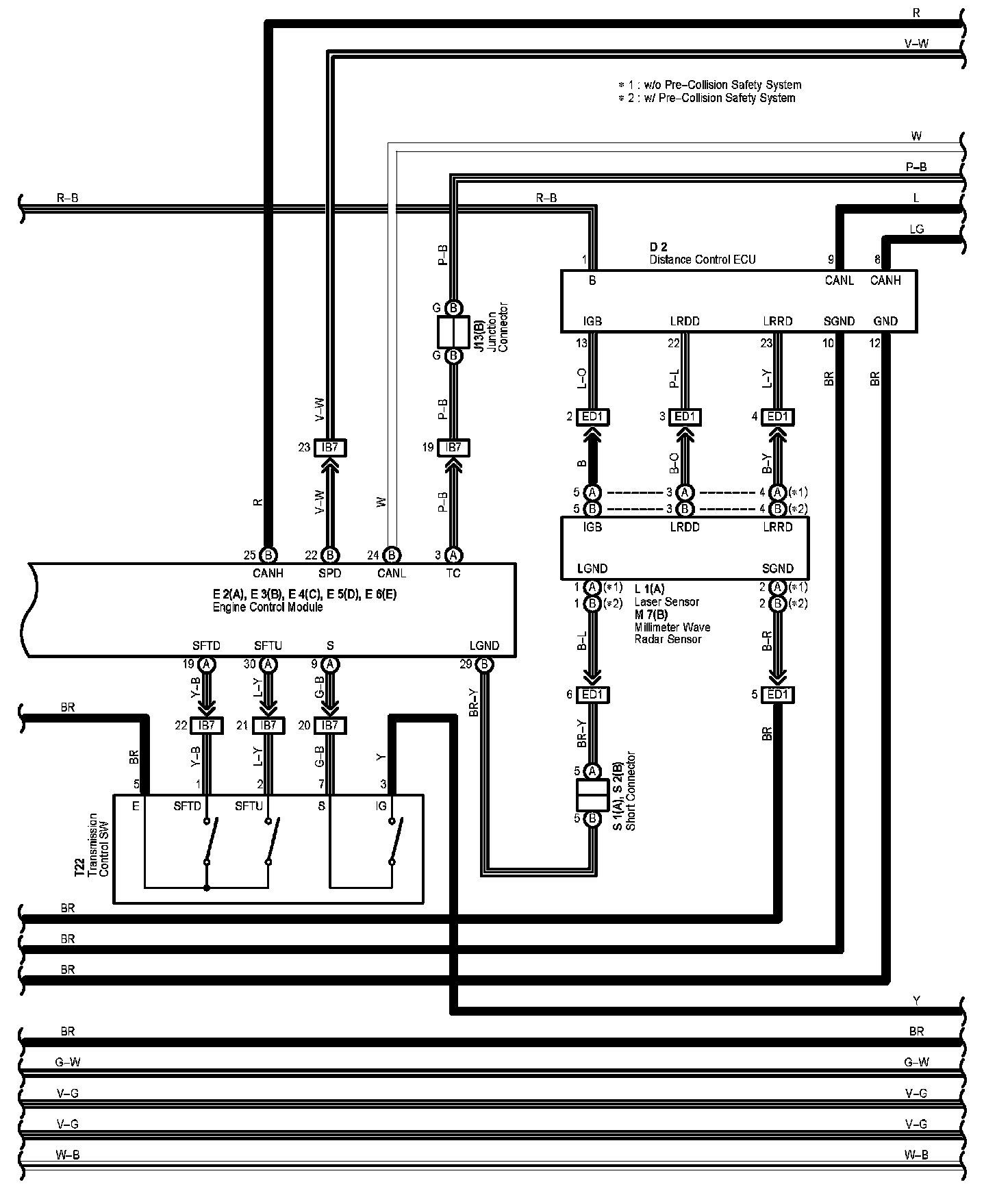

Dynamic Radar/Laser Cruise Control System (Part 6):

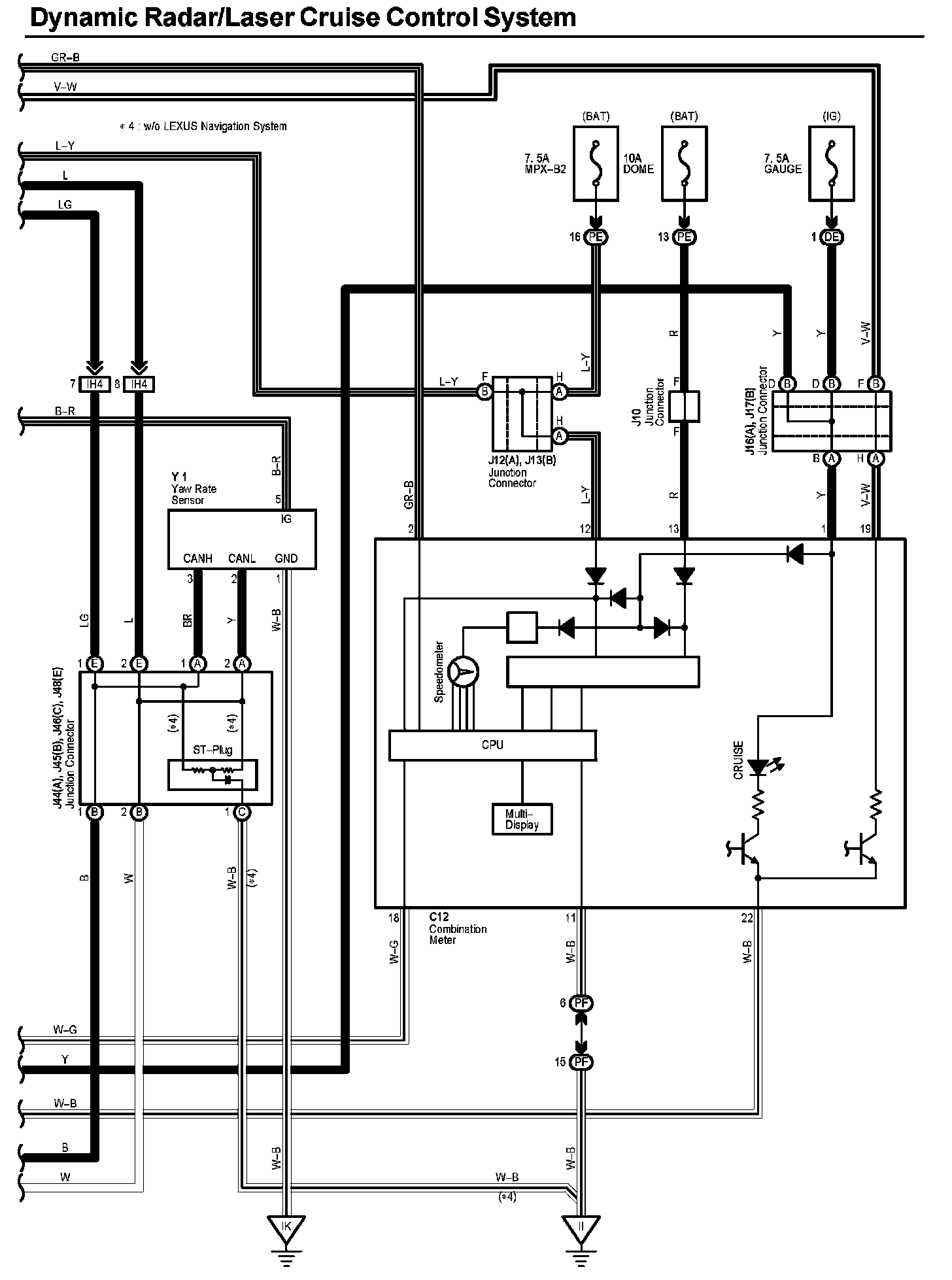

Dynamic Radar/Laser Cruise Control System (Part 7):

Dynamic Radar/Laser Cruise Control System (Part 8):

Dynamic Radar/Laser Cruise Control System (Part 9):

Dynamic Radar/Laser Cruise Control System (Part 10):

Dynamic Radar/Laser Cruise Control System (Part 11):

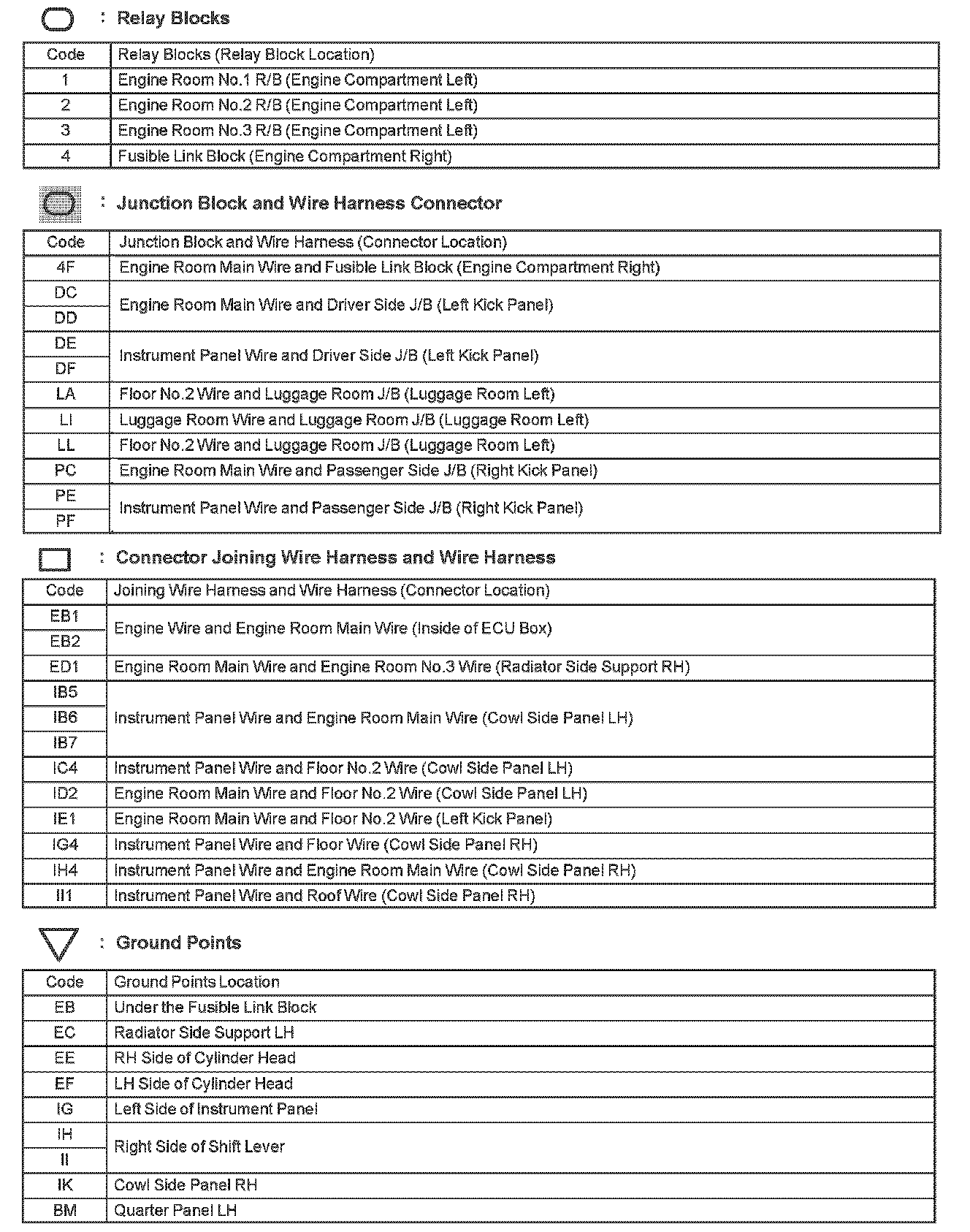

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
