Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

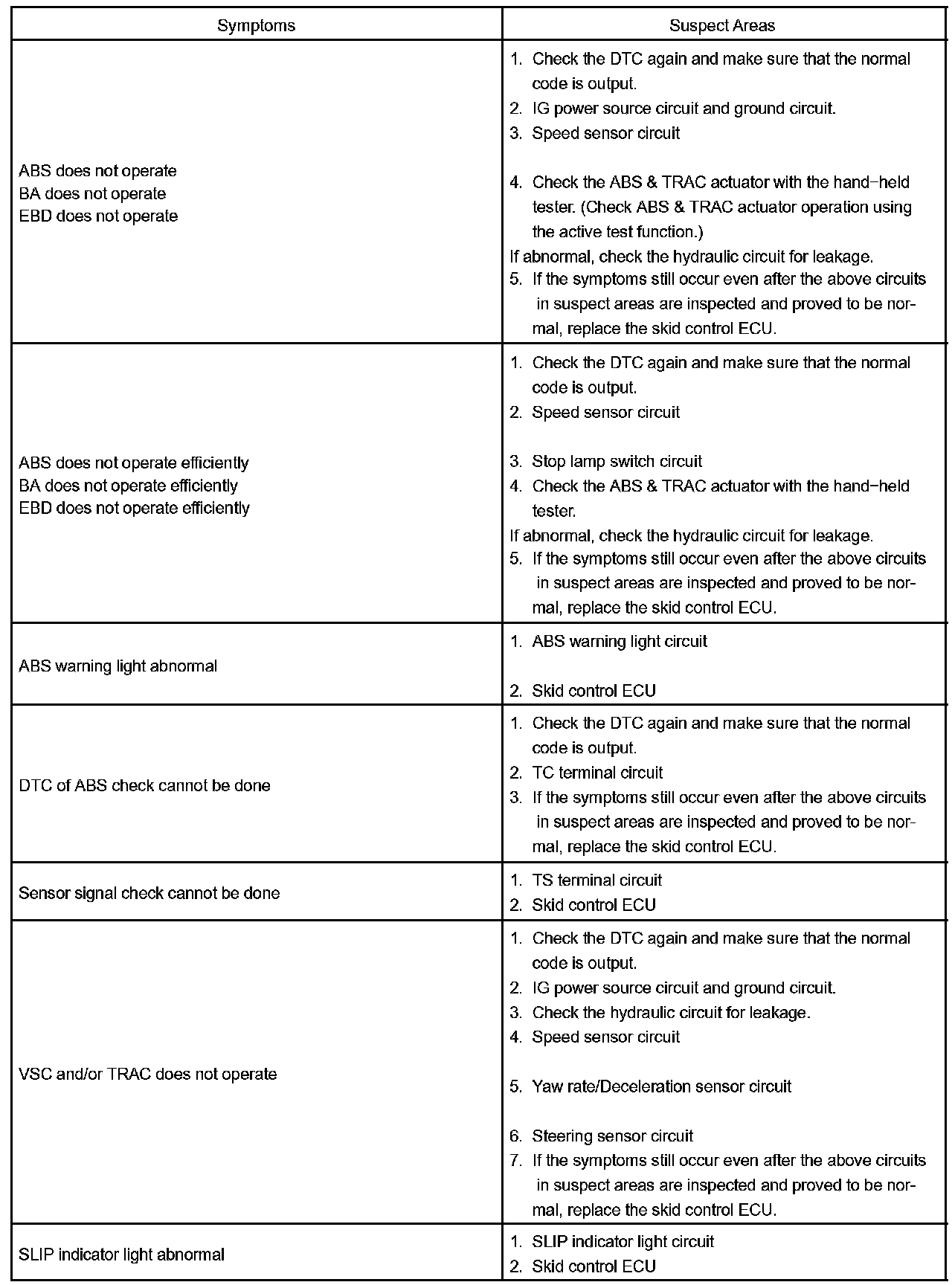

Problem Symptoms Table (Part 1):

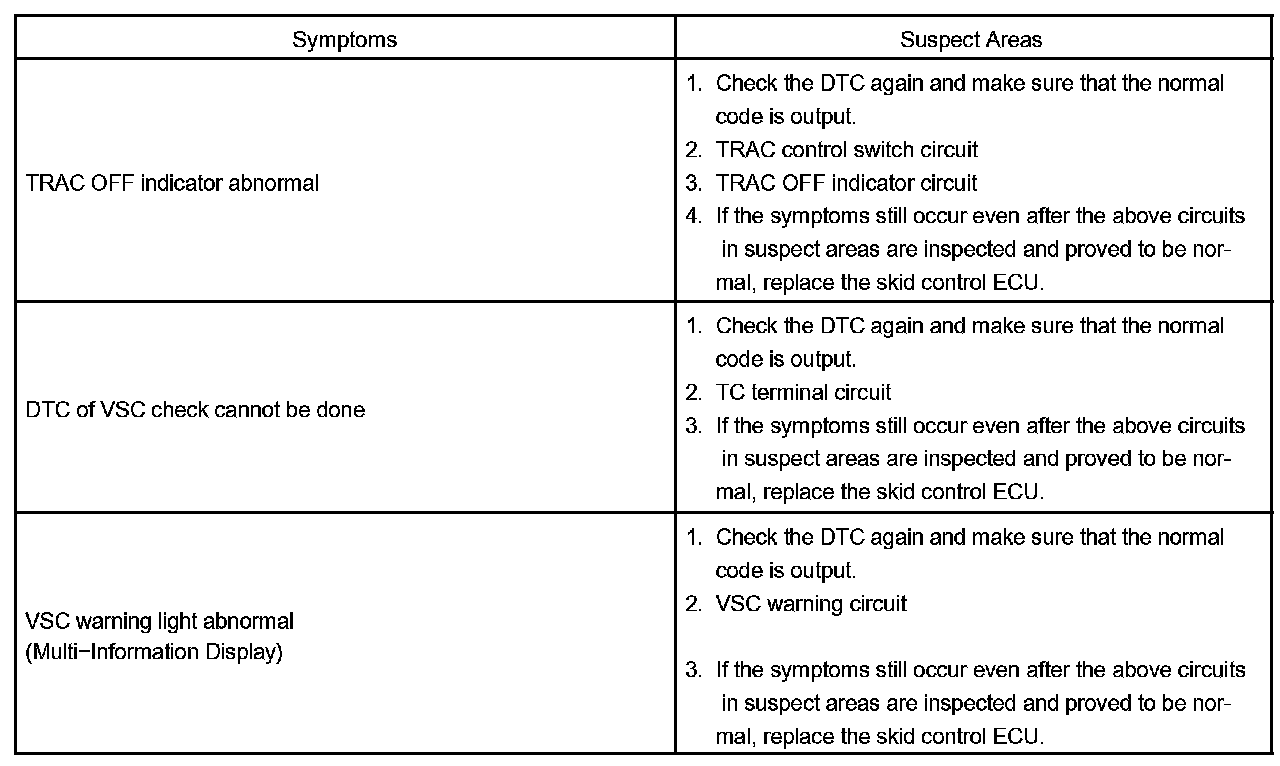

Problem Symptoms Table (Part 2):

If there are no DTCs output but the problem still occurs, check the circuits for each problem symptom in the order given in the table and proceed to the relevant troubleshooting.
