Without Scan Tool

DTC CHECK (USING SST CHECK WIRE)

a. Checking DTCs of ABS system.

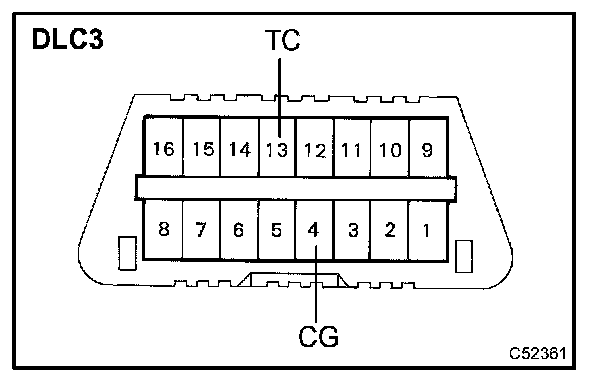

1. Using SST, connect terminals TC and CG of the DLC3.

SST 09843-18040

2. Turn the ignition switch to the ON position.
3. Read the DTC from the ABS warning light on the combination meter.

HINT:
- If no code appears, inspect the diagnostic circuit or ABS warning light circuit.

Trouble Area
TC and CG terminal circuit
ABS warning light circuit

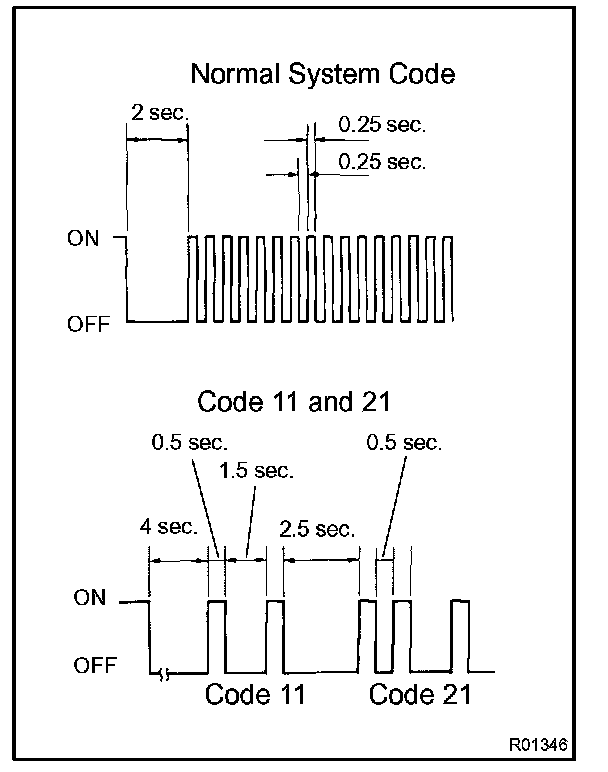

- As an example, the blinking patterns for a normal system code and trouble codes 11 and 21 are shown.




4. Codes are explained in the code table.
5. After completing the check, disconnect terminals TC and CG of the DLC3, and turn off the display.
If 2 or more DTCs are detected at the same time, the DTCs will be displayed in assenting order.

b. Checking DTCs of VSC system.

1. Using SST, connect terminals TC and CG of the DLC3.

SST 09843-18040

2. Turn the ignition switch to the ON position.
3. Read the DTC from multi-information display on the combination meter.






HINT:
- At this time, "VSC OK", is displayed when VSC system is in normal condition. If any DTC is detected, "VSC 31", for example, will be displayed.
- If there are 2 or more DTC, DTC will be displayed in ascending order of the number.
- If no code appears, inspect the VSC warning information circuit and TC and CG terminal circuit.

Trouble Area
TC and CG terminal circuit
VSC warning information circuit

END OF DTC CHECK

a. Turn the ignition switch to the ON position
b. Check that the ABS warning lamp go off within approximately 3 seconds.
c. Check that VSC does not appear on the multi information display.
