Slip Indicator Lamp Circuit

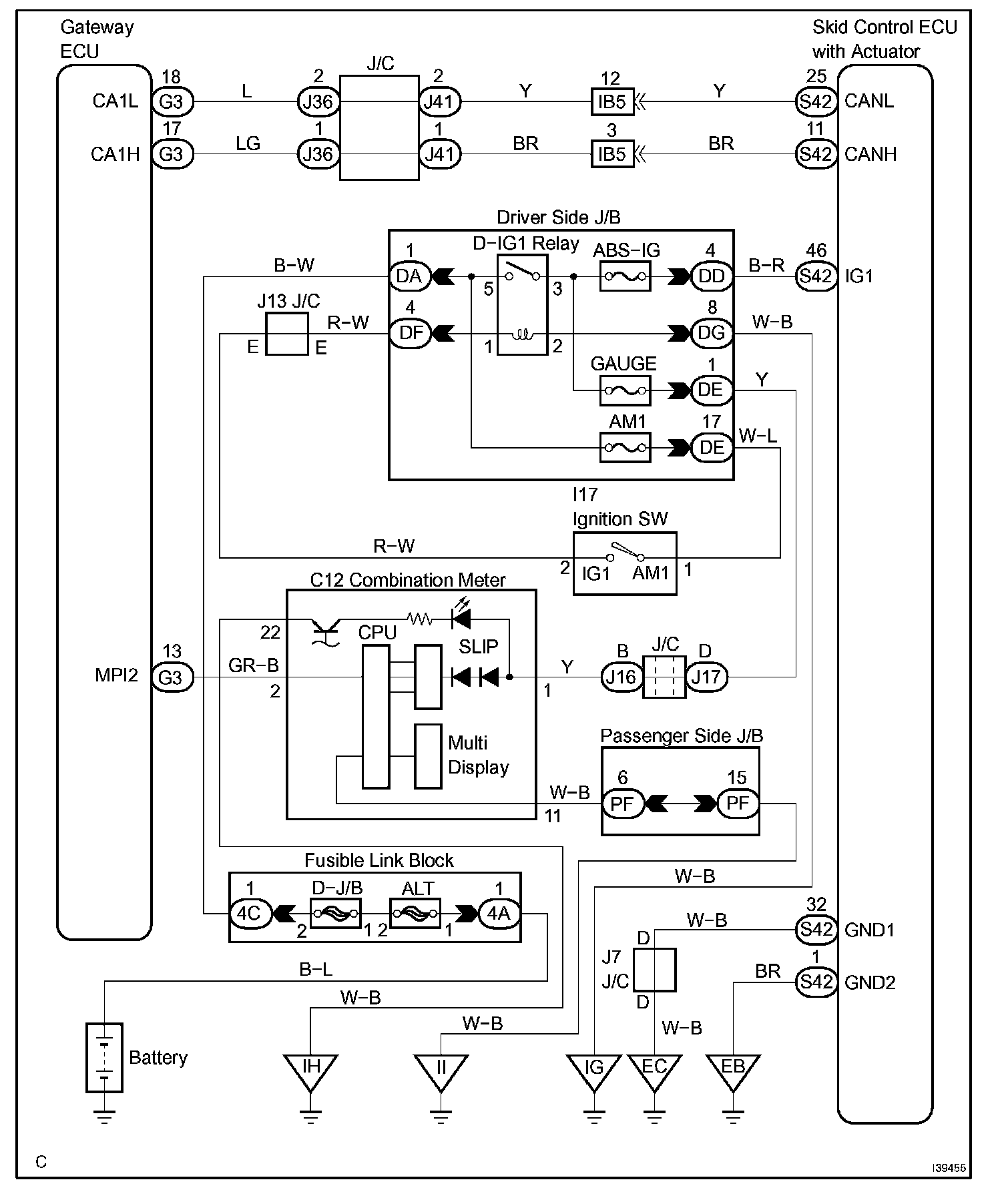

SLIP INDICATOR LIGHT CIRCUIT

CIRCUIT DESCRIPTION

The SLIP indicator blinks during TRAC & VSC operation.

The skid control ECU is connected to the combination meter via CAN and MPX communications.
