Vibrator Circuit (LH)

VIBRATOR CIRCUIT (LH)

CIRCUIT DESCRIPTION

The rear LH seat ECU sends a vibration seat function signal to the vibrator through the vibration seat ECU.

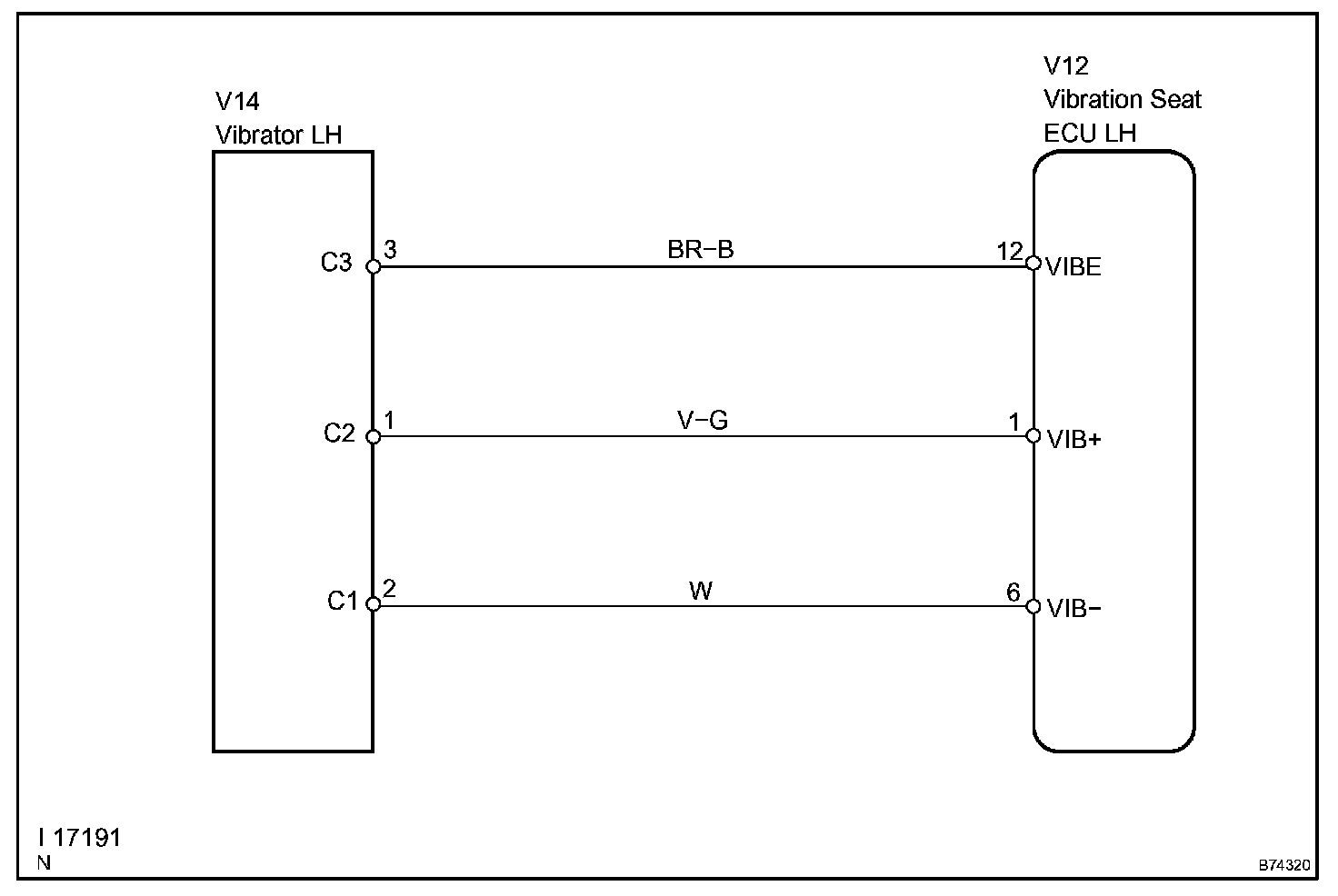

Wiring Diagram:

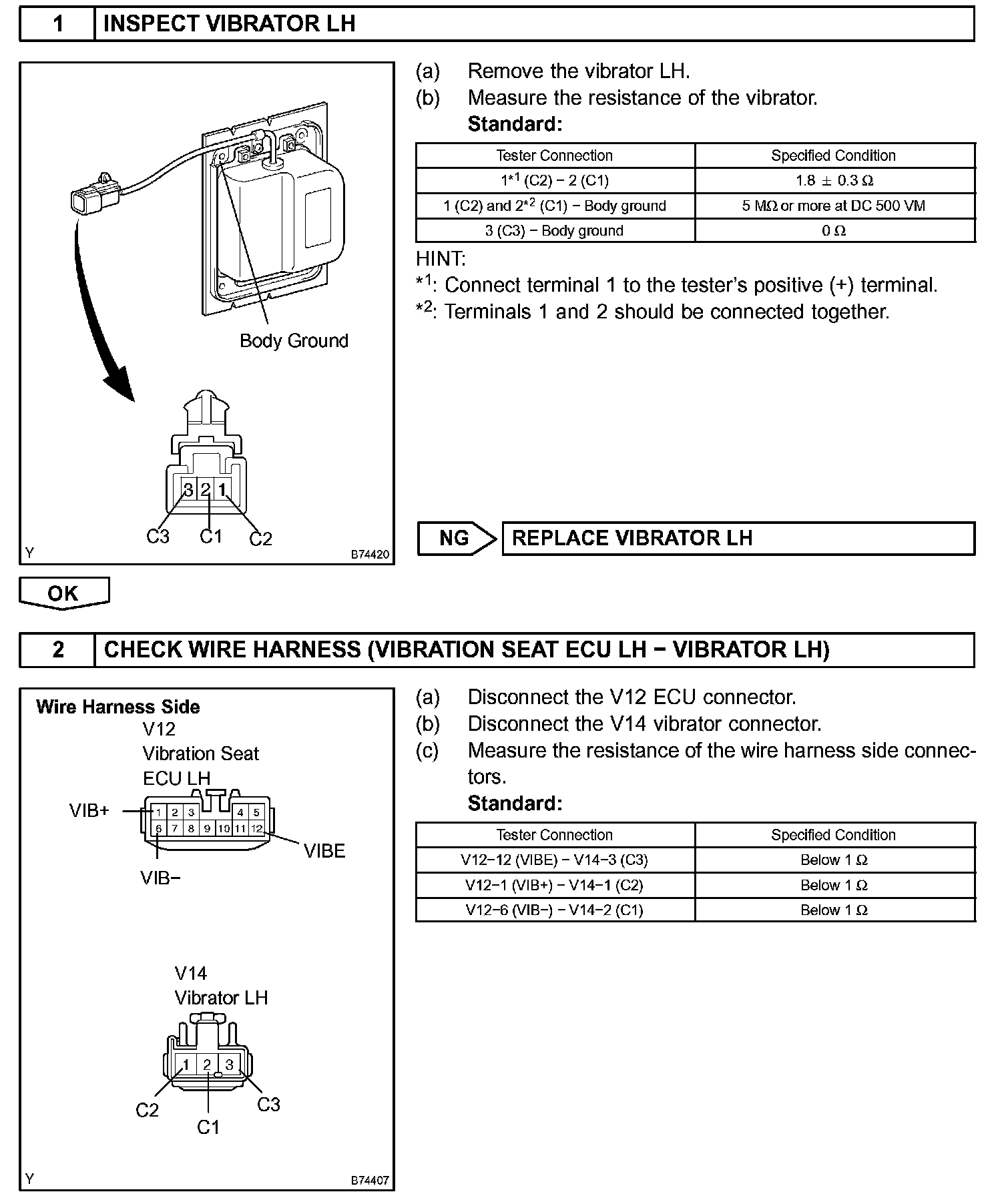

Step 1-2:

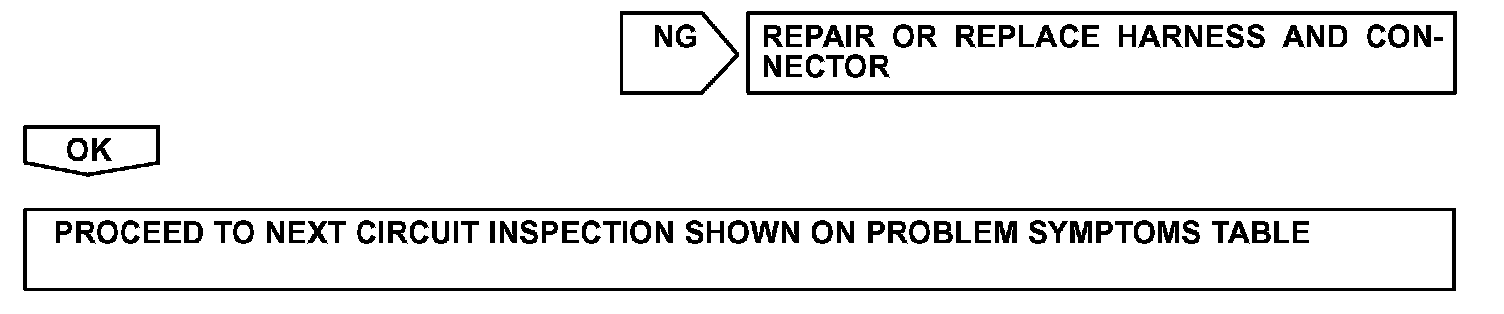

Step 2(continued):

INSPECTION PROCEDURE
