Vibration Seat Function Does Not Operate (Rear Seat ECU Operation Check)

VIBRATION SEAT FUNCTION DOES NOT OPERATE (REAR SEAT ECU OPERATION CHECK)

DESCRIPTION

The rear seat ECU receives a signal from the rear seat control switch and sends a signal to the vibration seat ECU to activate the vibrator.

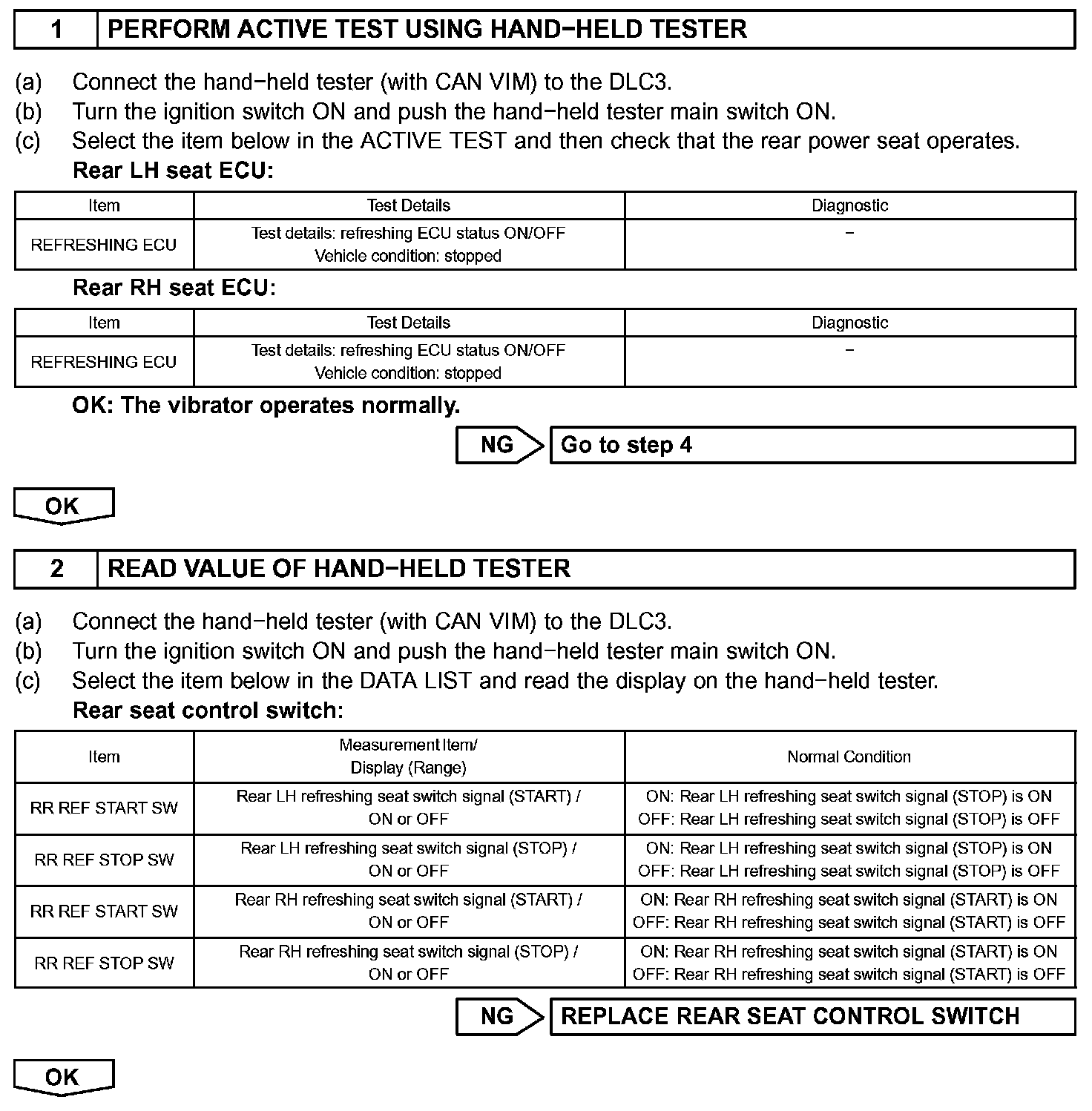

Step 1-2:

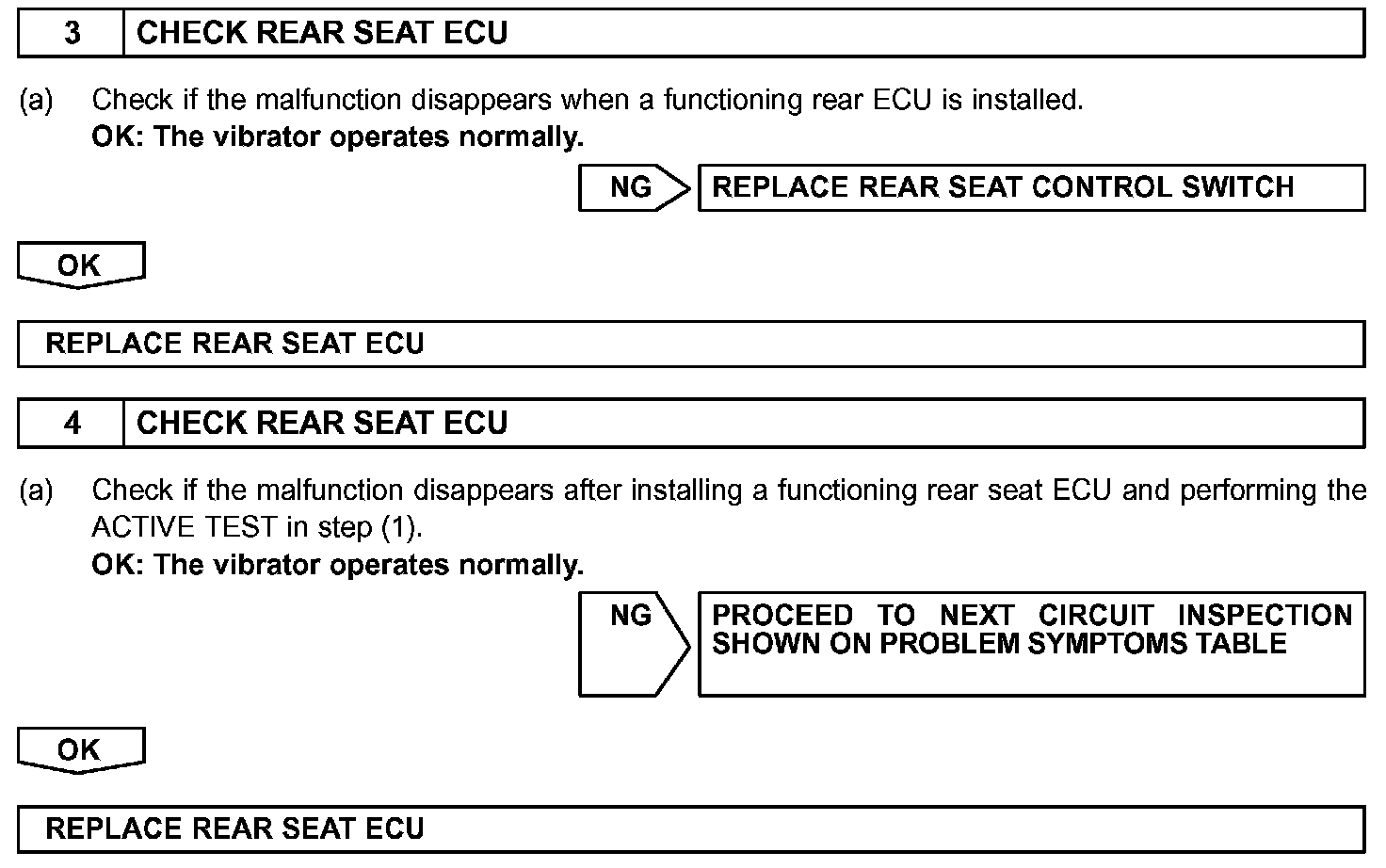

Step 3-4:

INSPECTION PROCEDURE
