Rear Seat Memory Switch (LH) (W/ Memory)

REAR SEAT MEMORY SWITCH (LH) (W/ MEMORY)

CIRCUIT DESCRIPTION

Each terminal receives the following switch signals:
M: Memory switch signal.
SET: Reproduction of memorized position switch signal.
CAN: Cancel switch signal.

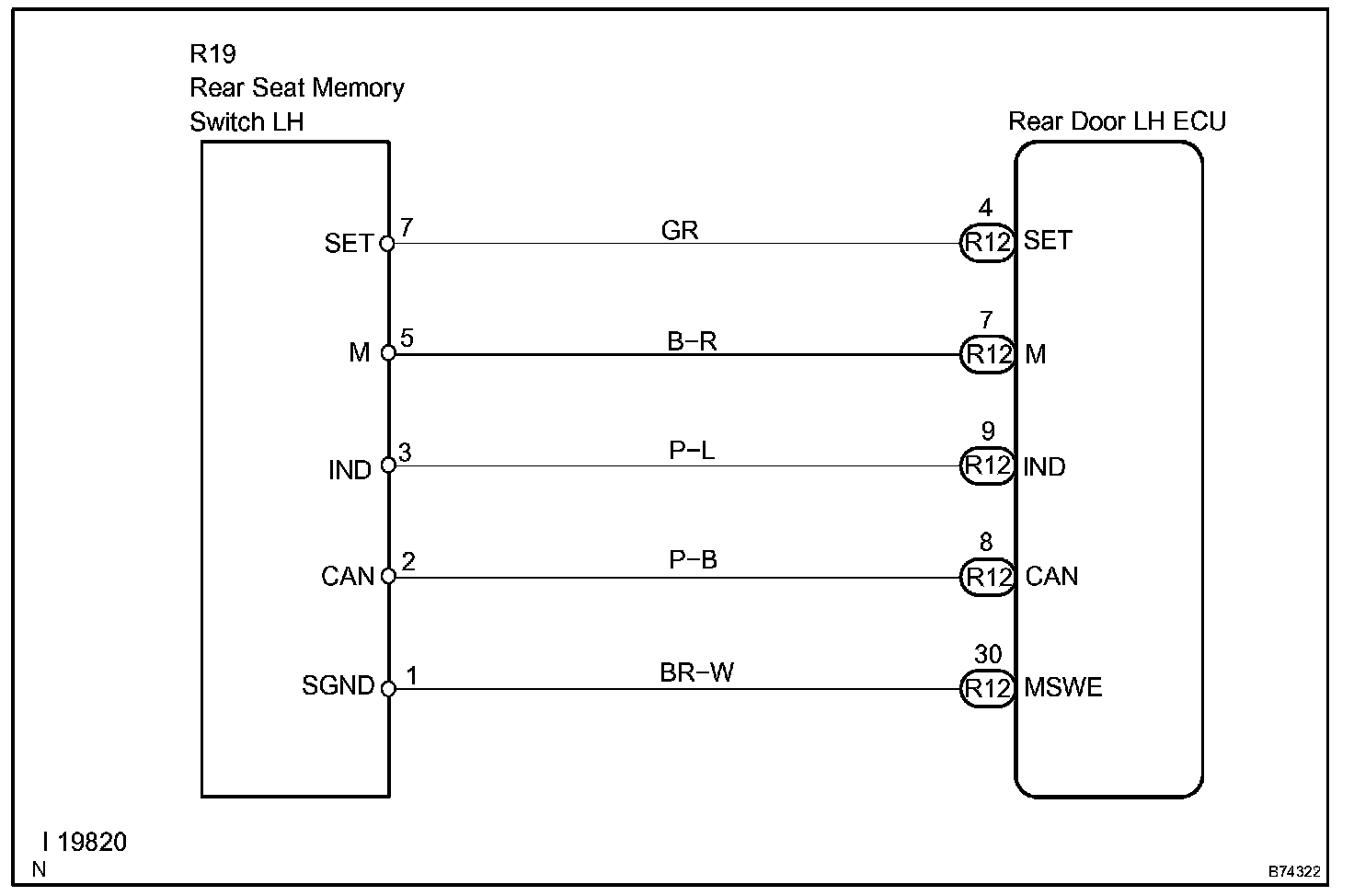

Wiring Diagram:

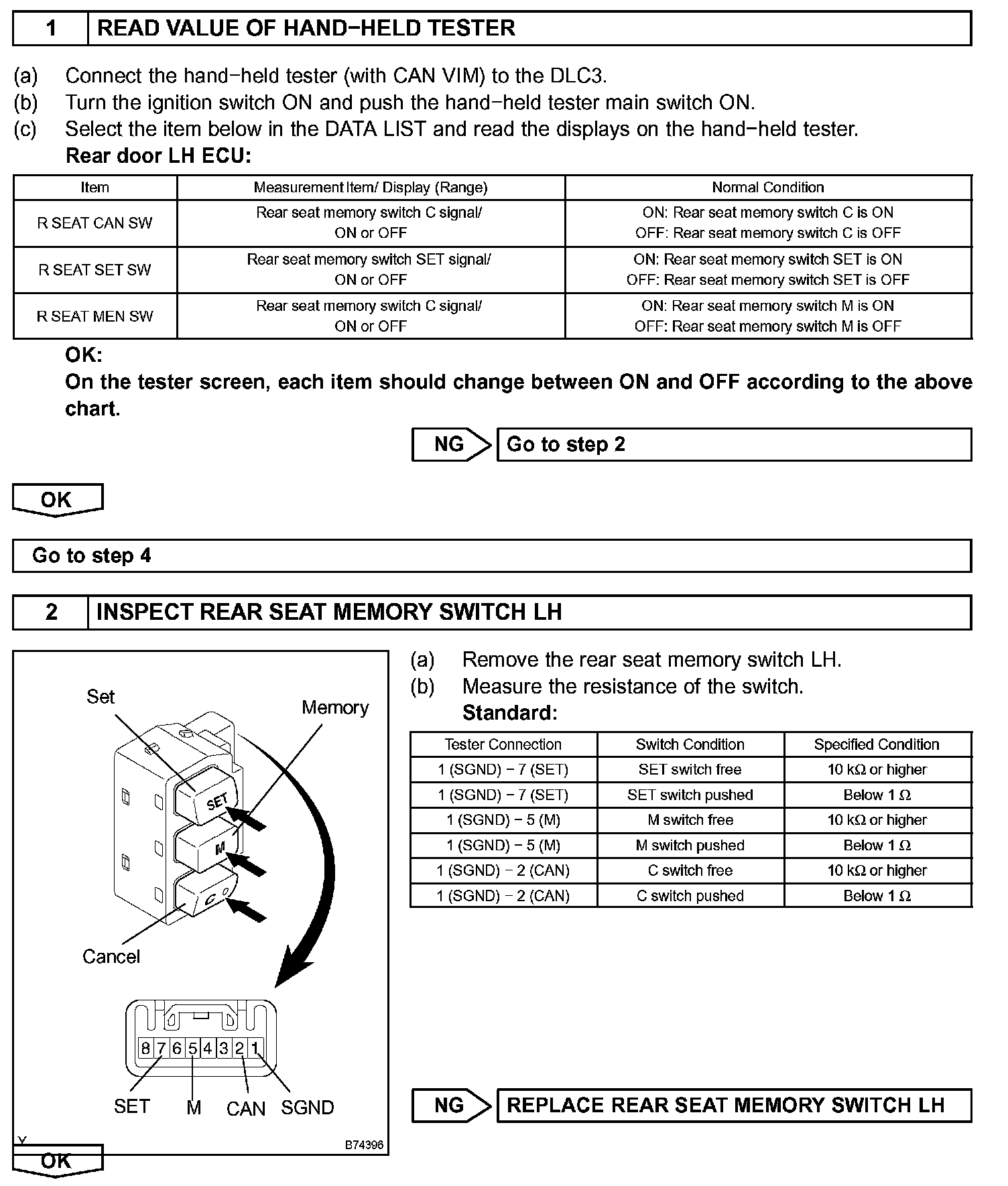

Step 1-2:

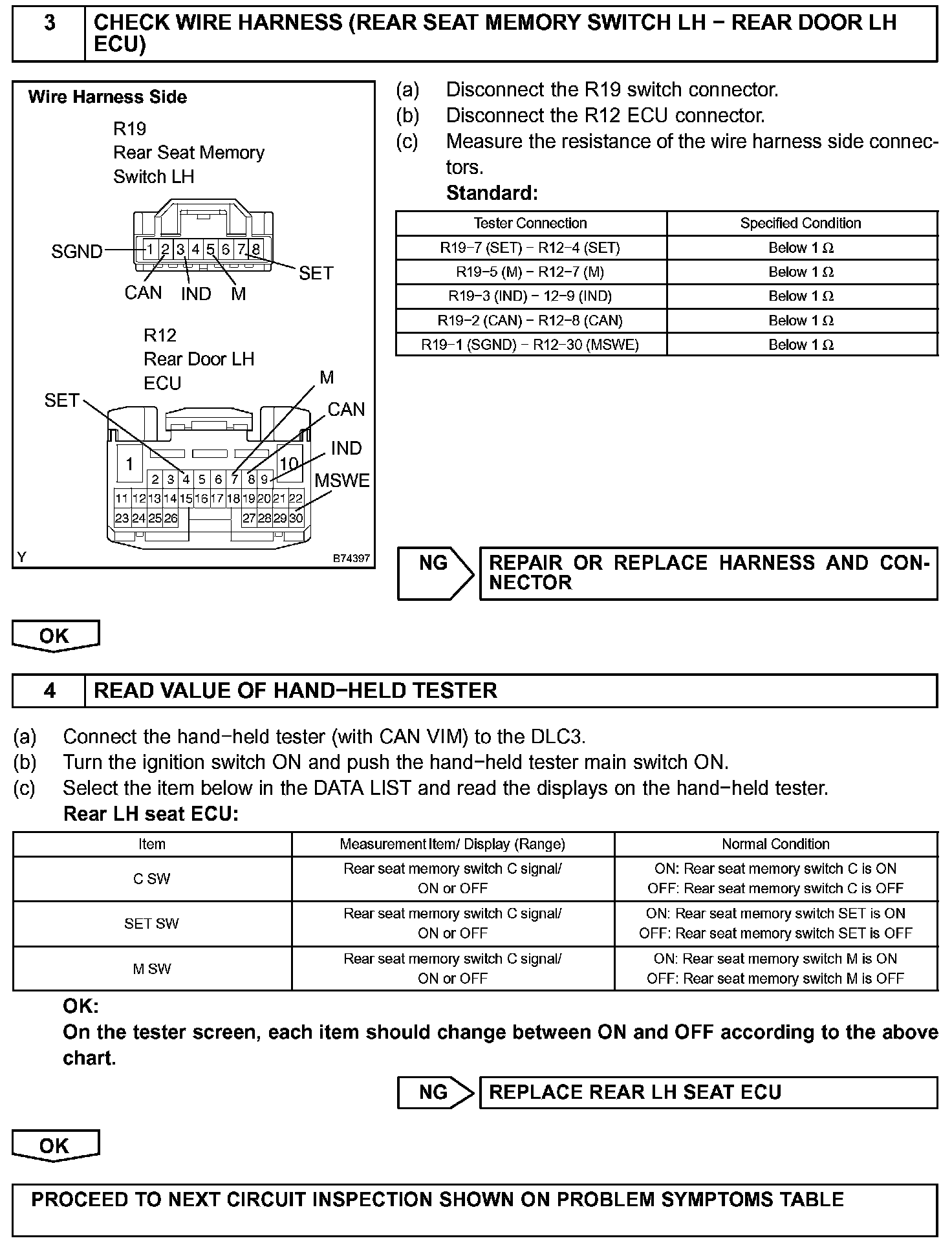

Step 3-4:

INSPECTION PROCEDURE
