Rear Seat Control Switch Power Source Circuit

REAR SEAT CONTROL SWITCH POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the rear seat control switch.

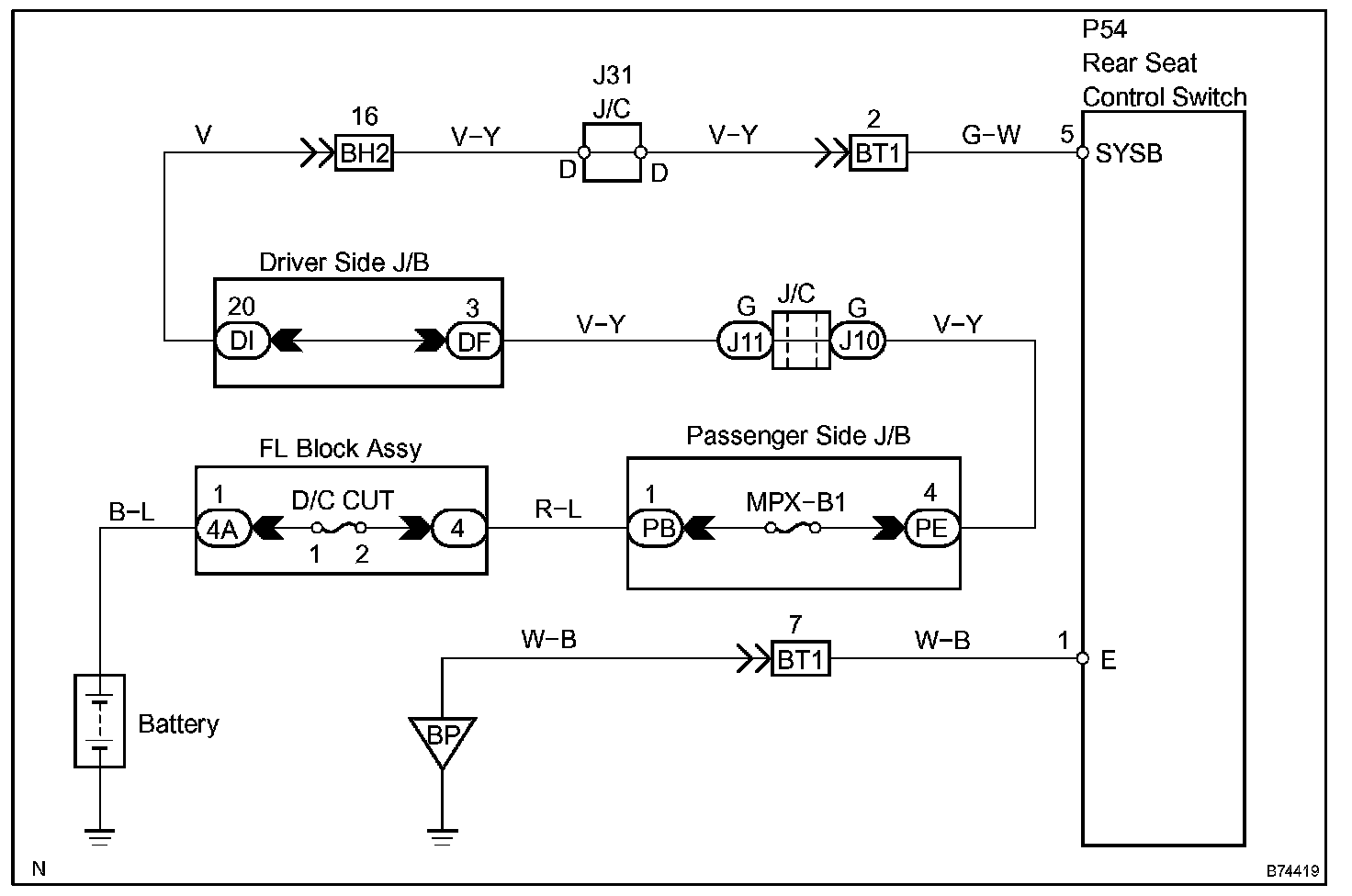

Wiring Diagram:

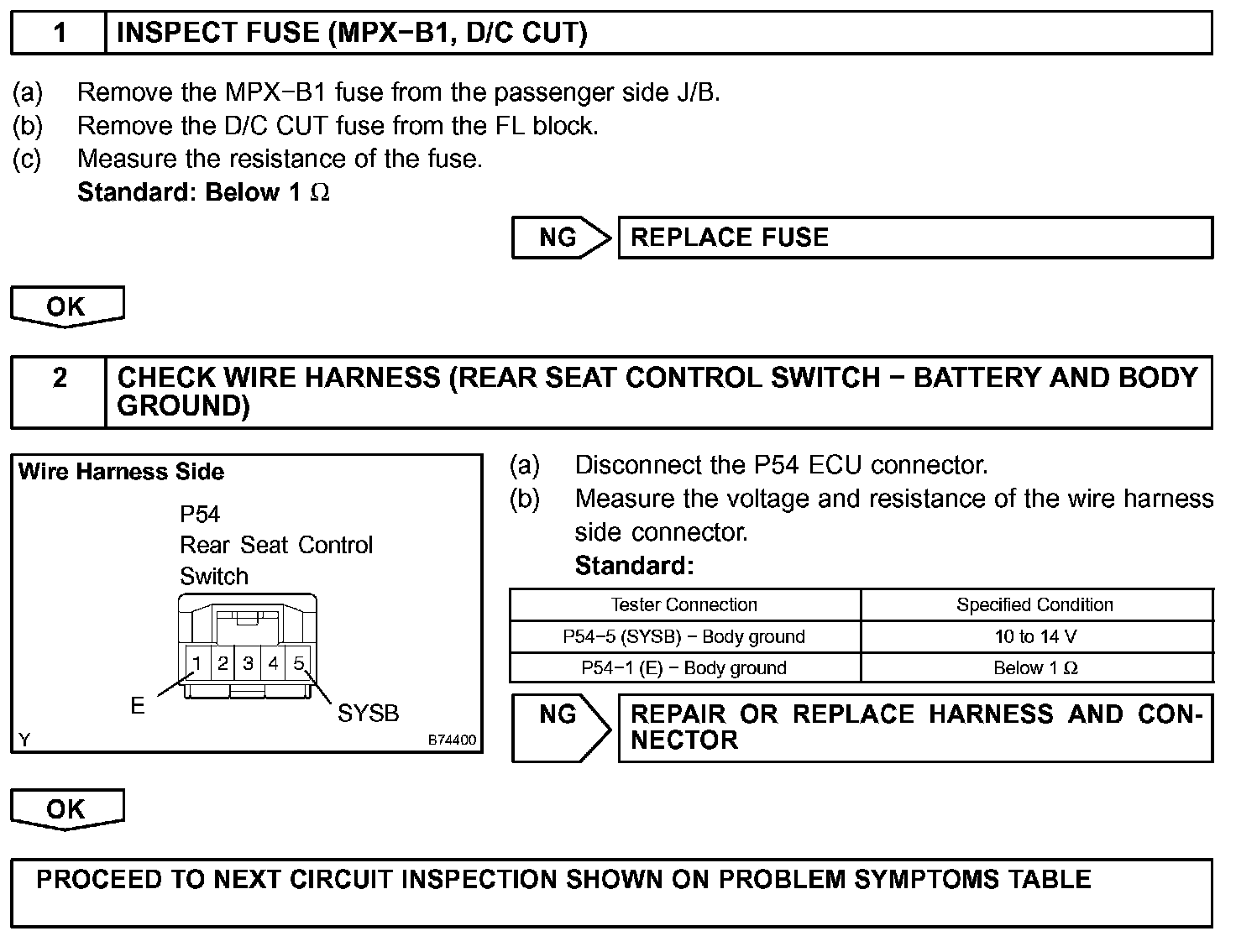

Step 1-2:




INSPECTION PROCEDURE
