Rear LH Seat ECU Power Source Circuit

REAR LH SEAT ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the rear LH seat ECU.

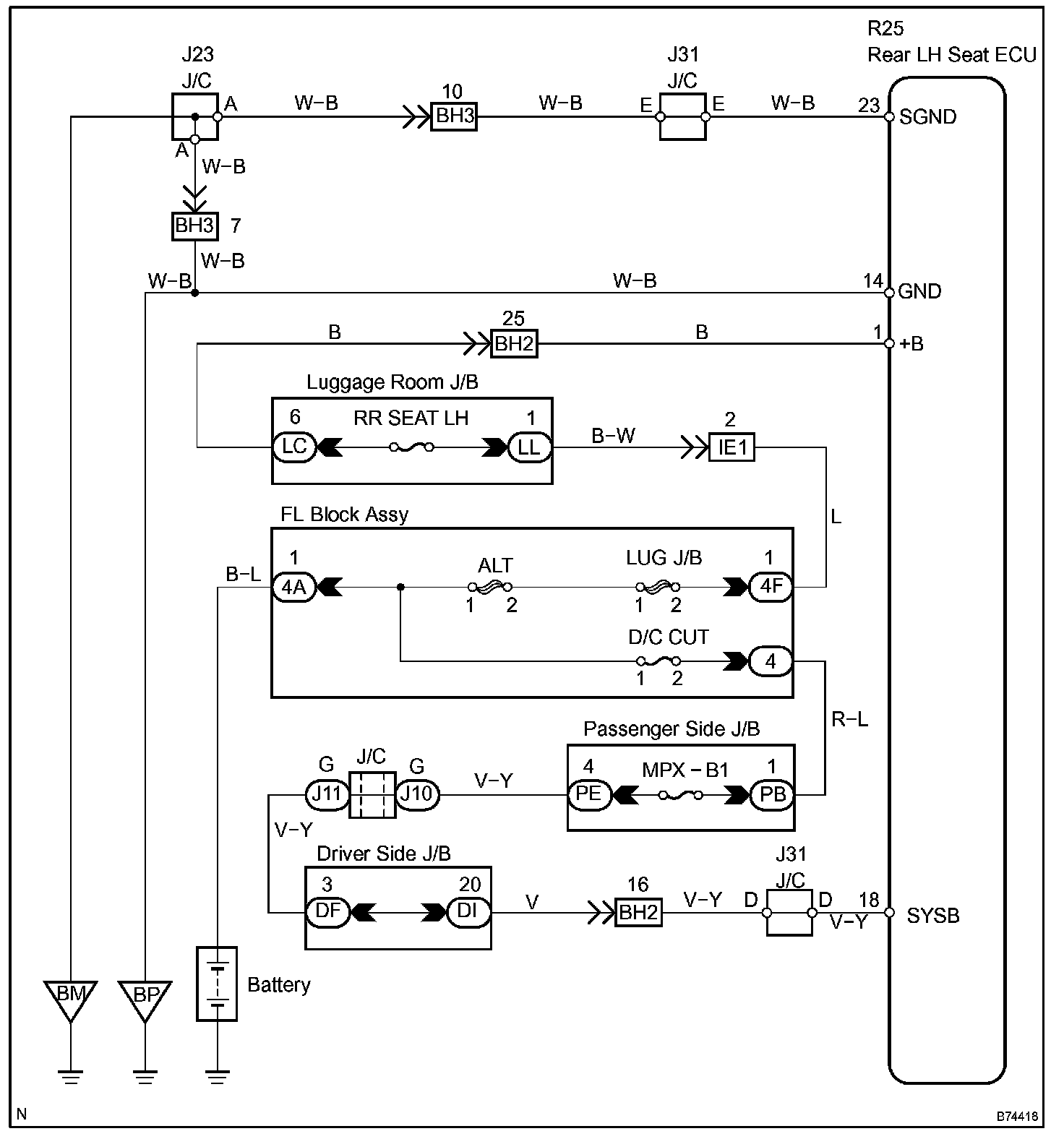

Wiring Diagram:

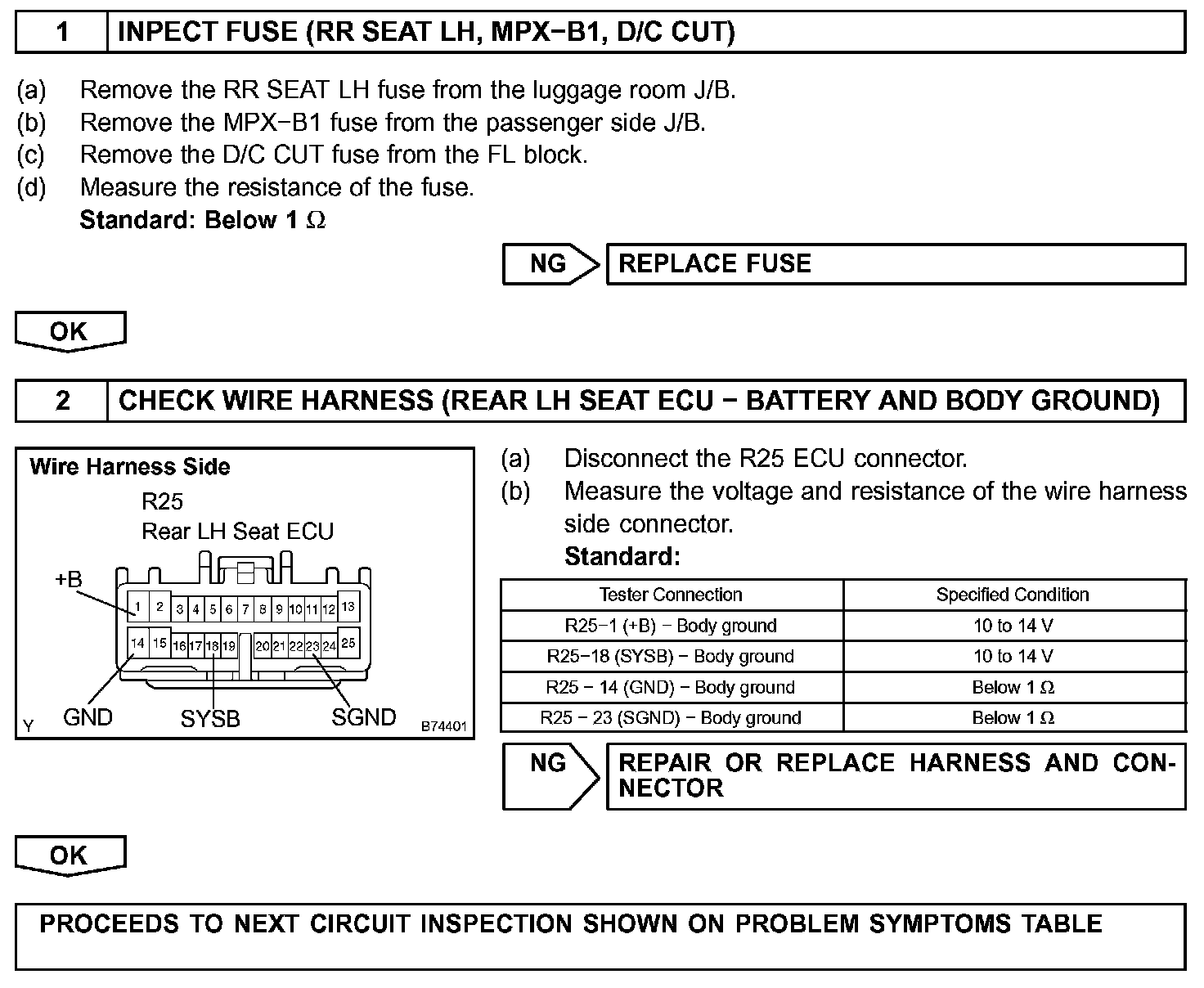

Step 1-2:




INSPECTION PROCEDURE
