Power Seat Motor Circuit
POWER SEAT MOTOR CIRCUITCIRCUIT DESCRIPTION
The driver seat ECU receives signals from the power seat control switches and operates each power seat motor according to its switch position.

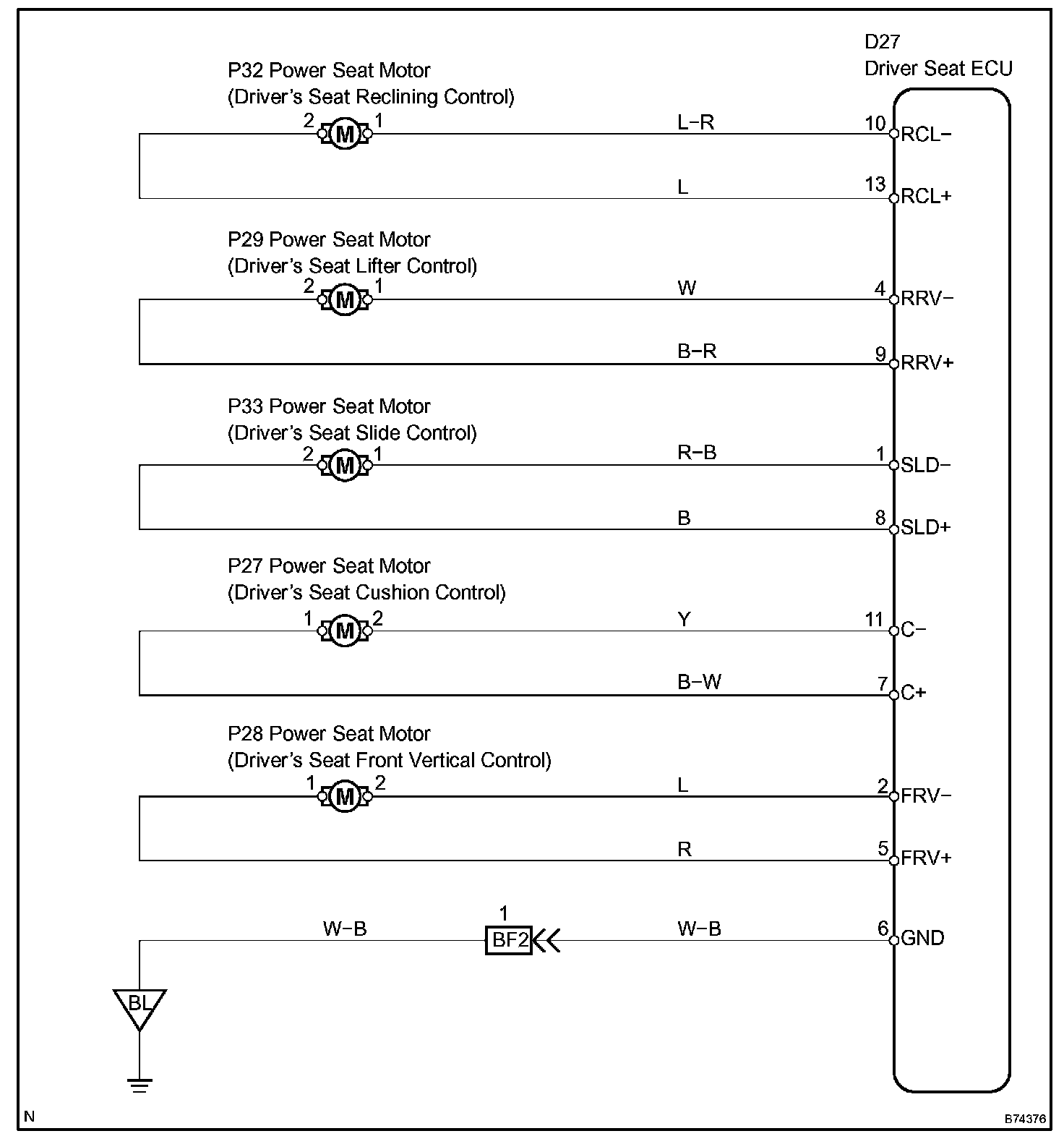

Wiring Diagram:

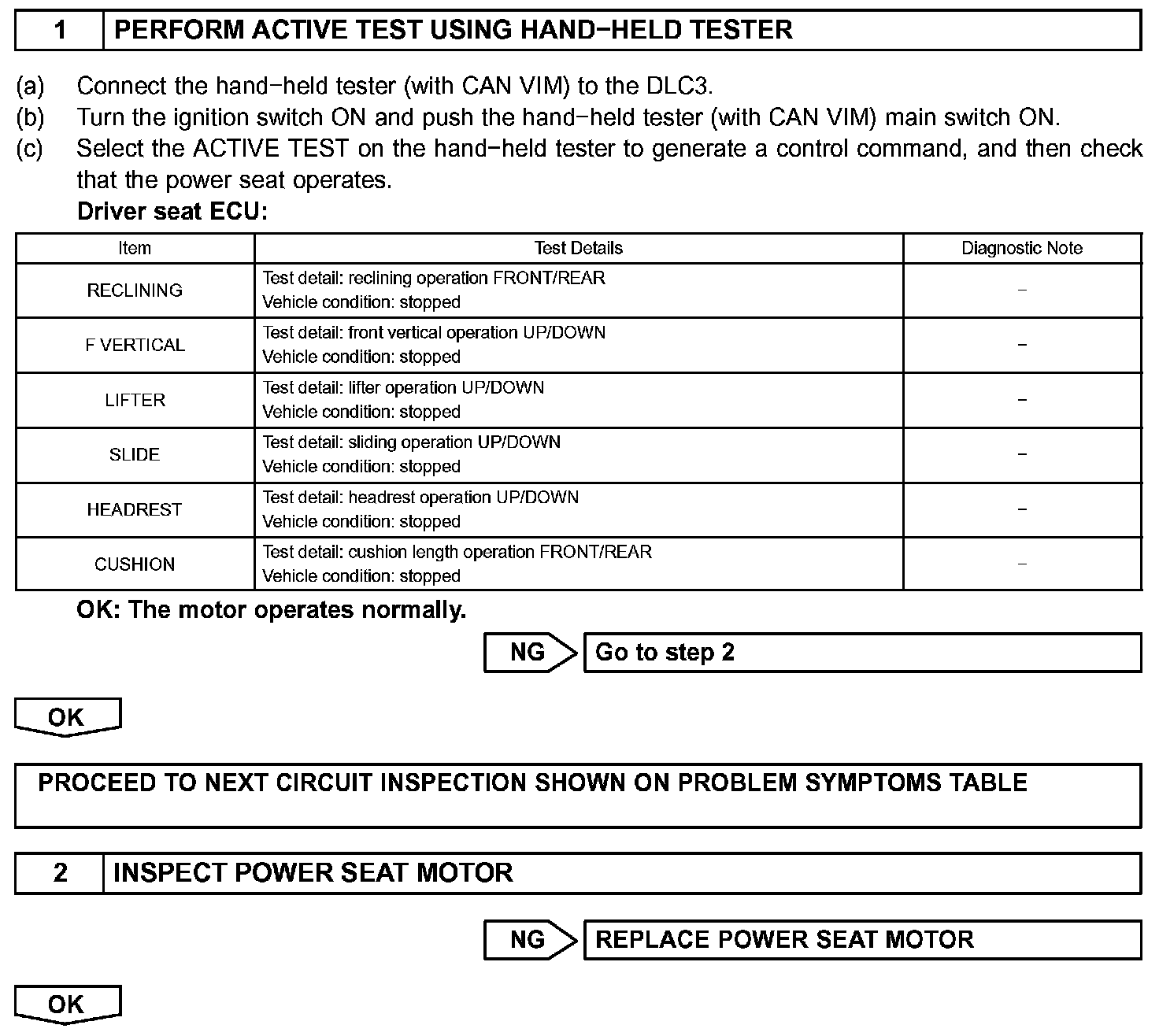

Step 1-2:
Step 3:
INSPECTION PROCEDURE
