Component Inspection

INSPECTION

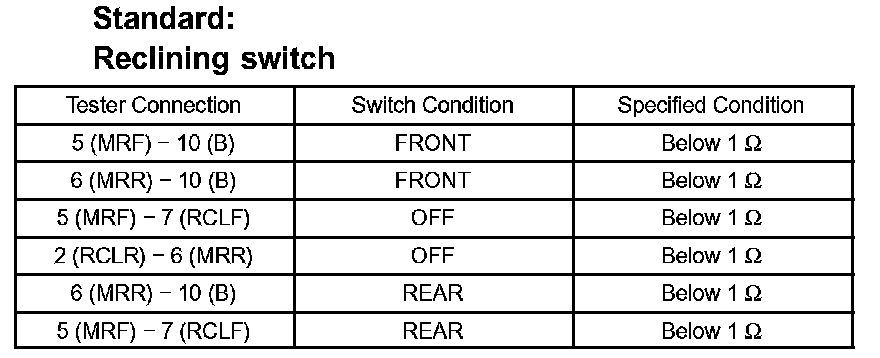

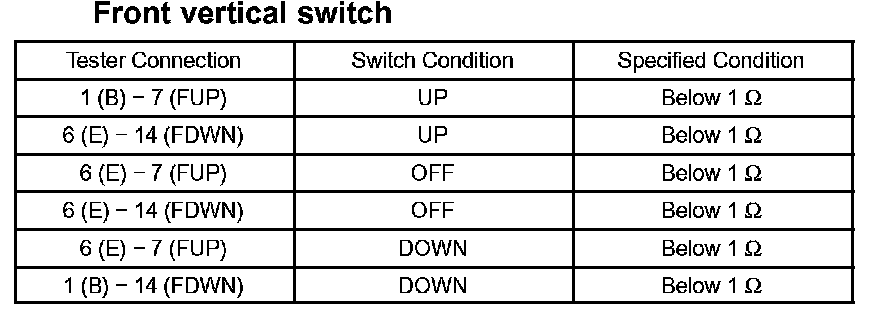

1. Passenger's seat:

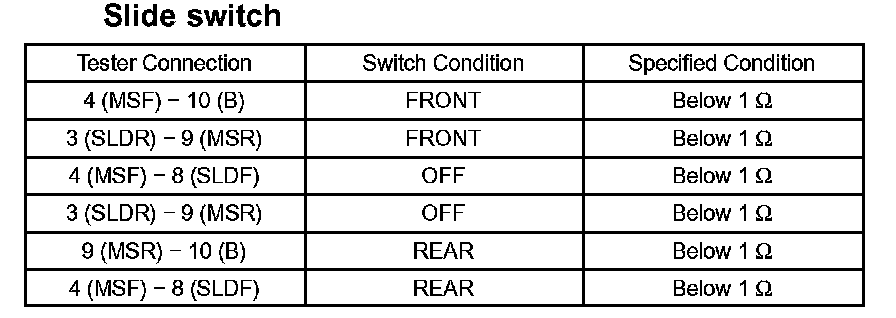

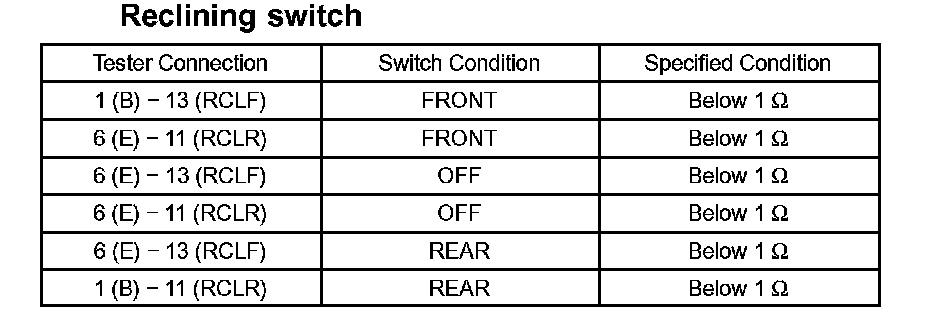

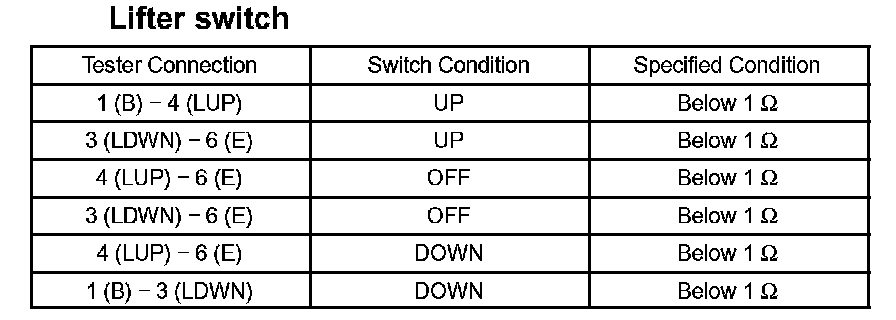

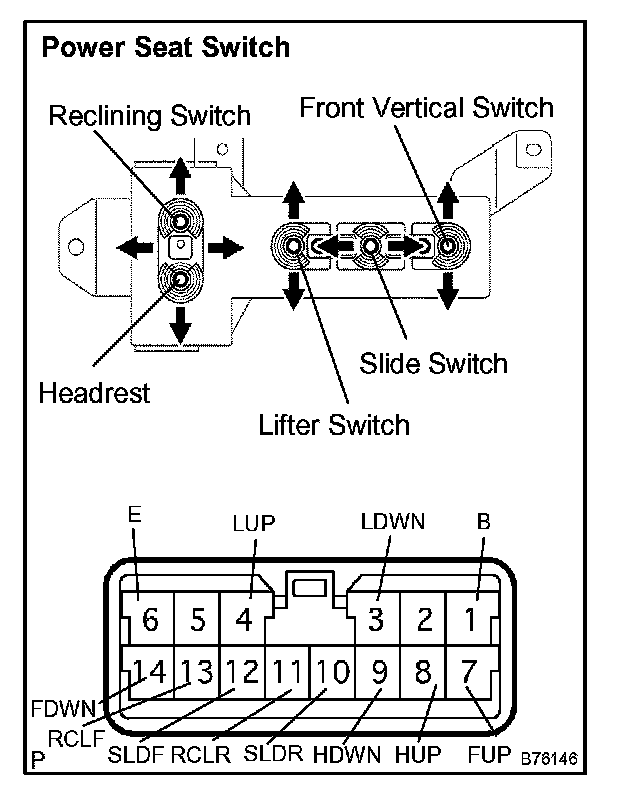

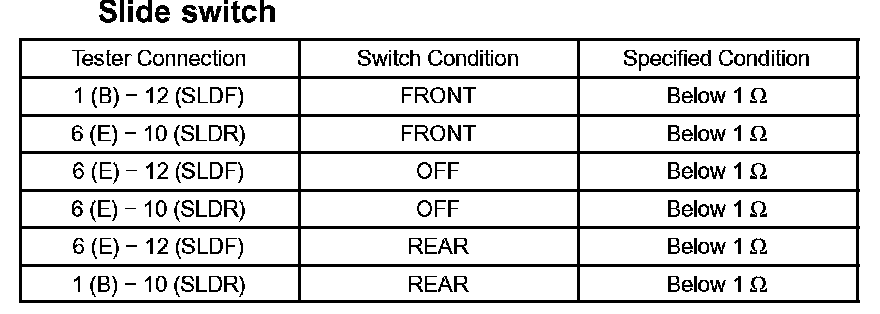

INSPECT POWER SEAT SWITCH




a. Measure the resistance between the terminals when each switch is operated.
















If the result is not as specified, replace the switch.

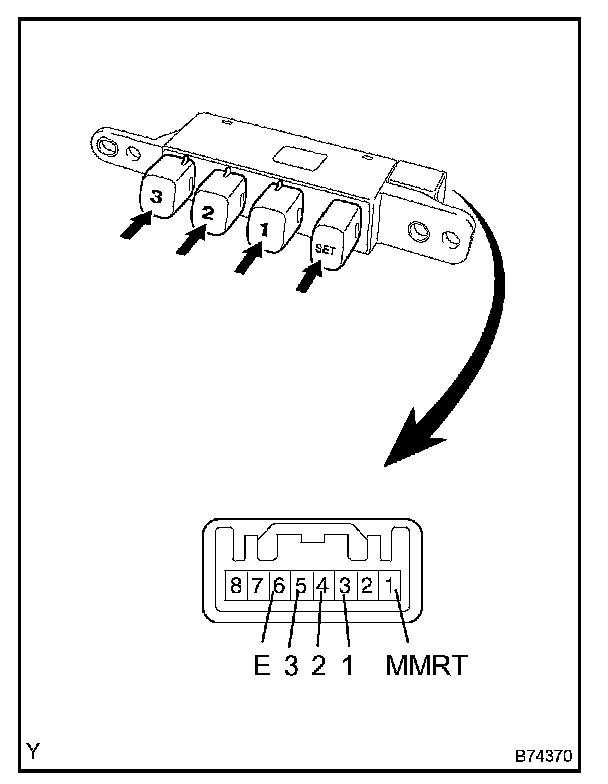

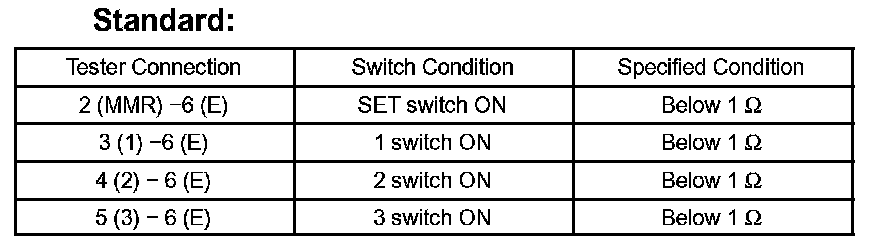

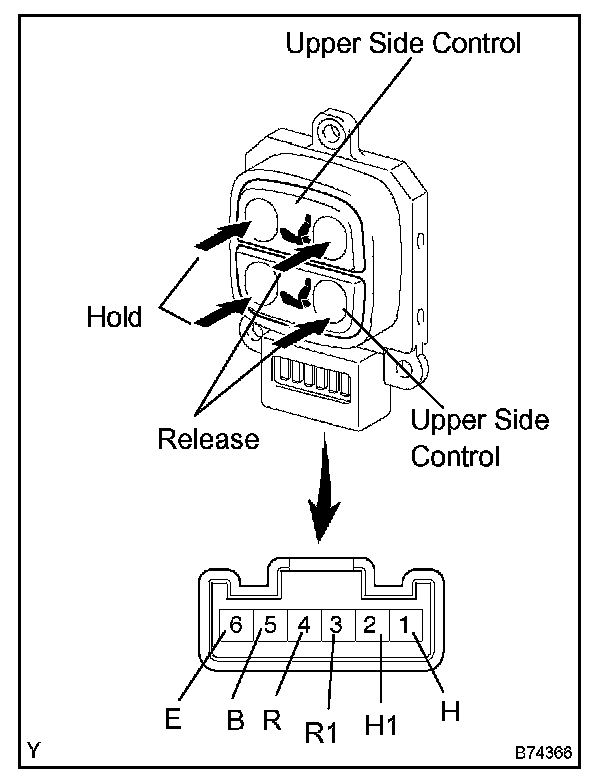

2. INSPECT DRIVING POSITION MEMORY SWITCH




a. Measure the resistance between the terminals when the switch is operated.




If the result is not as specified, replace the switch.

3. Driver's seat:

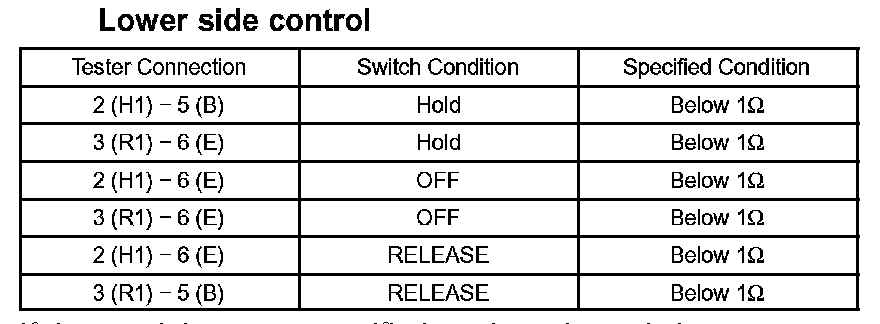

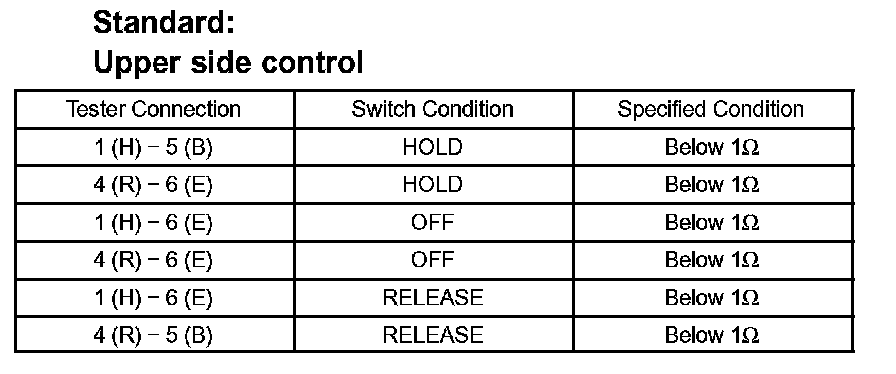

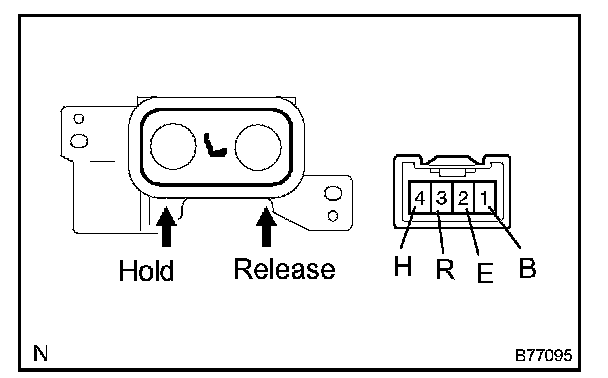

INSPECT LUMBAR SUPPORT SWITCH




a. Measure the resistance between the terminals when the switch is operated.







If the result is not as specified, replace the switch.

4. Passenger's seat:
INSPECT LUMBAR SUPPORT SWITCH




a. Measure the resistance between the terminals when the switch is operated.




If the result is not as specified, replace the switch.

5. Driver's seat:

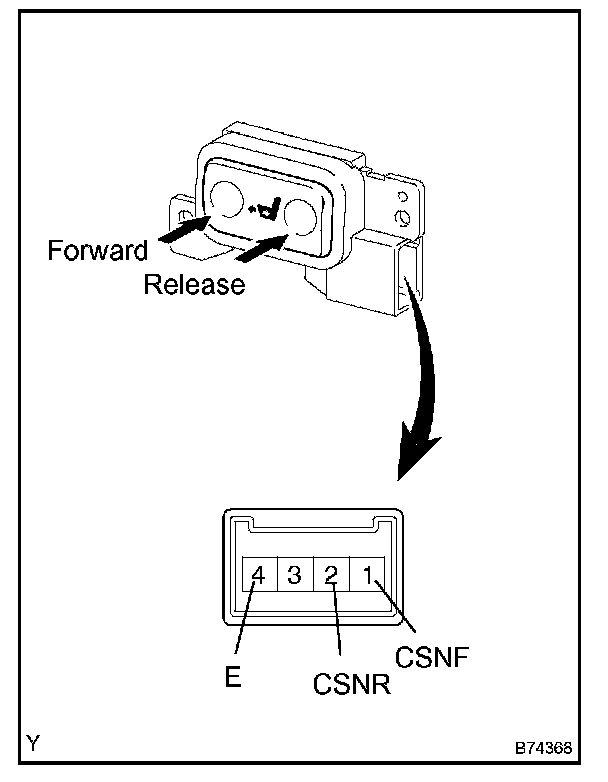

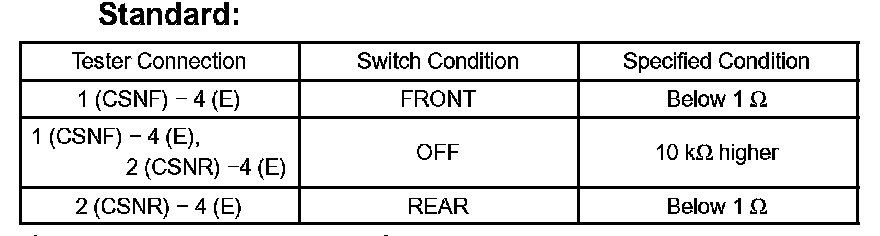

INSPECT POWER SEAT CUSHION SWITCH




a. Measure the resistance between the terminals when the switch is operated.
b. Remove the power seat cushion switch. c.Measure the resistance of the switch.




If the result is not as specified, replace the switch.

6. Passenger's seat:
INSPECT POWER SEAT SWITCH SUB




a. Measure the resistance between the terminals when the switch is operated.







If the result is not as specified, replace the switch.

7. INSPECT POWER SEAT MOTOR

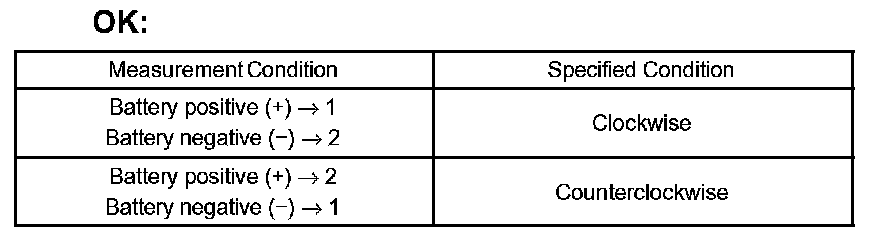

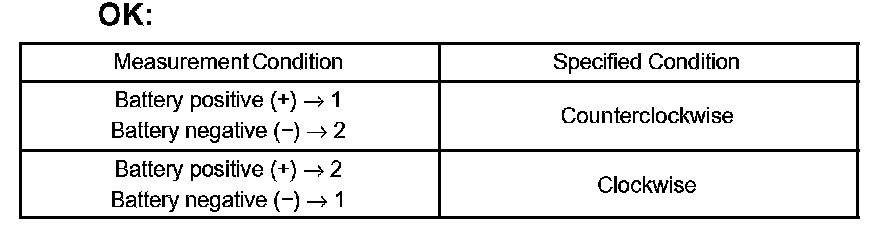

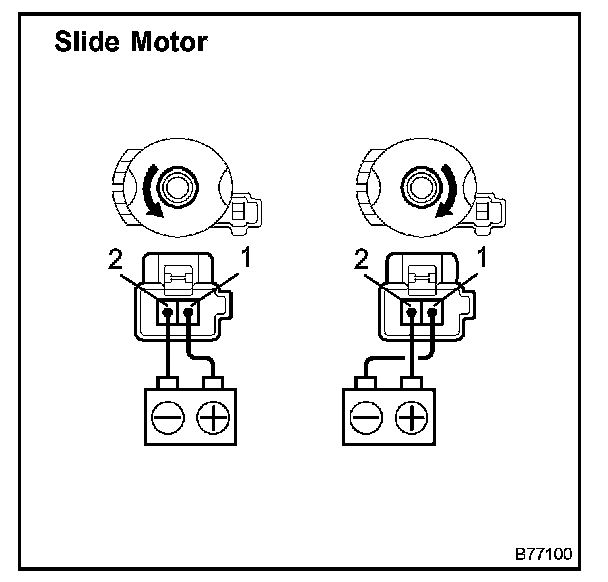

a. Check operation of the slide motor.
1. Check if the motor rotates smoothly when the battery is connected to the slide motor connector terminals.




If the result is not as specified, replace the slide motor.

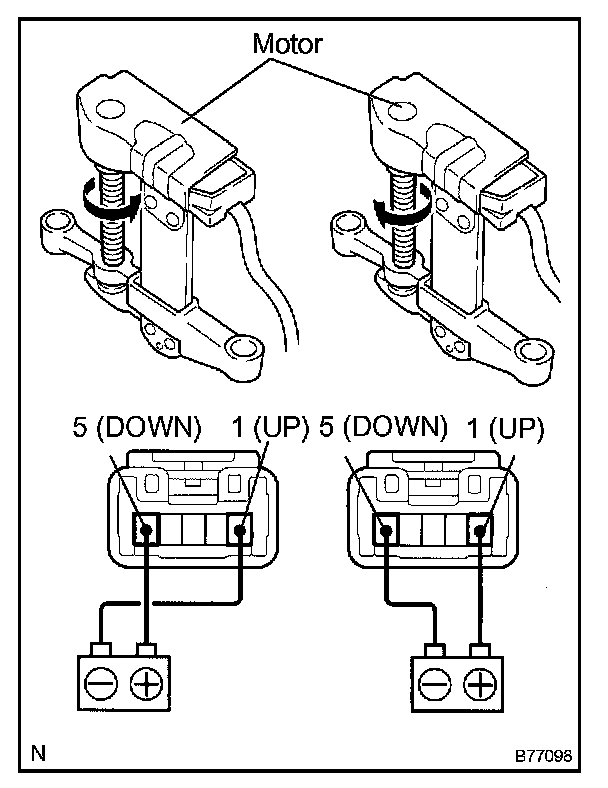

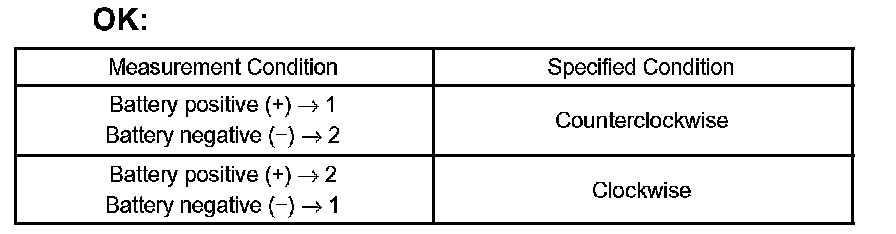

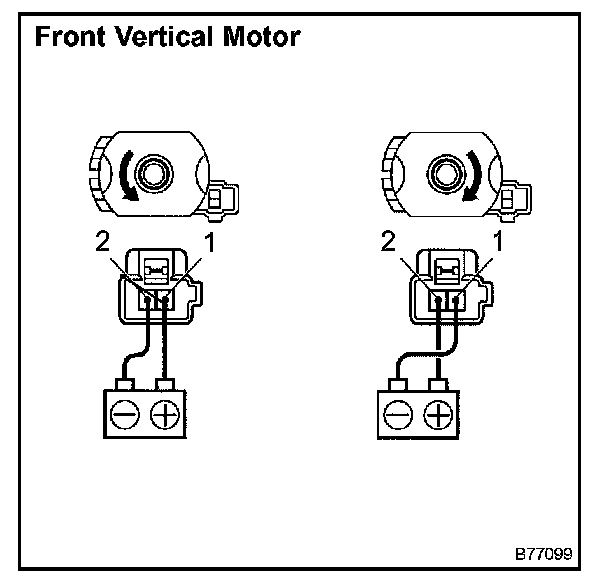

b. Check operation of the vertical motor.
1. Check if the motor rotates smoothly when the battery is connected to the vertical motor connector terminals.




If the result is not as specified, replace the vertical motor.

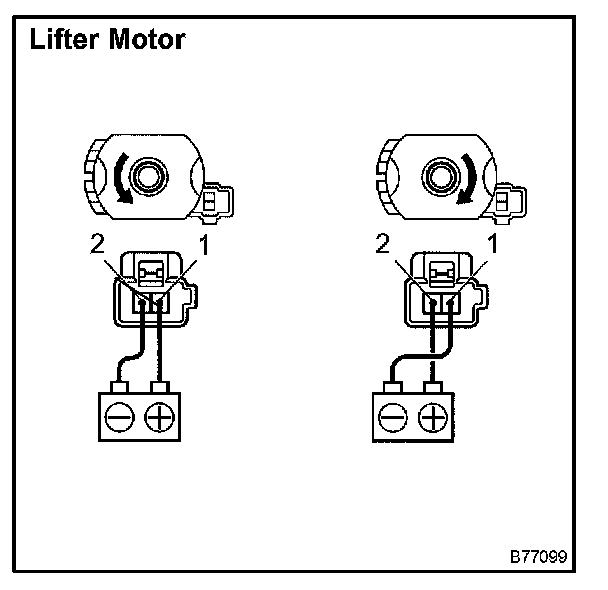

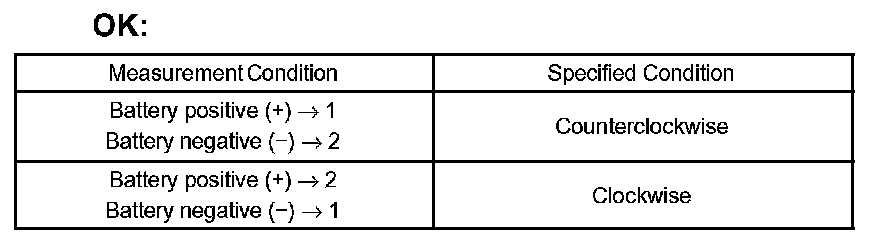

c. Check operation of the lifter motor.
1. Check if the motor rotates smoothly when the battery is connected to the lifter motor connector terminals.




If the result is not as specified, replace the lifter motor.

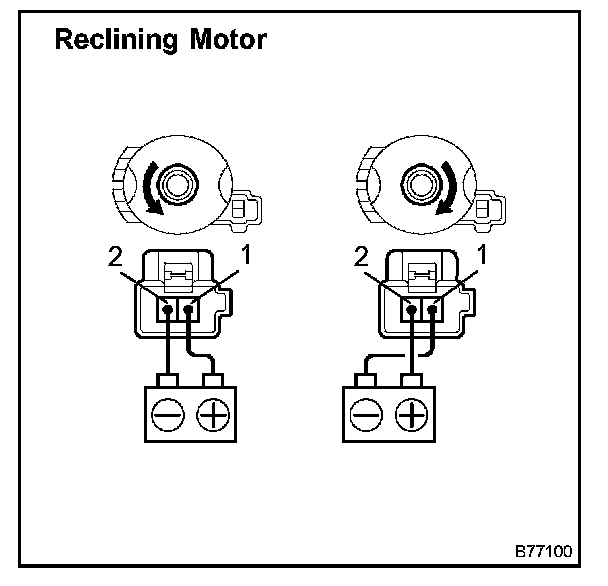

d. Check operation of the reclining motor.
1. Check if the motor rotates smoothly when the battery is connected to the reclining motor connector terminals.




If the result is not as specified, replace the reclining motor.

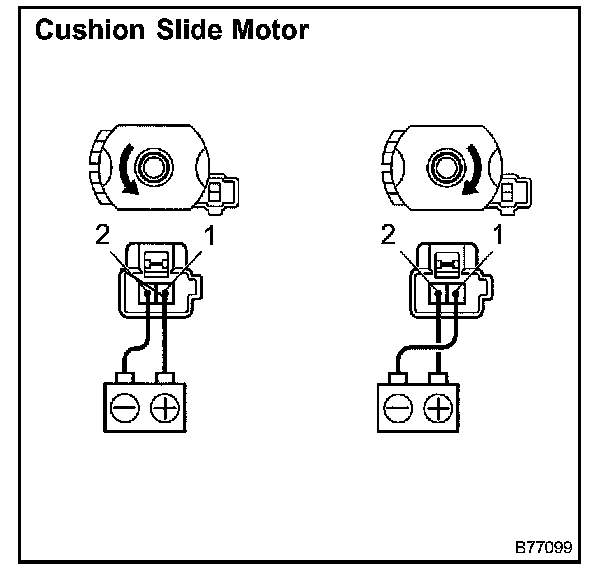

e. Check operation of the cushion slide motor.
1. Check if the motor rotates smoothly when the battery is connected to the cushion slide motor connector terminals.




If the result is not as specified, replace the cushion slide motor.

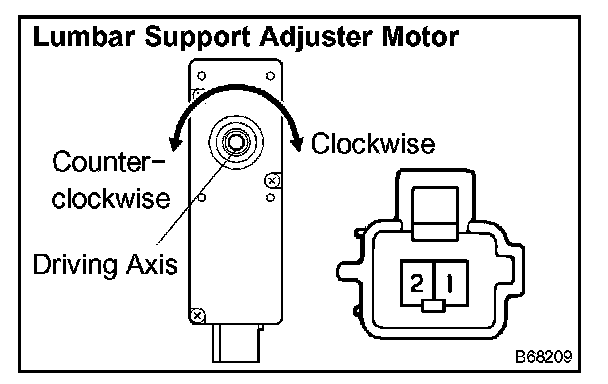

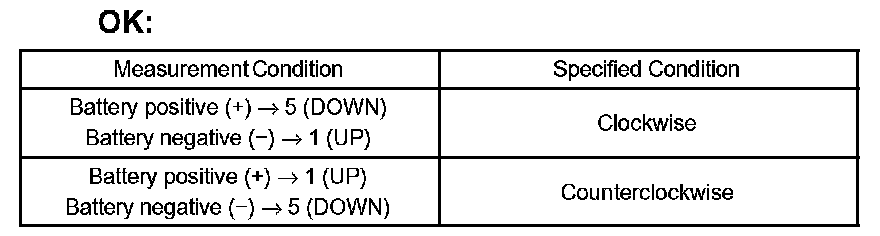

8. INSPECT POWER SEAT MOTOR (LUMBAR SUPPORT)

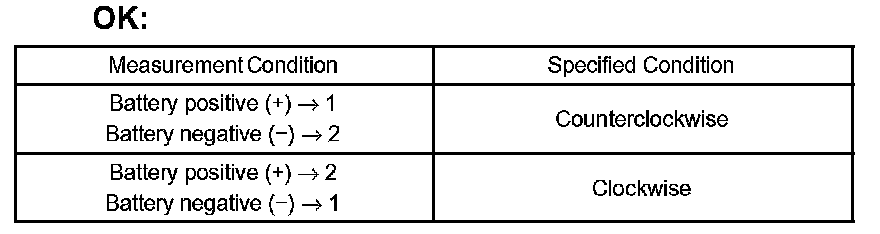

a. Check operation of the lumbar support adjuster motor.
1. Check if the motor rotates smoothly when the battery is connected to the lumbar support adjuster motor connector terminals.




If the result is not as specified, replace the adjuster motor.




9. INSPECT POWER SEAT MOTOR (HEADREST)
a. Check operation of the headrest motor.
1. Check if the motor rotates smoothly when the battery is connected to the headrest motor connector terminals.




If the result is not as specified, replace the headrest motor.
