Climate Control System Does Not Operate on Rear Side

CLIMATE CONTROL SYSTEM DOES NOT OPERATE ON REAR SIDE

CIRCUIT DESCRIPTION

If the climate control seat does not operate, the seat climate control blower (climate control ECU), the climate control switch or the wire harness may have a malfunction.

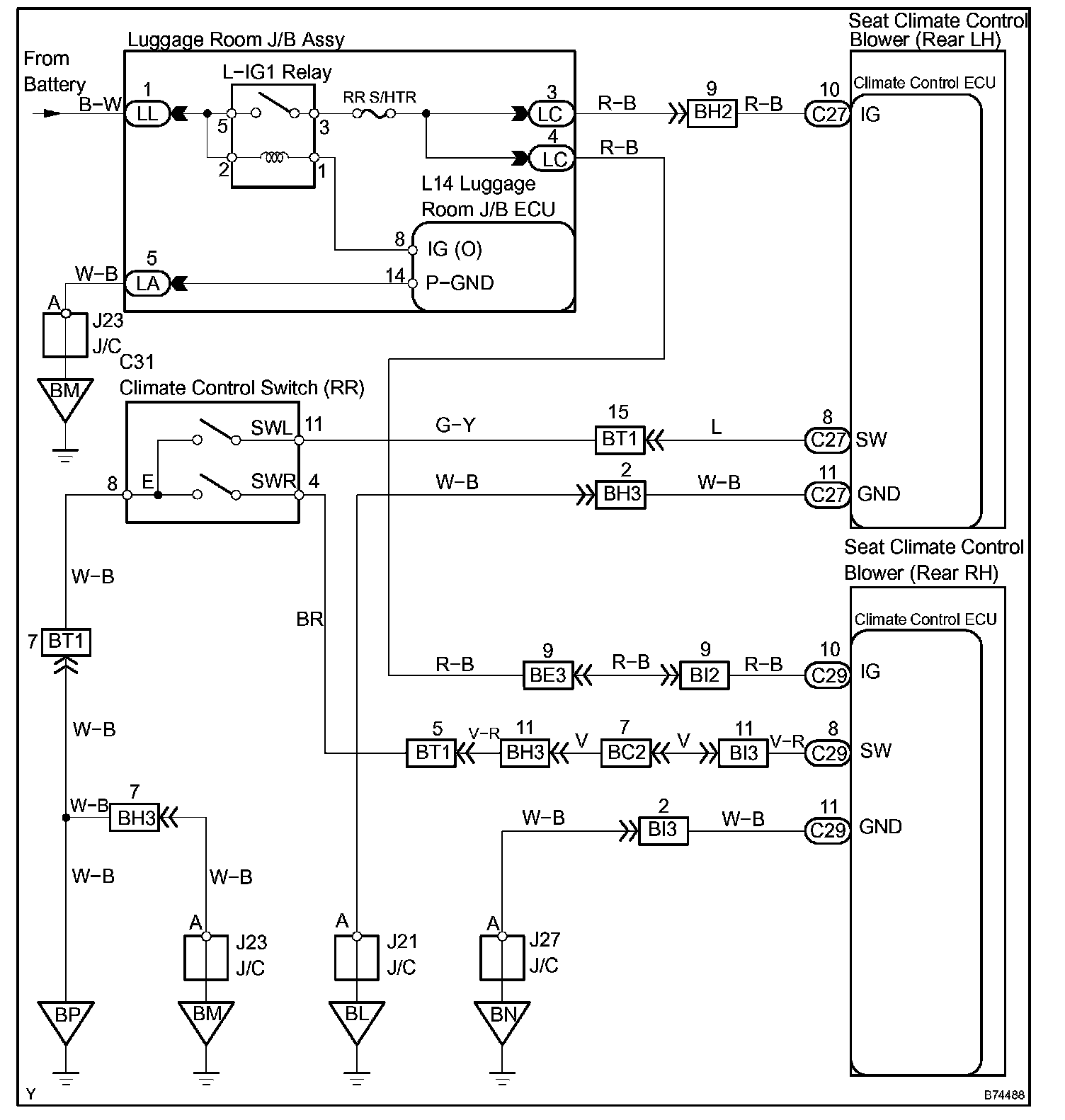

Wiring Diagram:

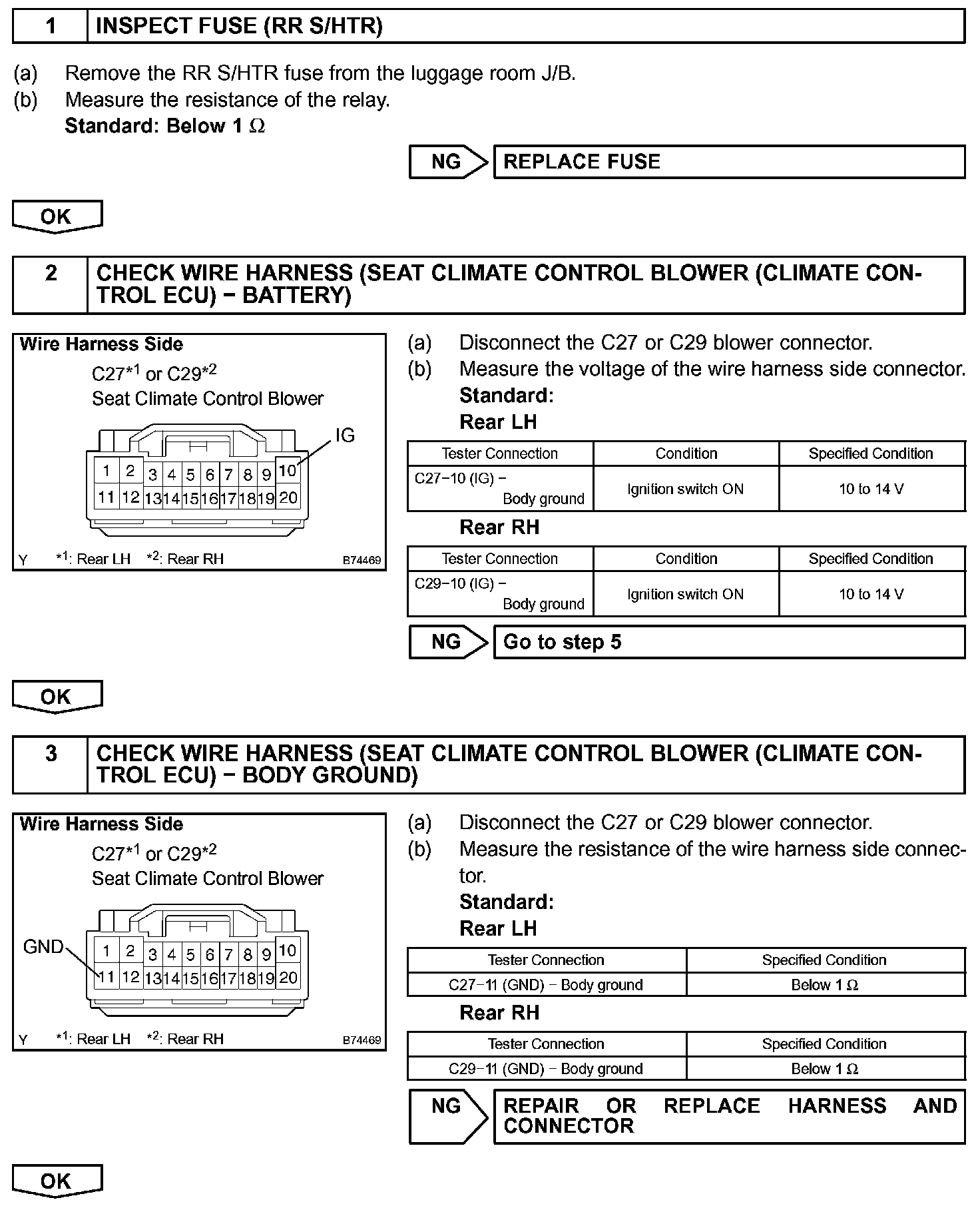

Step 1-3:

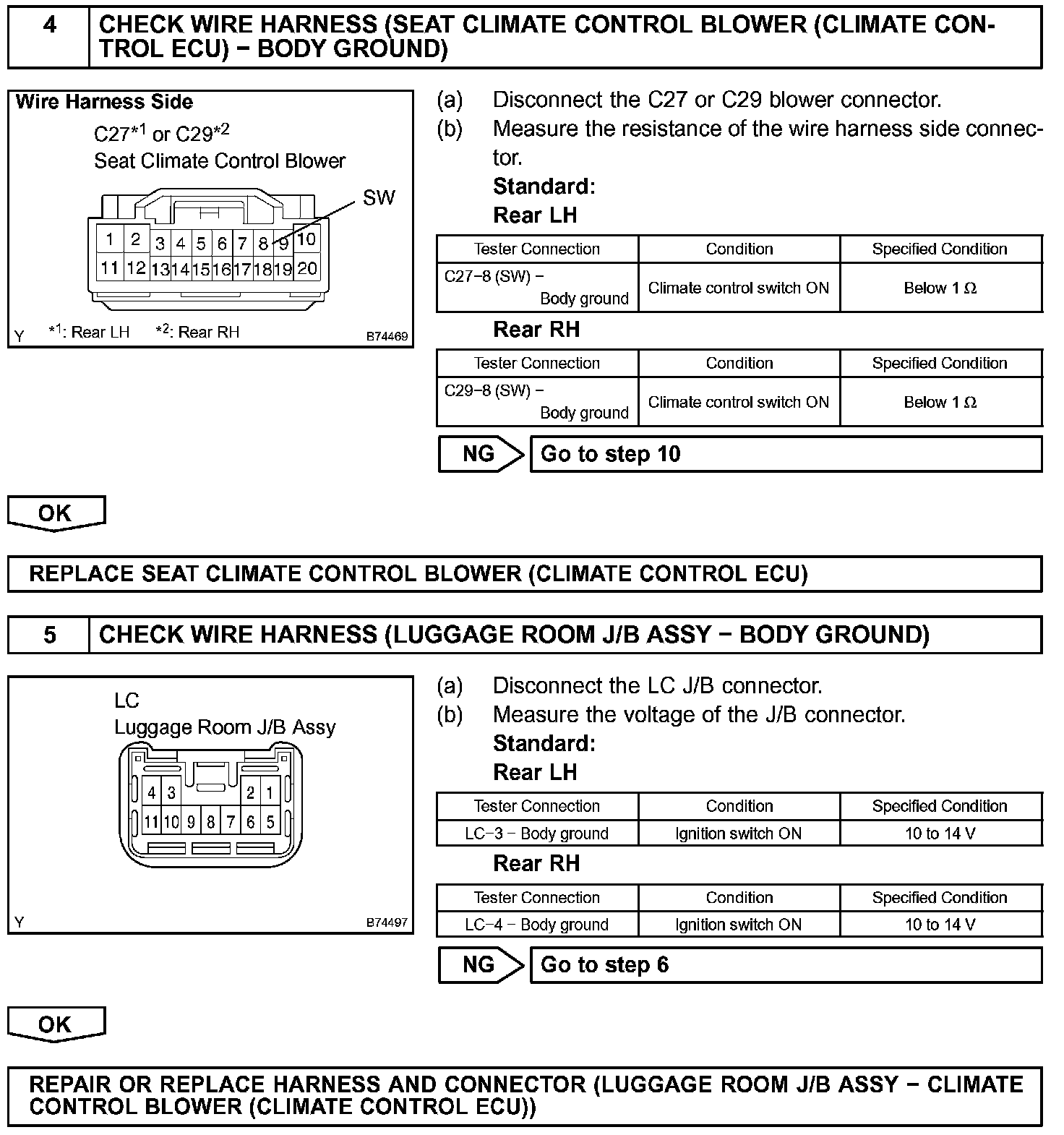

Step 4-5:

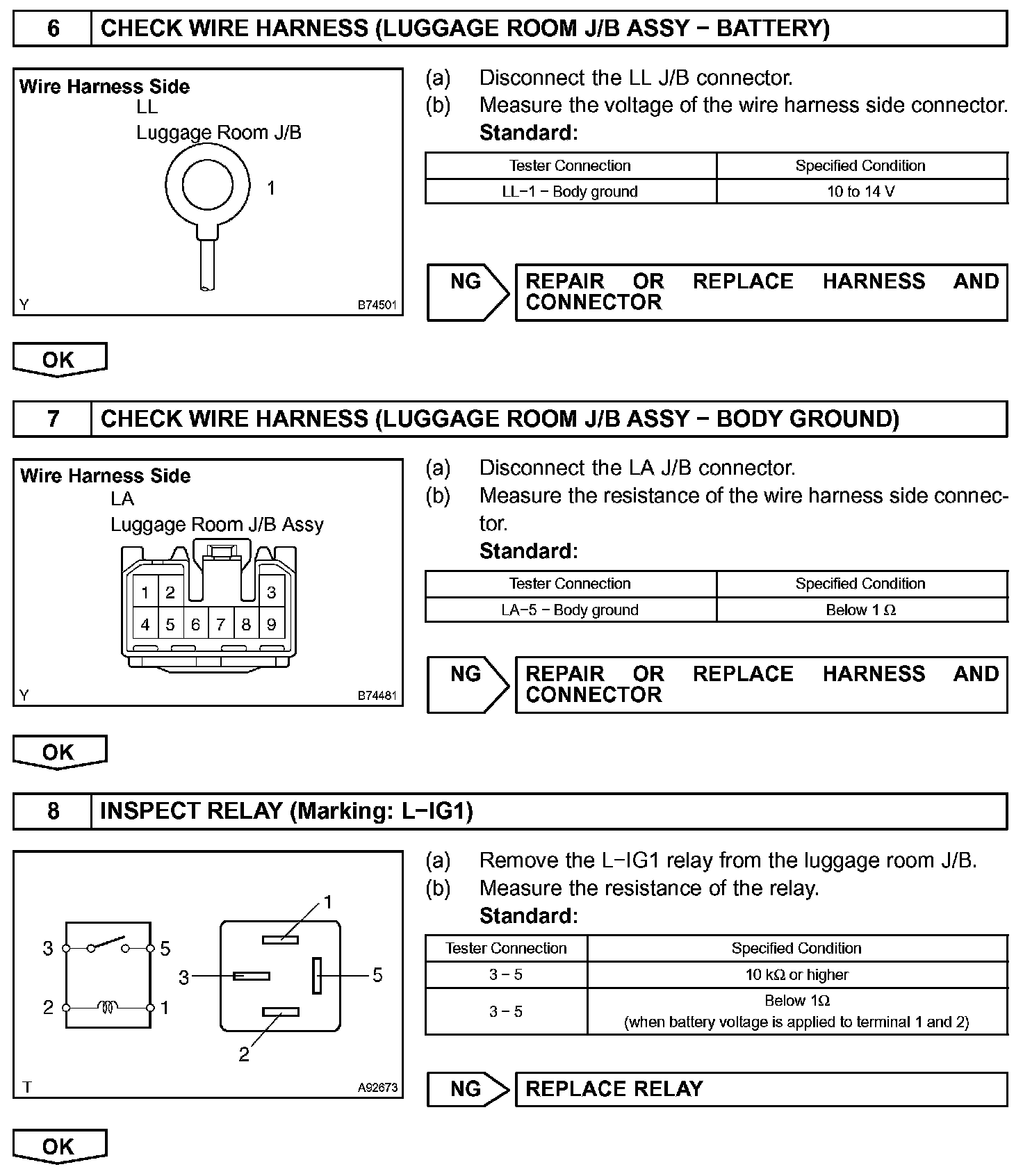

Step 6-8:

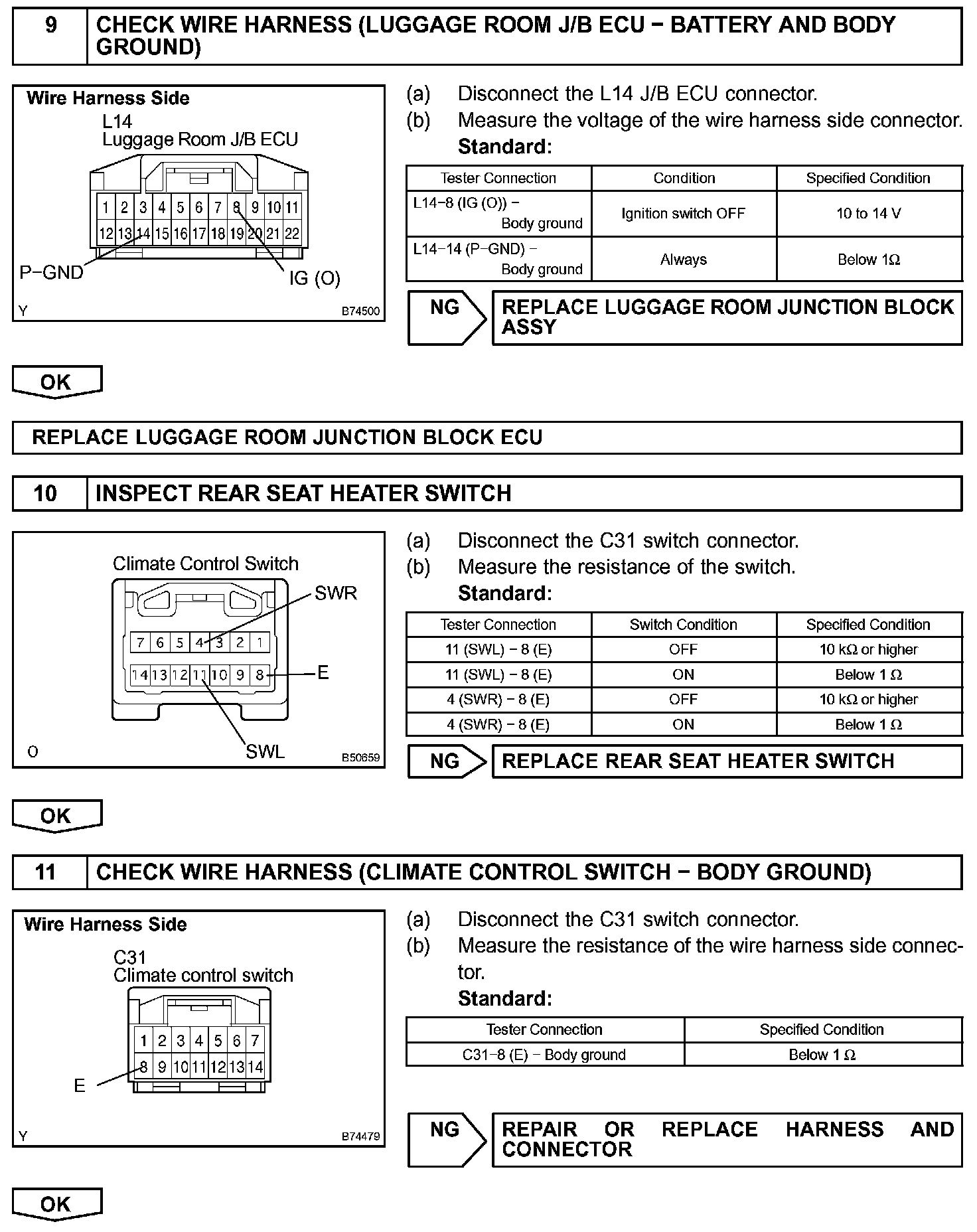

Step 9-11:

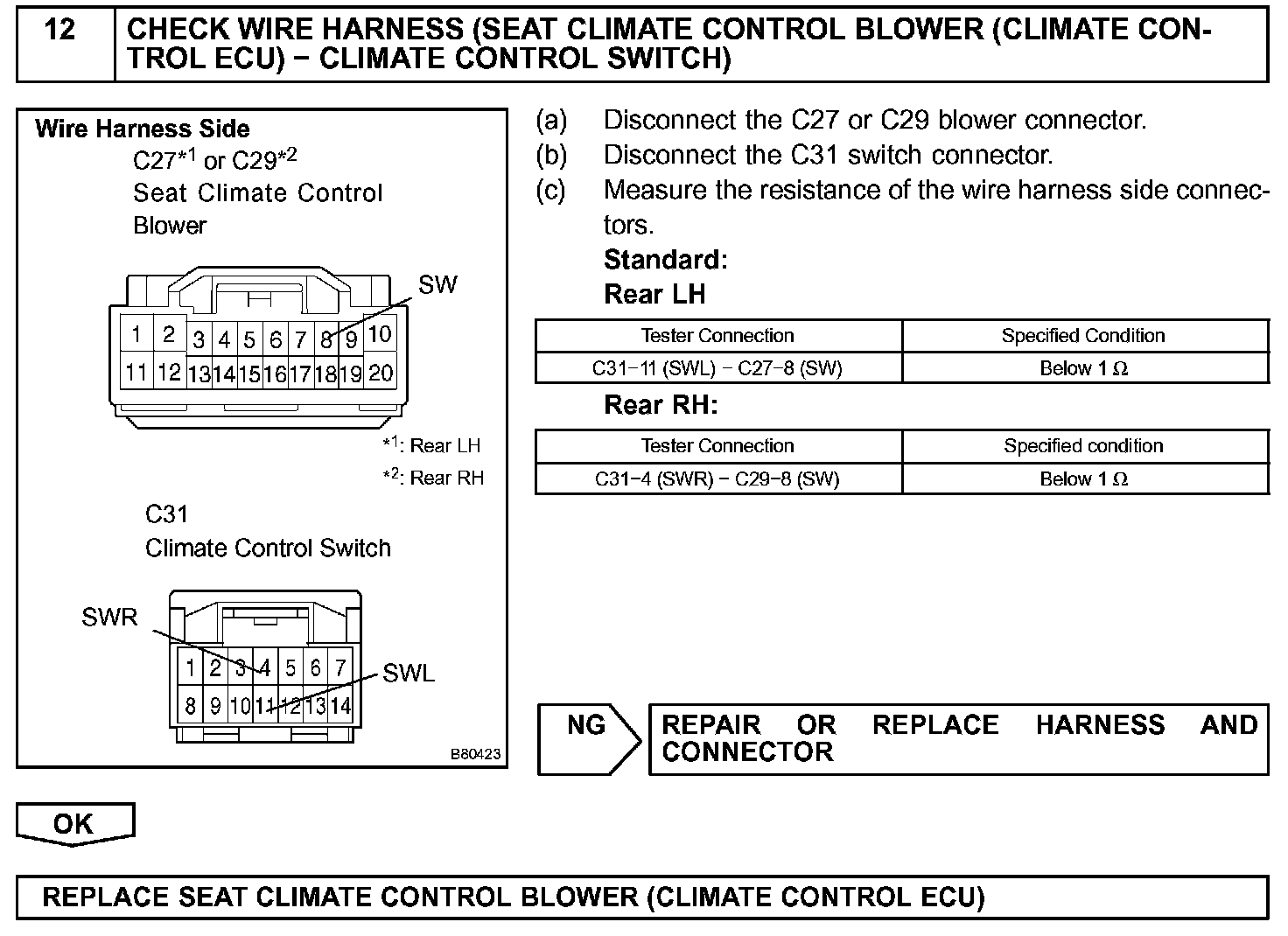

Step 12:

INSPECTION PROCEDURE
