Sliding Roof ECU Power Source Circuit

SLIDING ROOF ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the sliding roof ECU.

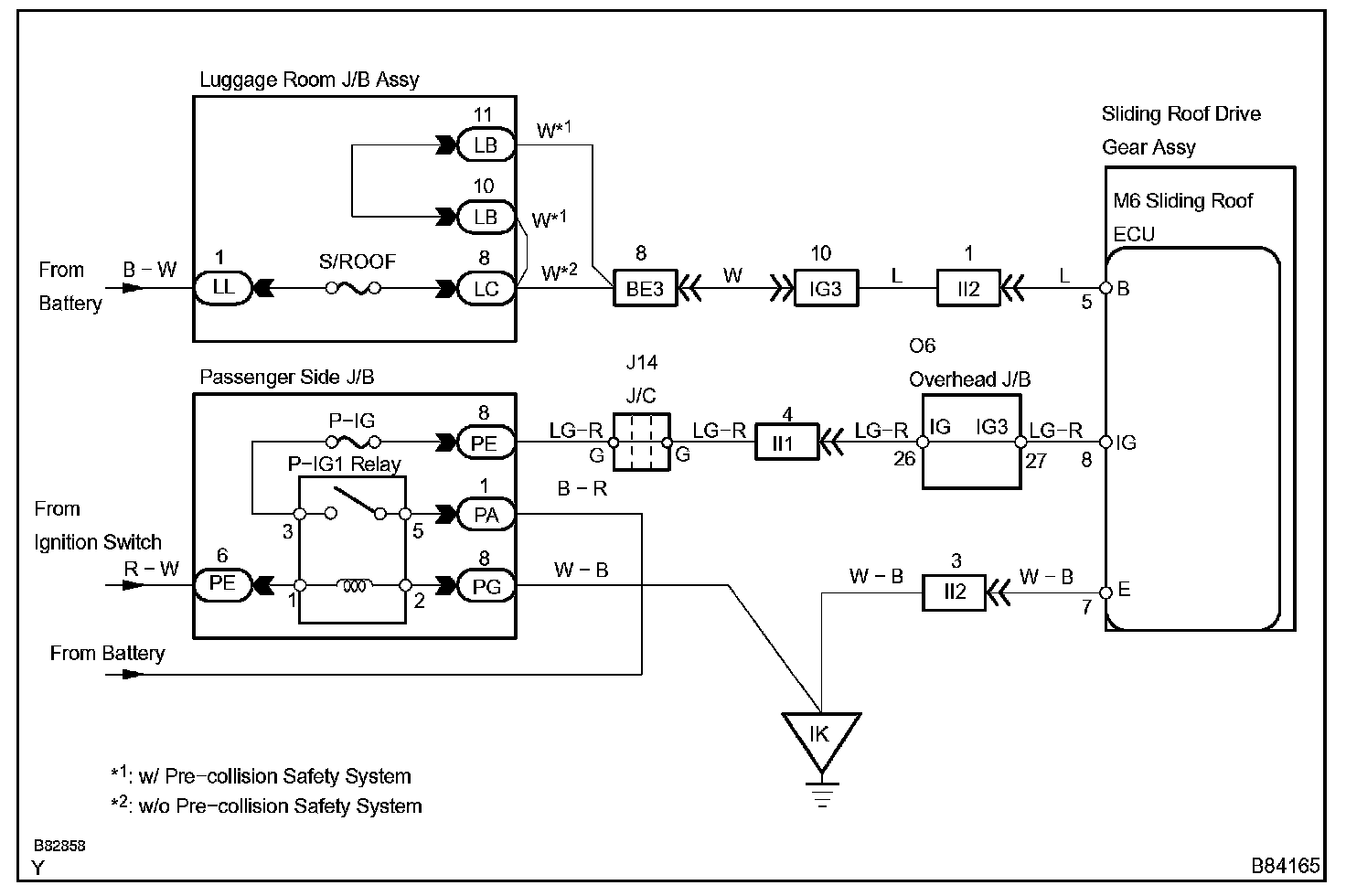

Wiring Diagram:

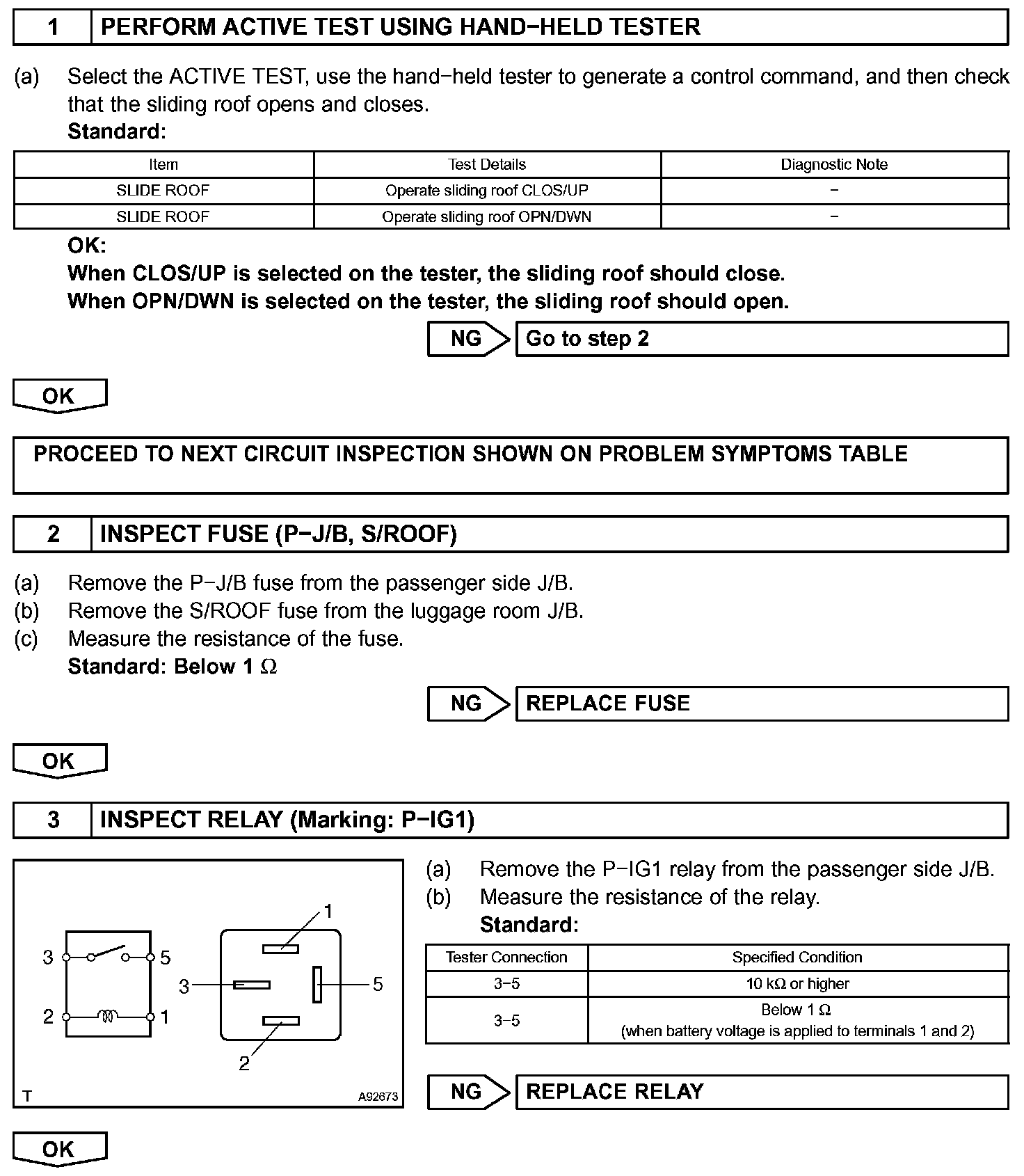

Step 1-3:

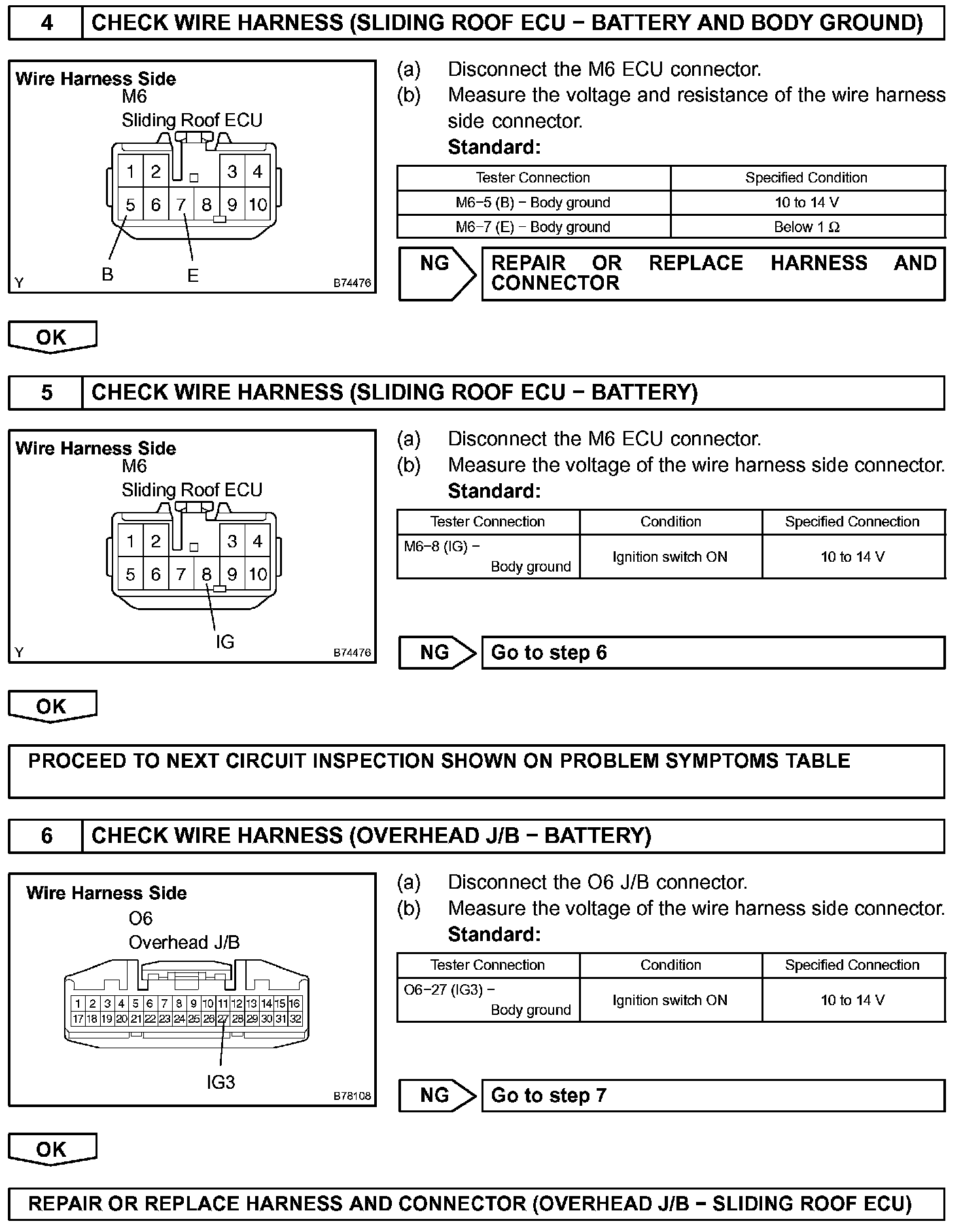

Step 4-6:

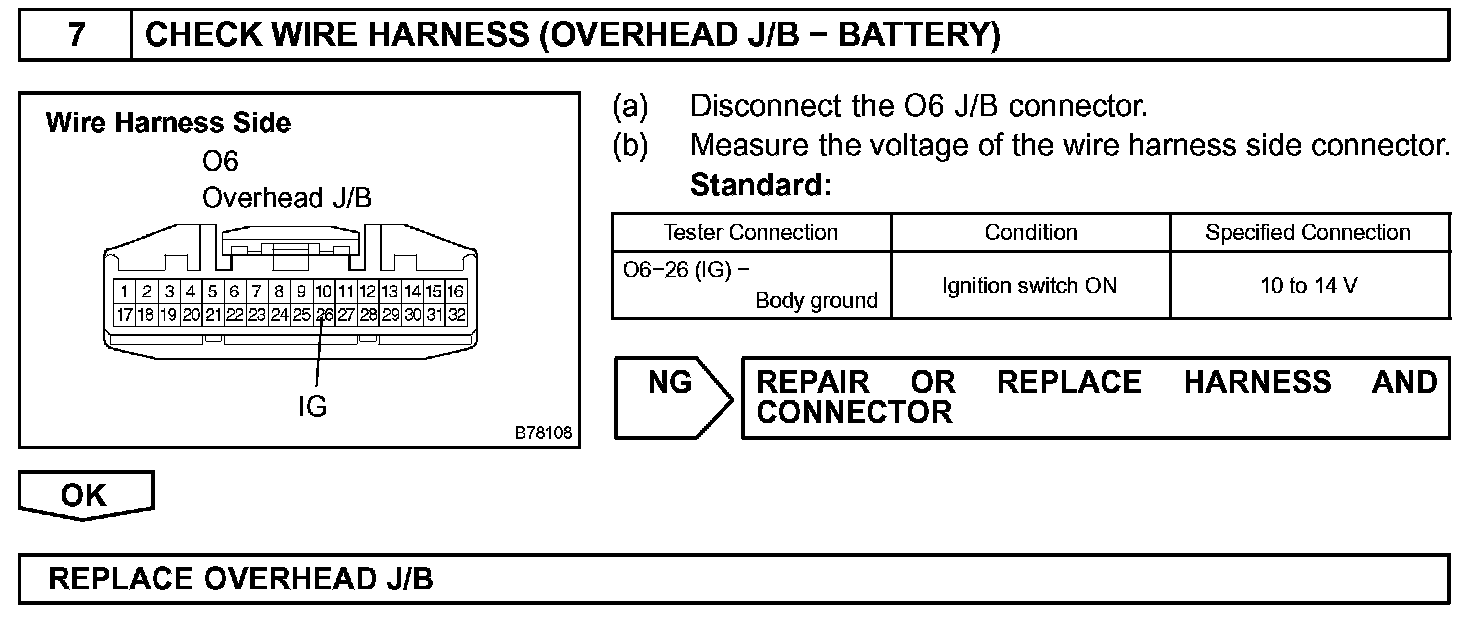

Step 7:




INSPECTION PROCEDURE
