Power Source Circuit (Driver Door ECU)

POWER SOURCE CIRCUIT (DRIVER DOOR ECU)

CIRCUIT DESCRIPTION

This circuit supplies power to operate the driver door ECU.

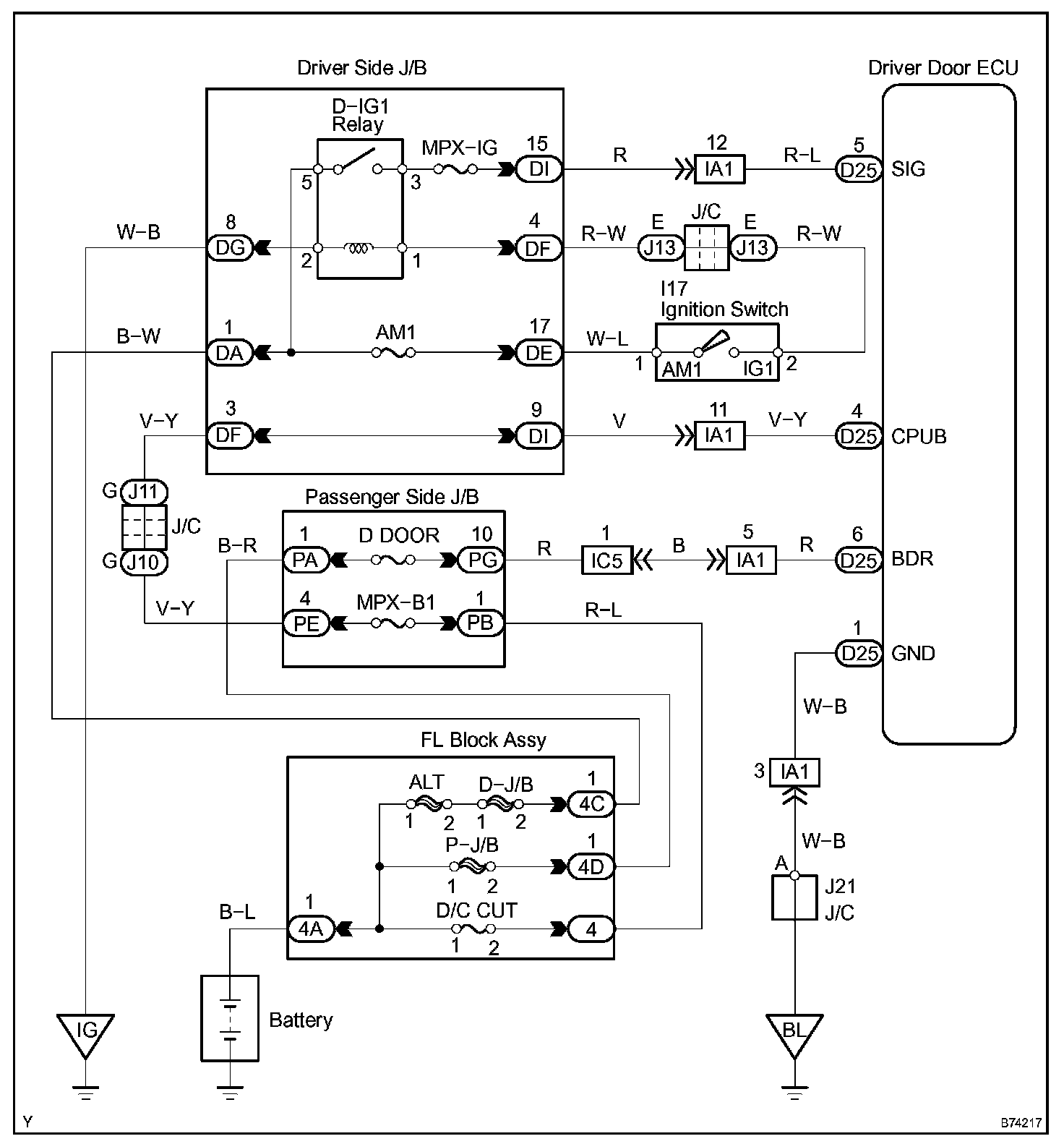

Wiring Diagram:

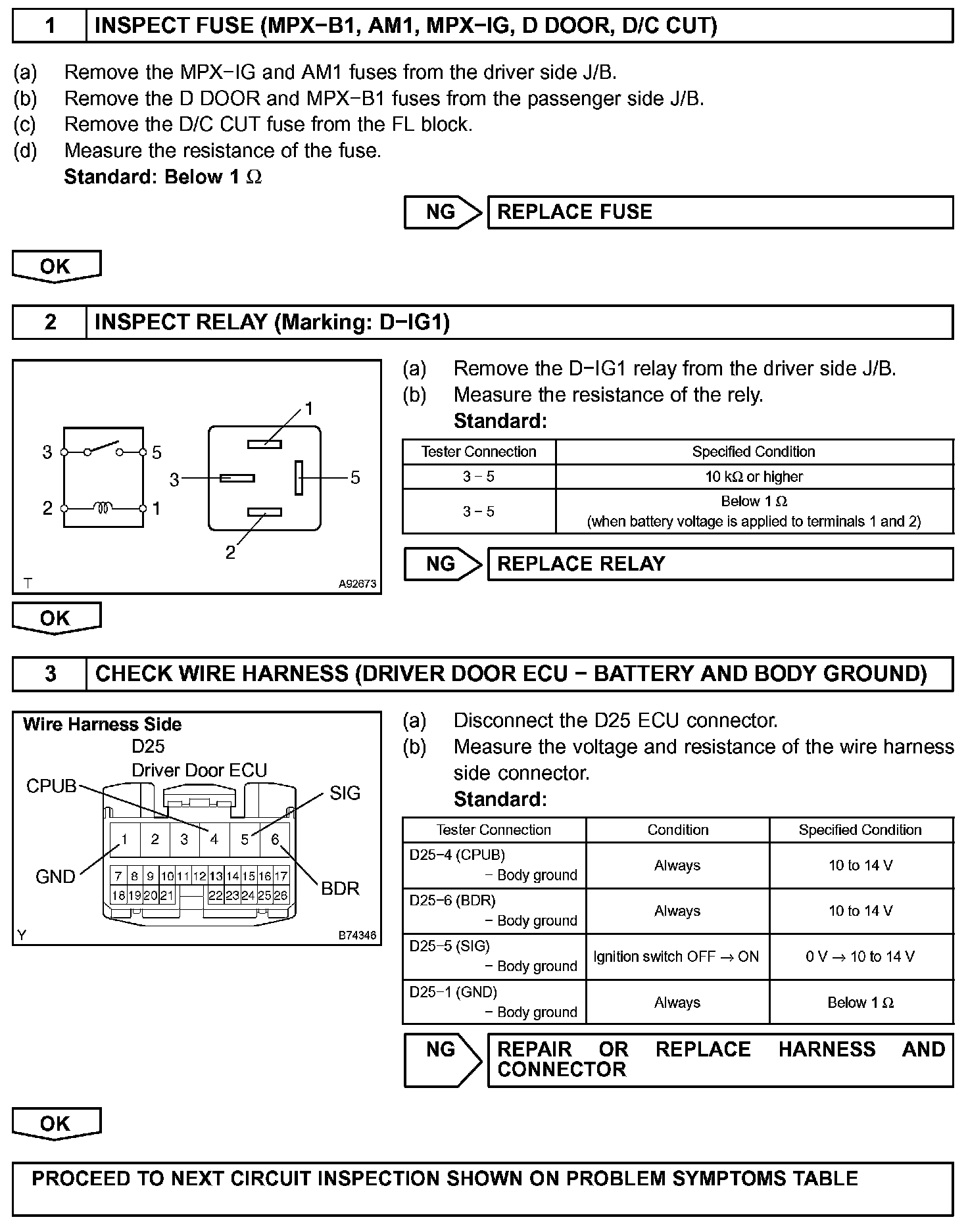

Step 1-3:




INSPECTION PROCEDURE
