Mirror Motor Circuit

MIRROR MOTOR CIRCUIT

CIRCUIT DESCRIPTION

When the mirror motor circuit detects that the shift lever is:
- In the R position: motors move the driver side mirror 3 degrees downward and the passenger side mirror 3.5 degrees downward.
- In a position other than R: motors do not activate unless mirrors have been moved downward, in which case they return to their original position.

Mirror motors are built into the remote control mirrors.

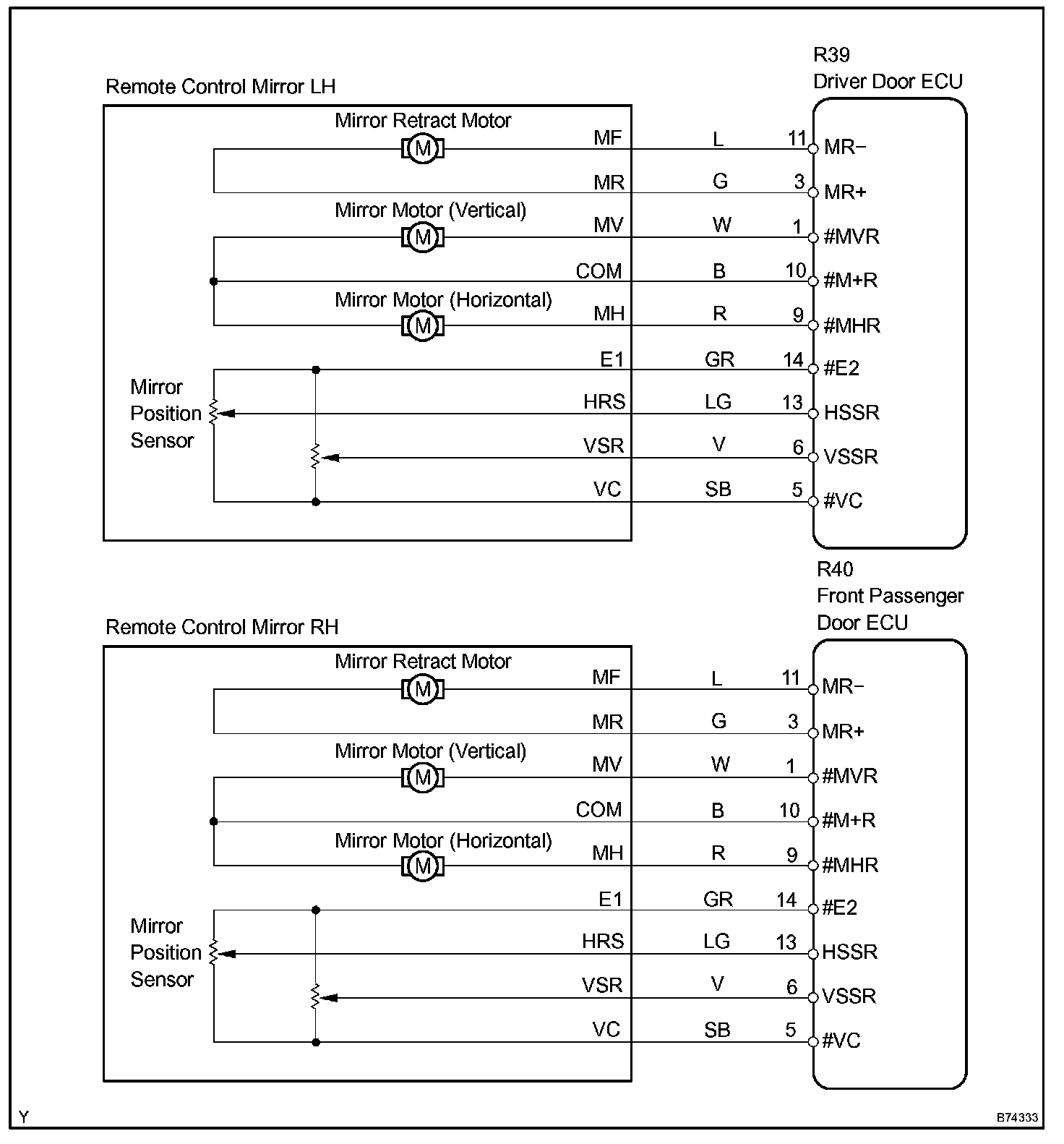

Wiring Diagram:

Step 1-2:

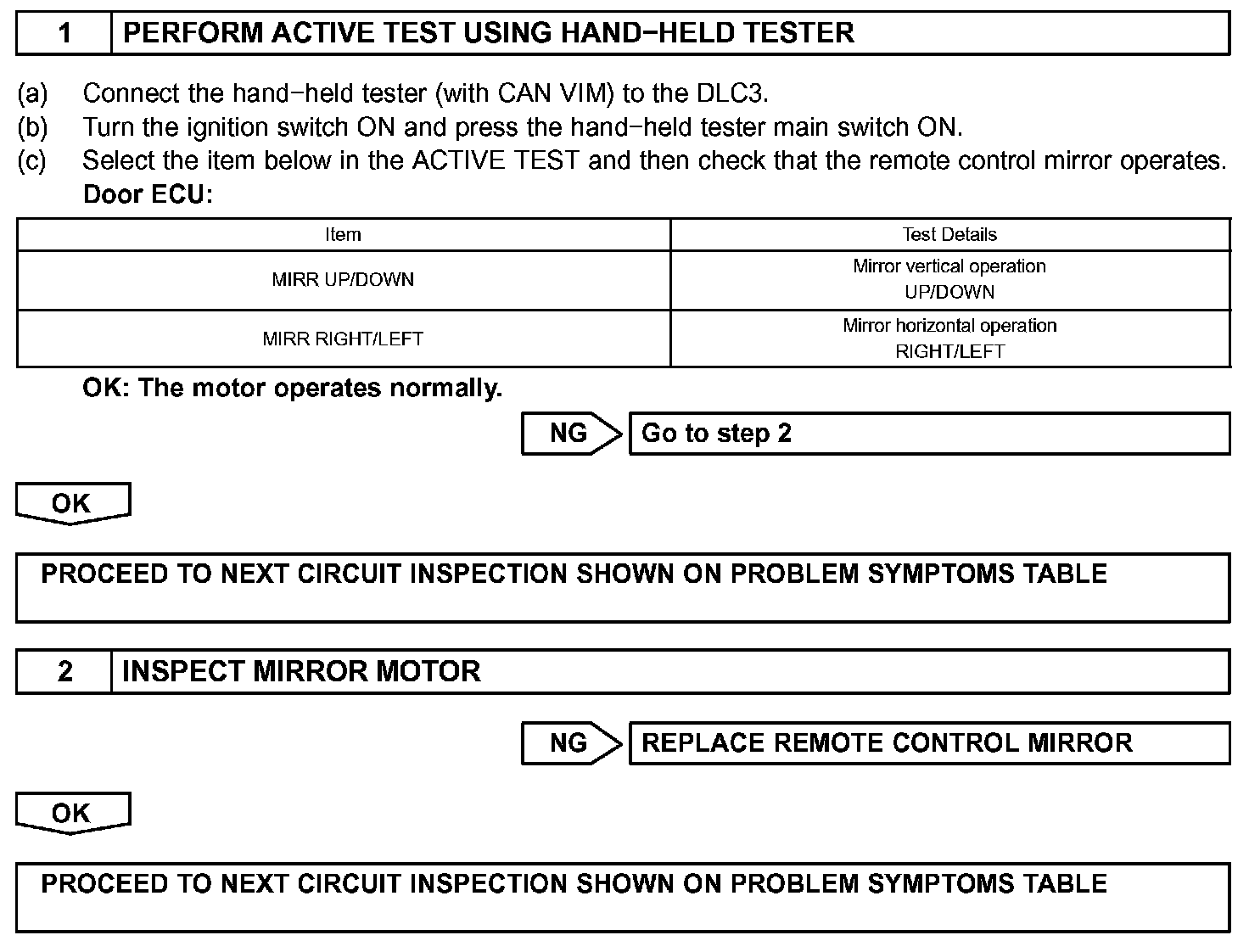

INSPECTION PROCEDURE
