Rear Door LH ECU Power Source Circuit

REAR DOOR LH ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit supplies power to operate the rear door LH ECU.

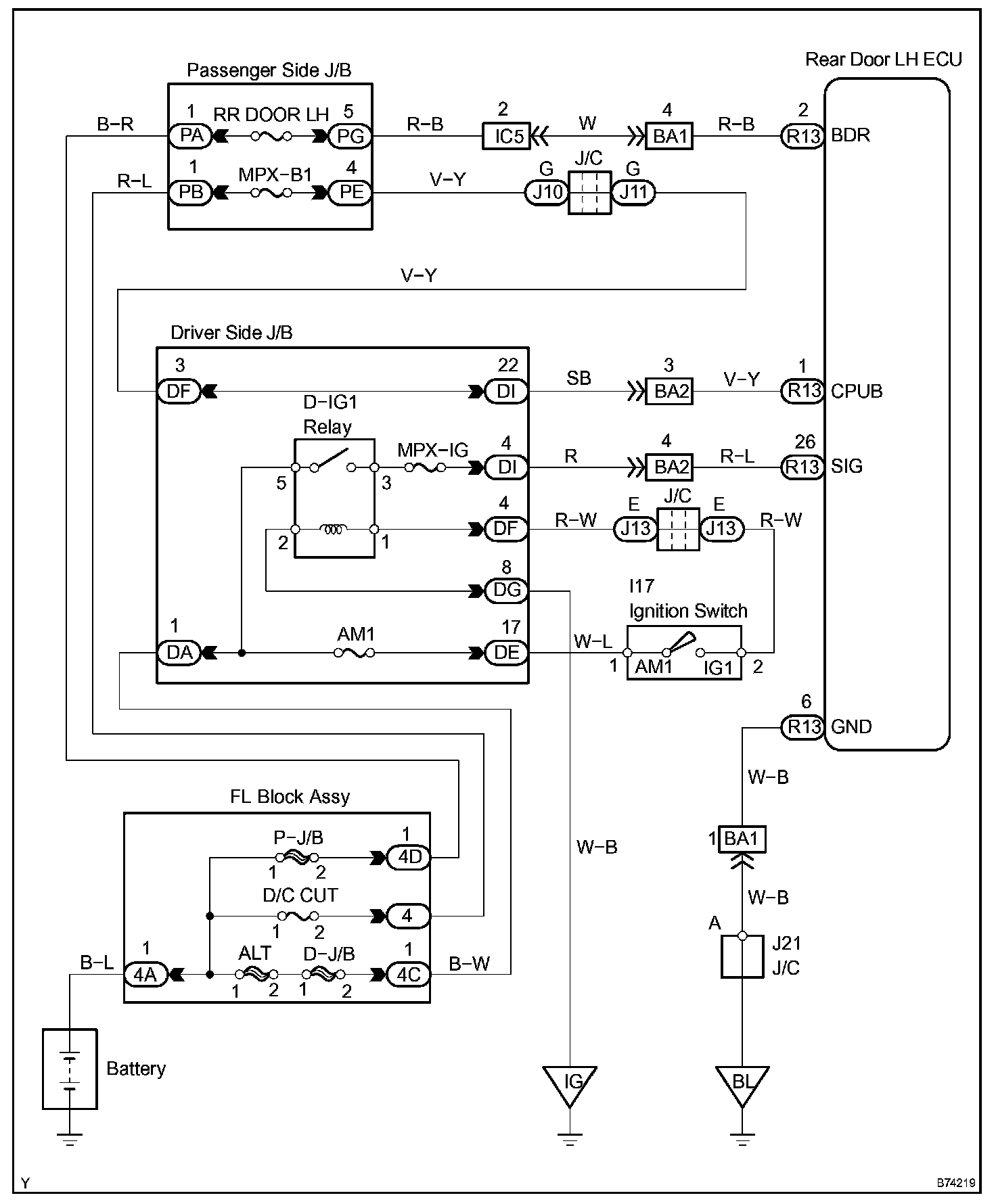

Wiring Diagram:

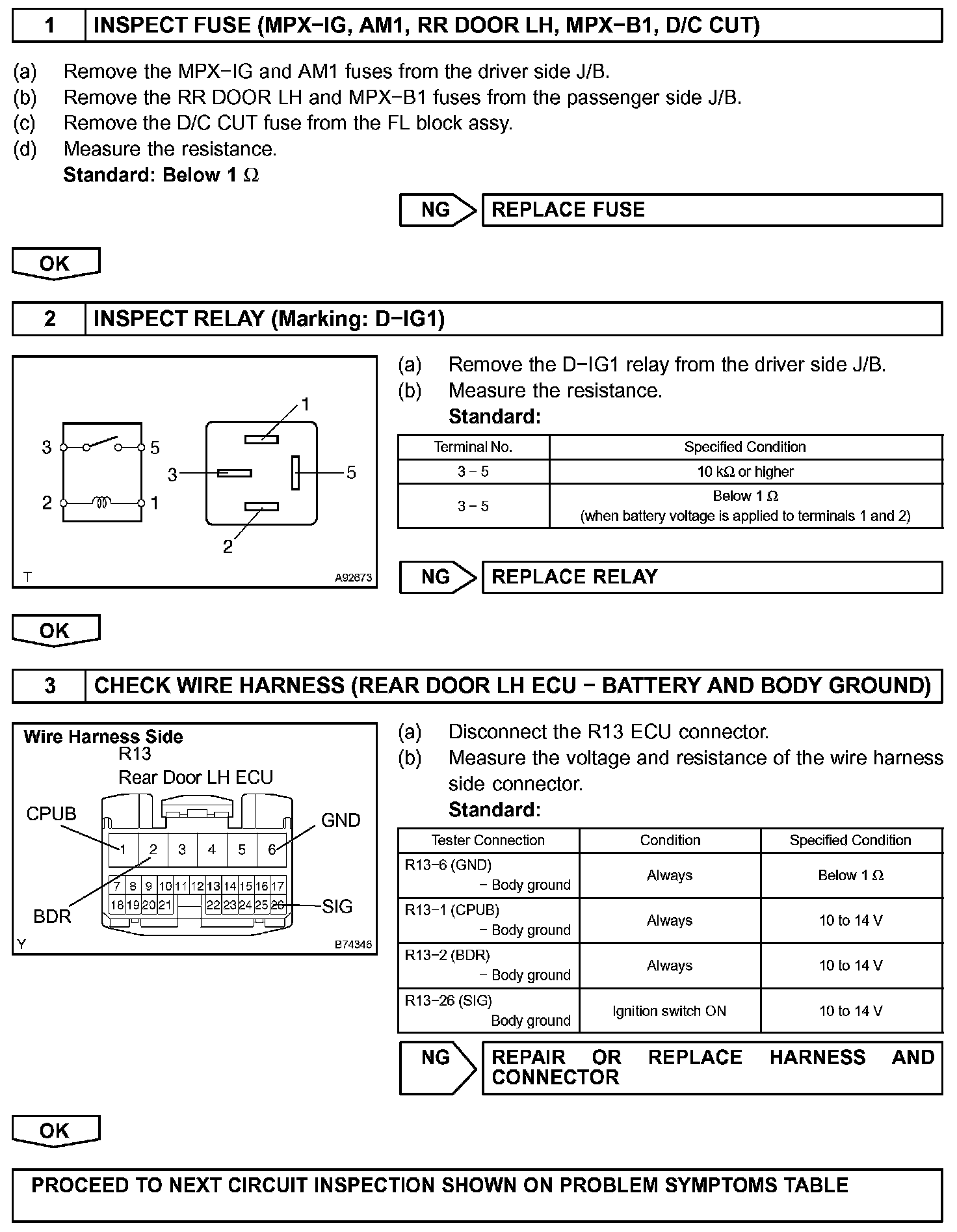

Step 1-3:




INSPECTION PROCEDURE
