Door Unlock Detection Switch Circuit On Driver Side Door

DOOR UNLOCK DETECTION SWITCH CIRCUIT ON DRIVER SIDE DOOR

CIRCUIT DESCRIPTION

The door unlock detection switch is built in the door lock assembly.

This switch is ON when the door lock knob is in the unlock position and OFF when it is in the lock position. It is used as one of the operating conditions for the key confinement prevention function.

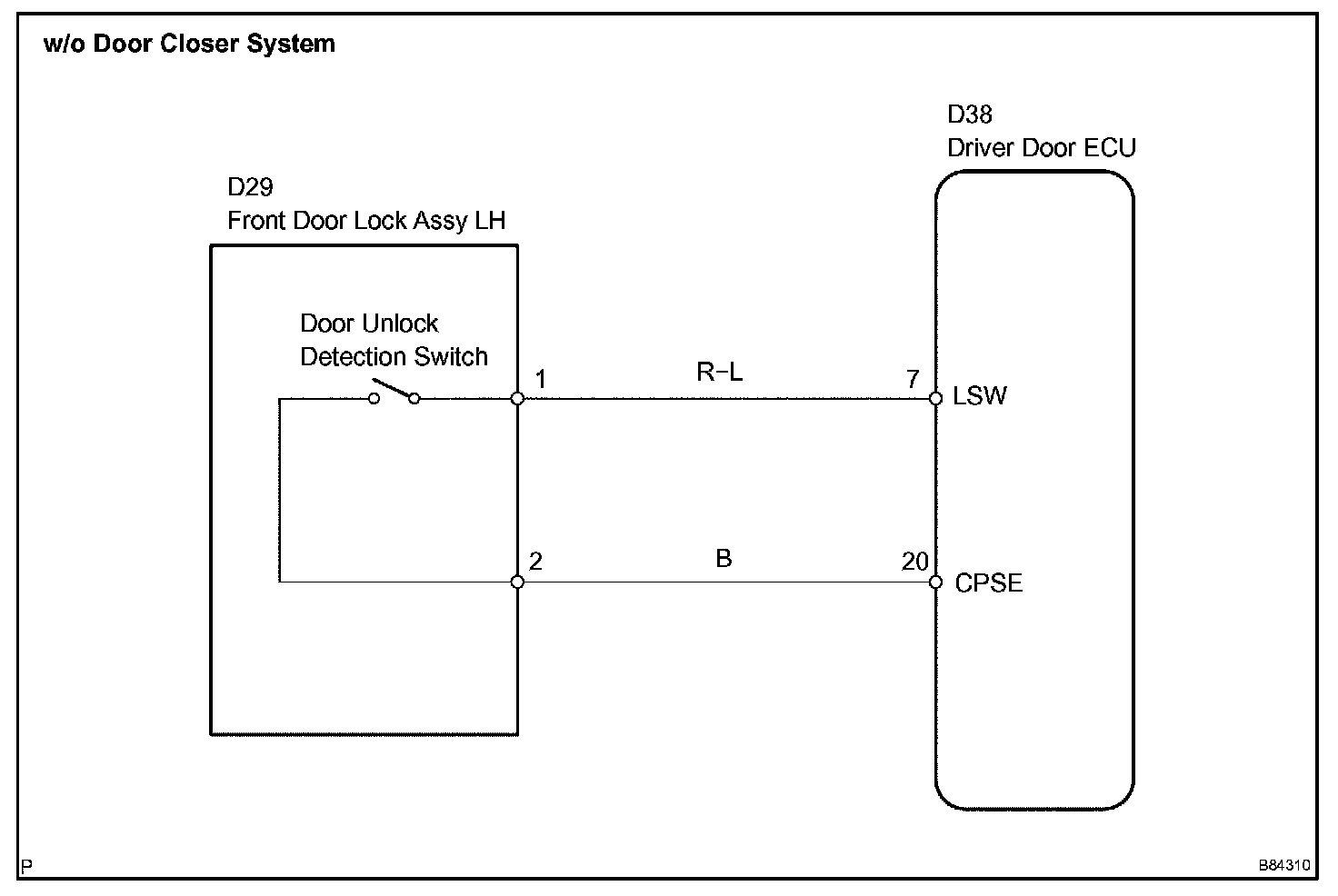

Wiring Diagram (Part 1):

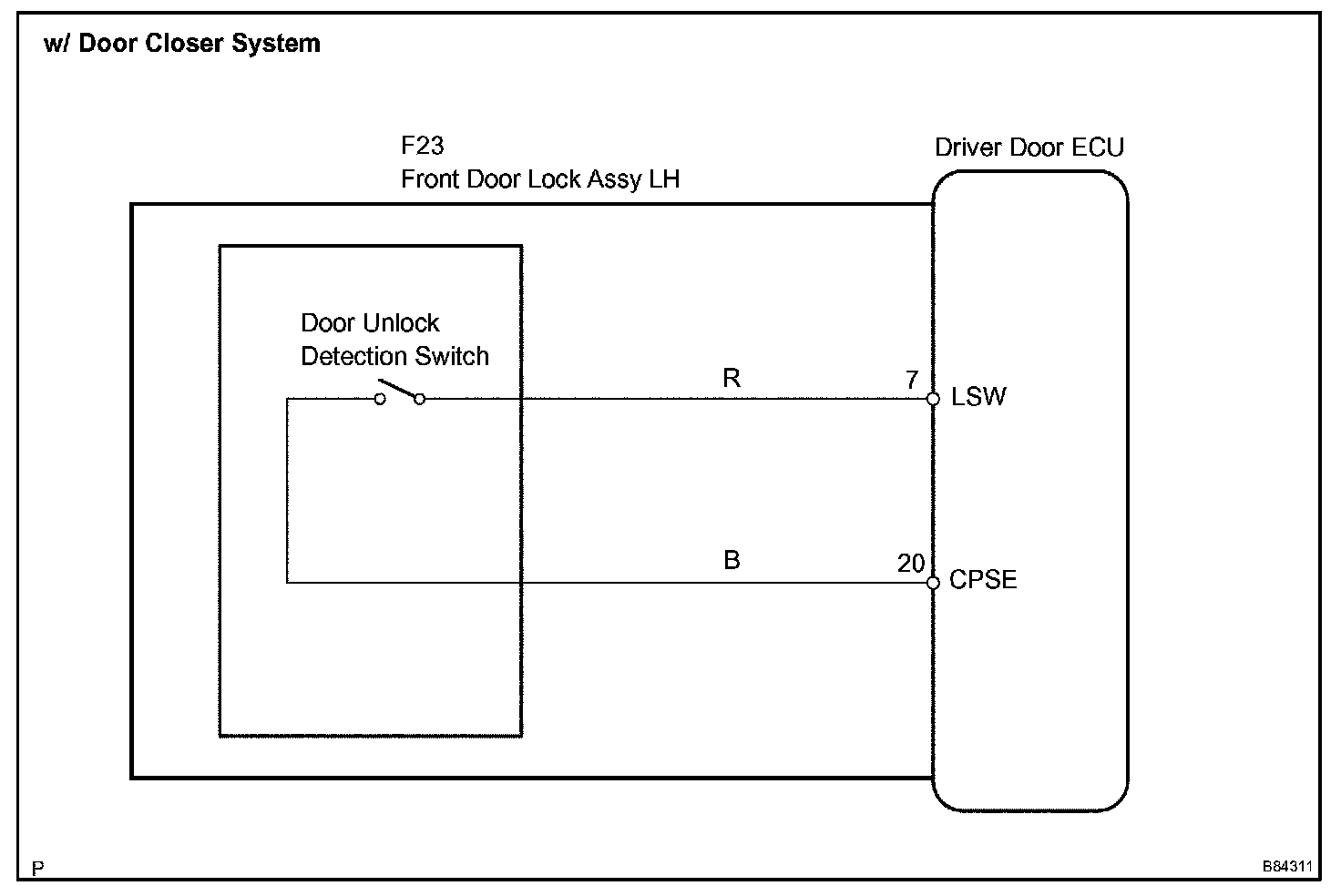

Wiring Diagram (Part 2):

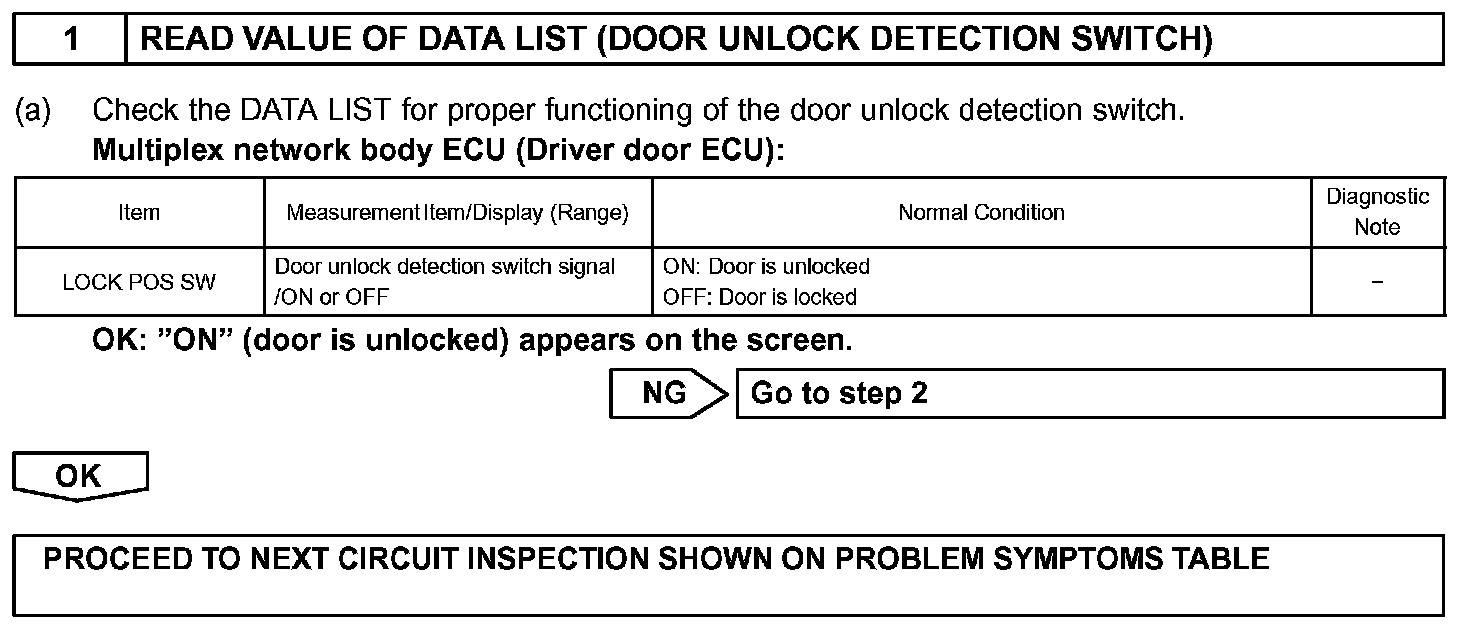

Step 1:

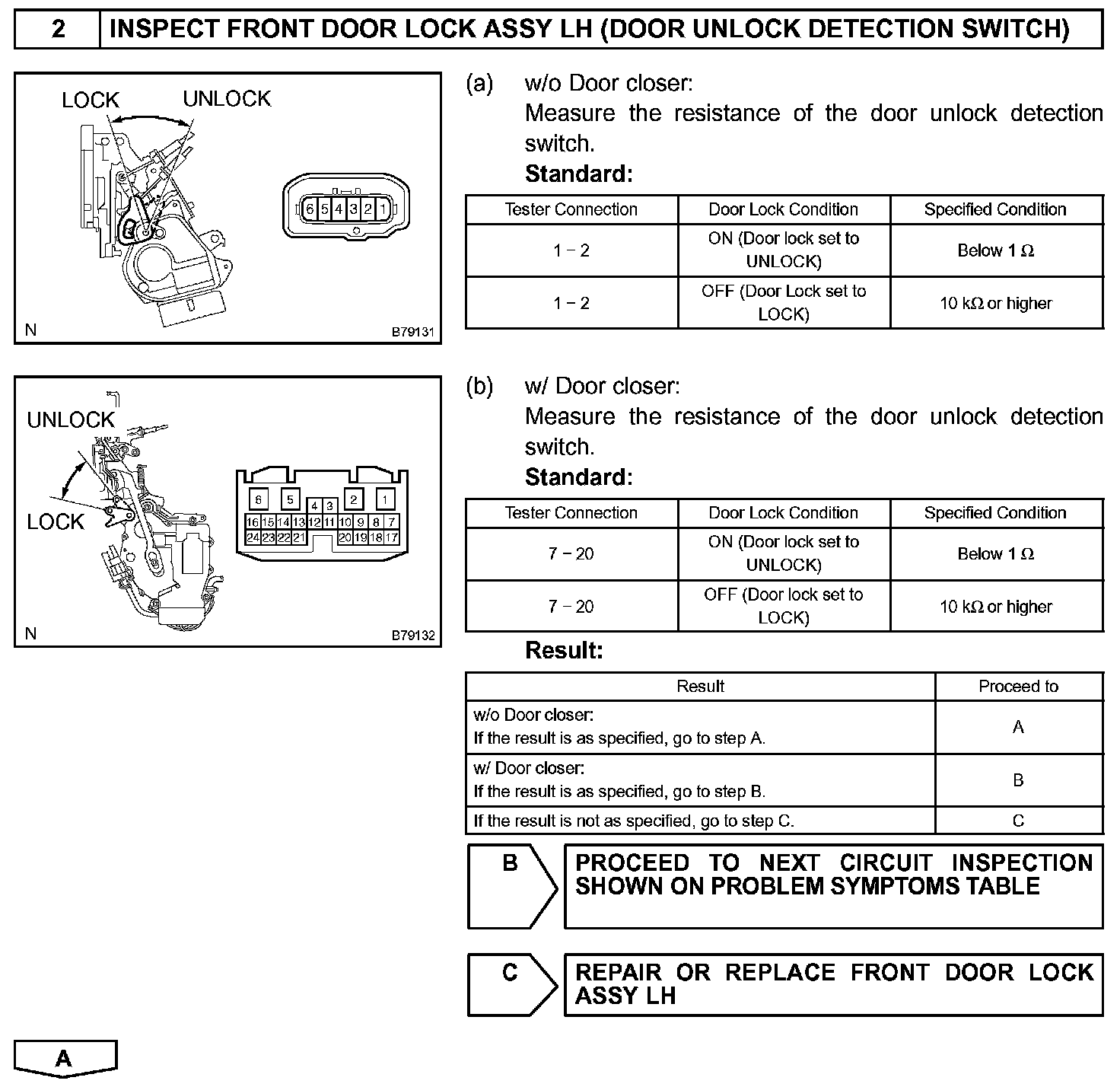

Step 2:

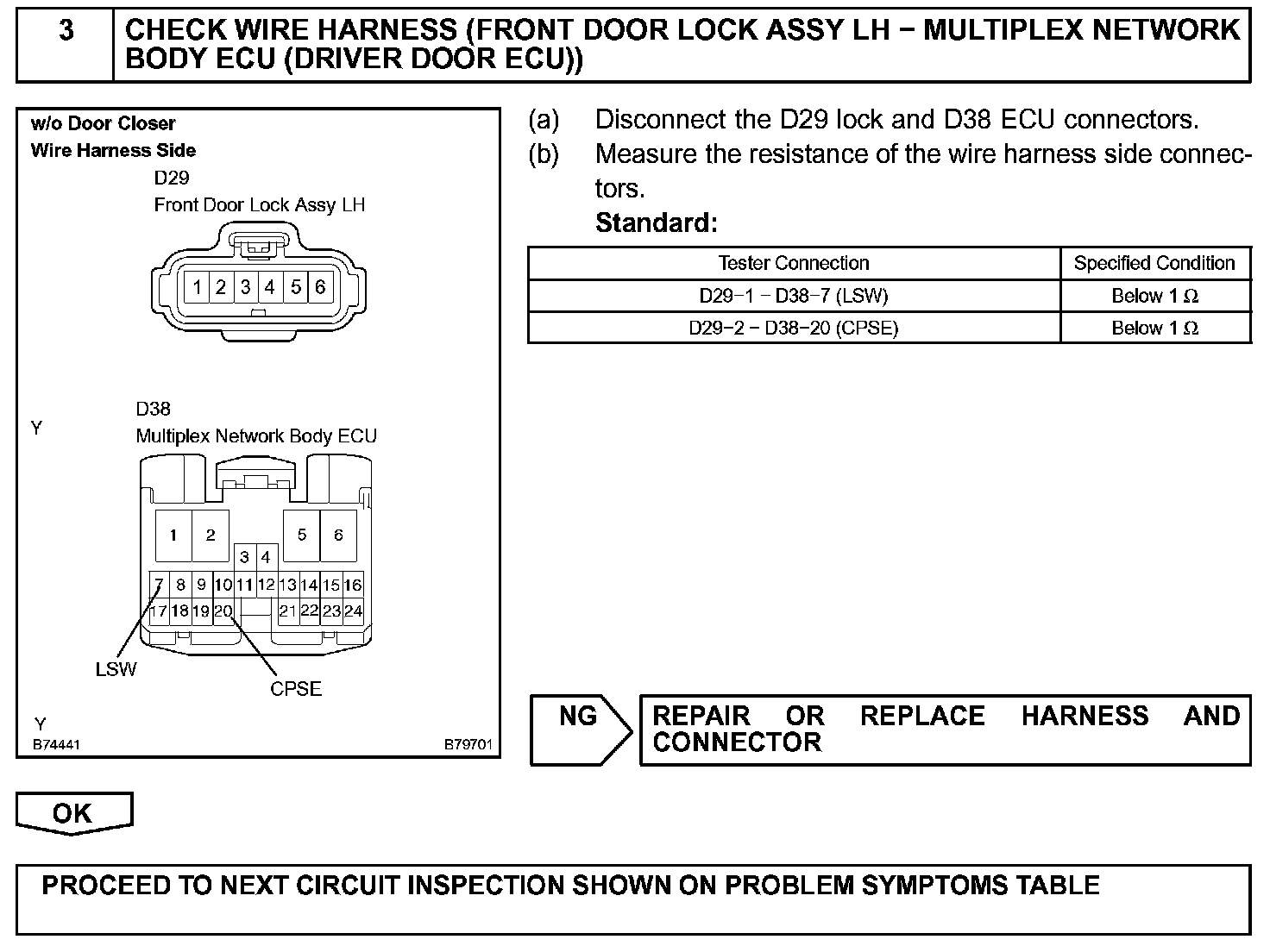

Step 3:

INSPECTION PROCEDURE
