Door Lock Motor Circuit On Passenger Side Door
DOOR LOCK MOTOR CIRCUIT ON PASSENGER SIDE DOORCIRCUIT DESCRIPTION
The door lock motor is built in the door lock assembly.
The passenger door ECU receives the passenger door lock switch signal from the master switch and operates the door lock motor.

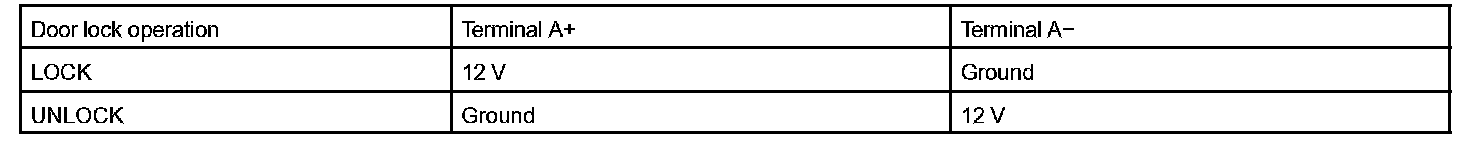

When the battery voltage is applied to the terminal as follows, the door lock functions accordingly.

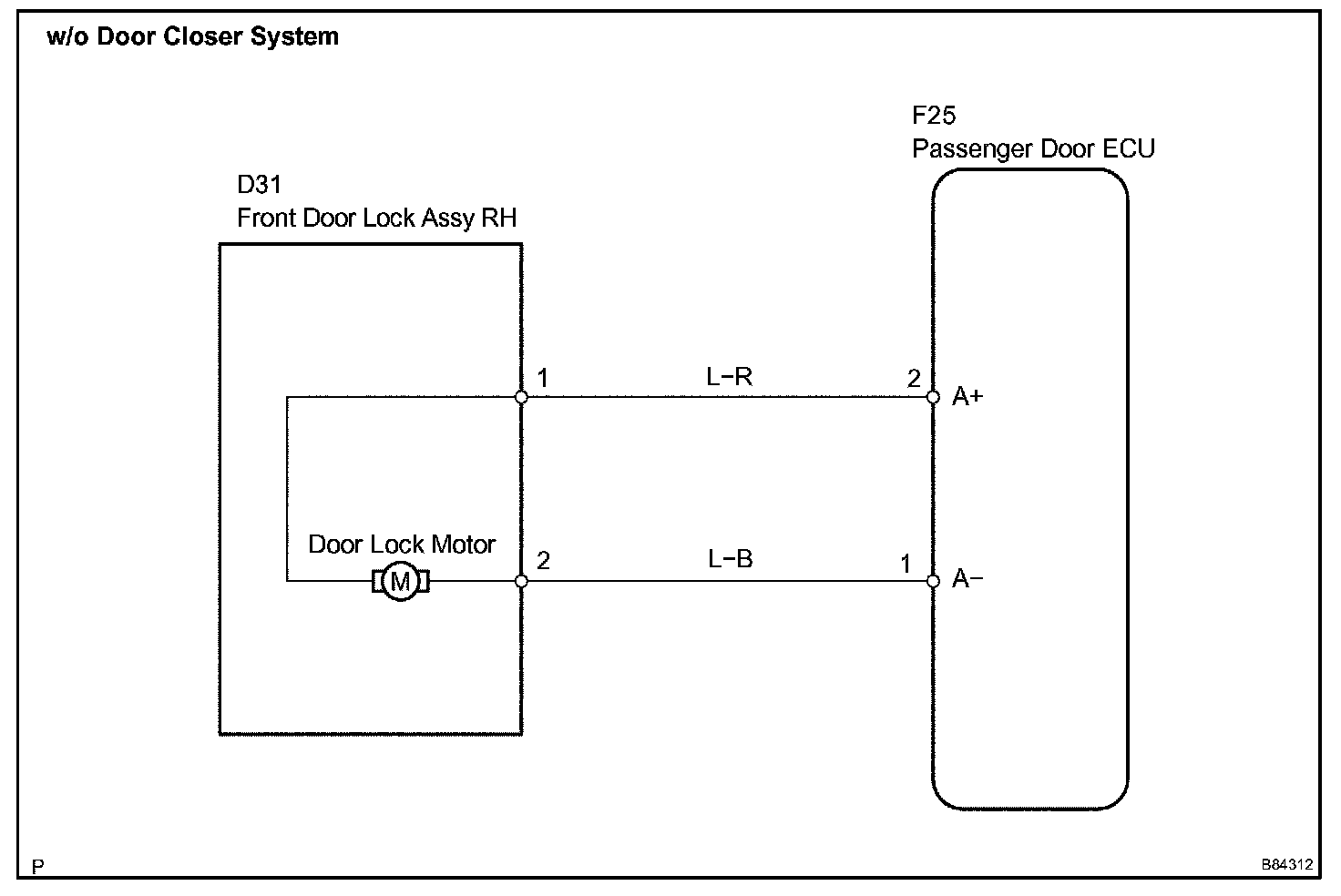

Wiring Diagram:

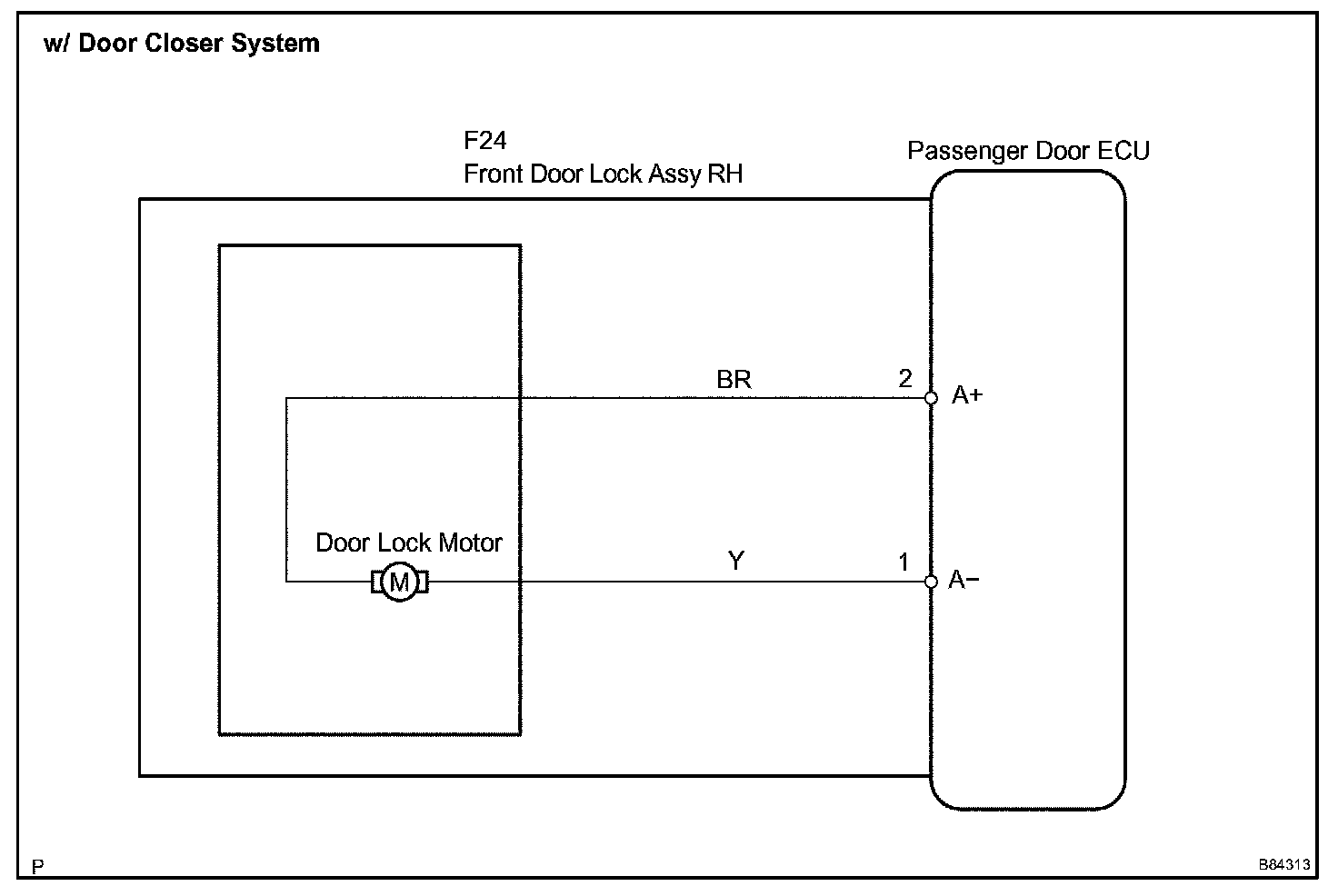

Wiring Diagram:
Step 1:

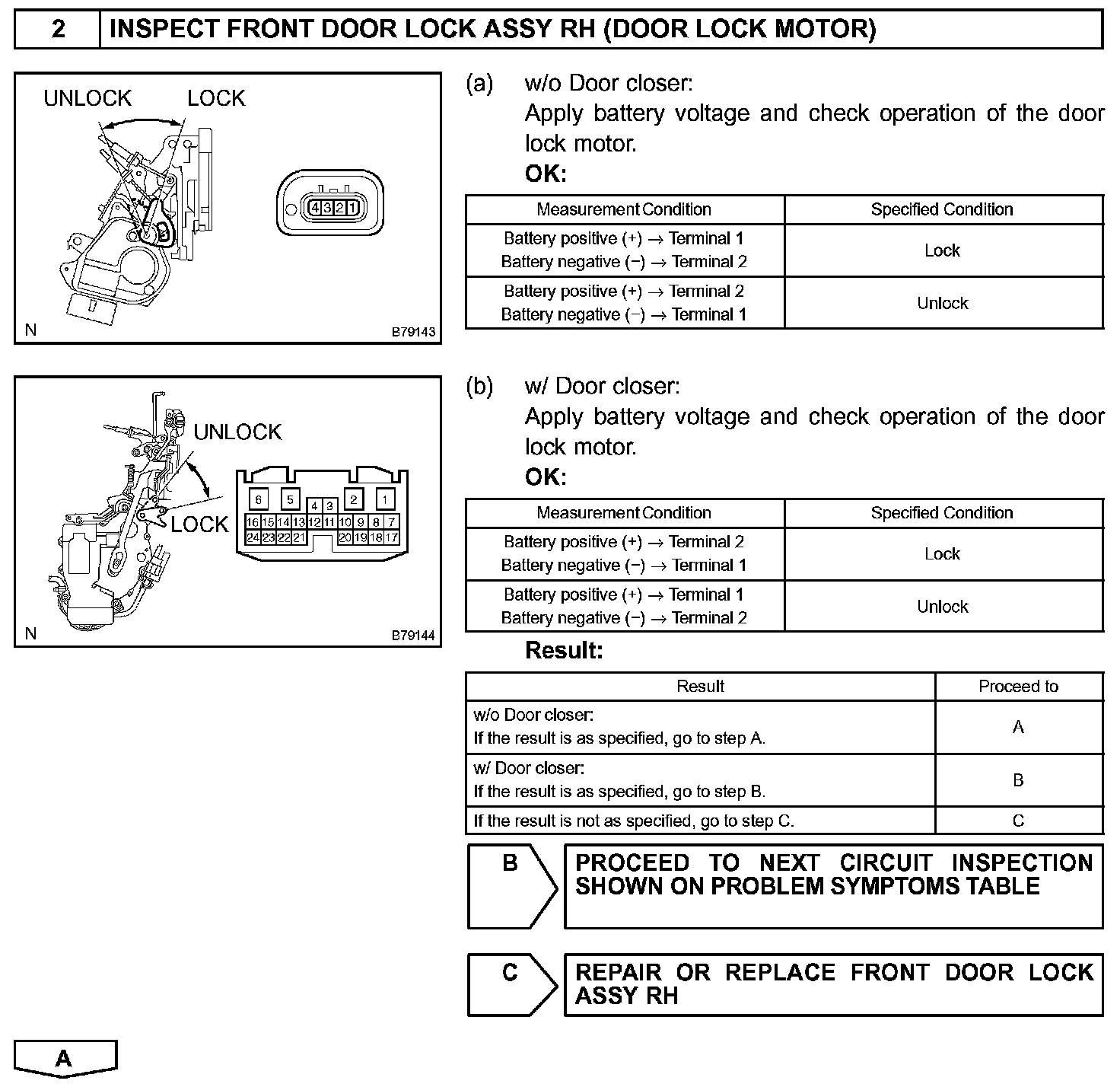

Step 2:

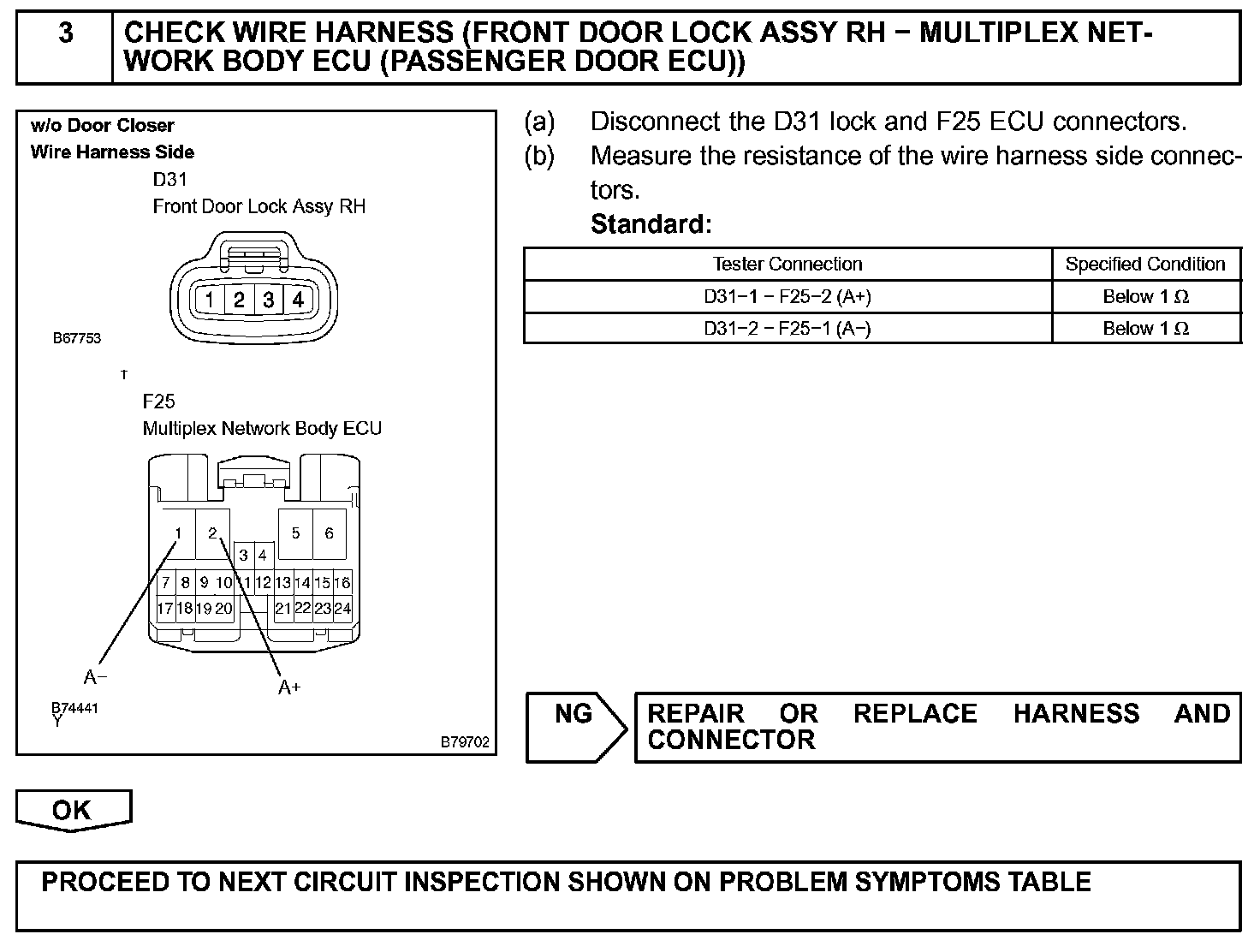

Step 3:

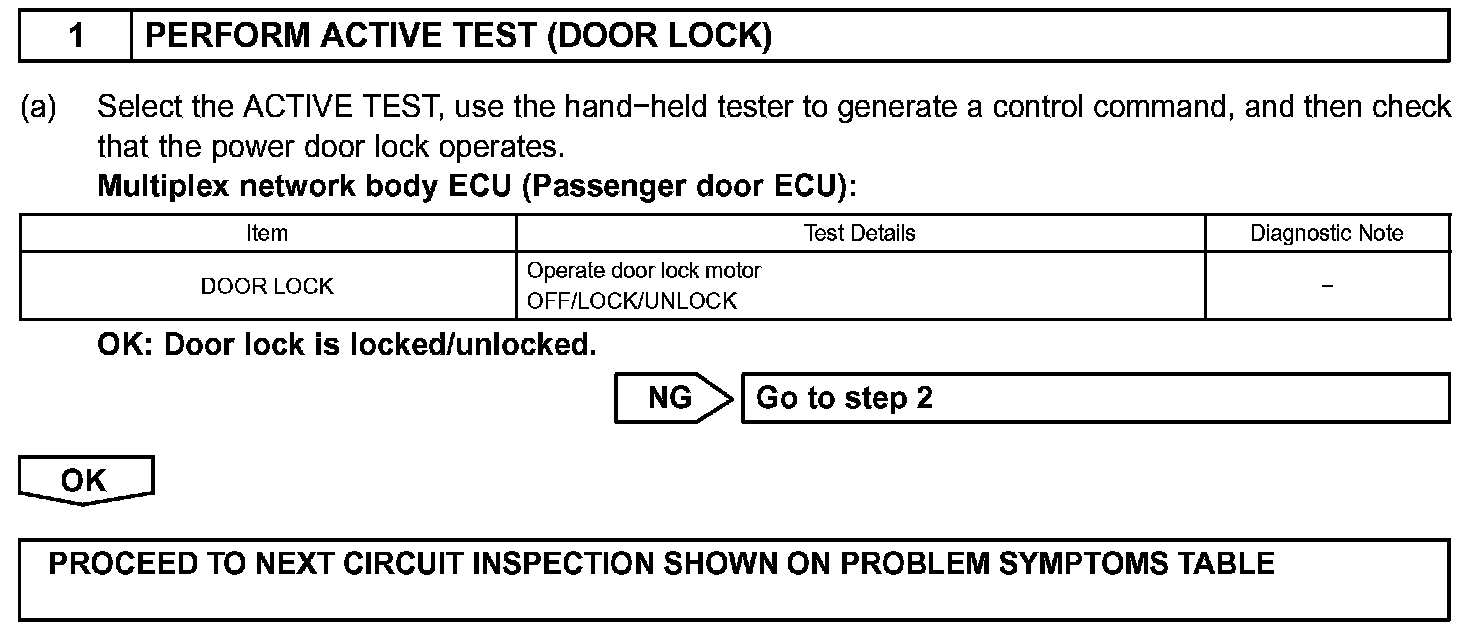

INSPECTION PROCEDURE
