Component Inspection

INSPECTION







1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

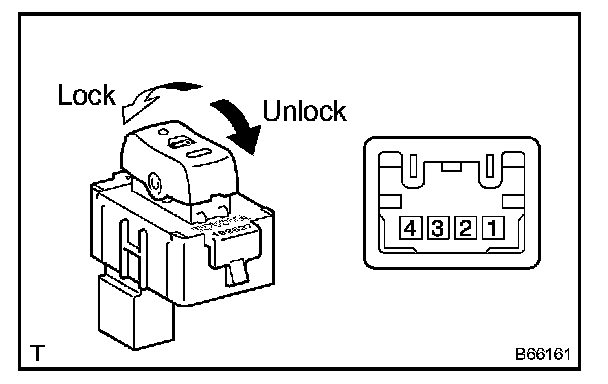

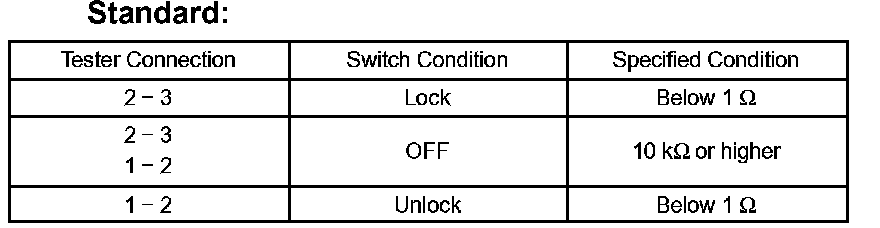

a. Measure the resistance of the door control switch.
If the result is not as specified, replace the switch assembly.







2. INSPECT DOOR CONTROL SWITCH ASSEMBLY

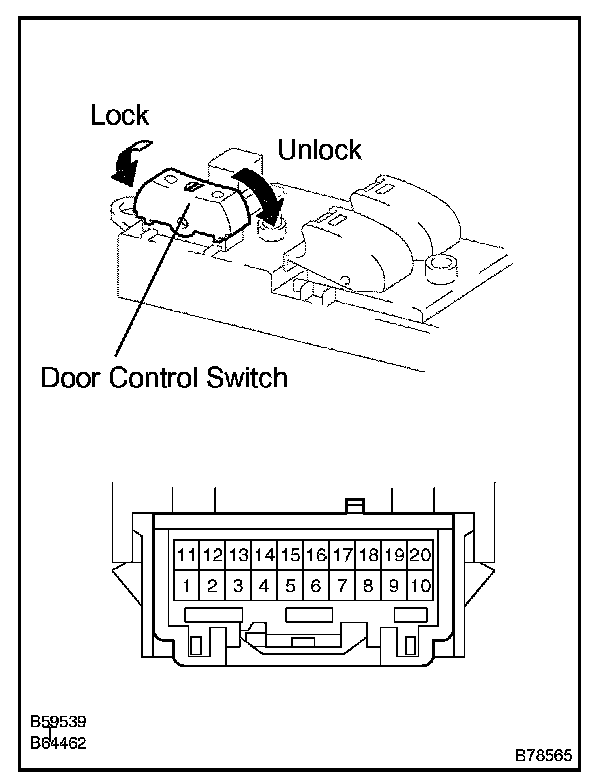

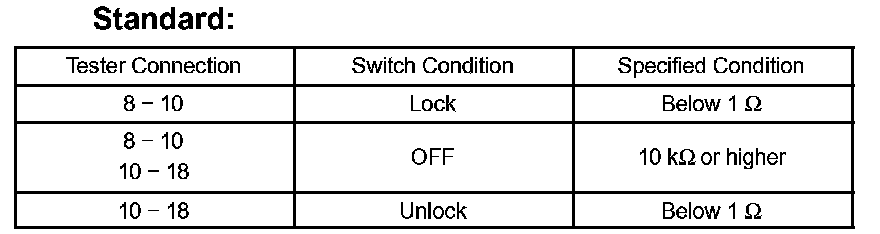

a. Measure the resistance of the switch.
If the result is not as specified, replace the switch assembly.







3. w/o Door closer:
INSPECT FRONT DOOR LOCK ASSEMBLY LH

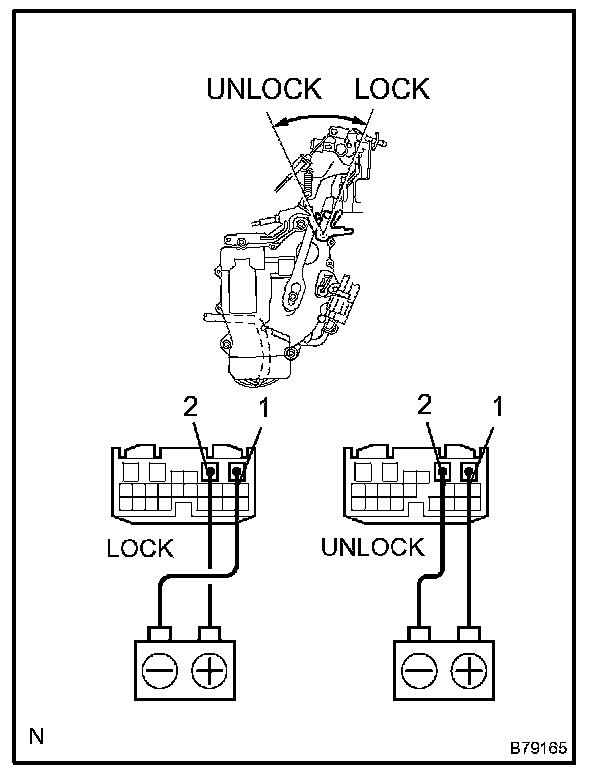

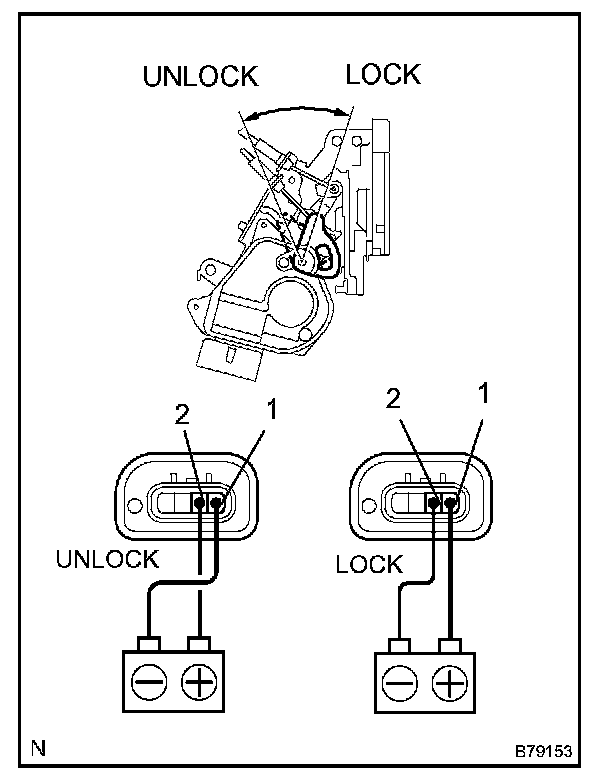

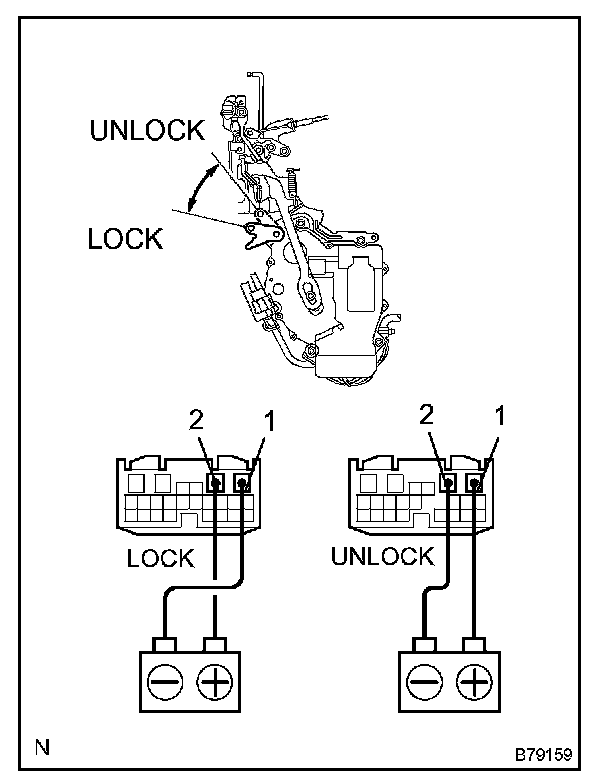

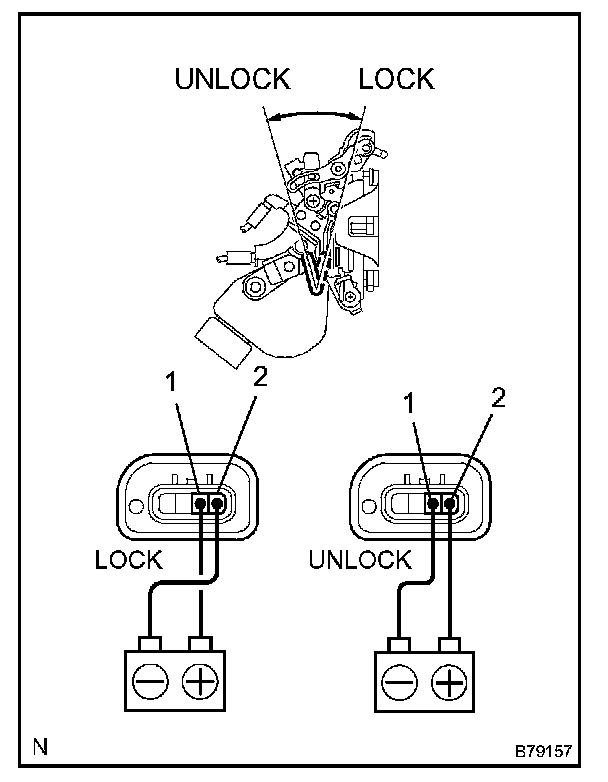

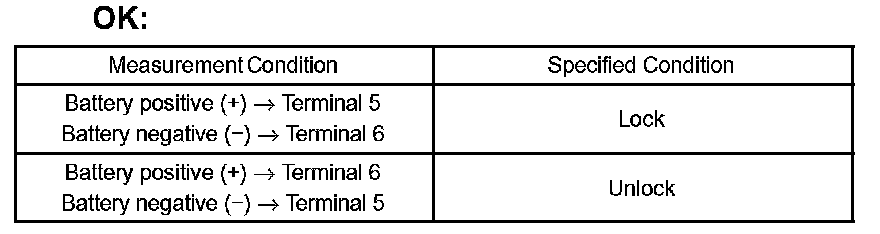

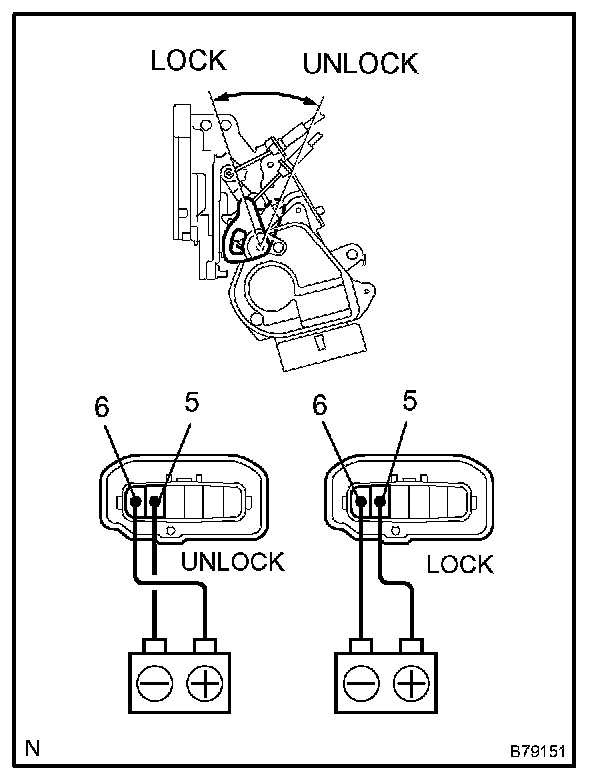

a. Apply battery voltage to the door lock and check operation of the door lock motor.
If the result is not as specified, replace the door lock assembly.

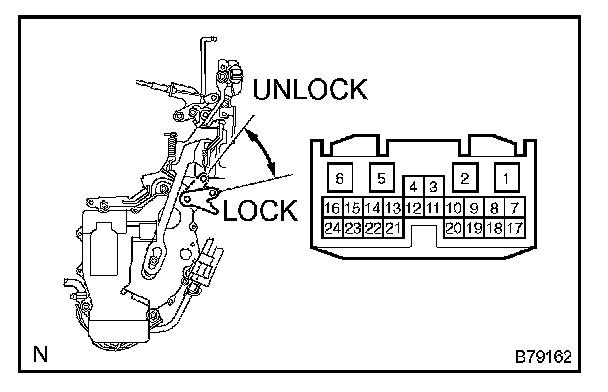

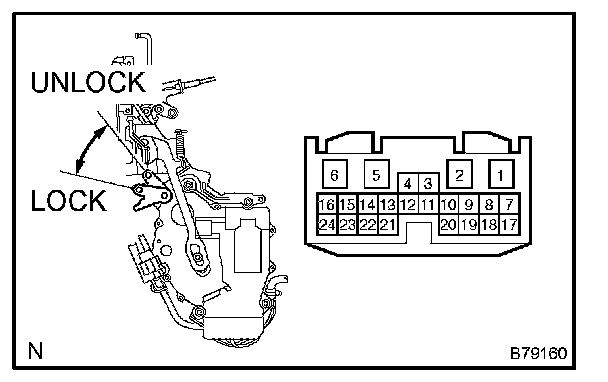

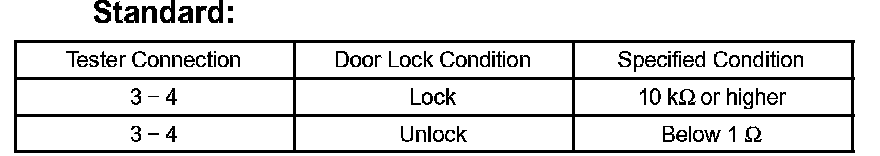

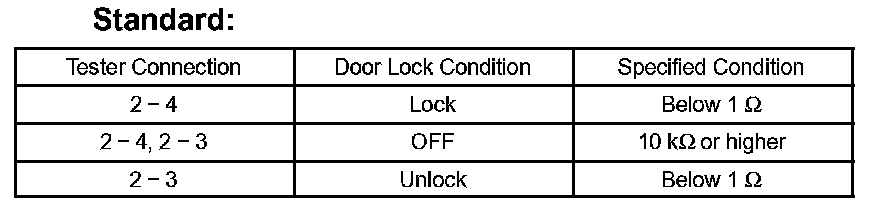

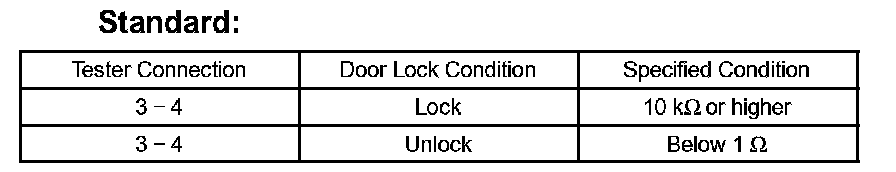

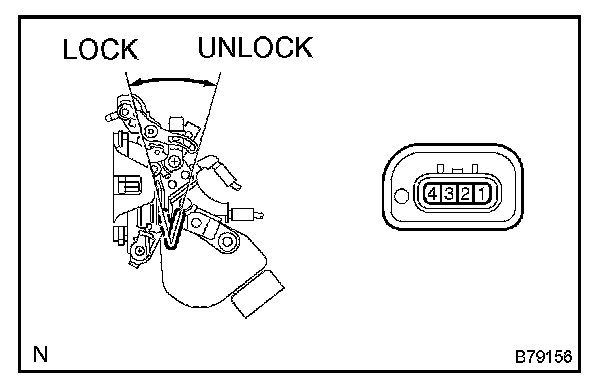

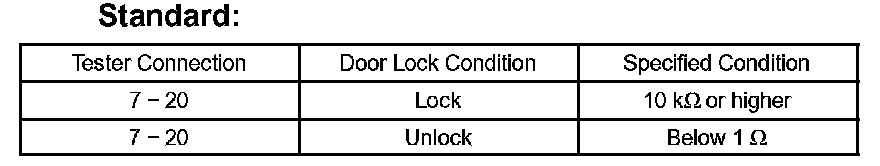

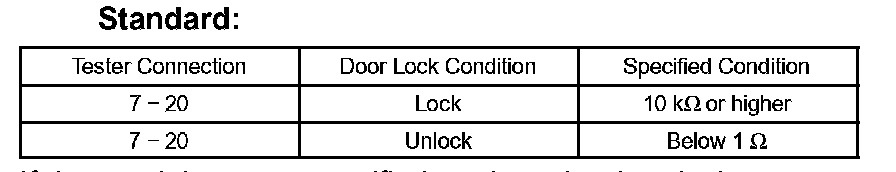

b. Measure the resistance of the unlock detection switch.
If the result is not as specified, replace the door lock assembly.

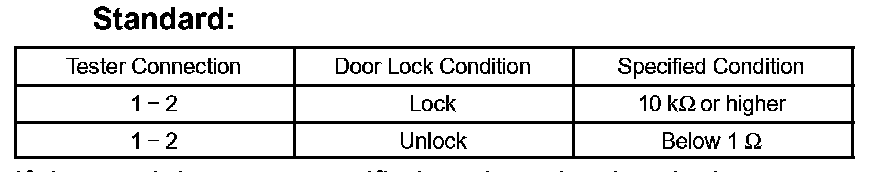

c. Measure the resistance of the door lock and unlock switch.
If the result is not as specified, replace the door lock assembly.







4. w/o Door closer:
INSPECT FRONT DOOR LOCK ASSEMBLY RH

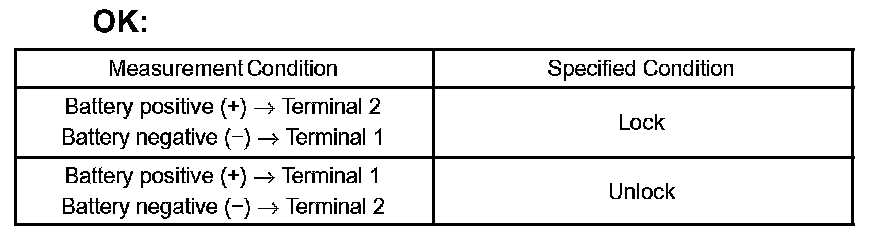

a. Apply battery voltage to the door lock and check operation of the door lock motor.
If the result is not as specified, replace the door lock assembly.







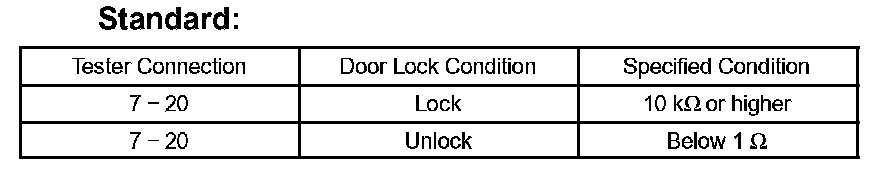

b. Measure the resistance of the unlock detection switch.
If the result is not as specified, replace the door lock assembly.







5. w/o Door closer:
INSPECT REAR DOOR LOCK ASSEMBLY LH

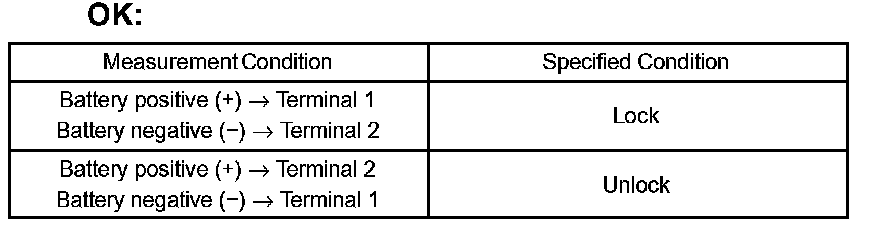

a. Apply battery voltage to the door lock and check operation of the door lock motor.
If the result is not as specified, replace the door lock assembly.

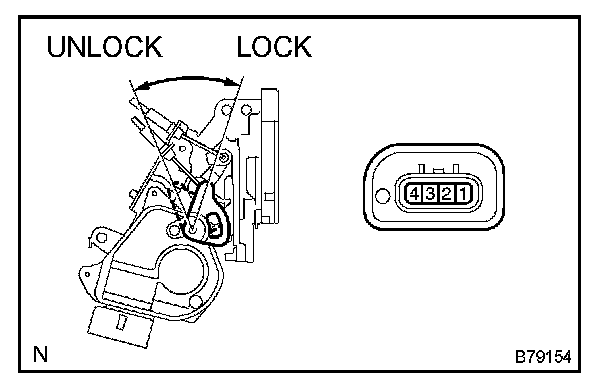

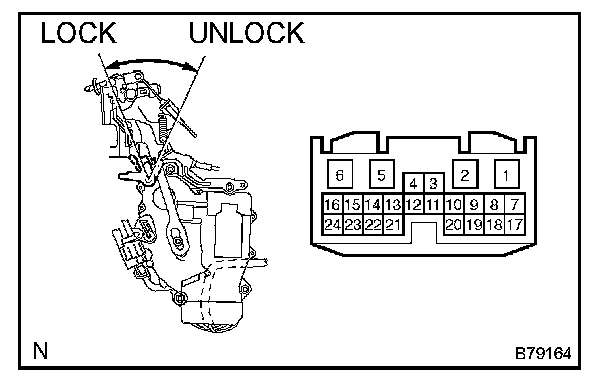

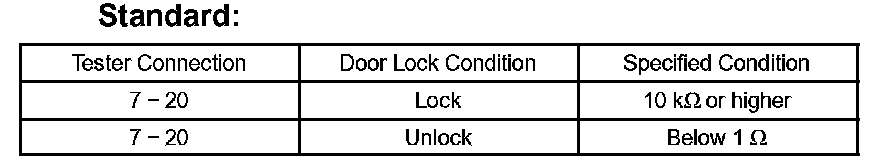

b. Measure the resistance of the unlock detection switch.
If the result is not as specified, replace the door lock assembly.







6. w/o Door closer:
INSPECT REAR DOOR LOCK ASSEMBLY RH

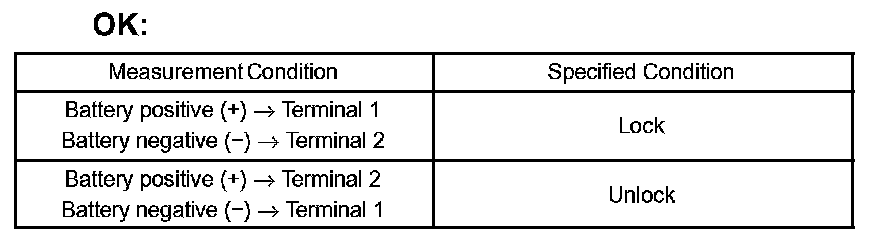

a. Apply battery voltage to the door lock and check operation of the door lock motor.
If the result is not as specified, replace the door lock assembly.

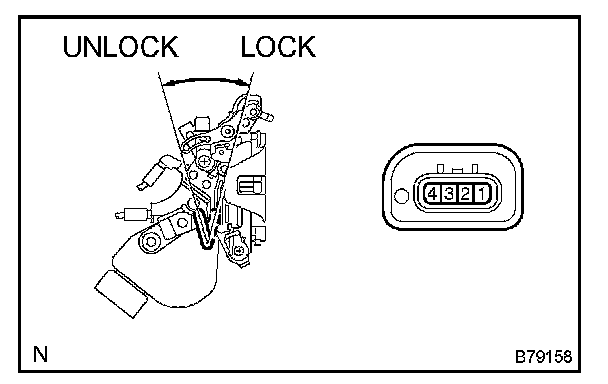

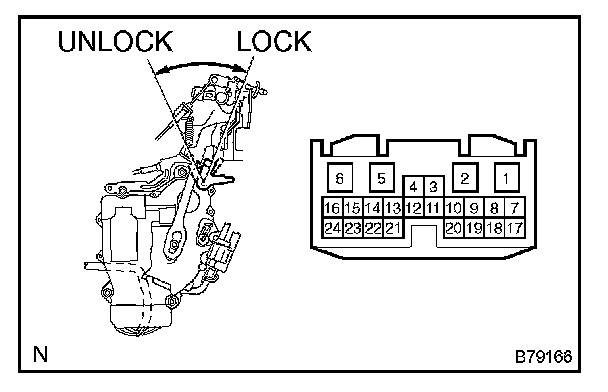

b. Measure the resistance of the unlock detection switch.
If the result is not as specified, replace the door lock assembly.







7. w/ Door closer:
INSPECT FRONT DOOR LOCK ASSEMBLY LH

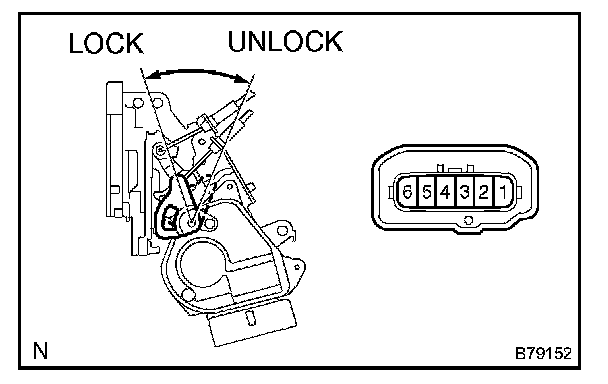

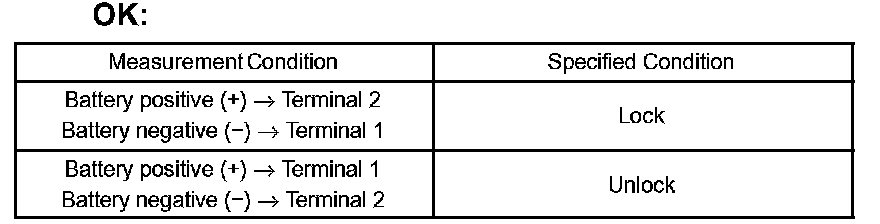

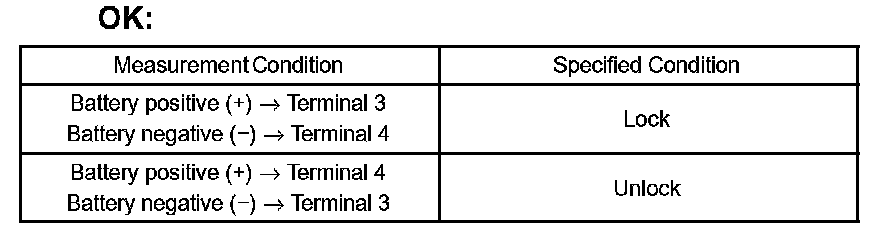

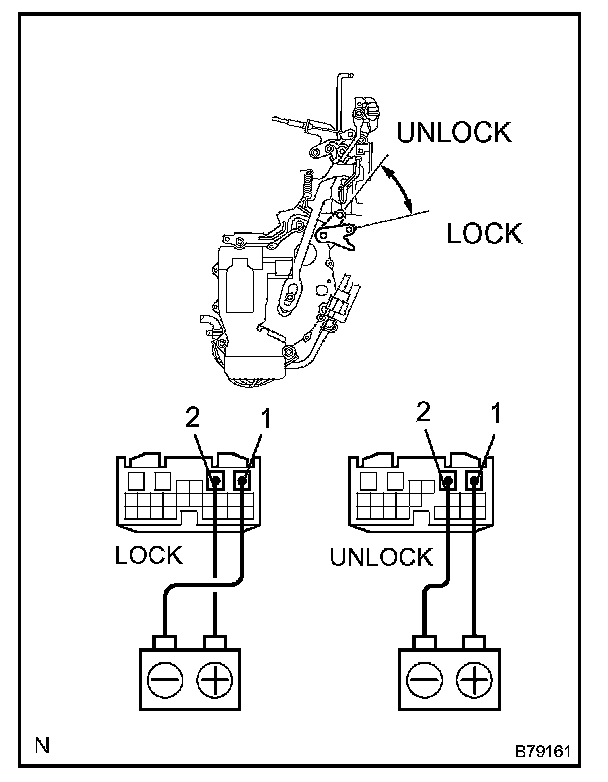

a. Apply battery voltage to the door lock and check operation of the door lock motor.
If the result is not as specified, replace the door lock assembly.

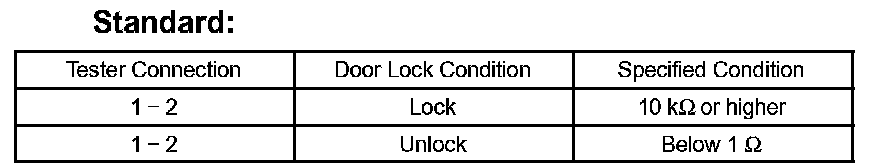

b. Measure the resistance of the unlock detection switch
If the result is not as specified, replace the door lock assembly.




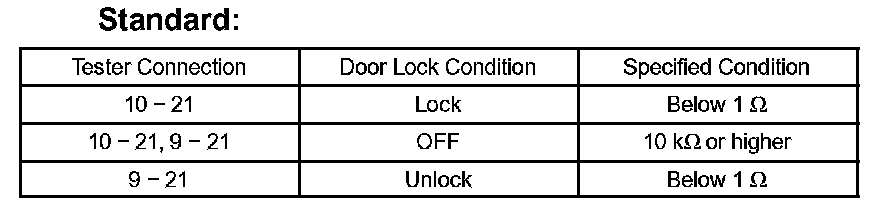

c. Measure the resistance of the door lock and unlock switch.
If the result is not as specified, replace the door lock assembly.







8. w/ Door closer:
INSPECT FRONT DOOR LOCK ASSEMBLY RH

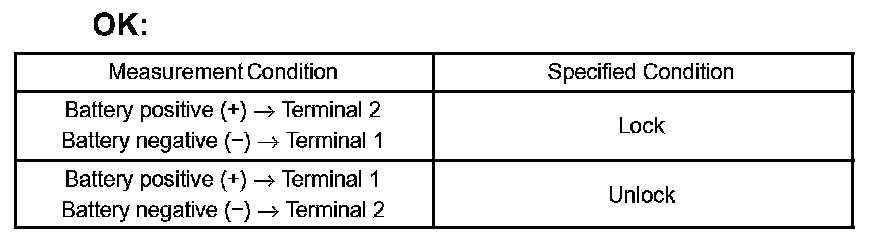

a. Apply battery voltage to the door lock and check operation of the door lock motor.
If the result is not as specified, replace the door lock assembly.







b. Measure the resistance of the unlock detection switch.
If the result is not as specified, replace the door lock assembly.







9. w/ Door closer:
INSPECT REAR DOOR LOCK ASSEMBLY LH
a. Apply battery voltage to the door lock and check operation of the door lock motor.
If the result is not as specified, replace the door lock assembly.







b. Measure the resistance of the unlock detection switch.
If the result is not as specified, replace the door lock assembly.







10. w/ Door closer:
INSPECT REAR DOOR LOCK ASSEMBLY RH
a. Apply battery voltage to the door lock and check operation of the door lock motor.
If the result is not as specified, replace the door lock assembly.







b. Measure the resistance of the unlock detection switch.
If the result is not as specified, replace the door lock assembly.
