Electrical Diagrams

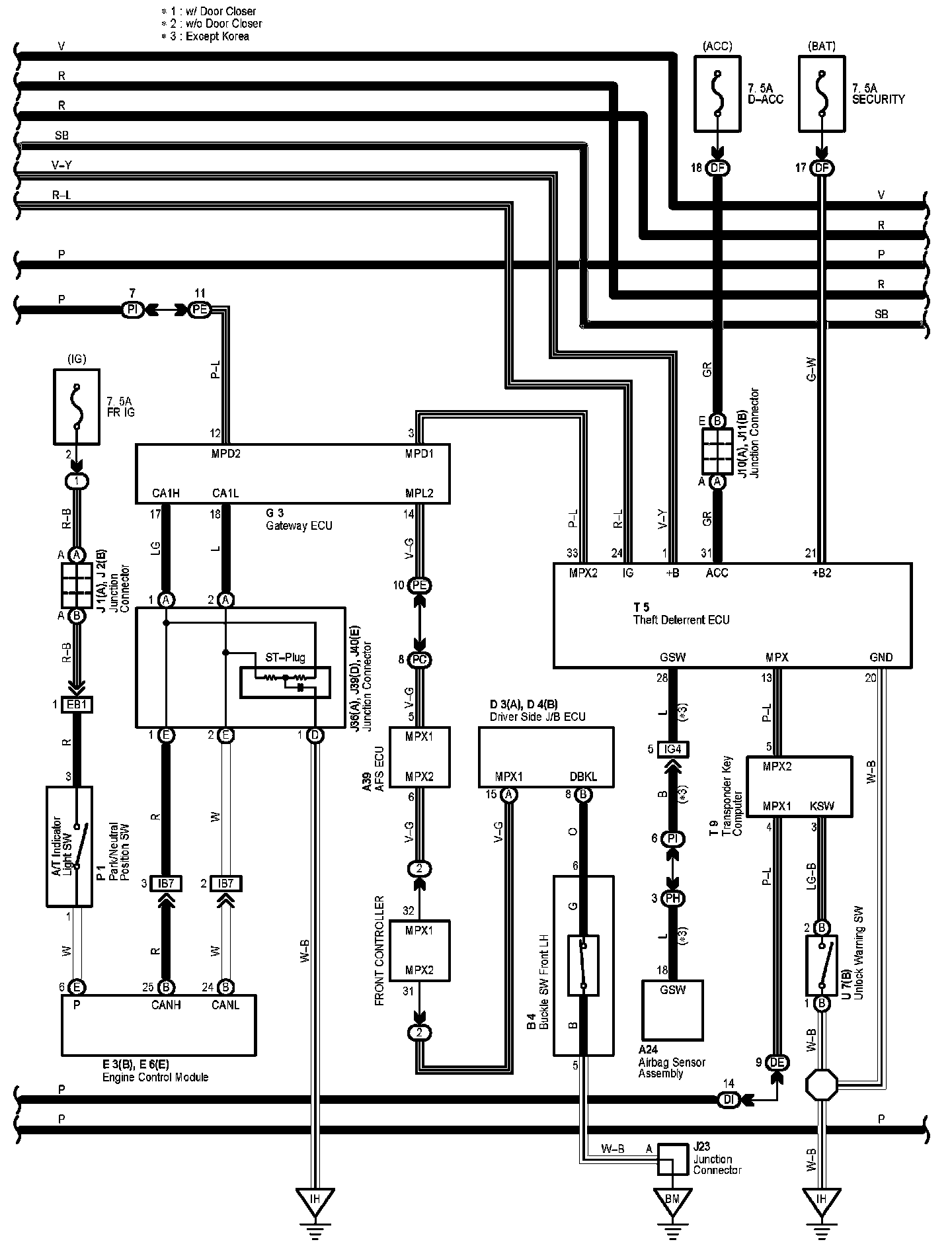

Door Lock Control Without Smart Key System (Part 1):

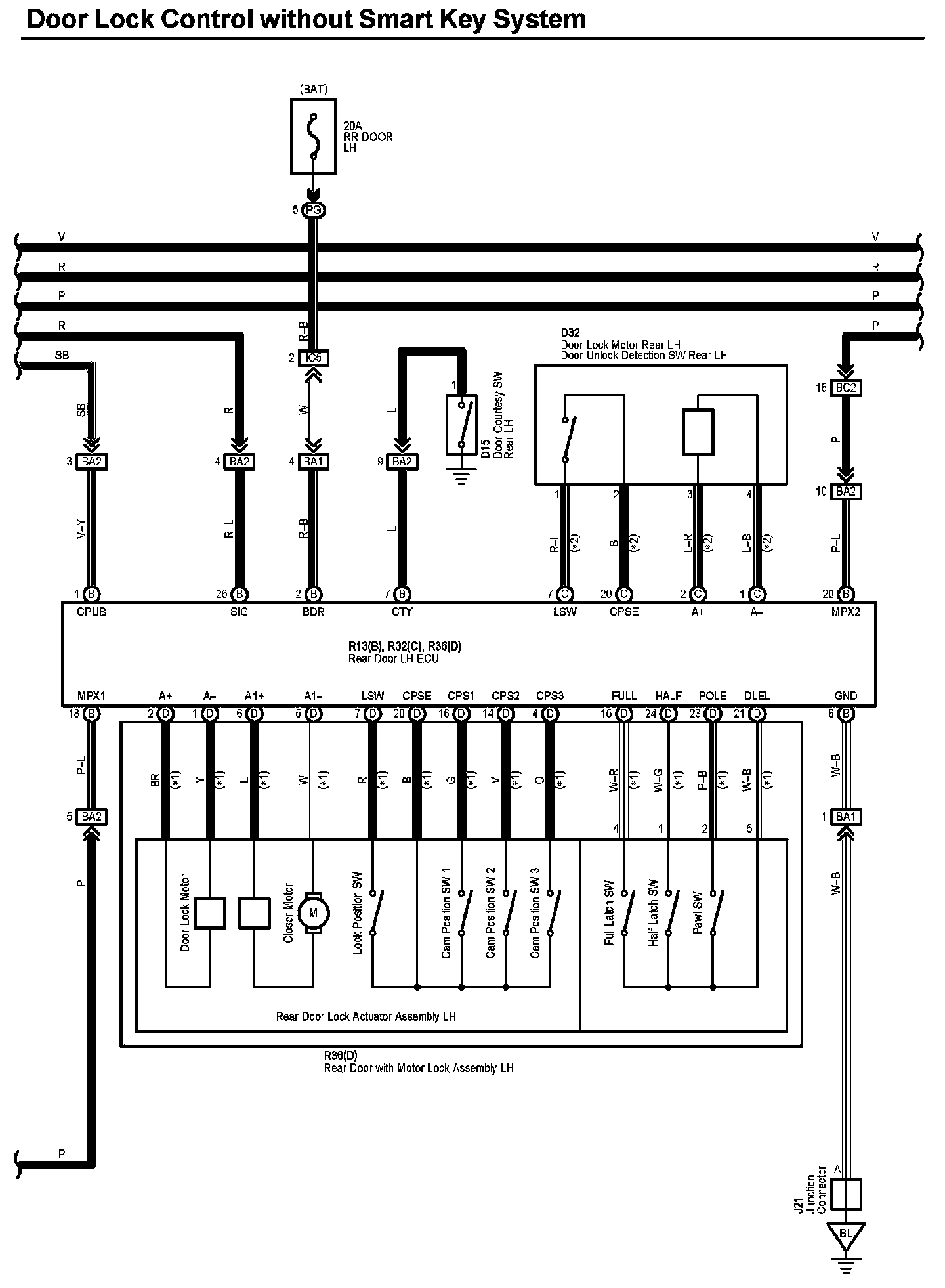

Door Lock Control Without Smart Key System (Part 2):

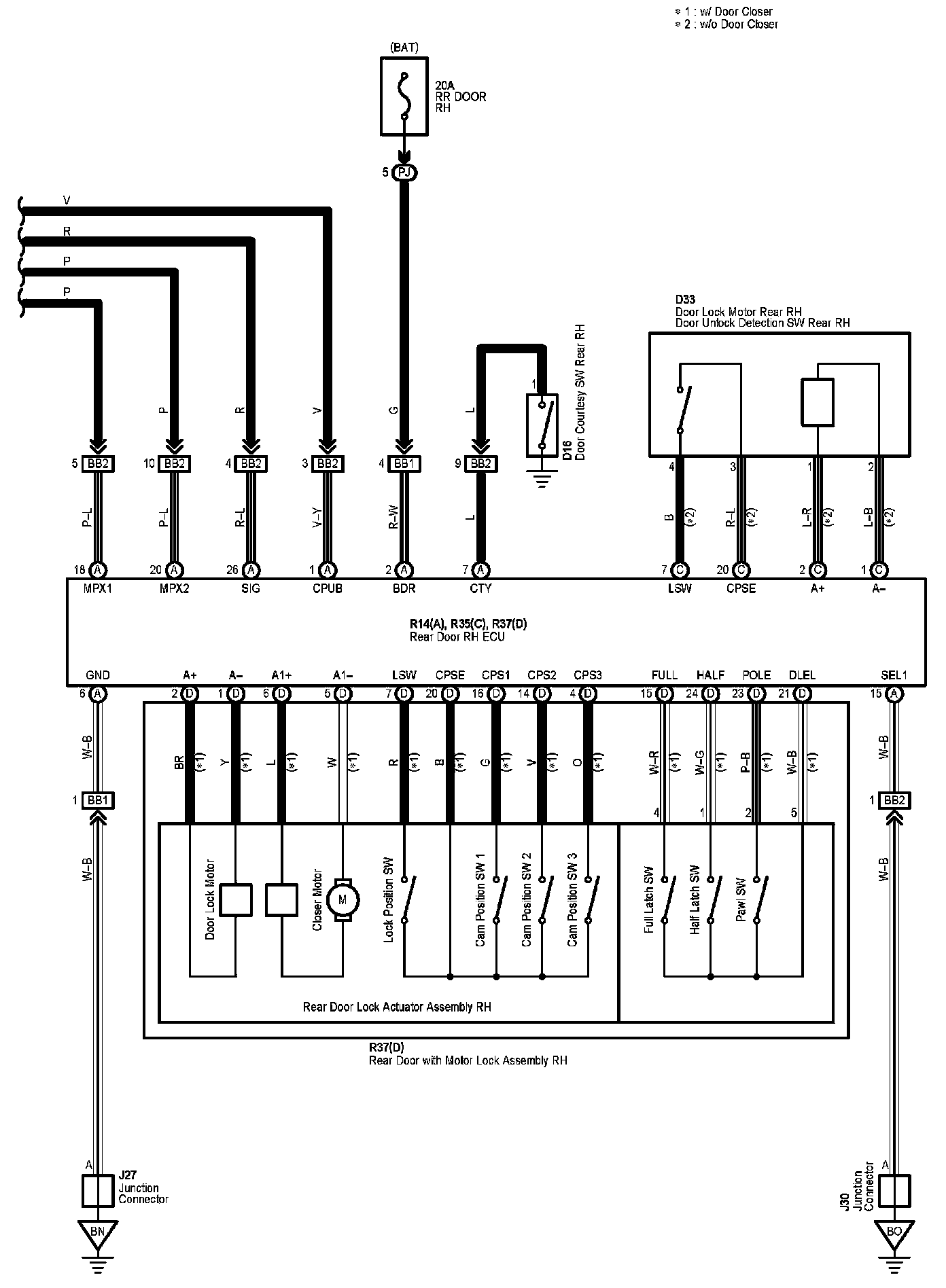

Door Lock Control Without Smart Key System (Part 3):

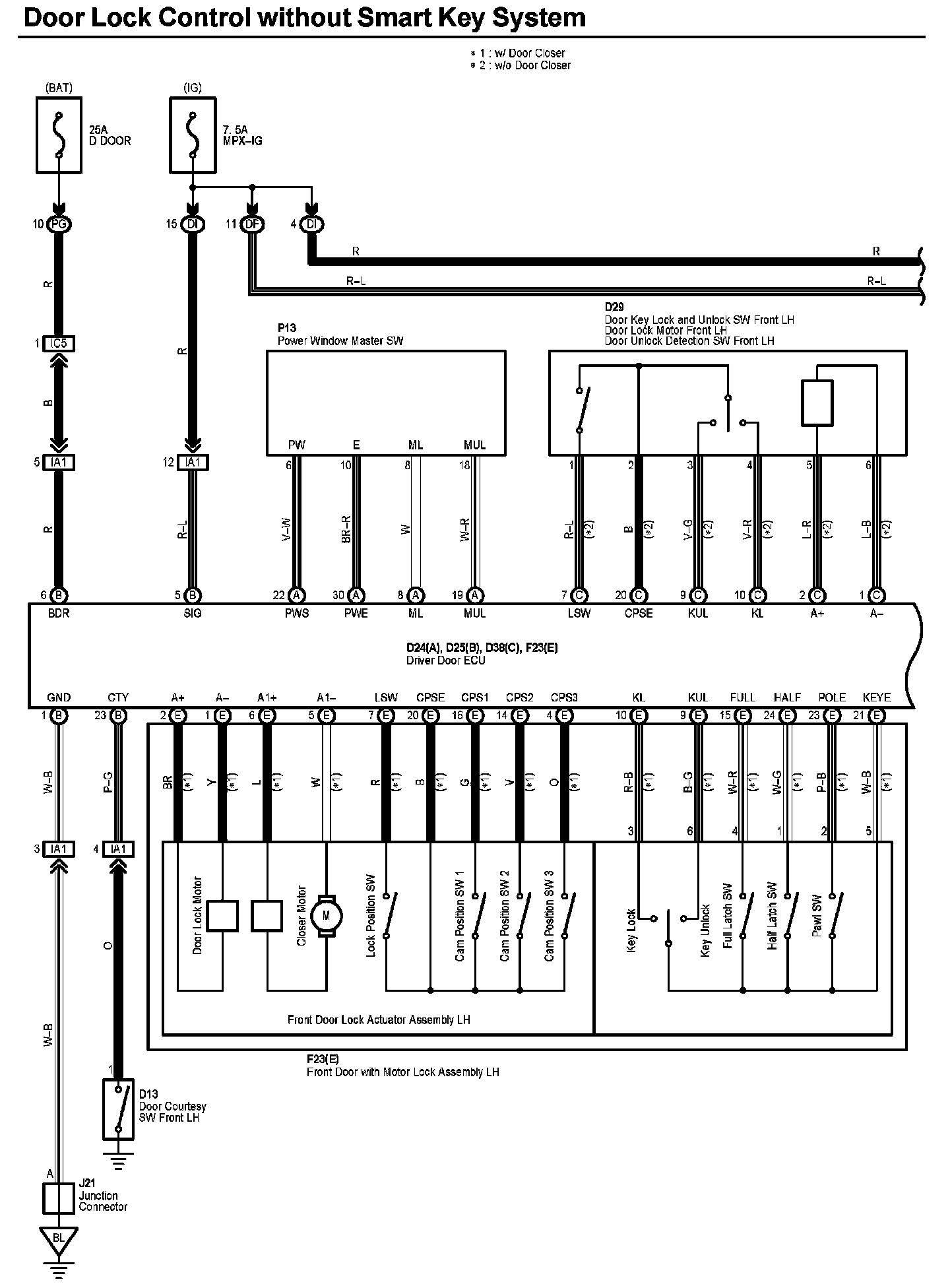

Door Lock Control Without Smart Key System (Part 4):

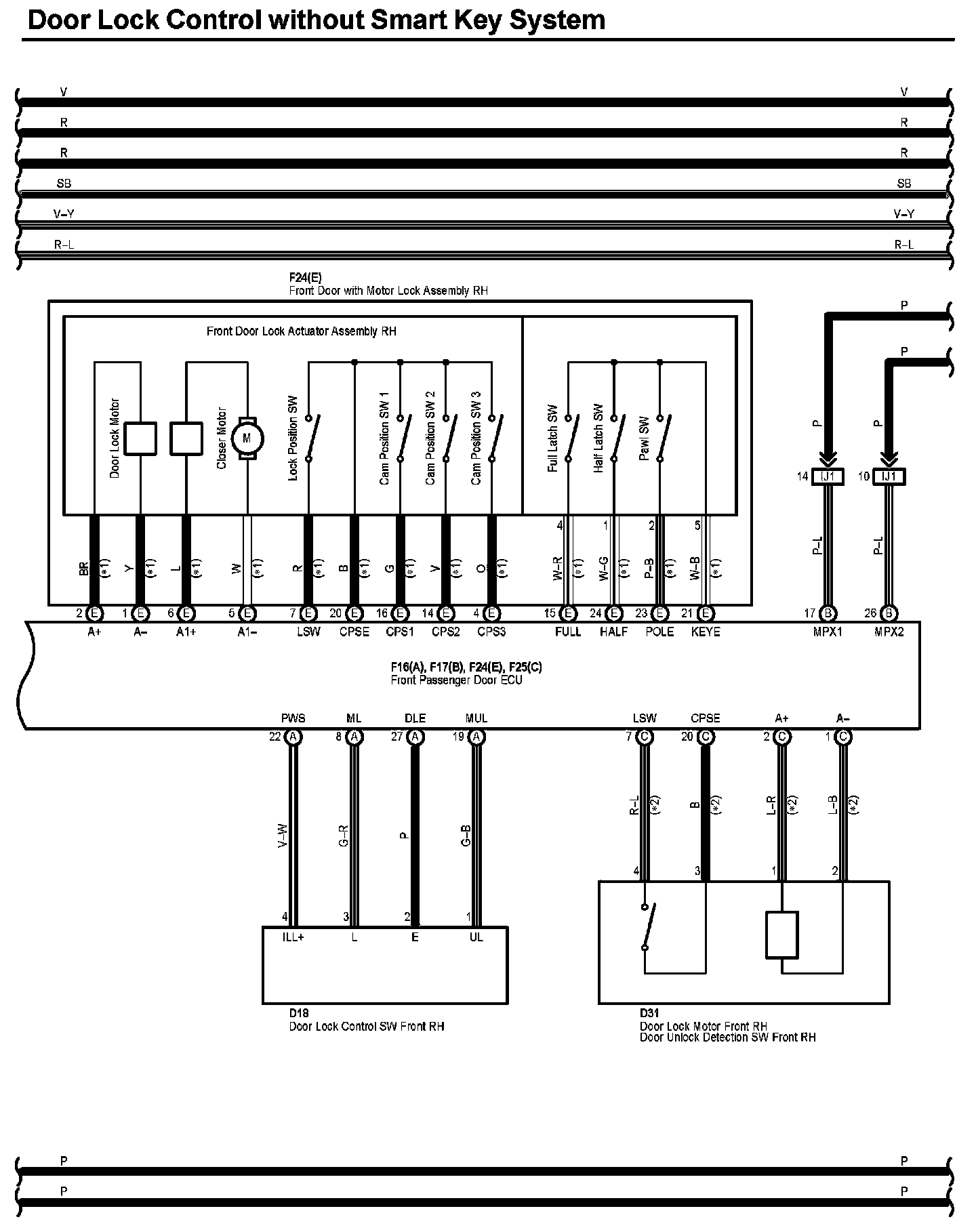

Door Lock Control Without Smart Key System (Part 5):

Door Lock Control Without Smart Key System (Part 6):

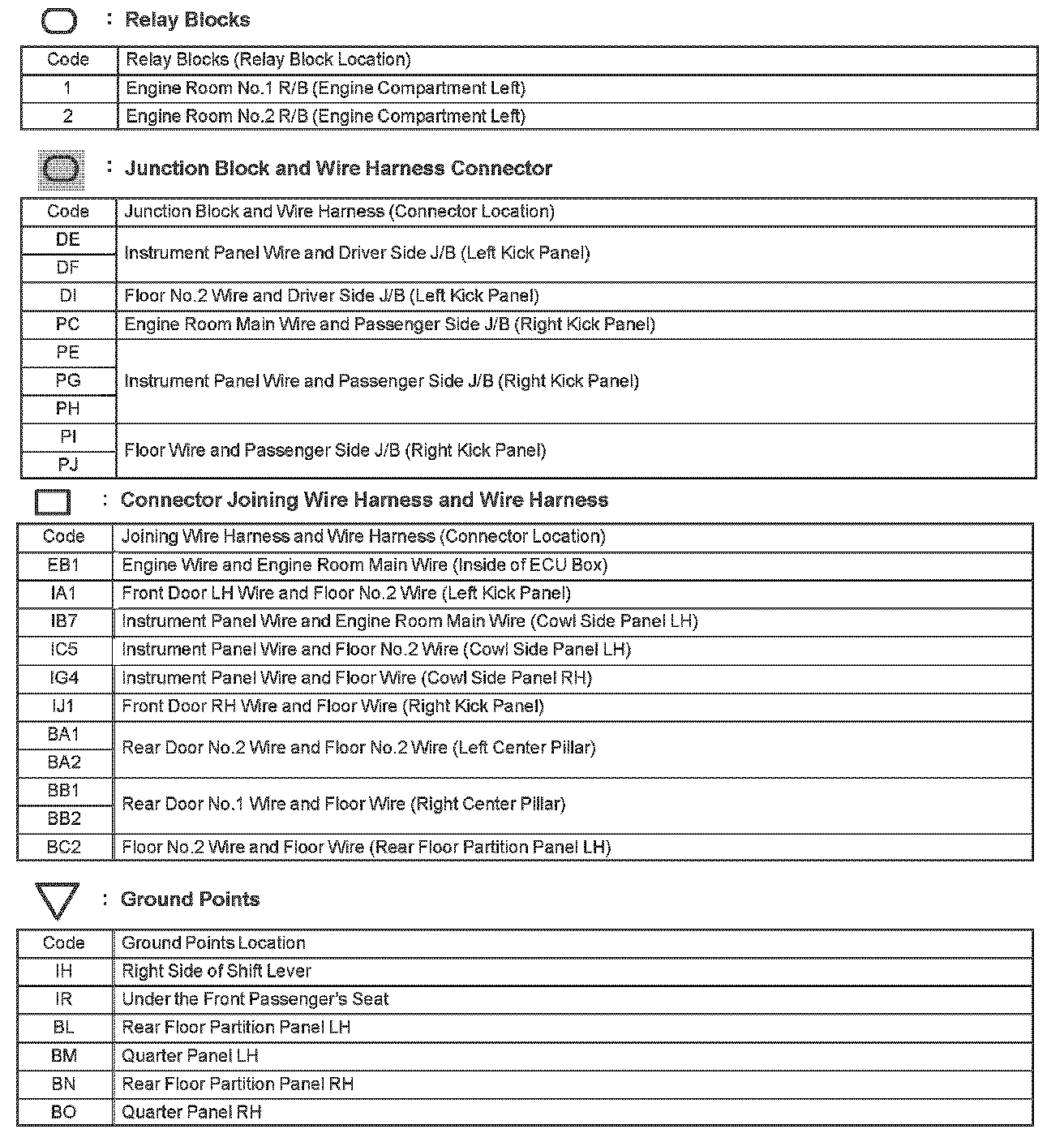

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
