Luggage Compartment Door Opener Switch Circuit

LUGGAGE COMPARTMENT DOOR OPENER SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This circuit detects the state of the luggage door opener switch.

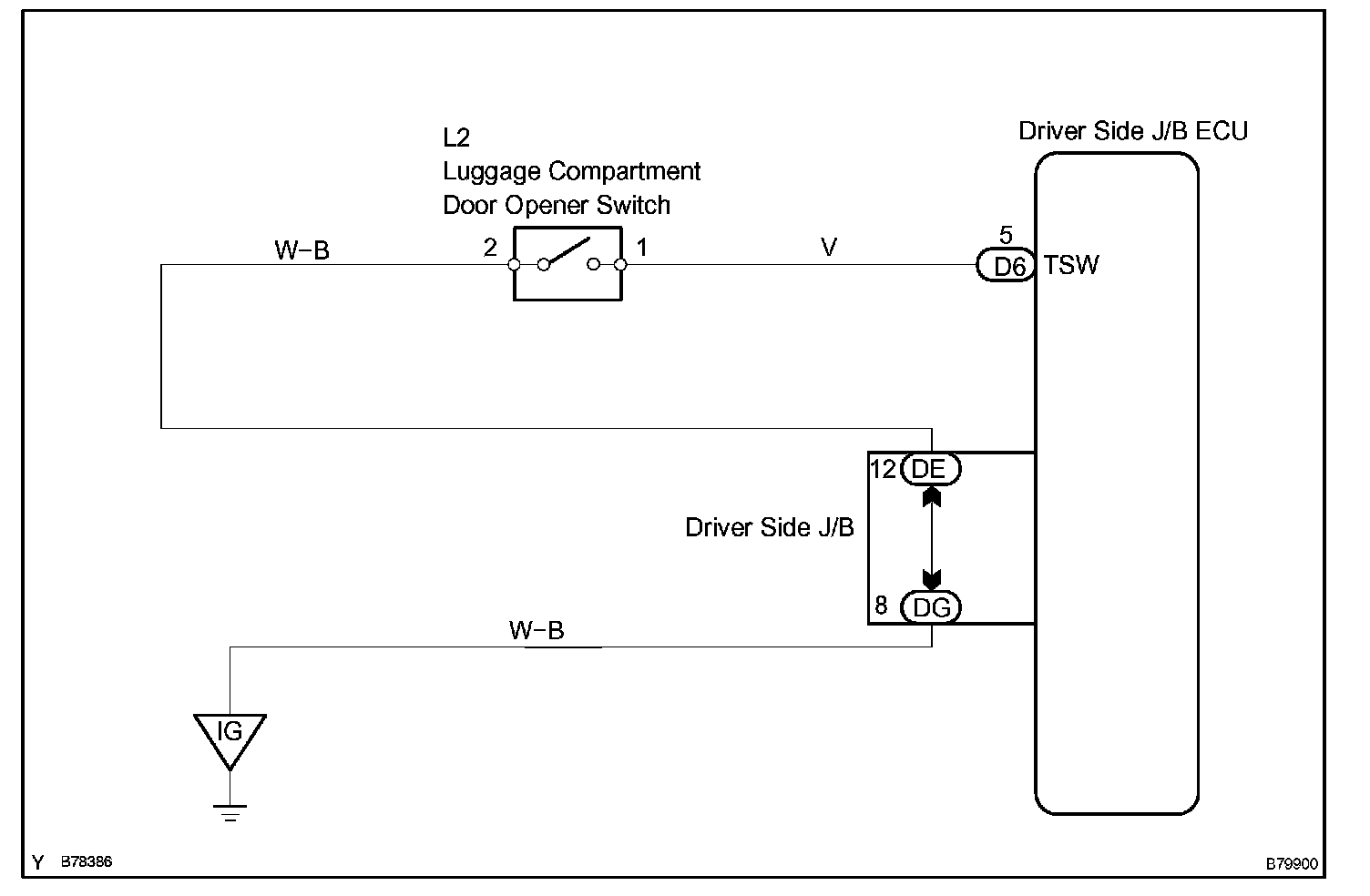

Wiring Diagram:

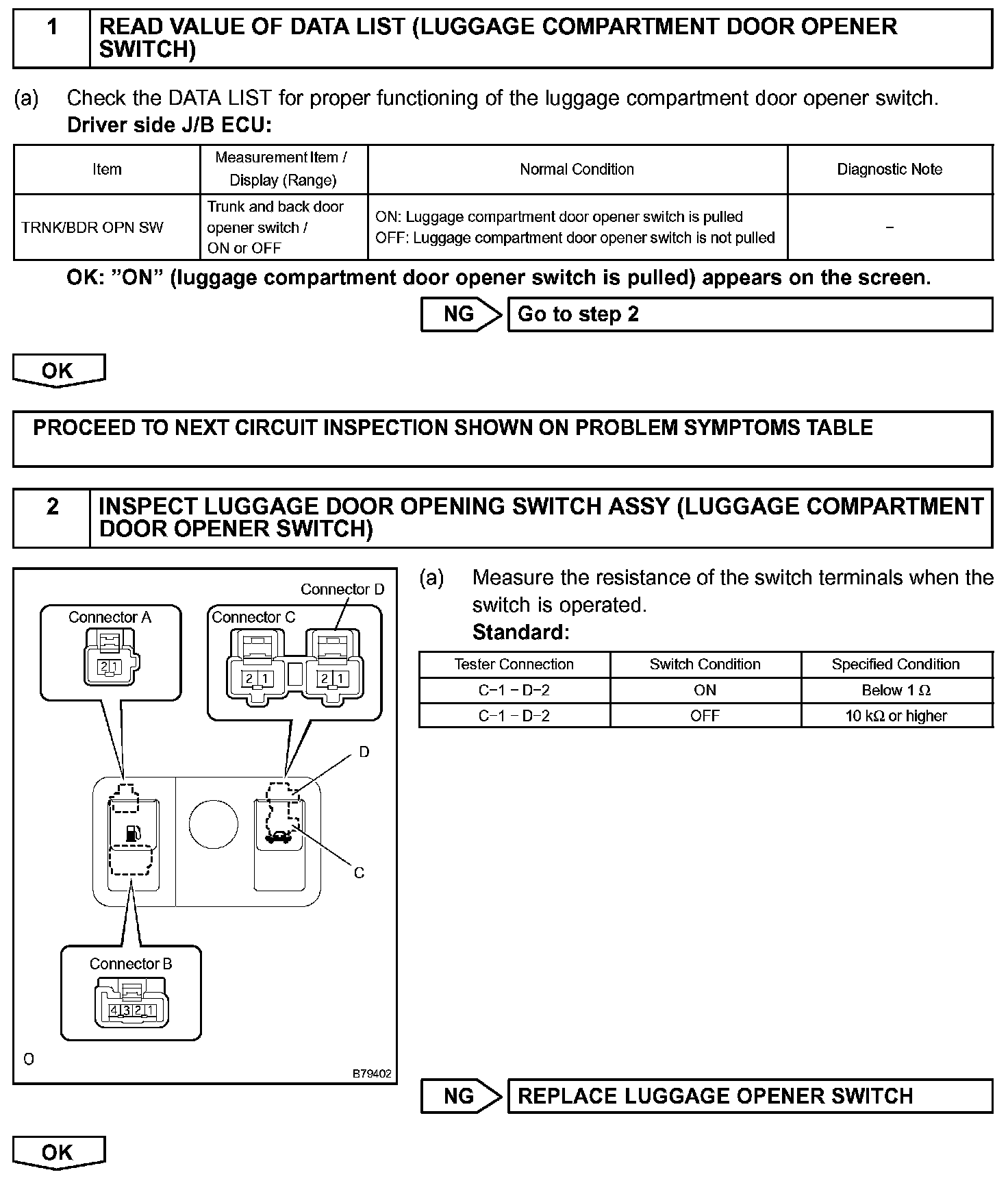

Step 1-2:

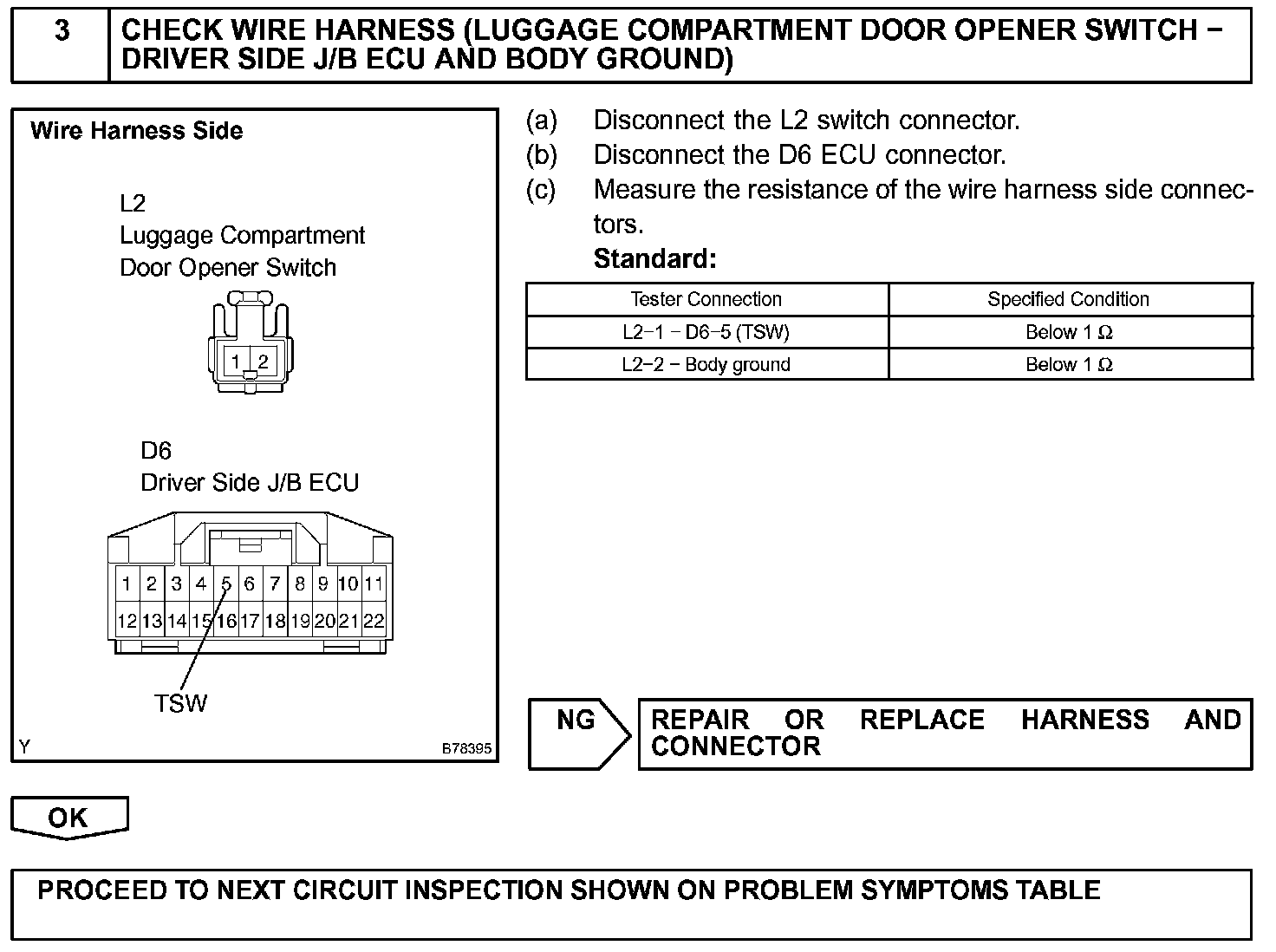

Step 3:




INSPECTION PROCEDURE
