Luggage Compartment Door Closer Switch Circuit

LUGGAGE COMPARTMENT DOOR CLOSER SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The luggage door lock assembly consists of: 1) the luggage closer motor, which performs opener and closer operations based on signals from the luggage room J/B ECU; 2) 2 position detection switches (LOPN, LCLS), which check the position of the closer motor; and 3) the luggage door courtesy switch (LCTY), which sends signals to start/stop the closer operation and illuminates the luggage room light. The luggage door lock switch (BDCY) is built into the luggage door striker assembly, detects whether the luggage door is open or closed, and transmits "ON/OFF" signals to the luggage room J/B ECU.

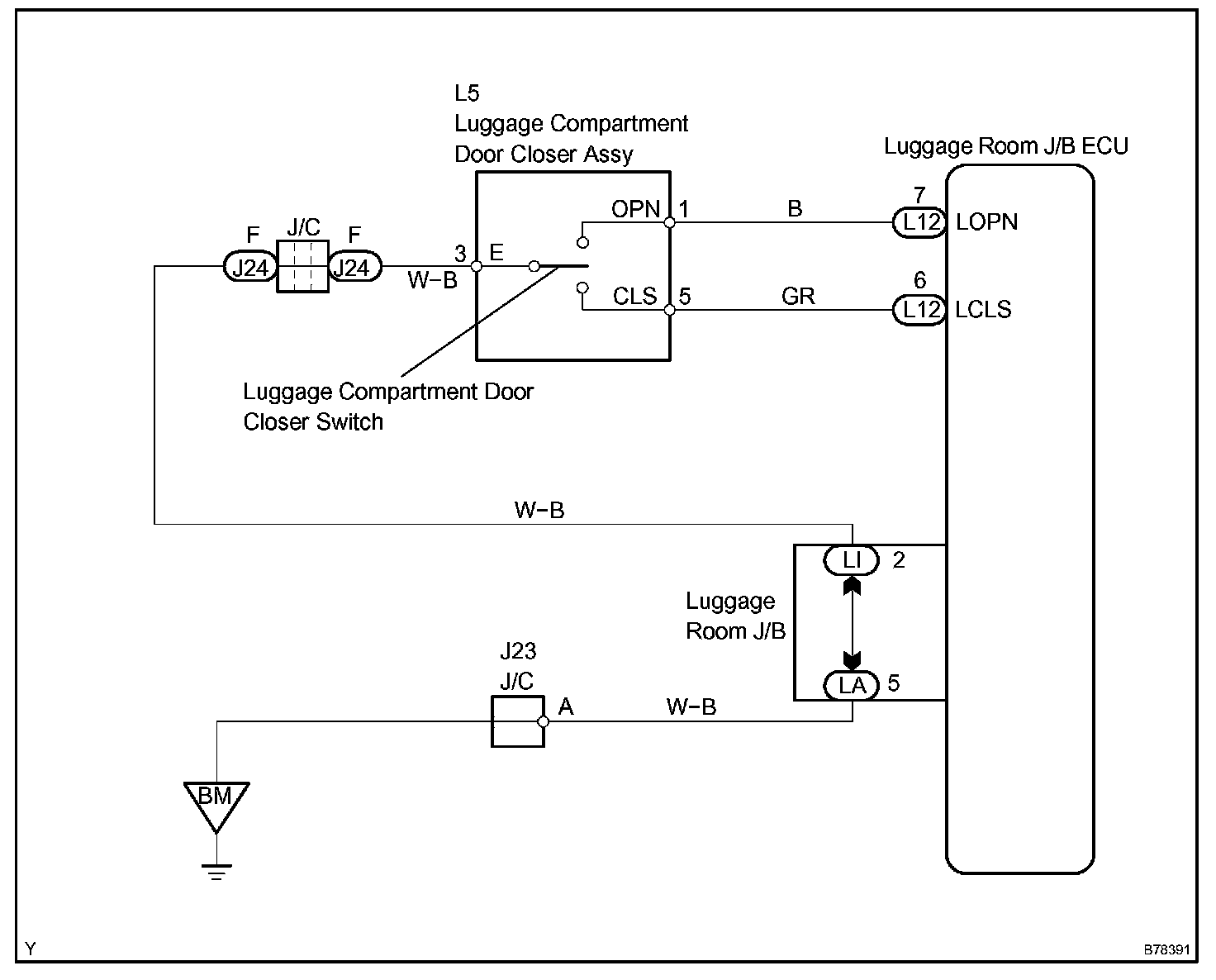

Wiring Diagram:

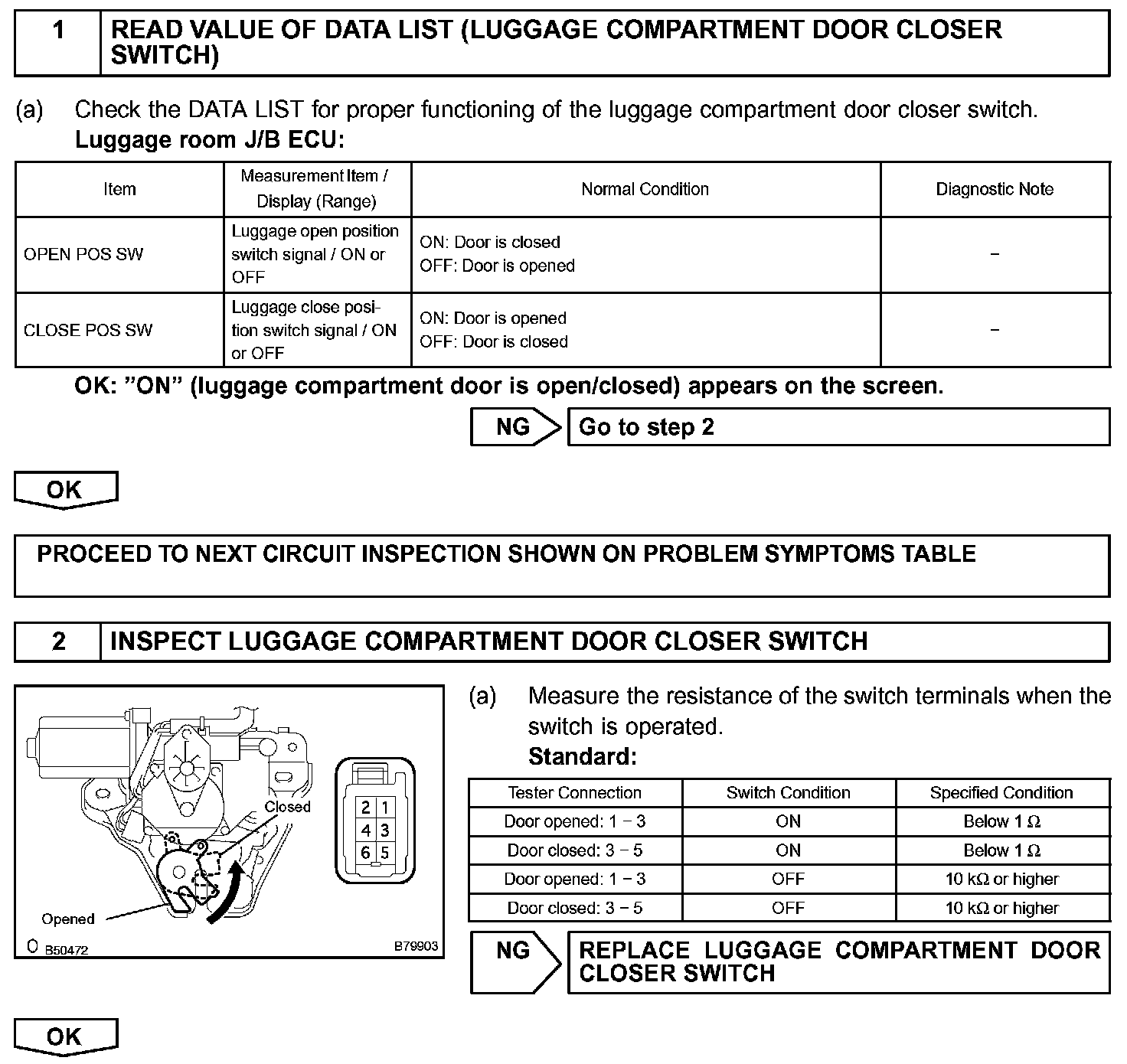

Step 1-2:

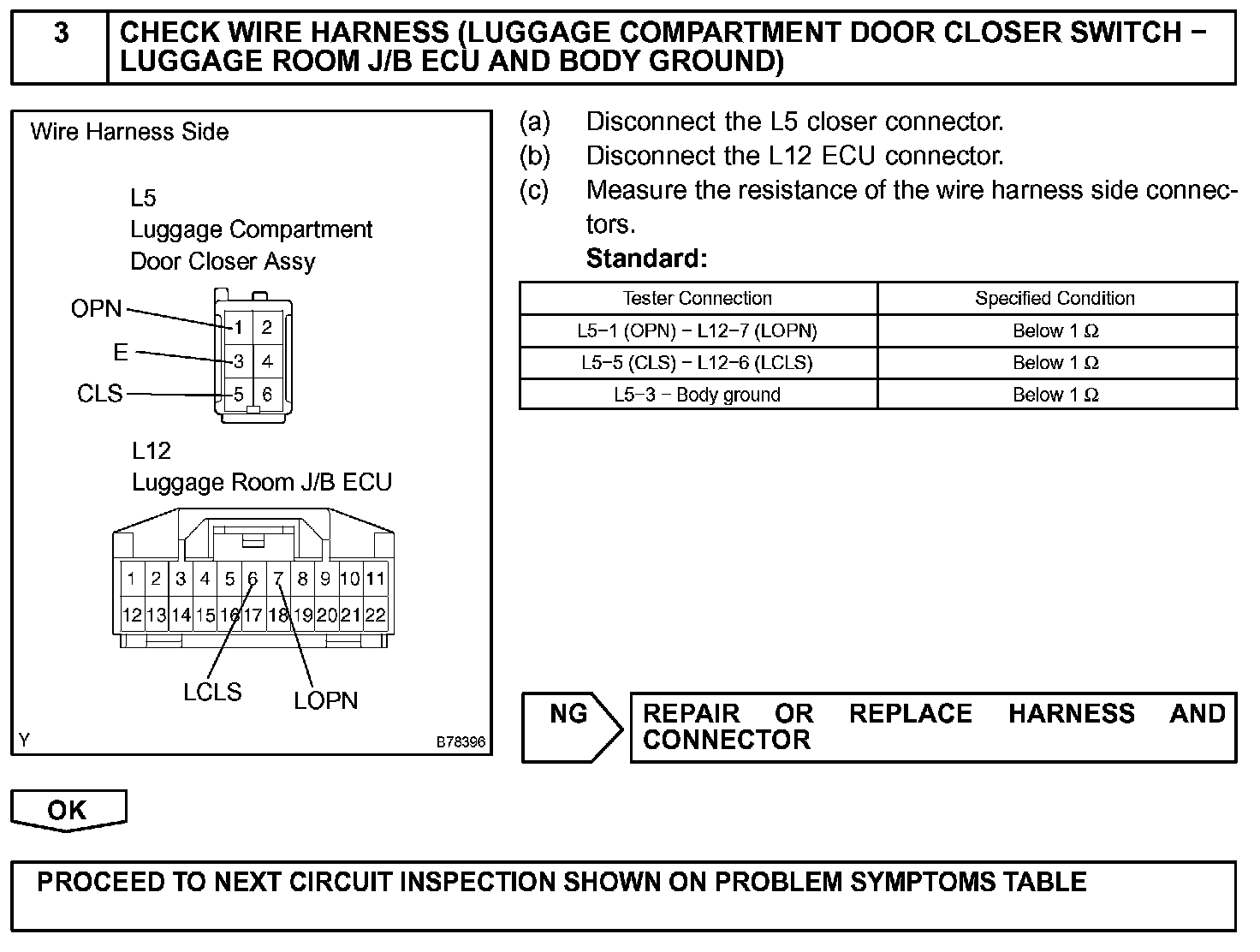

Step 3:

INSPECTION PROCEDURE
