Luggage Compartment Door Closer Motor Circuit

LUGGAGE COMPARTMENT DOOR CLOSER MOTOR CIRCUIT

CIRCUIT DESCRIPTION

Open and close operations of the luggage door is monitored and the signals are sent to the luggage room J/B ECU. The luggage compartment door closer motor is built into the luggage compartment door lock assembly.

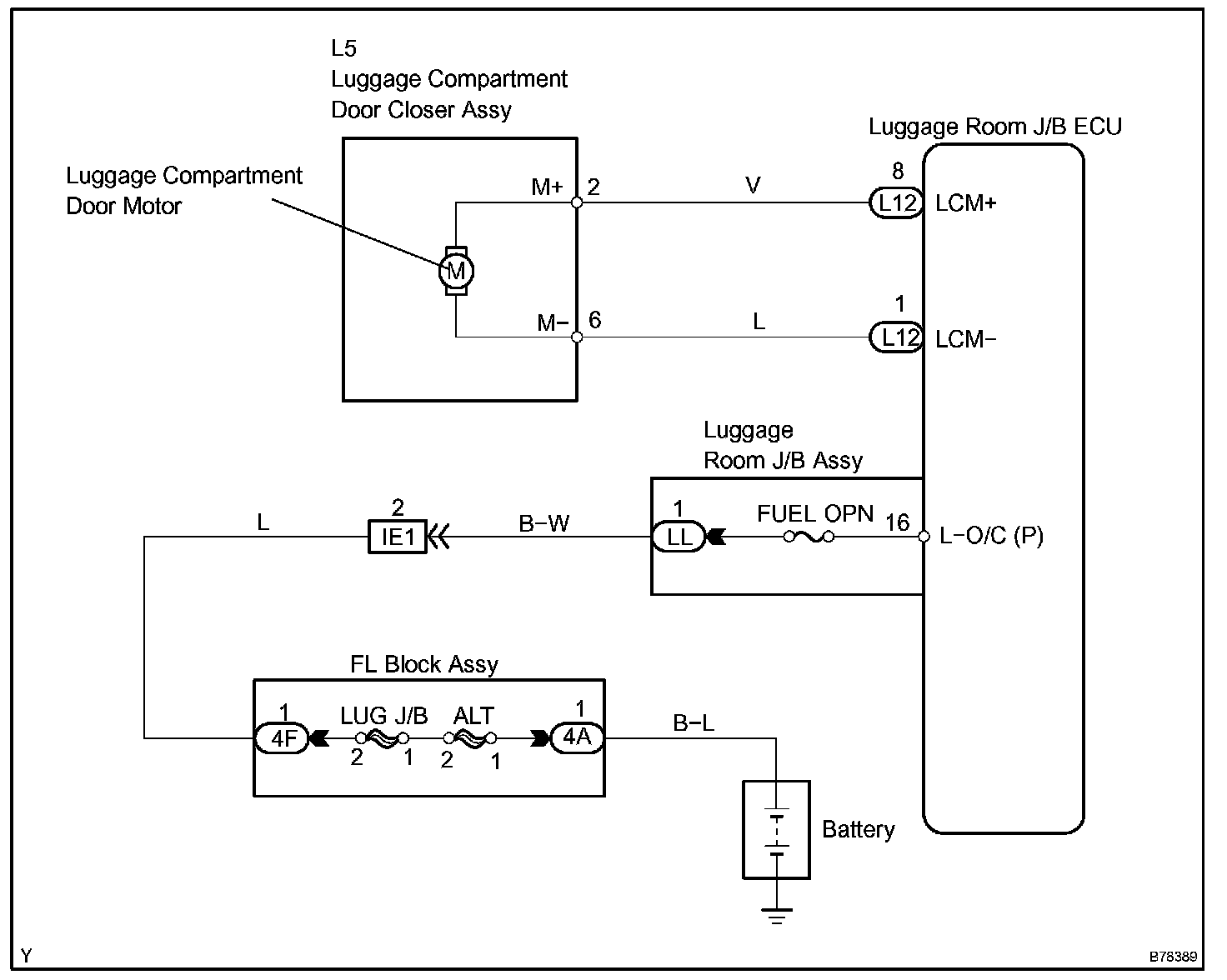

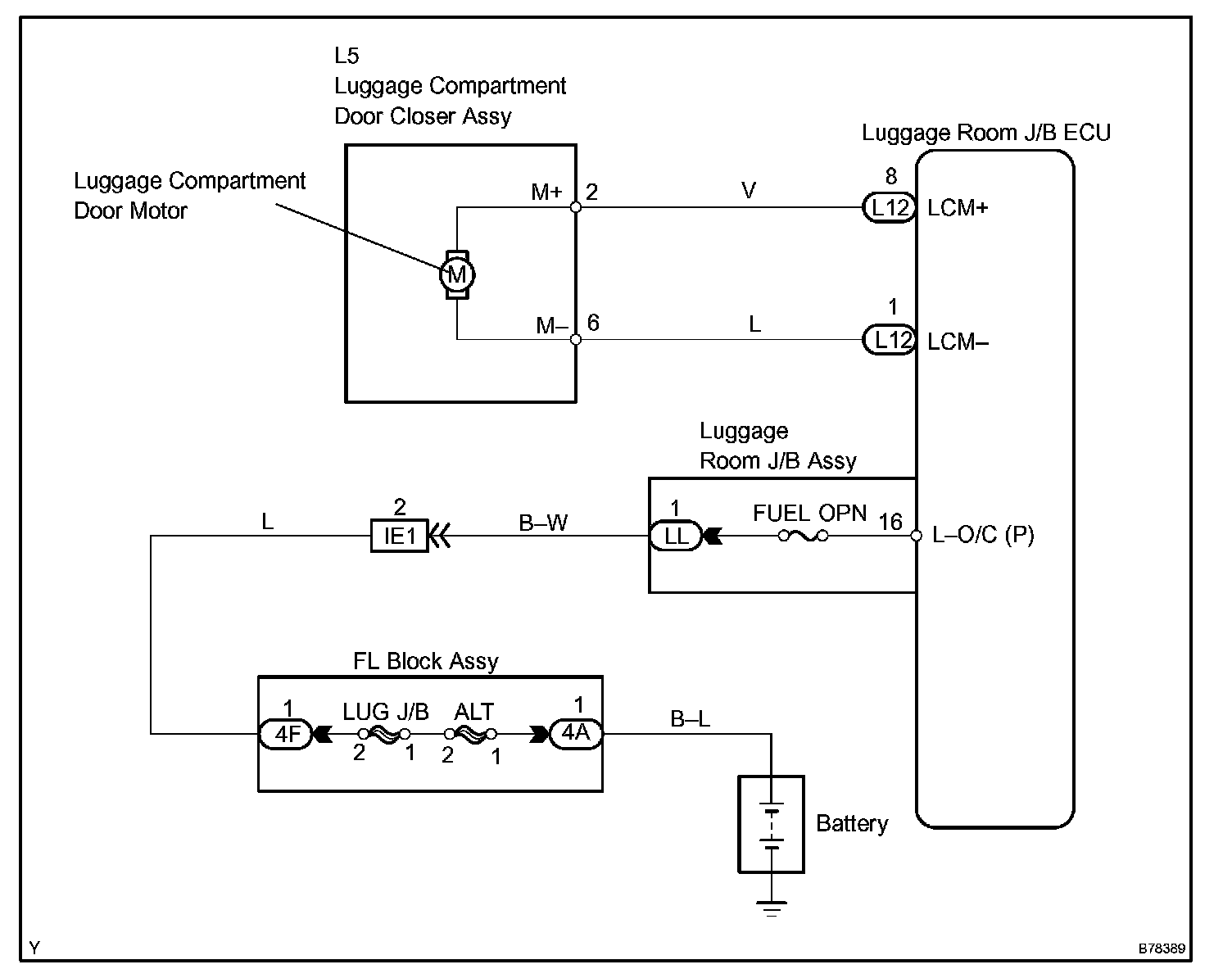

Wiring Diagram:

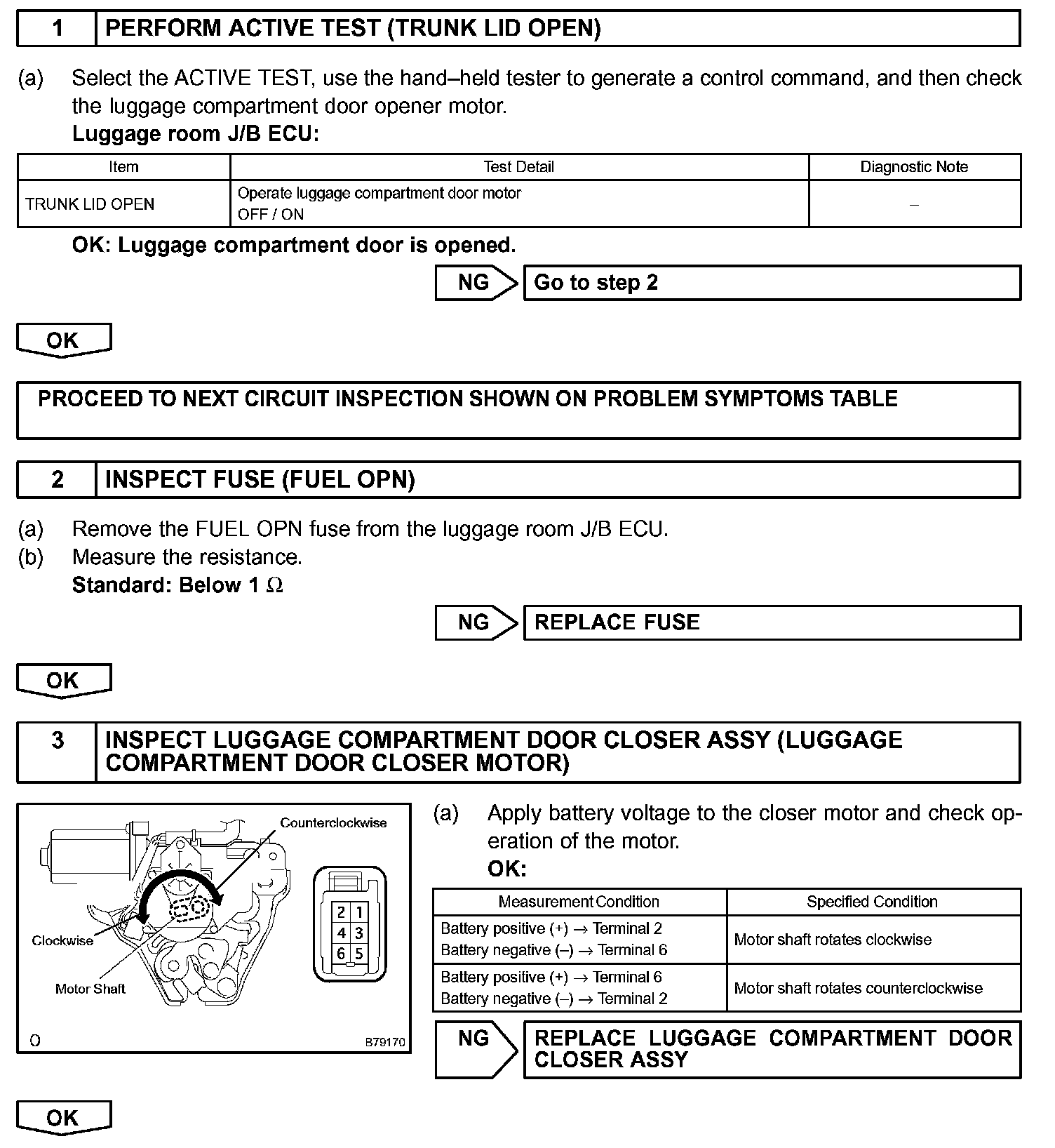

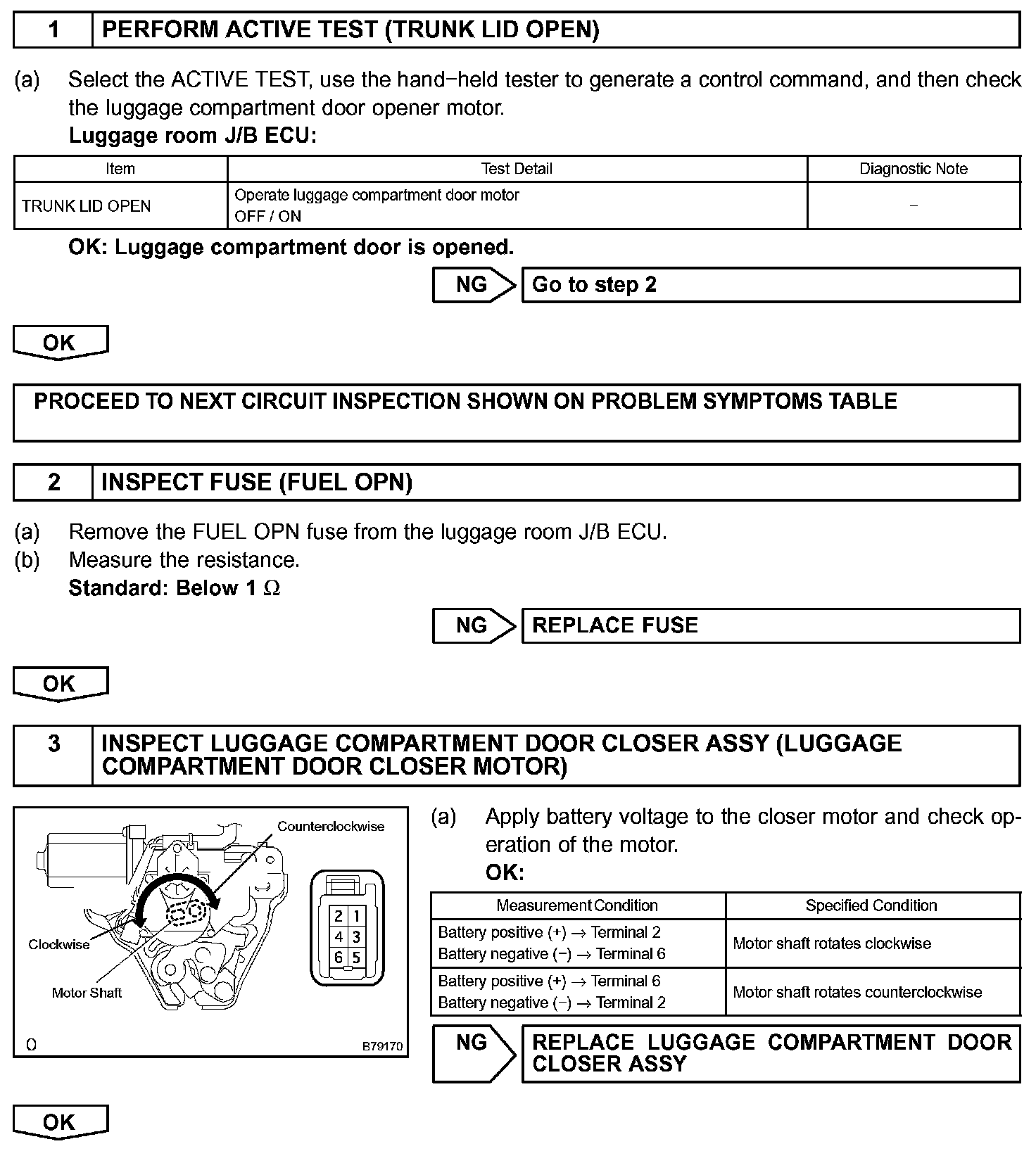

Step 1-3:

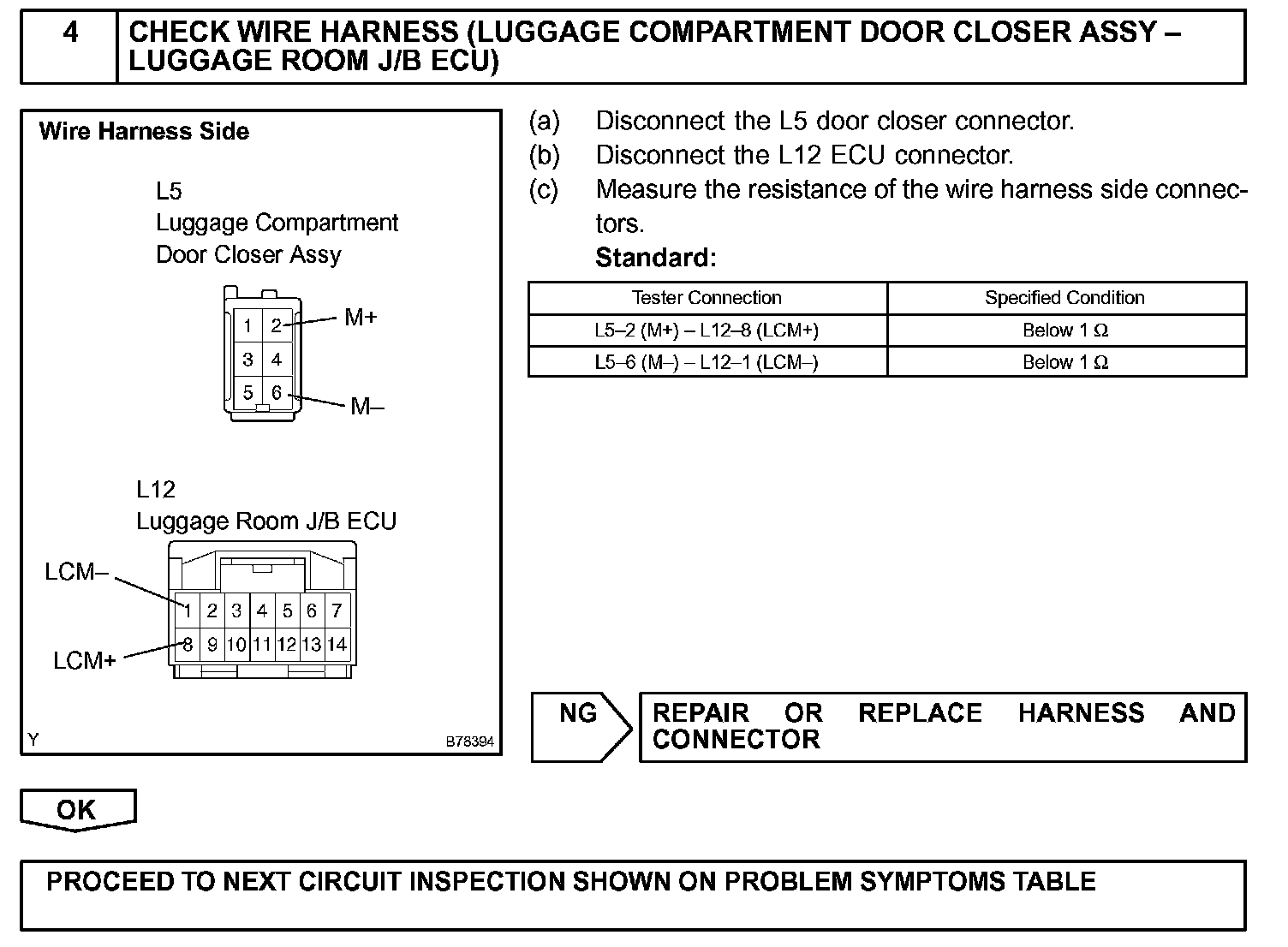

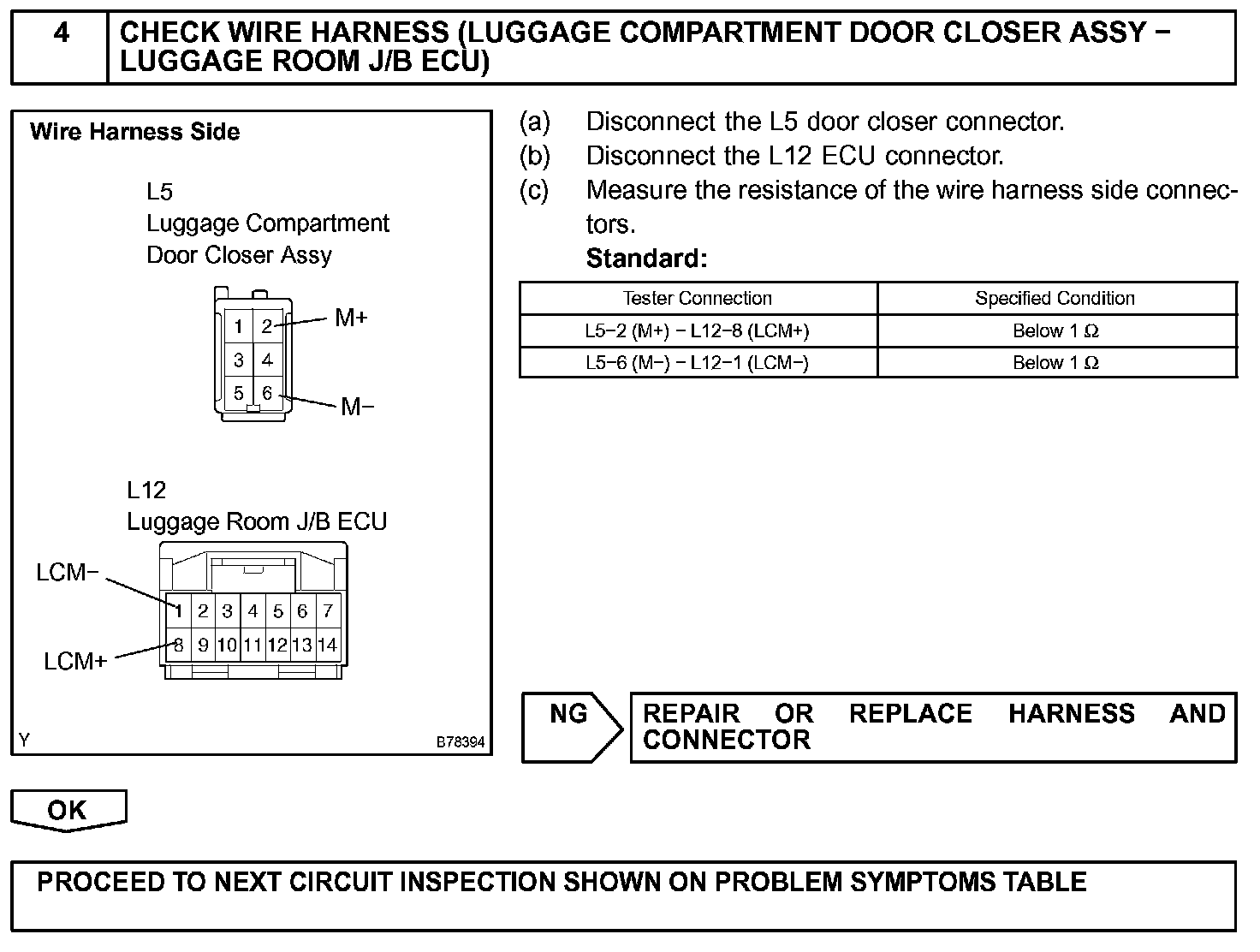

Step 4:

INSPECTION PROCEDURE
