Door Unlock Switch (Luggage Compartment Door Key Unlock Switch) Circuit

DOOR UNLOCK SWITCH (LUGGAGE COMPARTMENT DOOR KEY UNLOCK SWITCH) CIRCUIT

CIRCUIT DESCRIPTION

The luggage door key lock and unlock switch is built into the luggage door key cylinder.
This switch turns on when the luggage door key cylinder is turned to the unlock position with the key.

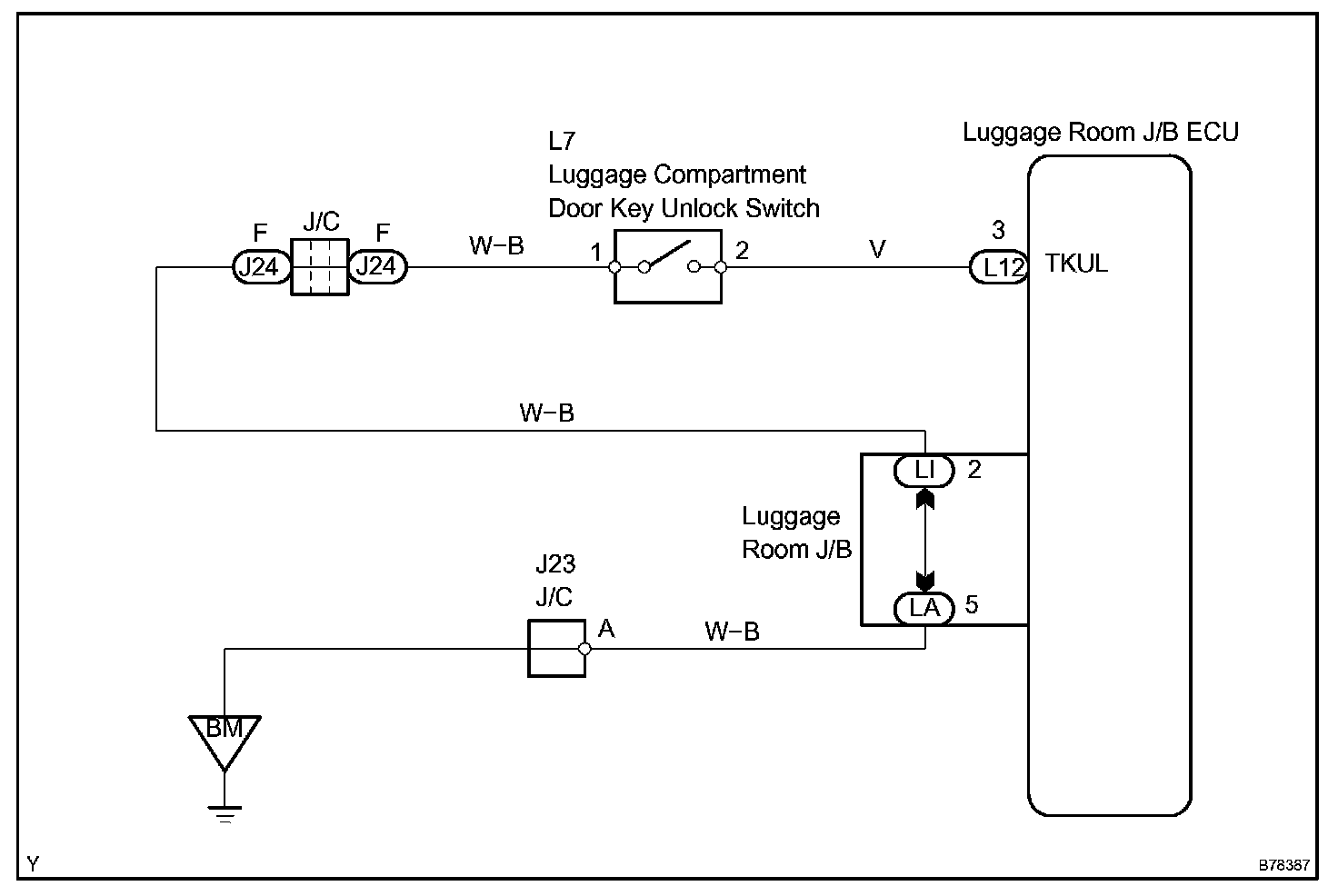

Wiring Diagram:

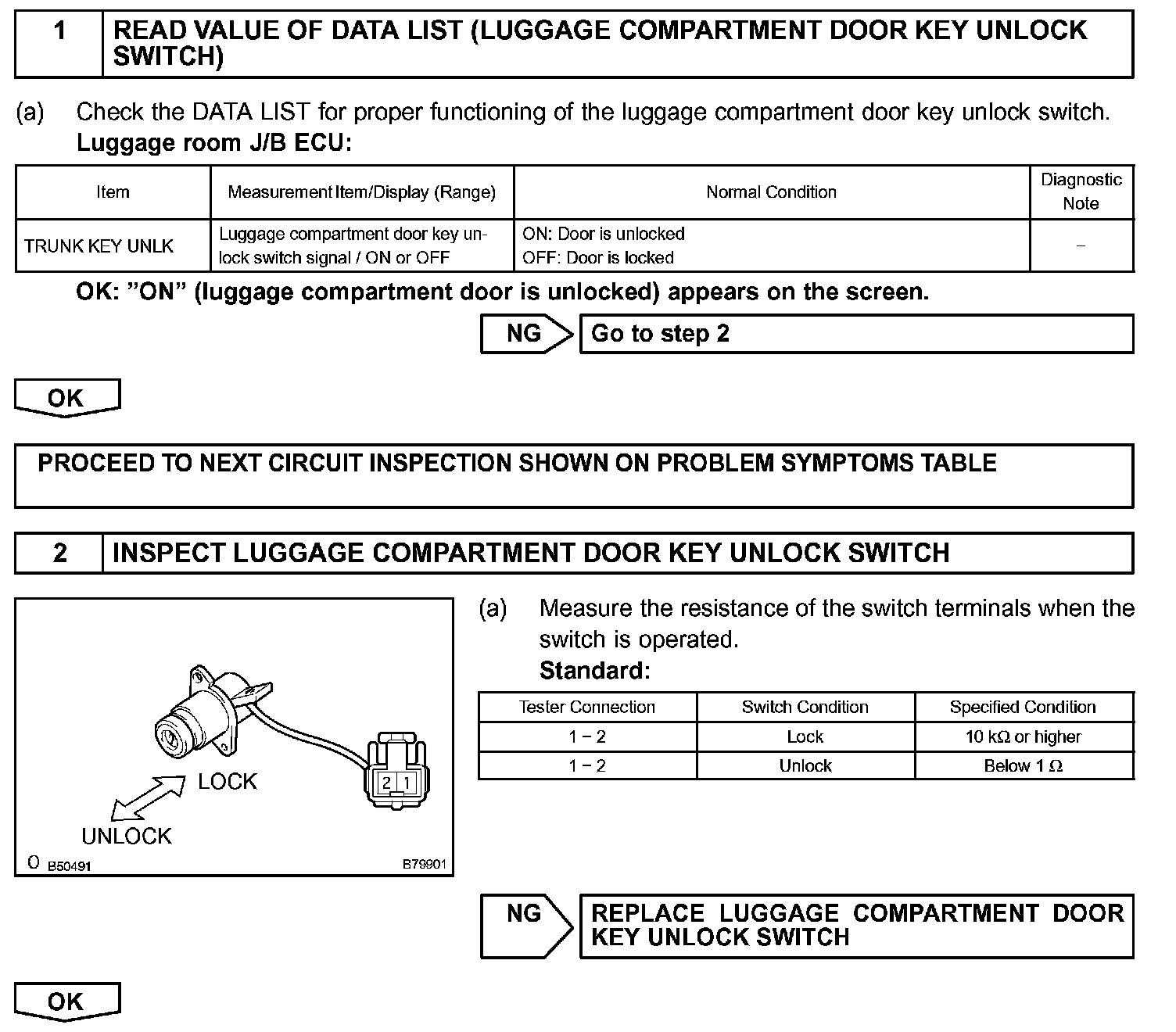

Step 1-2:

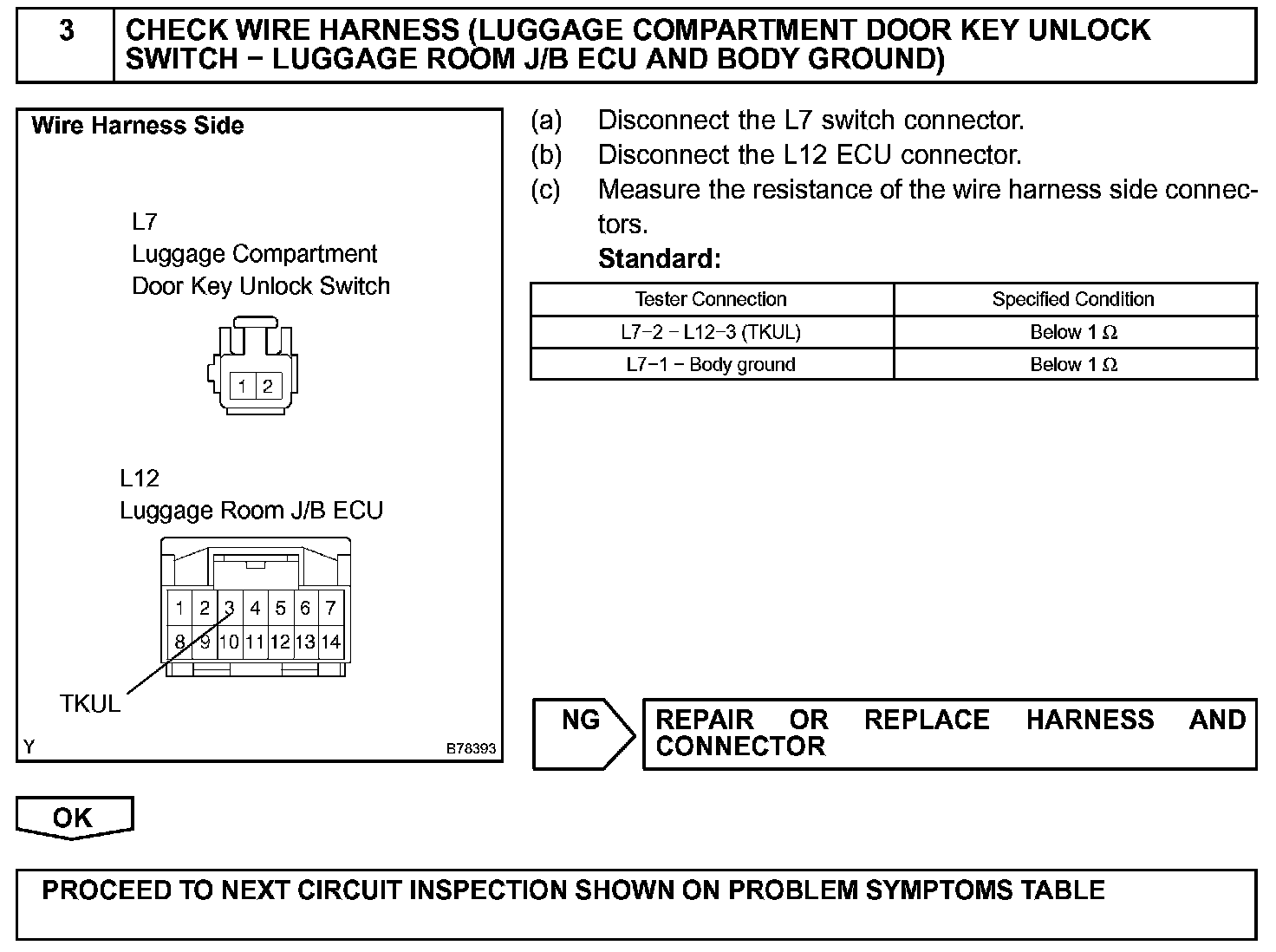

Step 3:

INSPECTION PROCEDURE
