Door Closer Position Switch Circuit on Rear Left Side Door

DOOR CLOSER POSITION SWITCH CIRCUIT ON REAR LEFT SIDE DOOR

CIRCUIT DESCRIPTION

The door lock assembly has a built-in closer position switch, which detects the position of the closer.

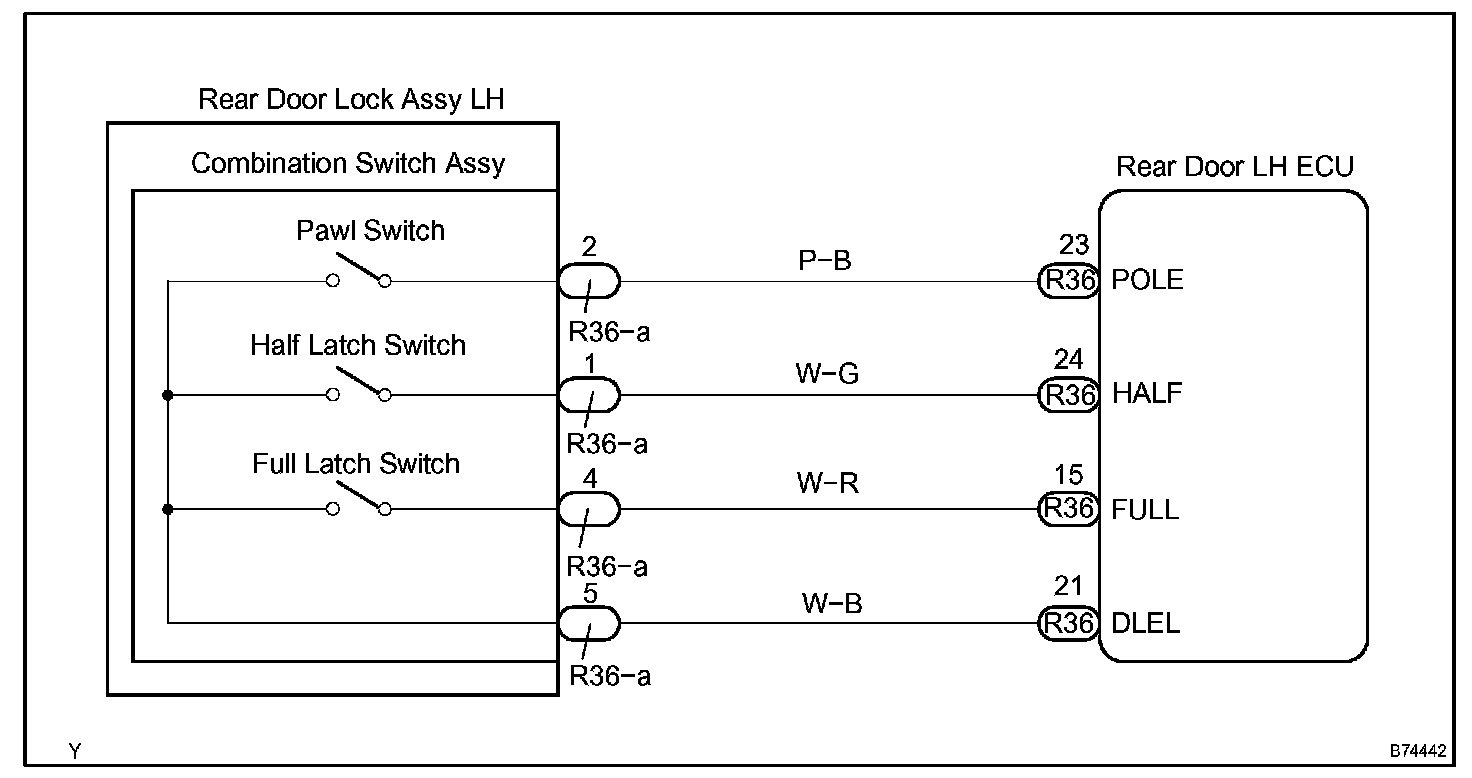

Wiring Diagram:

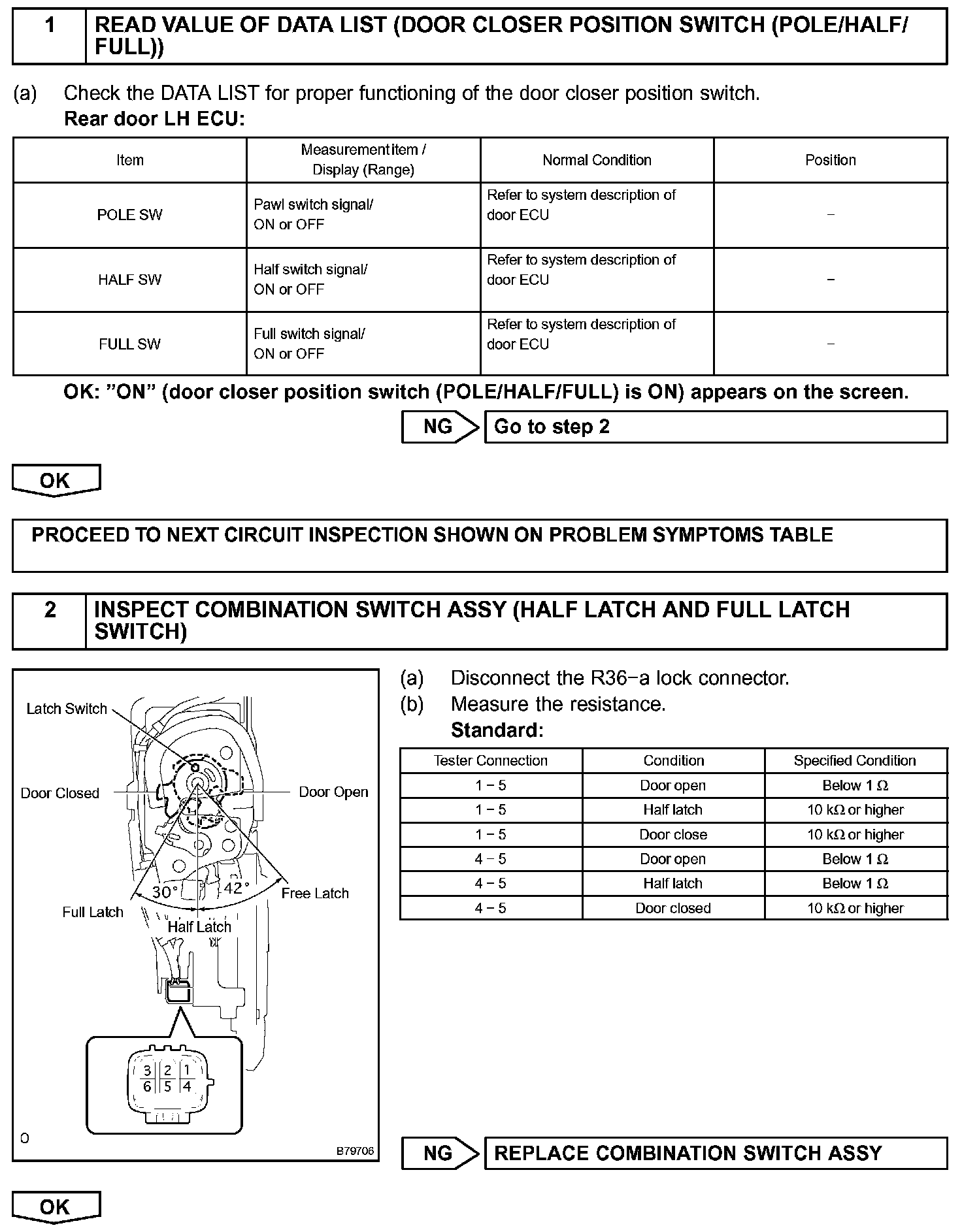

Step 1-2:

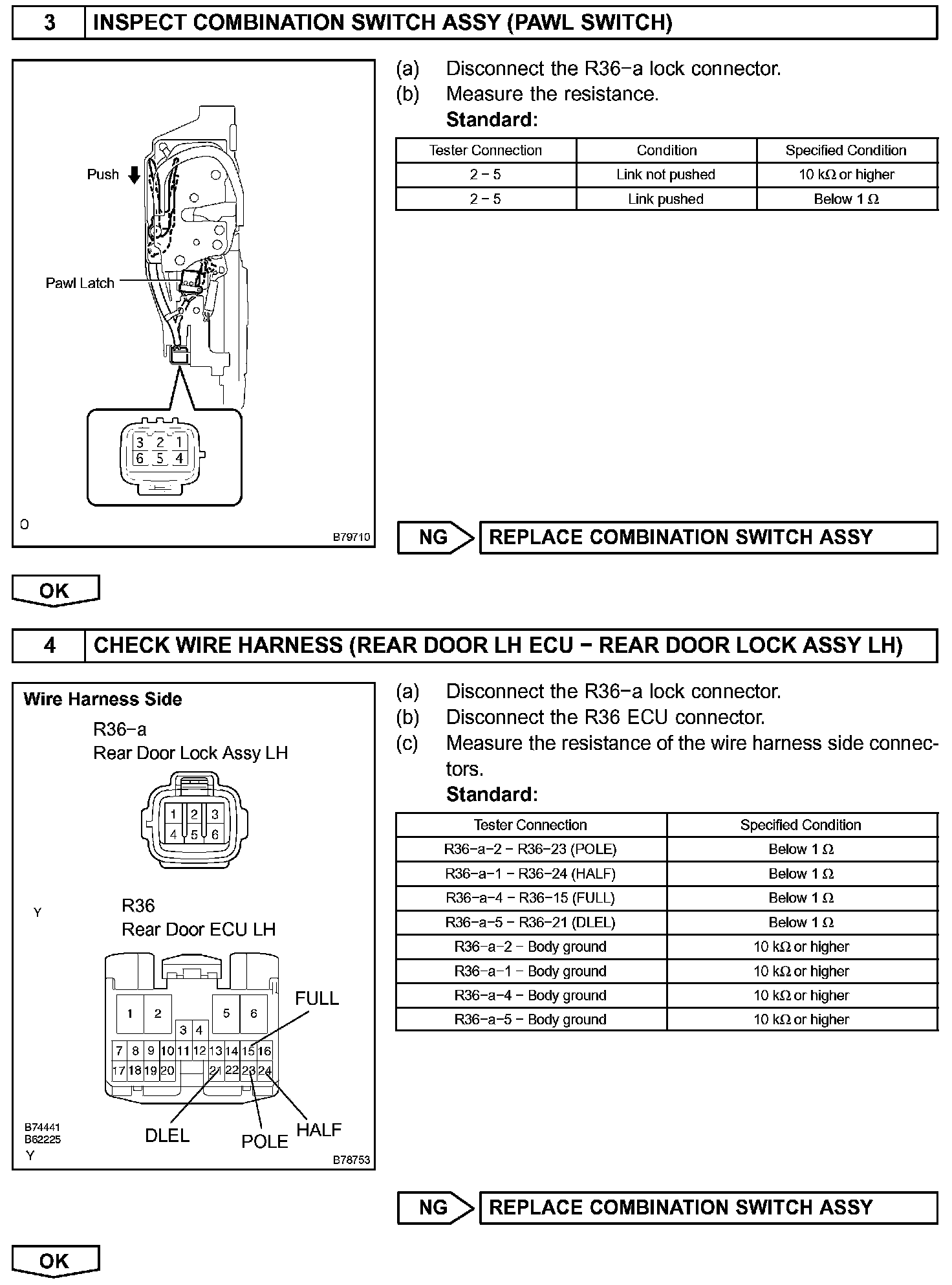

Step 3-4:

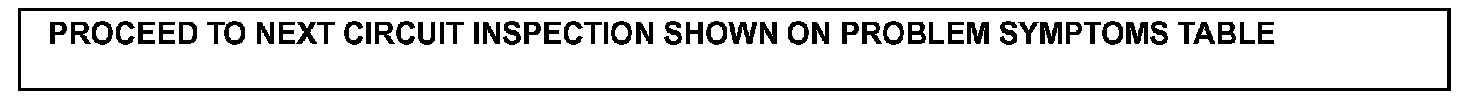

Step 4(continued):

INSPECTION PROCEDURE
