Steering Mounted Controls Transmitter: Service and Repair

Audio Visual System Part 1:

STEERING PAD SWITCH MODULATOR

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.




1. REMOVE SWITCH & VOLUME CASE
a. Disengage the 3 claws and remove the switch & volume case.

2. REMOVE STEERING WHEEL COVER LOWER NO.2
3. REMOVE HORN BUTTON ASSEMBLY




4. REMOVE STEERING PAD SWITCH MODULATOR

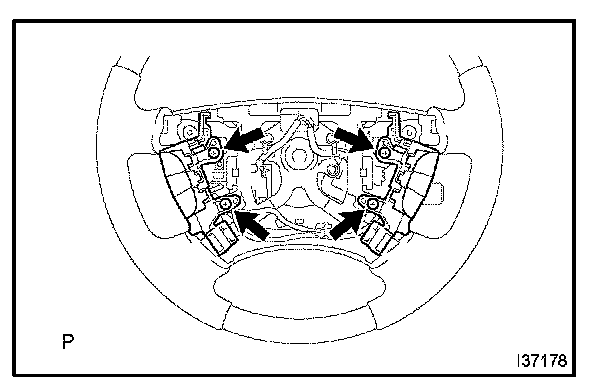

a. Remove the 4 screws.
b. Disconnect the connectors and remove the steering pad switch modulator.

5. INSTALL HORN BUTTON ASSEMBLY
6. INSPECT HORN BUTTON ASSEMBLY
7. SRS WARNING LIGHT
