AVC-LAN Circuit (Radio Receiver Assy - Gateway ECU)

AVC-LAN CIRCUIT (RADIO RECEIVER ASSEMBLY - GATEWAY ECU)

CIRCUIT DESCRIPTION

Each unit of the radio receiver assembly system connected to AVC-LAN (communication bus) communicates by transferring the signals from each switch.

When +B short and GND short occur in this AVC-LAN, radio receiver assembly system will not function normally as communication is discontinued.

In AVC-LAN, radio receiver assembly becomes the communication master, and the radio receiver assembly has enough resistance necessary for transmitting the communication.

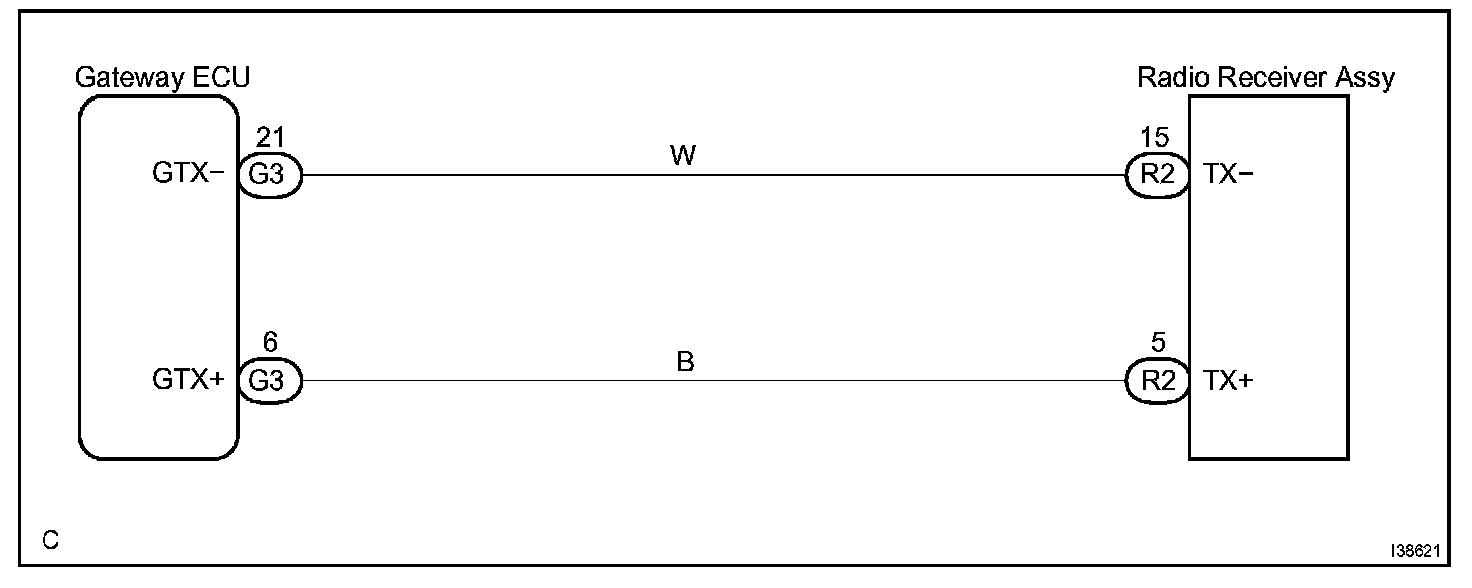

Wiring Diagram:

Step 1-2:

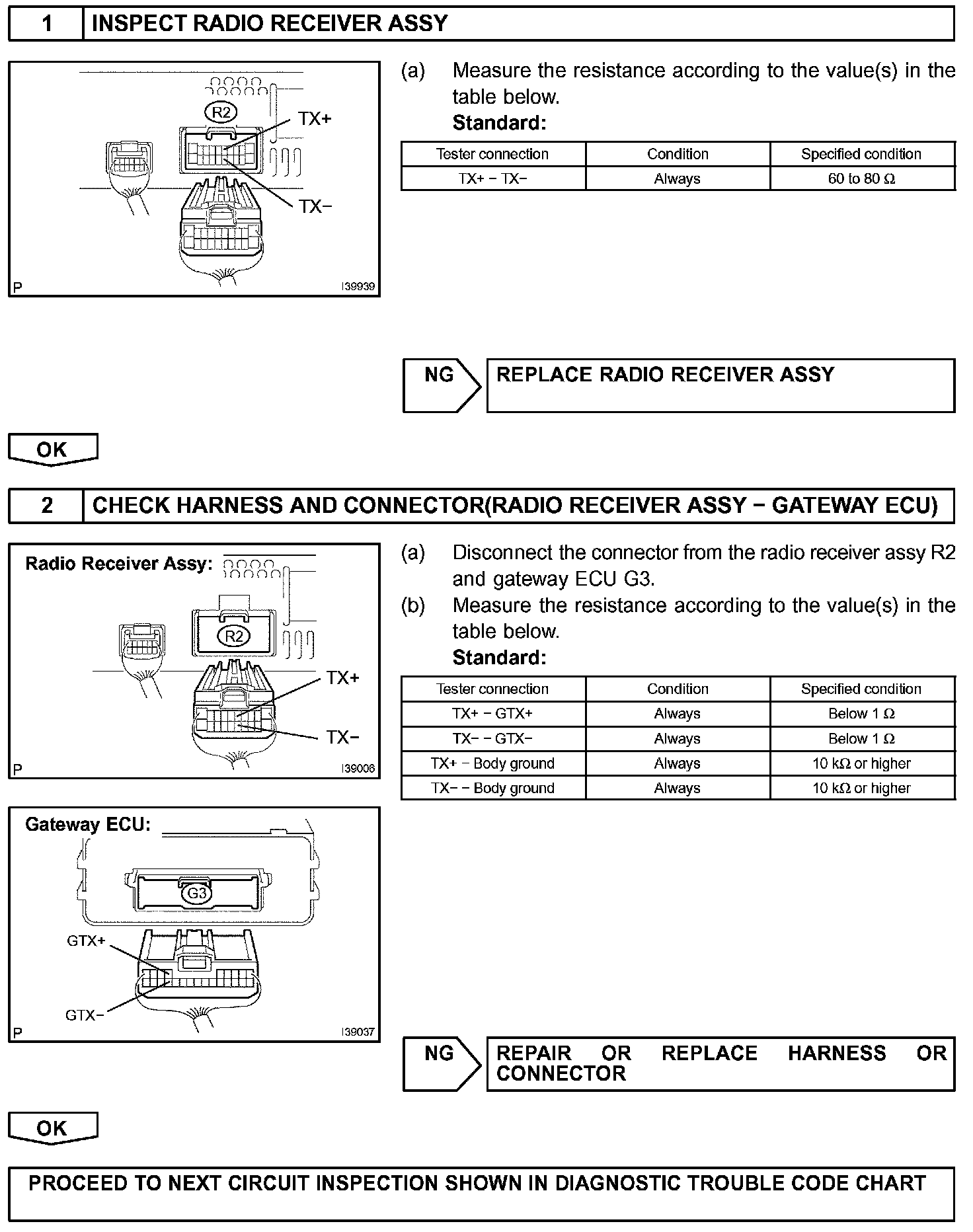

INSPECTION PROCEDURE
